Factory Wholesale Food Additive SS304L Hemp Oil Recycling Evapotator Machine
Wenzhou Yinuo Machinery Co., Ltd.- After-sales Service：Online Support,Visit Client′s Plant Site
- Warranty：1 Year
- Processing Material：Natural Ingredients
- Application：Dairy, Beverage
- Customized：Customized
- Certification：CE, MET, CSA, UL, SA8000, ISO9001
Base Info
- Model NO.：DX
- Power Source：Electric
- Automatic Grade：Automatic
- Applicable in Industries：Herbal Extractor, Glucose, Wine-Making, Starch etc
- Core Components：Heating Tank,Evaporator Tank,Condenser, Sub-Cooler
- Funtion：Remove Water or Solvent
- Feeding：Herbal Extractor Solution,Hemp Oil,Hemp Oil
- Output：Liquid ,Semi-Solid,Ointment
- Heating/Cooling Moodel：Steam,Hot Oil,Hot Water,Electrical
- OEM：Parameter Customization
- Material：304,316L Stainless Steel,Ss2205,Titanium
- Related Words：Evaporation Equipment,Vacuum Distillation
- Key Selling Points：Evaporator in Low Temperature
- Transport Package：Wooden Case Packaging,According to Customer
- Specification：20-10000L
- Trademark：JOSTON
- Origin：Wenzhou, China
- HS Code：8419899090
- Production Capacity：30 Sets,Month
Description
Factory Wholesale Food Additive Ss304l hemp Oil Recycling Evapotator Machine is suitable for the evaporator the water or solvent from solution such as traditional herbal medicine, western medicine, glucose, wine-making, starch, oral liquid, chemical industry, food, natural flavor, food additives, monosodium glutamate, dairy products, hemp Oil ,hemp oil etc.the outlet ointment density is about 1.2g/cm3. also Vacuum External Circulation Low Temperature Single Effect Evapotator Concentrator Machine can be used to recovery the solvent ,like ethonal,methanol ,acetone etc.
Factory Wholesale Food Additive Ss304l hemp Oil Recycling Evapotator Machine Working principle:
The raw steam enters the outside of the tube of the heating chamber, heating up the material and liquid, spraying it into the evaporation chamber from the nozzle for vapor-liquid separation. The material and liquid return to the lower part of the heating chamber for reheating, and the material and liquid are heated and sprayed into the evaporation chamber for circulation. The material is concentrated to a certain extent, and after sampling is determined, the material is discharged from the outlet. The steam evaporated from the evaporation chamber is removed by the demister, then the vapor-liquid separator is removed, and some of the liquid is returned to the evaporation chamber. The remaining two steam is cooled by the condenser and cooler to form liquid into the liquid storage tank, and finally the non condensable gas is discharged into the atmosphere or the vacuum pump is taken away.
Vacuum External Circulation Low Temperature Single Effect Evapotator Concentrator Machine including the following units : heating tank ,evaporator tank ,gas/water separator ,condenser ,sub-cooler ,collection tank and pipeline etc.
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?

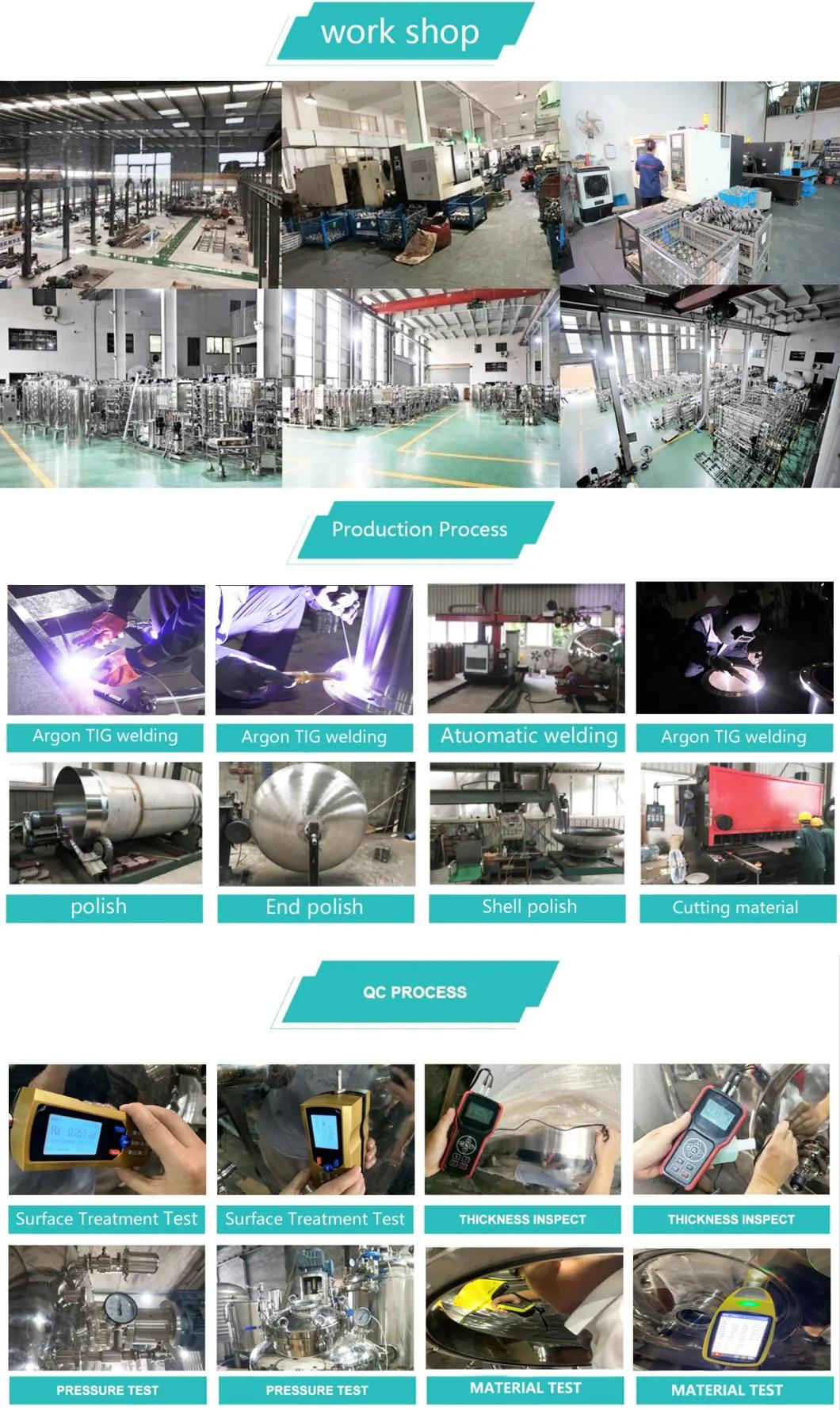

We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
