• Model NO.：GZL-3
• Power：21kw
• Customized：Customized
• Product Name：Pharmaceutical Herbs Vacuum Lyophilizer Large Scal
• Model：Gzl-3 Freeze Dryer
• Freeze Dried Area：3.24 M2
• Capacity：30 Kg
• Shelf Dimensions：600*900 mm
• Ice Collecting Capacity (Kg/Batch)：60 Kg,Batch
• Heating Method：Electric Heating
• Ultimate Vacuum：<5 PA
• Cold Trap Temperature (°c)：-75
• Defrosting Mode：Spraying + Soaking
• Dimension(L*W*H)：2800*1200*2500 mm
• Certification：CE
• Key Selling Points：High Safety Level
• Material：SUS304
• Cooling Mode：Water Cooling
• Transport Package：Plywood Case Package
• Specification：2800*1200*2500mm
• Trademark：LABOAO
• Origin：China
• HS Code：8419399090
• Production Capacity：10 Set,Month

Basic Info.

Model NO. GZL-3 Power 21kw Customized Customized Product Name Pharmaceutical Herbs Vacuum Lyophilizer Large Scal Model Gzl-3 Freeze Dryer Freeze Dried Area 3.24 M2 Capacity 30 Kg Shelf Dimensions 600*900 mm Ice Collecting Capacity (Kg/Batch) 60 Kg/Batch Heating Method Electric Heating Ultimate Vacuum <5 PA Cold Trap Temperature (°c) -75 Defrosting Mode Spraying + Soaking Dimension(L*W*H) 2800*1200*2500 mm Certification CE Key Selling Points High Safety Level Material SUS304 Cooling Mode Water Cooling Transport Package Plywood Case Package Specification 2800*1200*2500mm Trademark LABOAO Origin China HS Code 8419399090 Production Capacity 10 Set/Month

Product Description

Pharmaceutical Herbs Vacuum Lyophilizer Large Scale Freeze DryerFreeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze
drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their

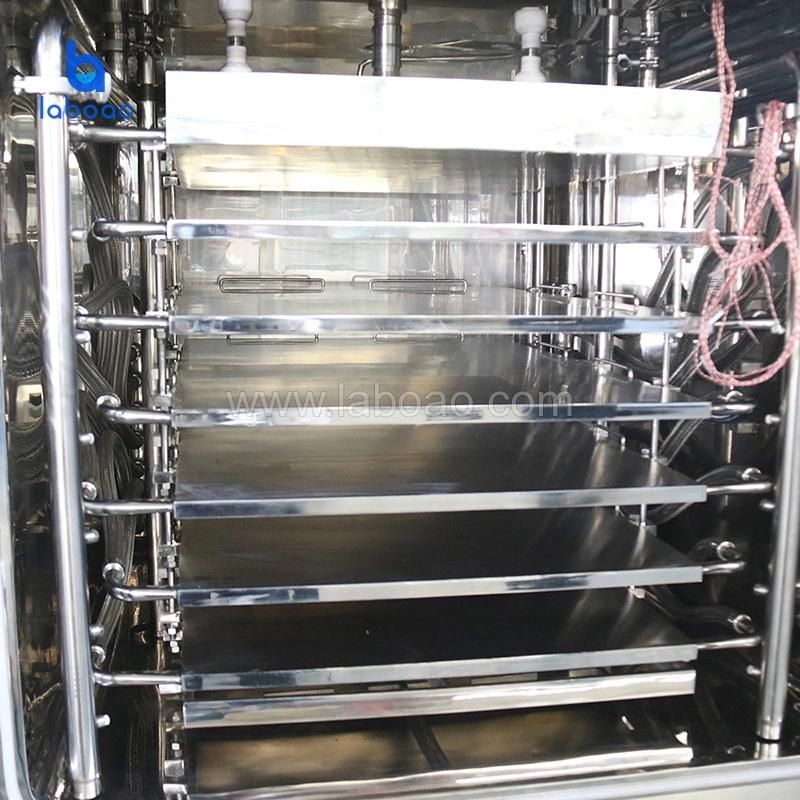

chemical and biological characteristics after being watered.Feature1. The clapboard is made of professional technology, with high pressure resistance, high flatness and good temperature uniformity.

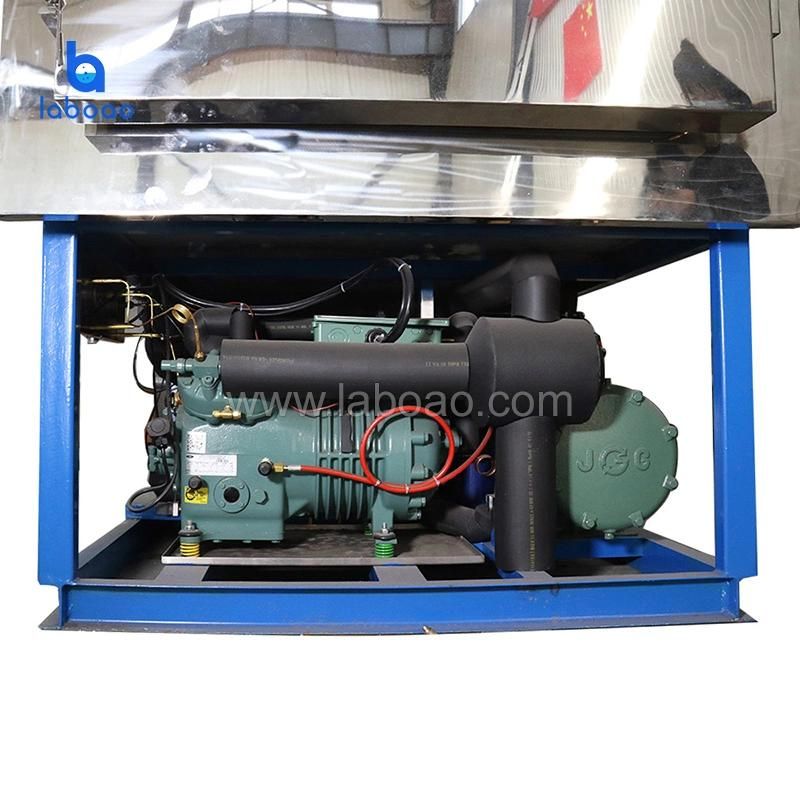

2. High-efficiency mixed refrigerant medium, low freezing point and high boiling point, high heat exchange efficiency.
3. The drying curve optimization control algorithm can control the product heating rate and vacuum value during the drying stage.
4. Professional gas diversion design and control technology, strong water catching capacity and high drying efficiency.
5. During the drying operation, the vacuum degree is adjusted to avoid foaming and blowing of special substances and improve the
drying efficiency.
6. Industrial-grade embedded touch screen + dedicated SH-HPSC-IV modular controller, the system is stable and reliable, and the
control accuracy is high.
7. The professionally designed LYO-CONTROL control system can save multiple sets of process recipes, and can adjust the
process in real time during the drying process to improve the process optimization rate.
8. Flexible manual + automatic control mode, manual for exploring the process, automatically for mass production.
9.  User level and password can be set, decentralized operation management.
10. Optional powerful LYO-MEGA host computer control system, which can record and save operating data, curves and alarm
records for up to ten years to improve the traceability of the product; at the same time, it is convenient for observation, operation
and fault diagnosis.
11. Non-standard customization can be made according to user needs.

Specification

Model	GZL-3
Drying area	3.24
Input capacity (10mm thickness) (L)	30
Shelf number (Layers)	6+1
Shelf size (mm)	600*900
Shelf space (mm)	80
Temperature range (°C)	-50~+80
Water vapor condensation (Kg/D)	≥60
Cold trap temperature (°C)	≤-75
Cooling mode	Water cooling
Defrost mode	Water immersion

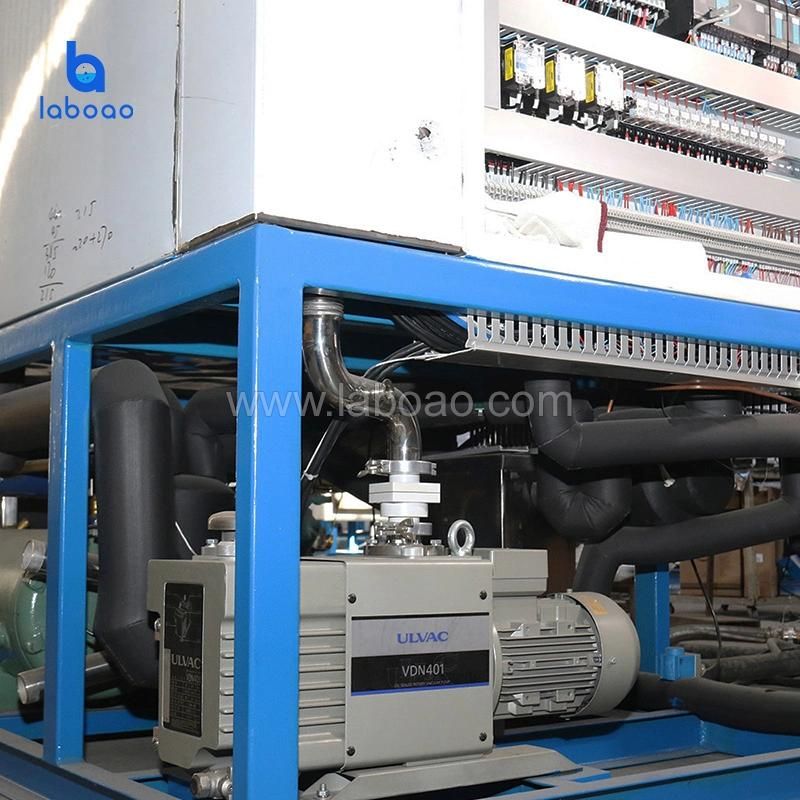

Vacuum (Pa)	≤5
Power (KW)	21
Size (L*W*H) (mm)	2800*1200*2500
Weight (kg)	2800
