• Model NO.：JTM-80
• Press Materials：peanut,sesame,soybean etc
• Press Series：Second
• Condition：New
• Customized：Customized
• Body materials：Stainless Steel
• Capacity：Different According to Requirement
• Materials：Peanut,sesame,spybean etc
• English Manual：Yes
• Average lead time：20 days
• Transport Package：Wooden Box
• Specification：CE
• Trademark：VIC
• Origin：China
• Production Capacity：5000sets,Year

Basic Info.

Model NO. JTM-80 Press Materials peanut,sesame,soybean etc Press Series Second Condition New Customized Customized Body materials Stainless Steel Capacity Different According to Requirement Materials Peanut,sesame,spybean etc English Manual Yes Average lead time 20 days Transport Package Wooden Box Specification CE Trademark VIC Origin China Production Capacity 5000sets/Year

Product Description

                                                              JTM-system colloidal mill

Main application:
This JTM series colloidal mill (butter mill) machine can be applied to mill food,
pharmacy, chemical and other industries, it can crush, emulsify, homogeneity and mix, the main technology is up to international standard.

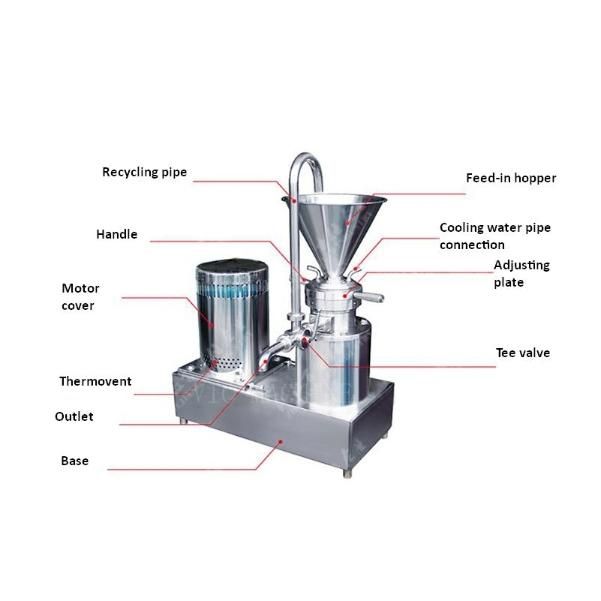

Main structure:

1. Main parts adopt high quality stainless steel, with corrosion resisting and no poison.
2. Main parts stator, rotor adopts specific processing and heating processing technology, with long life and high precision.
3. Stator, rotor and choose different materials, matched with grinding and cutting etc different structure and teeth type for choice, the processing gap can be adjusted and with dial, easy to control and ensure the processing quality.
4. Matched with cooling system to ensure the processing materials' structure.
5. Main shaft and motor separate design and the user can choose different rpm according to demand.

Scope of Application:
Food processing industry: juice, jam, beans, peanuts, cream, beverage, malted milk, egg yolk, ice-cream, etc.
Chemical industry concerned with products for daily use: grease,water quality,powder cream high-level cosmetics; shoe polish, tooth paste, soap, cleaning detergent, bath extract.
Chemical industry: lubricating grease, paints, coloring agents, emulsified asphalt, cementing compound, etc.
Other industries: plastic industry, pharmaceutical industry, textile industry, construction industry and coinage.

Main data:

Model	JTM-50	JTM-80	JTM-110	JTM-130	JTM-180	JTM-240
Processing fineness(micron)	50-100	50-100	100-200	100-200	100-200	100-200
Hopper volume	3L	8L	8L	10L	10L	20L
Diameter of the lower hopper	40mm	50mm	50mm	90mm	90mm	120mm
Capacity(kg/h)	10-15	70	200	400-600	800-1000	1500-2000
Power(kw)	1.1	4	7.5	15	18.5	45
Weight(kg)	50	150	175	285	340	1300
Size(mm)	530*260*580	640*410*900	740*430*980	830*440*1100	830*490*1100	1320*600*1280

More pictures:

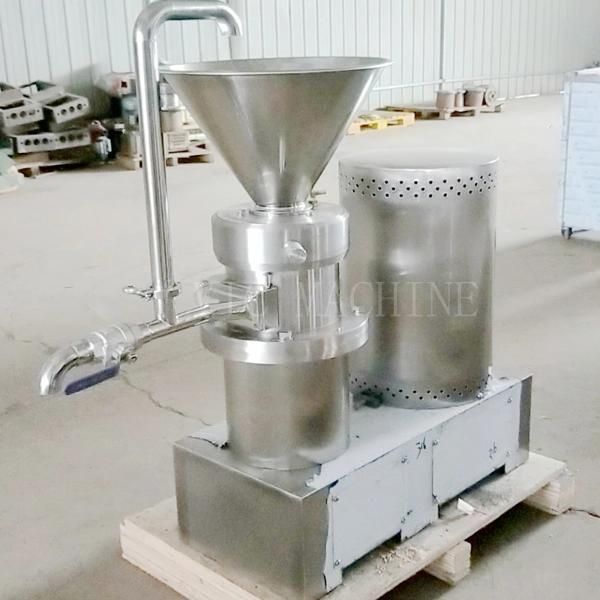

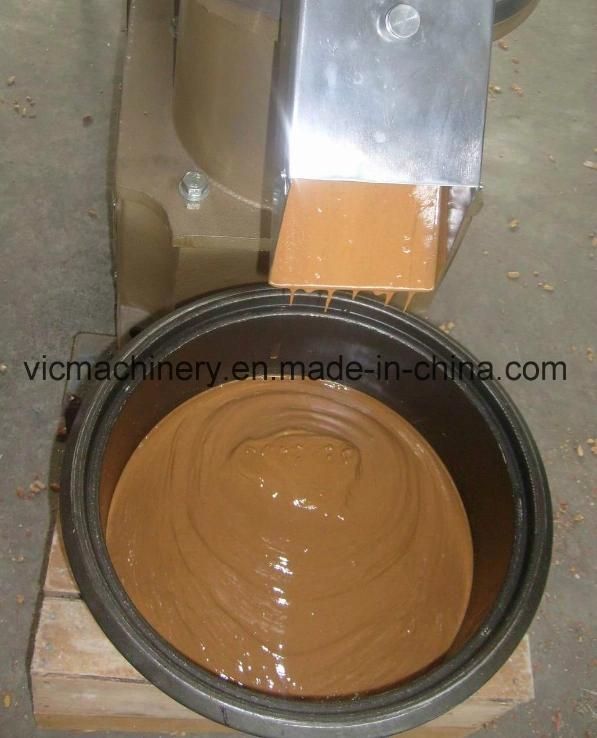

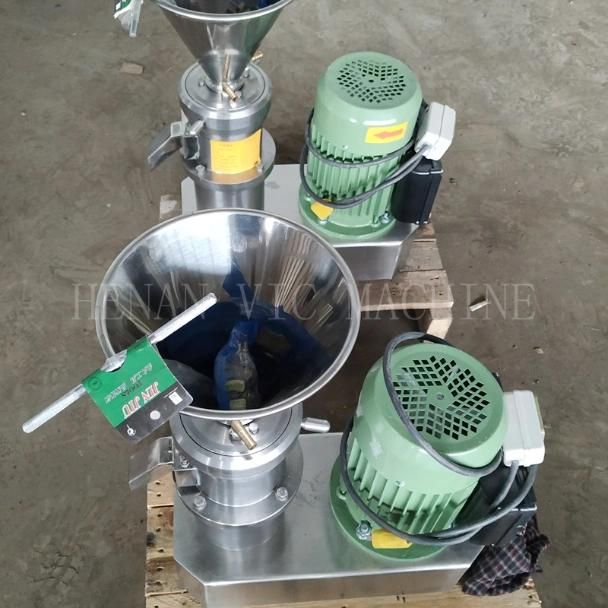

Butter mill product


Gear

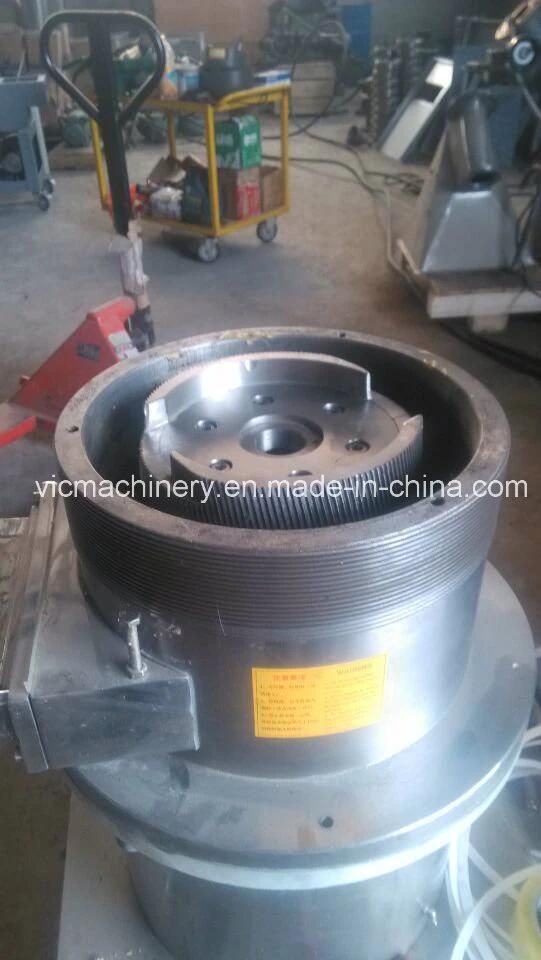

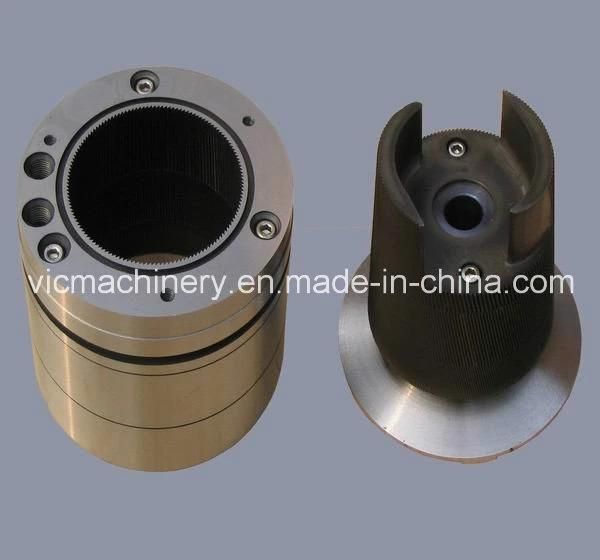

Stator

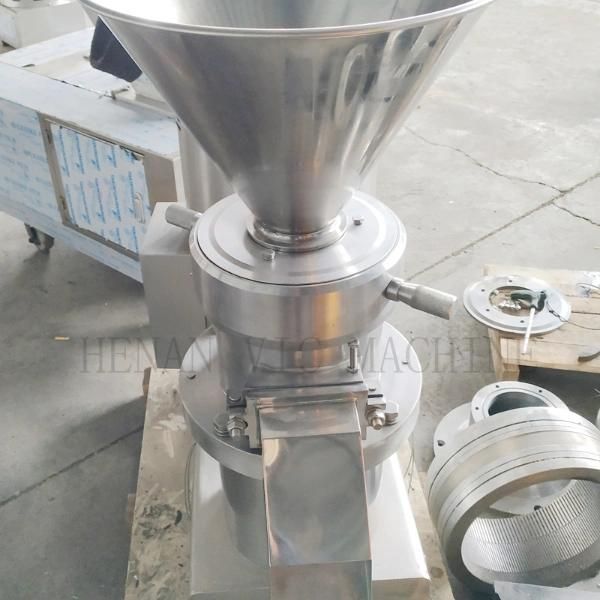

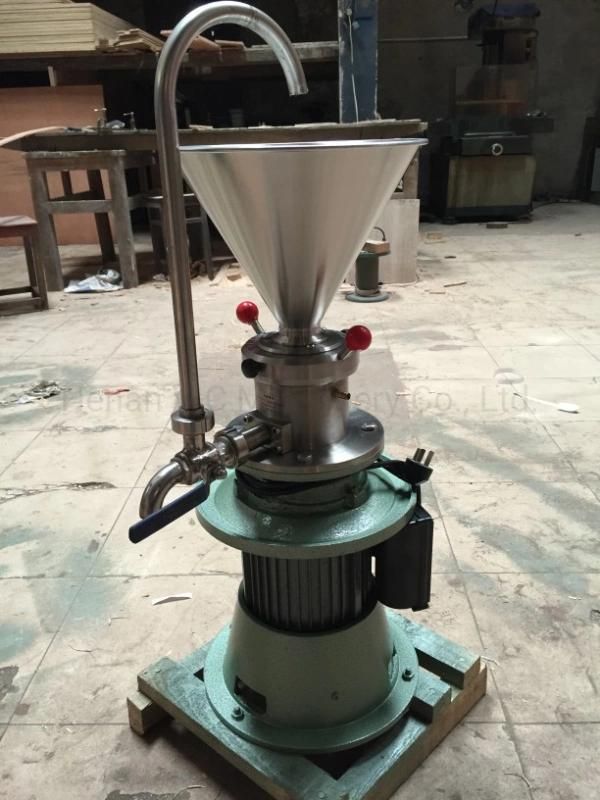

Other  model

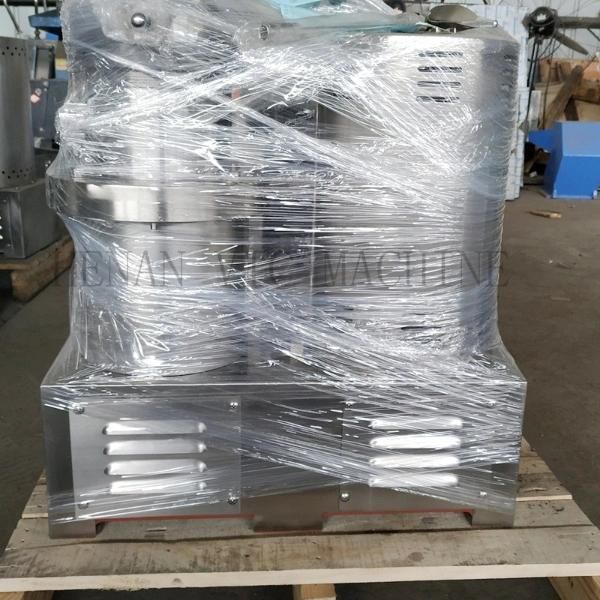

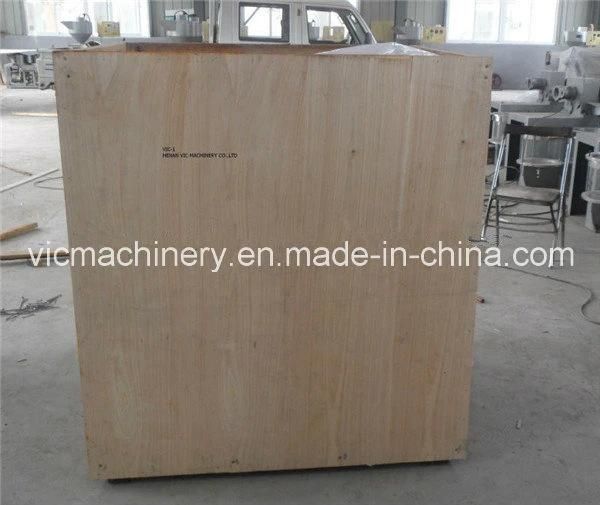

Package

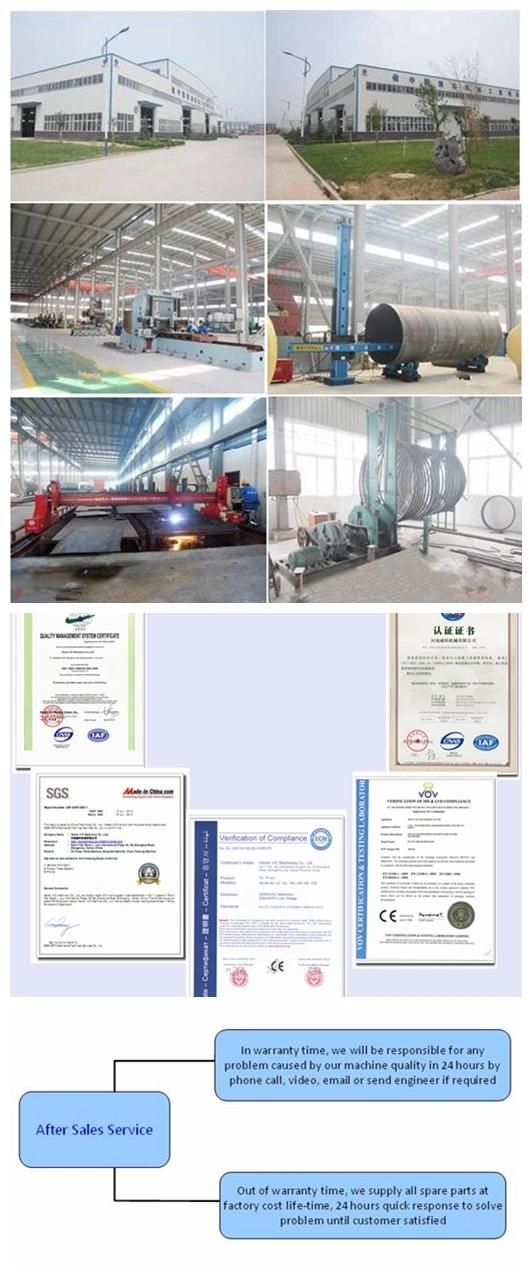

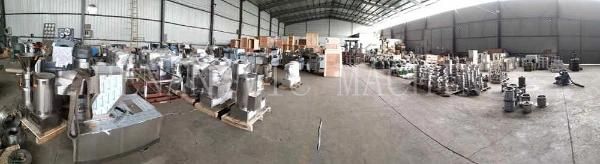

Our factory
