Agricultural Complete Set Automatic Complete Set 15tpd Parboiled Rice Plants

Zheng Zhou Sida Agriculture Equipment Co., Ltd.
  • After-sales Service：Lifelong Service and Online Service
  • Warranty：1 Year After Operation Date
  • Type：Rice Mill
  • Application：Beans, Wheat, Starch, Rice flour, 15tpd Parboiled Rice Plants
  • Voltage：24kw, 380V, 50Hz
  • Appearance：Vertical

Base Info

  • Model NO.：SD-RM1221-17
  • Press Materials：Paddy
  • Press Series：Second
  • Condition：New
  • Customized：Customized
  • Model No.：SD-Prm10
  • Power：121kw
  • Capacity：10 Ton Per Day
  • Broken Rice Rate：2%-3%
  • Rice Milling Rate：68% - 72%
  • Operation：Automatic
  • Useful Life：More Than 20 Years
  • Installation：Engineers Are Available to Overseas
  • Transport Package：Wooden Case
  • Specification：Stainless Steel
  • Trademark：SIDA
  • Origin：Henan Province, China
  • HS Code：843780000
  • Production Capacity：5-8 Plant ,Month

Description

Item No.Processing flowDescription1Precleaning & DestonerIn this stage we remove the dust from the paddy,if the paddy has dust when it is soaking it will pollute the water and influence the nutrition of rice.2SoakingThe aim of soaking is make paddy absorb enough water, creat conditions for starch pasting.During the course of starch pasting paddy must absorb above 30% water,or it will not be able to fully steam the paddy in next step
and thus to influence the quality of rice.3SteamingAfter soaking the inside of endosperm has got many water, now its time to steam the paddy to realize starch pasting.Steaming can change the physical structure of rice and keep the nutrition, to increase the production ratio and make rice easy to store.4Drying and coolingThe aim of drying is to make moisture reduced from around 35% to around 13%.To reduce moisture can greatly increase the production
ratio and make rice easy to store and transport.5HuskingAfter soaking and steaming it will be very easy to husk the paddy and save energy, rice husking machine is used to remove paddy peel, when we will get brown rice.6Rice separatorAfter husking machine, still have some paddy cannot remove peel fully, so using the machine,separate paddy and brown rice, paddy will go to rice husking machine, and brown rice will go to rice mill machine.7Rice milling The pearling of pre-boiled rice cost much more time than normal paddy.The reason is that after soaking the rice is easy to become
smectic. In order to avoid this problem we use blowing rice miller, and increase the rotating speed of rice miller,the rice bran transmission adopt neaumatic type to reduce the friction.8Polishing and gradingGrading machine is used to separate different quality rice and separate broken rice from the good ones.Good rice come through the polishing machine, it will make the milling rice become more beautiful color and more smooth, thus to increase the quality of rice.9Color sortingThe rice we get from above step still has some bad rice, such as yellow, black rice, broken rice or some other grains or stone.So here we use color sorting machine to select the bad rice and other grains.Color sorting machine is an important machine to ensure we can get high quality rice.10PackingThe finish rice now is ready dear all! Let's use our automatic weighing and packing machine to make them into 5kg 10kg or 50kg bags. This machine is electric type, you can set it like a small computer, then it will start working according to your request.

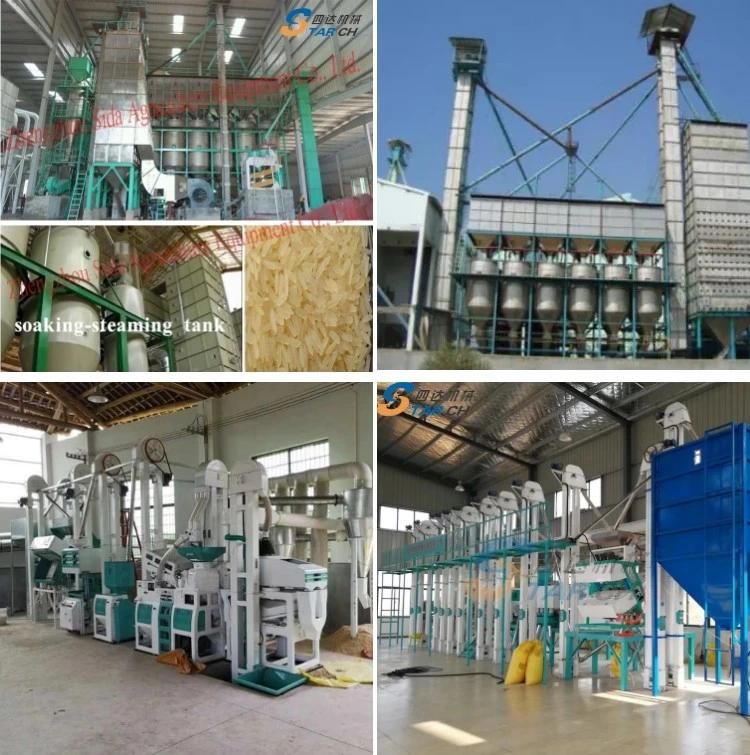

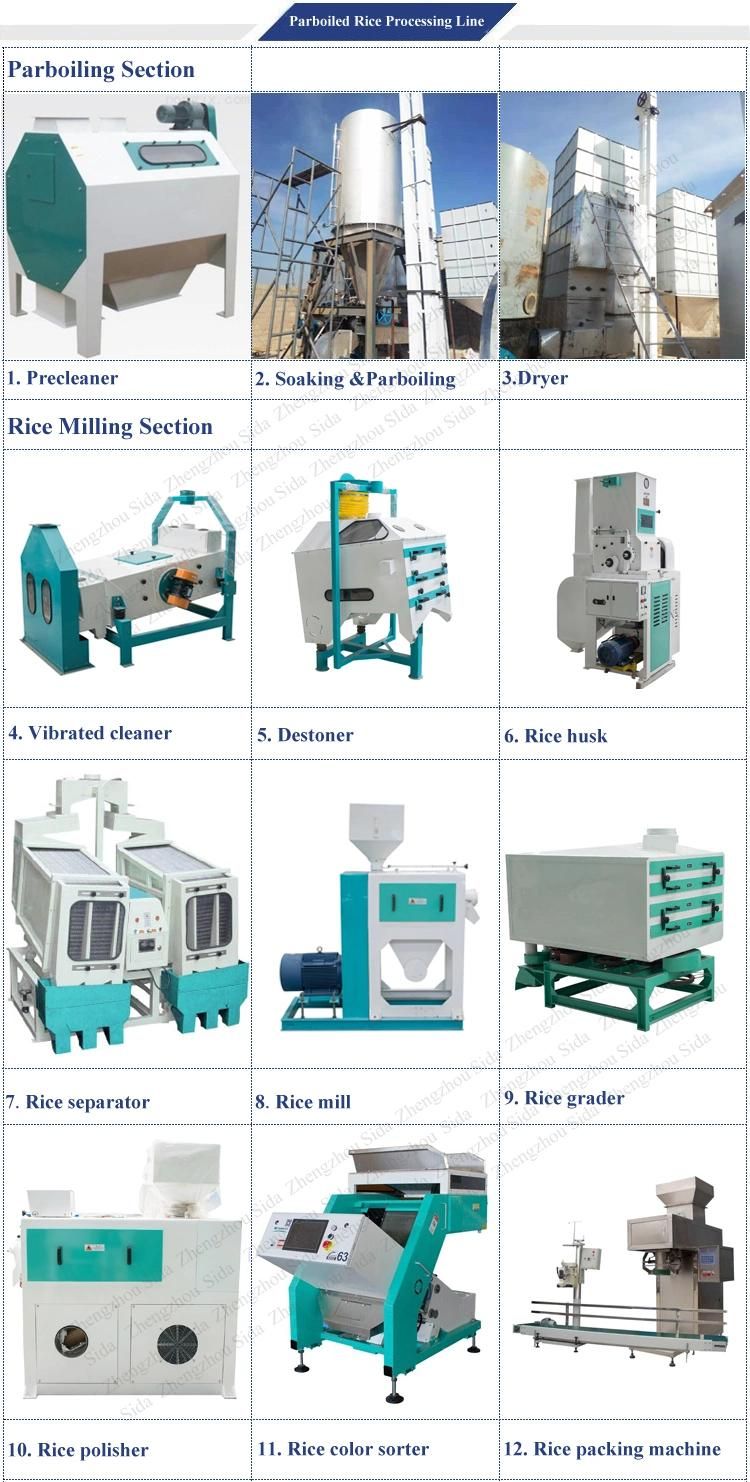

Detail pictures of 15tpd parboiled rice plants
Agricultural Complete Set Automatic Complete Set 15tpd Parboiled Rice Plants
Customer feedback

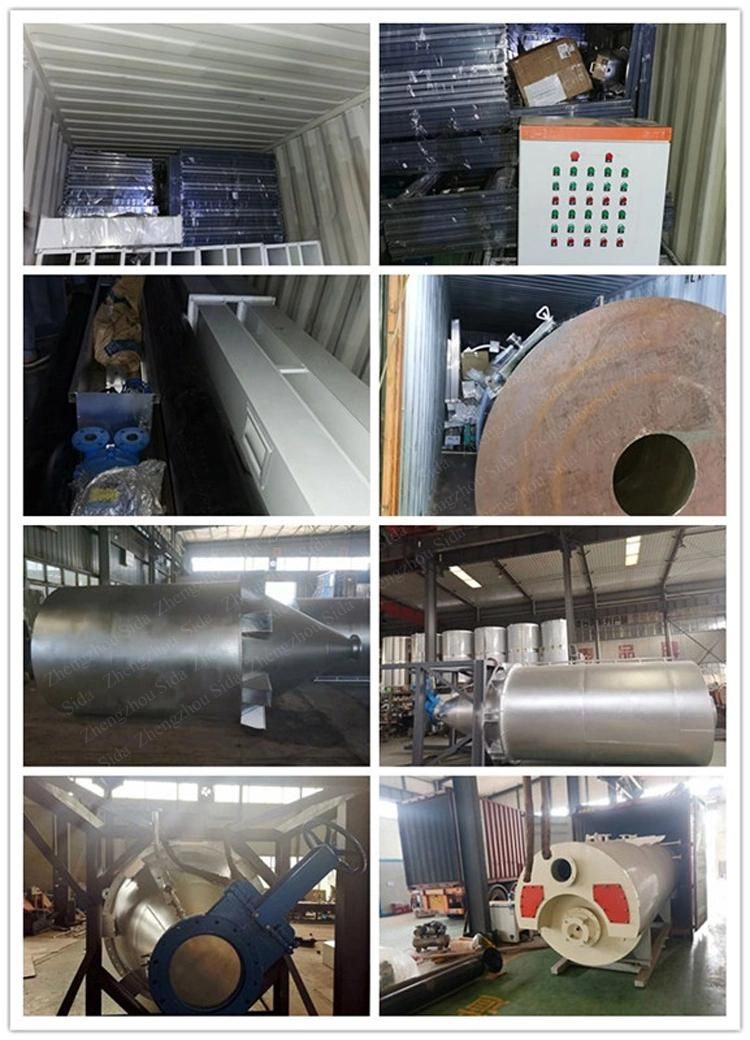

Agricultural Complete Set Automatic Complete Set 15tpd Parboiled Rice PlantsPackaging and shipping
Agricultural Complete Set Automatic Complete Set 15tpd Parboiled Rice Plants
More installation sites
Agricultural Complete Set Automatic Complete Set 15tpd Parboiled Rice Plants
Agricultural Complete Set Automatic Complete Set 15tpd Parboiled Rice Plants

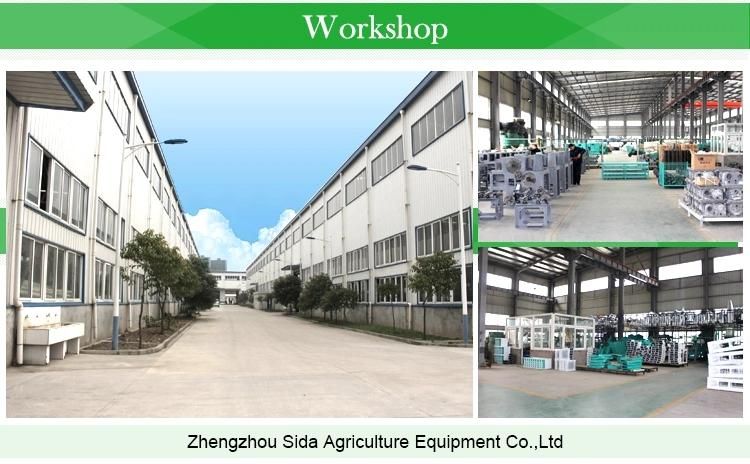

Company profile
Zheng Zhou Sida Agriculture Equipment is the main agriculture equipment manufacturer with more than 10 years' experience in China. Our main machines covers:1. Rice milling machine(10-200tpd);
2. Parboiled rice milling machine(5-200tpd);
3. Cassava starch/flour/garri processing lines.
We have the professional technology, research, design and sale teams. And our main markets cover Africa (such as Nigeria, Ghana,Cameroon, Gabon and so on), Europe, America.... Welcome to visit our factory!We can supply20-300ton/day complete rice mill line(Parboiled rice line) and different kinds of machines like husker,destoner, rice grader, color sorter, paddy dryer, etc. Our rice equipment have been exported and installed in rice successfully in Nigeria, Thailand, India, Sri Lanka, Indonesia and so on.
Agricultural Complete Set Automatic Complete Set 15tpd Parboiled Rice Plants
FAQ1.Can I only buy the parboiled or rice milling section?
Yes,also you can buy some single rice processing machines, like mist polisher,color sorter and packing machines. 2.Are the engineers available to overseas to install for us?
Yes,the enigneer will come to your factory to guide the install and train your staffs.
3.How long is your warranty?
Our warranty time is 1 year. During warranty time,we will send engineers to repair for you if anything wrong happens.
4.What's the power type of the paddy parboiler and drying machines?
We have diesel,gas,wood,coal type etc,can also customized for you based on your requirements.
