• Model NO.：SSW
• Model No.：Ssw
• Material Type：Liquid
• Feed Cylinder Structure：Single Feeding
• Filling Principle：Negative Pressure
• Dosing Device：Plunger
• Structure：Linear
• Transport Package：Wooden Case
• Specification：1000*600mm
• Trademark：SUNSWELL
• Origin：China
• HS Code：8422301090
• Production Capacity：100PCS,Year

Basic Info.

Model NO. SSW Model No. Ssw Material Type Liquid Feed Cylinder Structure Single Feeding Filling Principle Negative Pressure Dosing Device Plunger Structure Linear Transport Package Wooden Case Specification 1000*600mm Trademark SUNSWELL Origin China HS Code 8422301090 Production Capacity 100PCS/Year

Product Description

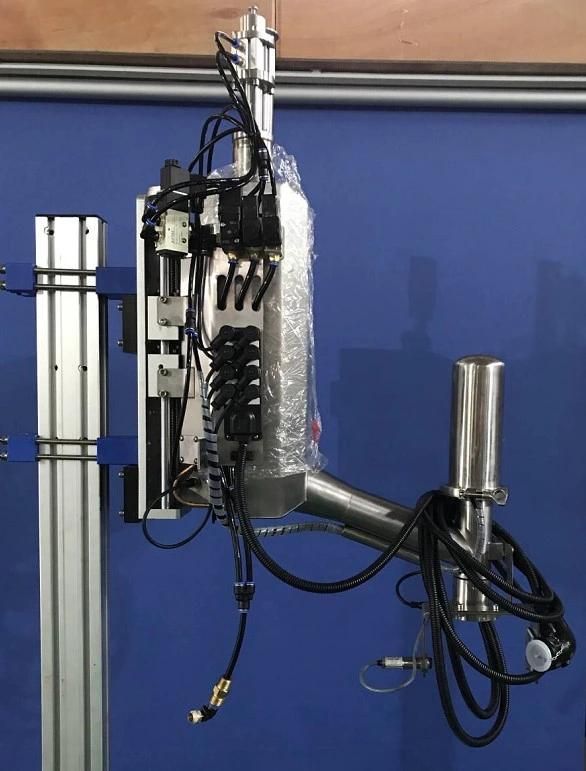

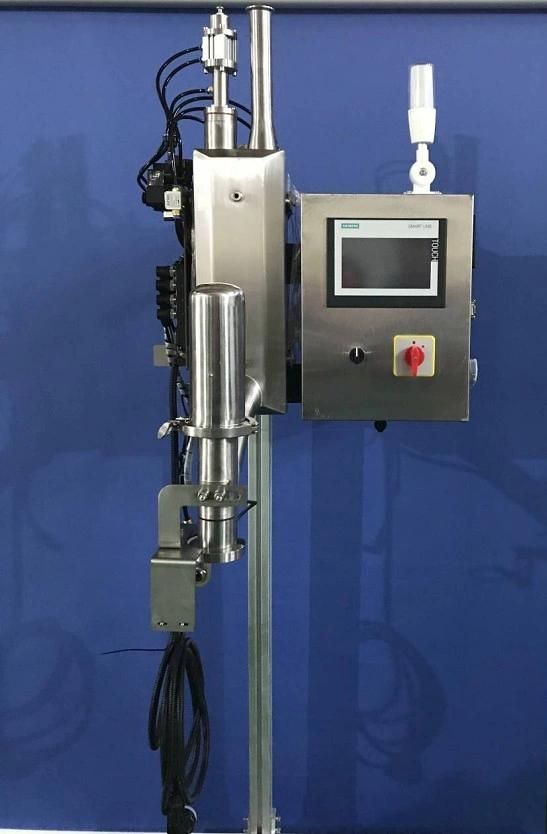

Aluminum Can Beverage Liquid Nitrogen Doser


Liquid Nitrogen Dosing Machine is the latest liquid nitrogen dosing machine in China which uses the similar machines abroad for reference. It could control dosing volume accurately, no-container-no-liquid dosing, small size, easy installation and could coordinate with any filling production line. Control system comprises Siemens PLC and touch screen, all pipes adopt vacuum heat-insulated pipes which could ensure minimum consumption of liquid nitrogen and no frosting operation condition.



Working Process:

     Liquid nitrogen gasify and volume expansion 700 times, extrude the air out and form vacuum in the can, increase the aluminum can/pet can internal pressure to prolong the canned beverage shelf life and keep good looking for better transportation and store.

Operation Conditions:

1,Supple of Liquid Nitrogen: Regulate to 15 (0.1MPa) and connect to liquid nitrogen pipe.

2,Compressed Air or Nitrogen: Supply to the working of dosing valve. The pipe diameter must be 1/4inch and pressure range is from 50psig to 100psig (3.4 to 6.9 bar). Set the pressure to 50 psig (0.35MPa). Please do not set the pressure too high, high pressure means high impact, it will shorten the lifetime of dosing valve element and internal vacuum pipe.


Characteristics:

1,No container no dose and interval dose method in low speed to reduce liquid nitrogen consumption; dosing valve is always open in high speed. Automatic detects high speed or low speed.

2,Vacuum & heat insulation protection

3,Special nozzle care system effectively avoided nozzle frost and ice blockage phenomenon.

4,Liquid-gas separator ensures liquid nitrogen in a ultra cold state, improves liquid phase purity to make the dose more precision and steady.

5,Liquid nitrogen buffer function, effectively control liquid nitrogen bounce splash. Liquid nitrogen dosing amount is steady and ensures can pressure equality.

6,Filter(optional) 10μm to removes particulate pollution

7,Precise dosing liquid nitrogen speed could reach to 300cpm, continuous dosing speed could reach to 800cpm

8,Capacity adjustability and effectively vacuum liquid nitrogen insulation pipe ensures minimum liquid nitrogen consumption

9,Advanced dosing valve ensures transport pure and liquid nitrogen.

10,Lowest outlet pressure of dosing valve ensures minimum liquid nitrogen splash.

 11,No frost operating condition.

12,Precise adjustability of dosing amount and dosing time

13,Continuous self-monitoring through alarm indicator

14,PLC control/Touch screen/user-interface language selectivity

15,Could connect liquid nitrogen vacuum and heat insulation pipe, also could provide a complete liquid supply system from liquid nitrogen storage tank to filling production line.

16,Small size and easy to install

17,Diversity machine types ensures to suit different capacity production lines.

18,Apply to all different sizes pet bottles and thin-wall easy open cans production lines



Main technical parameters:

Model	SSW
Capacity	30~400 cans/ min
Application	Suitable for can and bottle
Voltage	380 V  50HZ
Power	200w
Weight	100kg
Dimension	1000×600mm



1.About us

Set up in 2008, Sunswell leads the market in the field of liquid bottling, blow molding, labeling, packaging machinery and process technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.


We can customize liquid food production lines according to customers' demand. Every customer is the result of our proven experience and innovation. We continually focus on providing customers with advanced technology, engineering and facility that are designed with one motto in mind: ensure you to reach business goals with most optimized planning.


Why choose us?

_{(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide}


Office & Factory & Workshop








2.Exhibitions

Sunswell,as an professional liquid filling and packing machine manufacturer,we often have chance to go out for exhibition to show our beverage filling machines and communicate processing technology with other industrial colleagues.



3.Certifications






4.Service






Spare Parts / Maintenance, Installation & Commissioning / Training

^{No matter whether you're a newcomer or a sectoral expert - we have the specialists who can provide the comprehensively can-do support you need for planning a new facility in terms of not only actual beverage production, but also filling, packaging, utilities and logistics. In closely responsive consultation with you, from a multiplicity of possible options, we select the technologically and commercially most effective variant, handle the design and planning work, and bring the project to a successful conclusion at your chosen location. Sunswell is not only the consultant here, but also takes responsibility for executing the entire project.}


Packing & Delivery





FAQ
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.


  Contact Us

Salesperson:	Alex Hou
Mobile:	0086 136 0622 5421
Tel:	0086 512 5850 1665
Website:	sunswell.en.made-in-china.com
