• Model NO.：SYCW Check Weigher
• Name：Check Weigher
• Speed：60,Min-180,Min
• Weighing Section Size：Customized
• Weighing Platform Length：Customized
• Weighing Belt Width：Customized
• Gas Source Requirement：Dry,0.5-0.7MPa
• Pneumatic Joint Diameter：6mm-10mm
• Temperature：-10degree-50degree
• Humidity：20%-90%,No Condensation
• Transport Package：Plywood Case
• Specification：Customized
• Trademark：No Brand
• Origin：China
• Production Capacity：1000sets,Year

Basic Info.

Model NO. SYCW Check Weigher Name Check Weigher Speed 60/Min-180/Min Weighing Section Size Customized Weighing Platform Length Customized Weighing Belt Width Customized Gas Source Requirement Dry,0.5-0.7MPa Pneumatic Joint Diameter 6mm-10mm Temperature -10degree-50degree Humidity 20%-90%,No Condensation Transport Package Plywood Case Specification Customized Trademark No Brand Origin China Production Capacity 1000sets/Year

Product Description

Conveyor Belt Scale Weight Machine Weigher for Food Sorting
Conveyor Belt Scale Weight Machine Weigher for Food Sorting
Conveyor Belt Scale Weight Machine Weigher for Food Sorting

1>Brief Introduction~Belt Scale check weigher conveyor/weight checker machine
Automatic conveyor check weigher machine is also called checking weigher machine, dynamic check weigher etc. It Is a Device For Performing Online Weighing Detection On The Finished Product By Dynamic Weight Reading.
It is widely used for bags with bulk material in food&beverage,meat packing,hardware, electronic etc. Industries.
2>Functions~Belt Scale check weigher conveyor/weight checker machine
1)Package Product Underweight Detection, Overweight Detection.
2)In-Package Missing Detection.
3)Unqualified Product Exclusion,Ensure Product Weight Meets Established Requirements.
4)Save Manpower, Reduce Waste, Increase Production, And Improve Product Quality And Integrity.
5)IP65 Dust-Proof And Water-Proof.

3>Parameters~Belt Scale check weigher conveyor/weight checker machine

Weighing Range	10g-30kg
Accuracy	±2g-5g
Speed	60/min-180/min
Belt Speed	5m-100m/min
Weighing section size	Can be customized
Weighing platform length	Can be customized
Weighing belt width	Can be customized
Voltage	220V±20%,50Hz
Gas source requirement	Dry,0.5-0.7MPa
Pneumatic joint diameter	Φ6mm-φ10mm
Temperature	-10ºC-50ºC
Humidity	20%-90%,no condensation
Reject method	Air blow,lever,pusher-bar,slide

4>Features~Belt Scale check weigher conveyor/weight checker machine
1)Large Weighing Platform, Wide Application Range, High Precision And Fast Speed.
2)The Machine Body Is Made Of SUS 304 And Meets GMP And HACCP Regulations. It Can Adapt To Dry And Humid Environments.
3)Fully Automatic Detection, Eliminating Human Error.
4)Compatible With Most Packaging Machine Outputs And Seamlessly Integrated With Production Lines.
5)The Mechanical Structure Is Simple, The Equipment Maintenance Is Convenient And Quick, And It Is Easy To Clean.
6)Large Size Touch Screen For Easy Operation, Intuitive Display And Easy Operation.
7)Multiple Languages Can Be Set.
8)The Belt Is Made Of Food Grade Material, Safe And Hygienic, Wear Resistant And Impact Resistant.

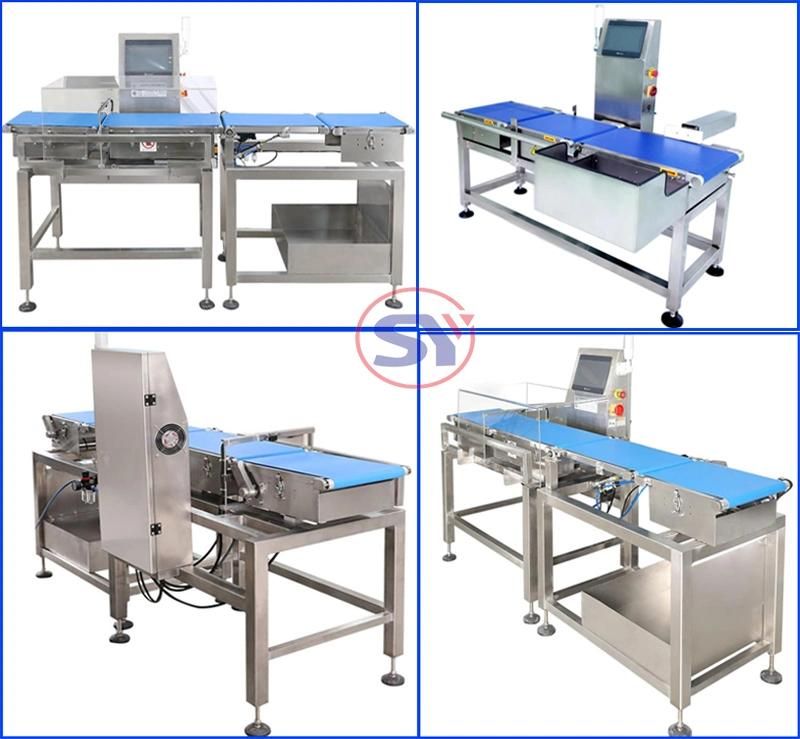

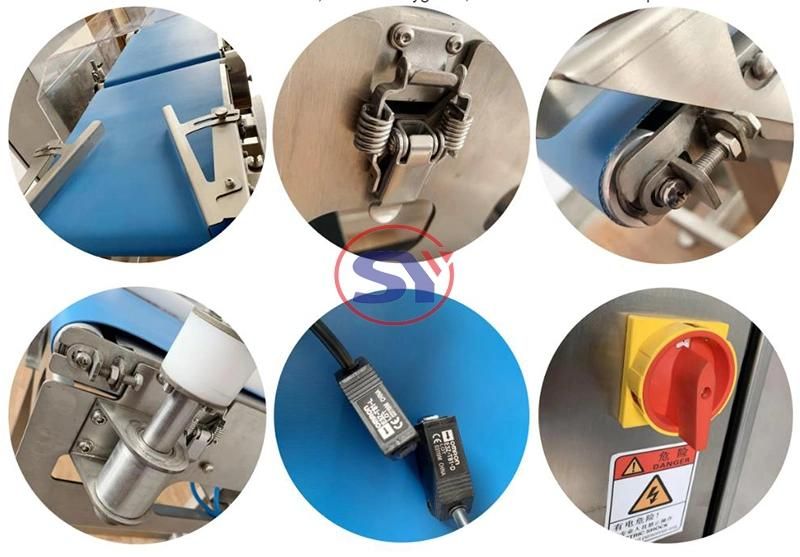

5>More photos of Belt Scale check weigher conveyor/weight checker machine

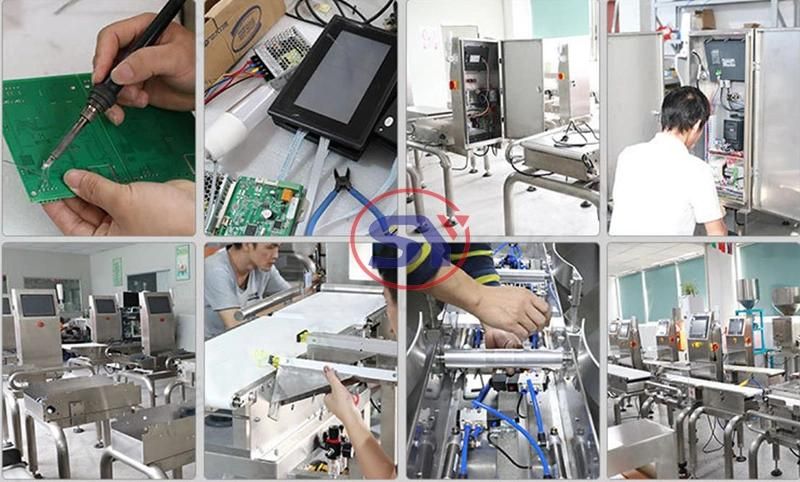

6>Belt Scale check weigher conveyor/weight checker machine Assemble at our factory:

7>Packing&shipment
--Generally packed in Plywood case.
--Shipment within 10~20 working days after the advance/full payment.
--We provide timely delivery. More importantly, if you don't know how to install machines, our professional technical staff will assist you.
8>Our Waranty:
Our warranty is 12 months from the machine leaving factory.

9>Our service
Strong Engineers & Technician Team.
Professional After-Sales Team, 24h*7days.
Professional International Sales Team Can Help You To Buy The Machines Easily.
And No Other Troubles On The Delivery, Customer Clearance & Also Reduce The Tax Of It.
OEM Service: We Can Manufacture The Machines Totally As Your Need. Also Support The OEM Service.
