• Model NO.：GJB Series
• Application：Milk, Dairy, Milk, Juice, Beverage
• Customized：Customized
• Name：Apple Juice Milk Tomato Ice Cream Homogenizer for
• Material：Stainless Steel 304 , 316
• Capacity：500L,H--10000L,H
• Homogenizer Pressure：250MPa, 250bar, 70MPa
• Homogenizer Application：Homogenize Milk, Yogurt, Icecream, Juice,Chemical
• Homogenizer Certificated：CE Approved,
• Food Industry Homogenizer：Sanitary Contacting Parts
• Performance：0.2um
• Delivery：10 Days
• MOQ：1 Sets

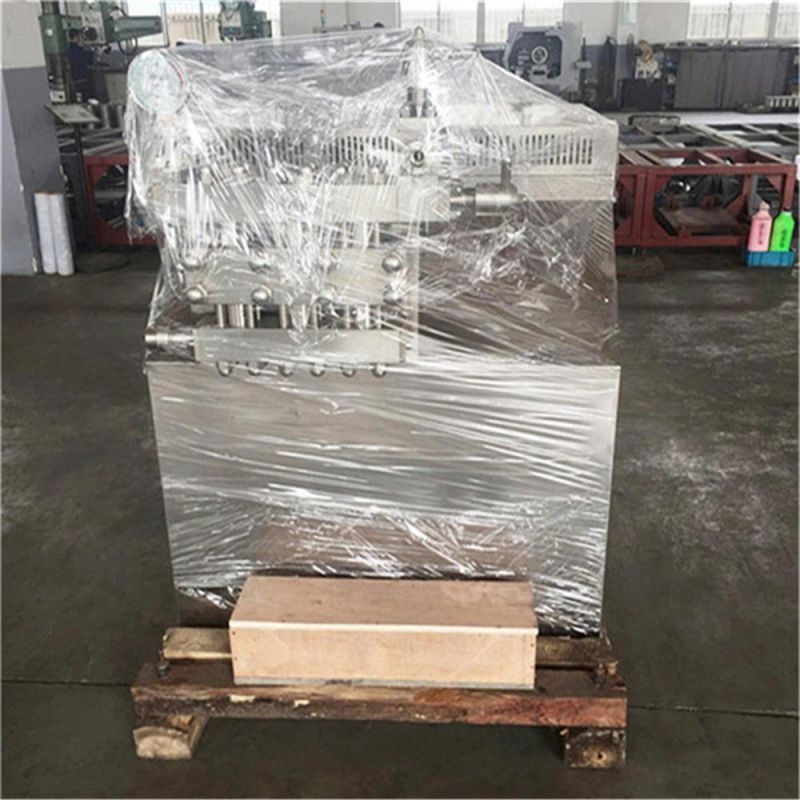

• Packing：Wooden Box
• Spare Parts：Available
• OEM：Yes
• Motor Brand：Siemens ,ABB,China Brand
• Cooling：Ice Water
• Transport Package：Standard Wooden Box
• Specification：Based on special order
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Application Milk, Dairy, Milk, Juice, Beverage Customized Customized Name Apple Juice Milk Tomato Ice Cream Homogenizer for Material Stainless Steel 304 / 316 Capacity 500L/H--10000L/H Homogenizer Pressure 250MPa, 250bar, 70MPa Homogenizer Application Homogenize Milk, Yogurt, Icecream, Juice,Chemical Homogenizer Certificated CE Approved, Food Industry Homogenizer Sanitary Contacting Parts Performance 0.2um Delivery 10 Days MOQ 1 Sets Packing Wooden Box Spare Parts Available OEM Yes Motor Brand Siemens /ABB/China Brand Cooling Ice Water Transport Package Standard Wooden Box Specification Based on special order Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

Apple Juice Milk Tomato Ice Cream Homogenizer For Factory
CE Certificated Hotsale 250bar Milk /Juice/Beverage Homogenizer


Feature:
1)Low noise:Noise of transmission is lower than noise of motor. The pointer of pressure meter is steady, and also the range of swing of pointer is less than 2M Pa.
2)Smashing granularity is between 0.1 micron to 0.2 micron, and their average size≤1 micron.
3)Sealing material can work under less than 150ºC, and the parts touching material is made of stainless steel which can stay up to the acid and alkali. All of valves and plungers are made of special material, so they are durable and inexpensive. The bearing is also durable because it is made of special alloy material, which is the more friction, the more hardness.
4)Lubrication of  homogenizers is credible, and it only need changing oil the first time when work 800 hours to 1000 hours, since then it need to be changed oil per year later

5)The higher the pressure the finer the material the more uniform particle size, 30MPA the following models, mainly for liquid - liquid emulsification. Pressure of 30MPA above, on the liquid - solid dispersion of liquid into play when the pressure most of the material up to 60MPA reach 2μm particle size less than when the material reaches 80MPA more obvious when the role is mainly used for ultrafine particles broken Materials to achieve the following general 1μm. As to 100MPA above, can be produced more subtle particles, some of the material particles after repeated high pressure homogenization, 0.1-0.5μm can be prepared the following no-grain materials.

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

CE Certificated Hotsale 250bar Milk /Juice/Beverage Homogenizer
Apple Juice Milk Tomato Ice Cream Homogenizer For Factory .
