• Model NO.：HTST
• Operation：Continuous
• Energy：Heat Sterilization
• Property：Physical Sterilization
• Type：Full Automatic with PLC
• Name：Sanitary Steam Full Automatic Flash Uht Tubular St
• Materila：Sanitary Stainless Steel 304,316,316L
• Flow：1000L,Hour 2000L,H 3000L ,H
• Max Temperature：135ºC 145ºC
• Pipe Treatment：Polished
• Sterilization Time：5-15s
• Steam Pressure：0.5MPa-0.6MPa
• Application：Milk ,Yogurt ,Tea ,Juice and Beverage
• Transmission Type：Continue
• Automatic Production Line：Sterilization Machine
• Control System：Siemens
• Motor：ABB,Nord ,China Brand
• OEM：Yes
• Working Life：More Than 10 Years
• Packing：Wooden Box
• Transport Package：Wooden Box
• Specification：Based on special order
• Trademark：KAIQUAN
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：1000 Sets , Year

modleLG-UHT-1LG-UHT-2LG-UHT-3LG-UHT-4Production capacity(L/H)1000200030004000Inlet temperature5°C5°C5°C5°CHolding time(s)4-154-154-154-15Sterilize temperature105~143°C105~143°C105~143°C105~143°CProduct outlet temperature20202020Icewater inlet temperature≤2°C≤2°C≤2°C≤2°CSteam pressure0.5MPa0.5MPa0.5MPa0.5 MPaSteam consumption~150Kg/h~210Kg/h~280Kg/H~350Kg/hCompressed air pressure0.6MPa0.6MPa0.6MPa0.6MPaCompressed air consumption50L/H50L/H60L/H60L/HExternal dimension
(homogenizer excluded)3500×2000×25003500×2000×25004500×2500×22005000×2000×2200Total weight of machine1700kg2000Kg2200 Kg2500Kg

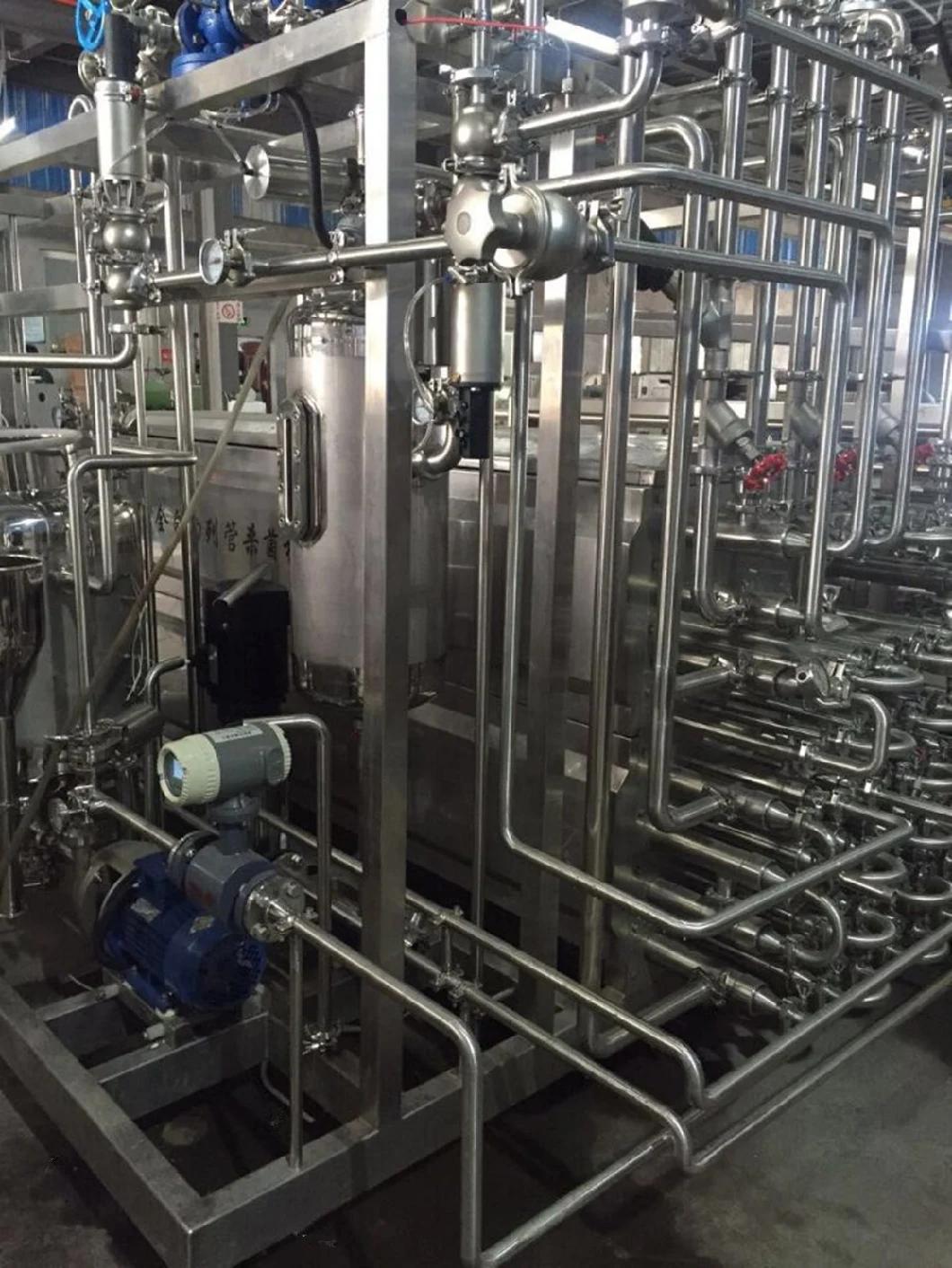

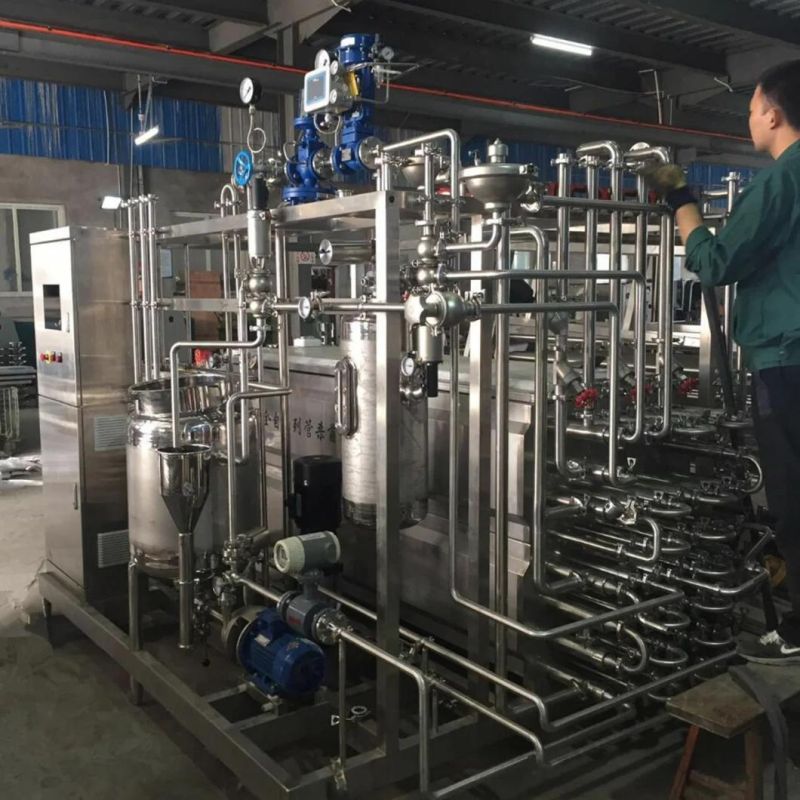

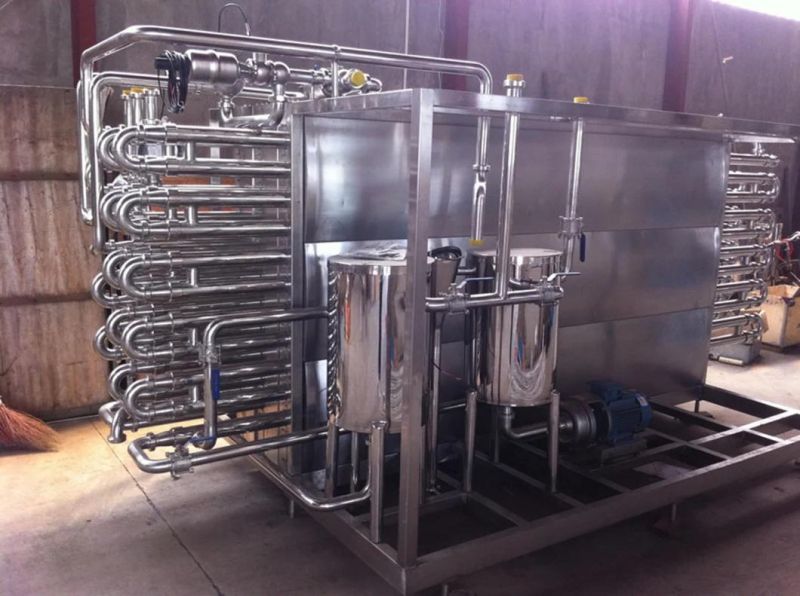

Sanitary Steam Full Automatic Flash UHT Tubular Sterilizer For PLC .
