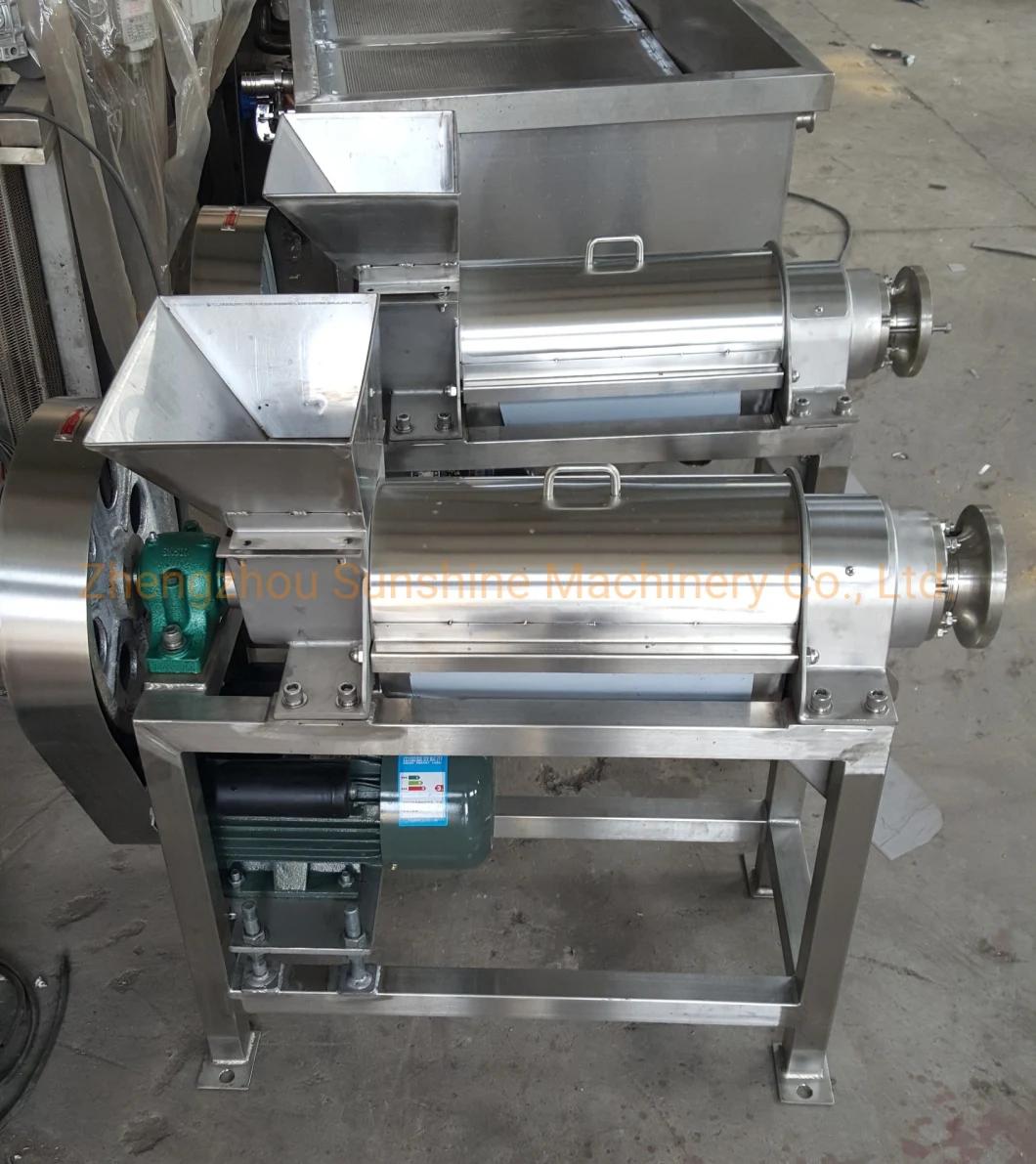

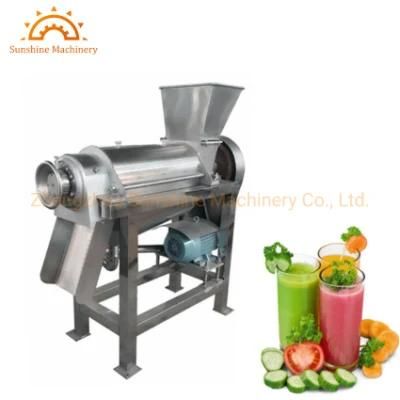

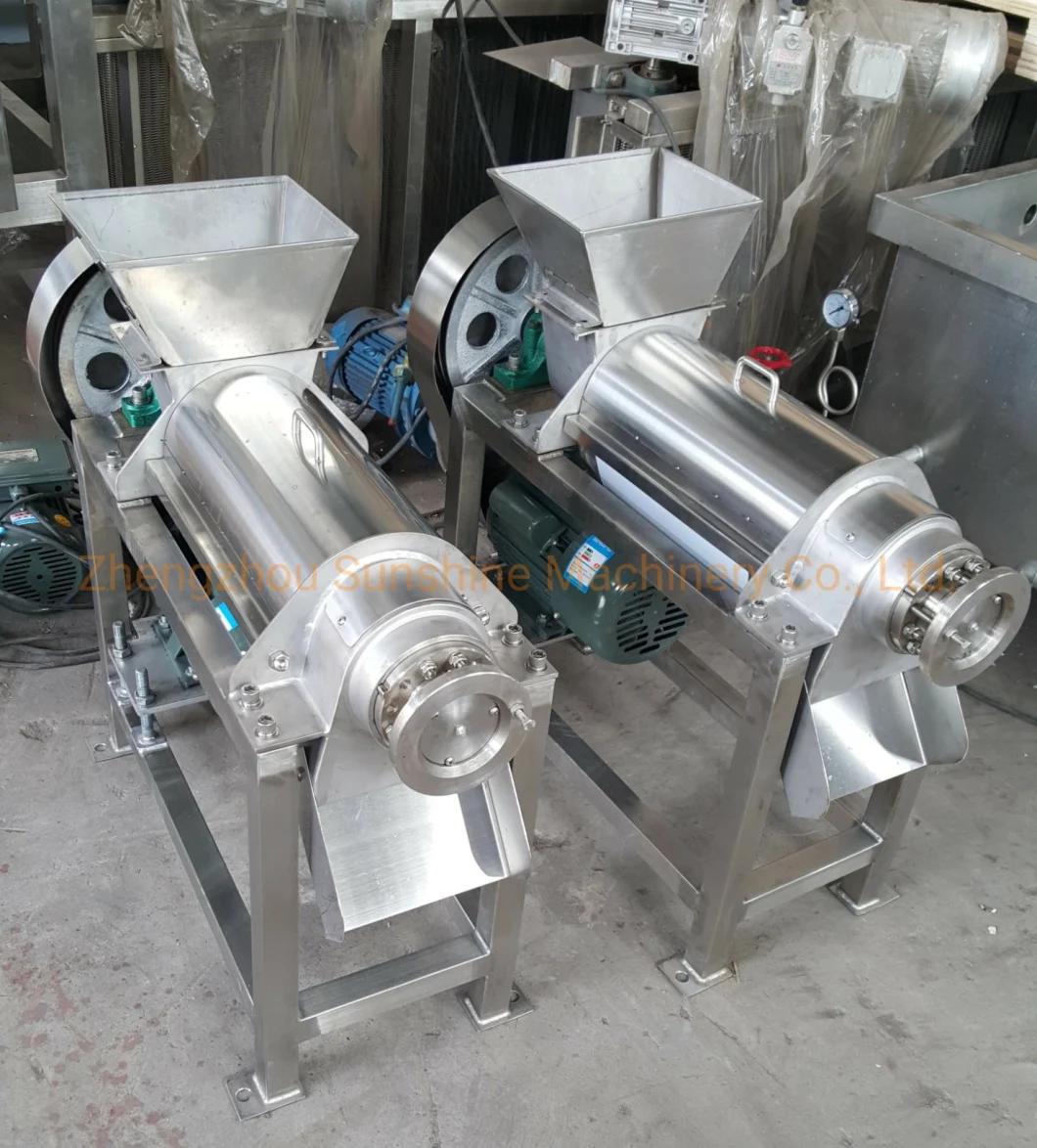

Orange Mango Pineapple Ginger Carrot Juicer Machine Industrial Juice Extractor
Zhengzhou Sunshine Machinery Co., Ltd.- After-sales Service：on-Line After-Sale Service
- Warranty：on-Line Service
- Type：Juice Extractor
- Voltage：380V
- Power：4kw
- Customized：Non-Customized
Base Info
- Model NO.：LZ-1.5
- Name：Juice Machine
- Model：Lz-1.5
- Capacity：0.3-1.5t,H
- Rotation Speed：400rpm
- Weight：200kg
- Size：1160*450*1190mm
- Diameter：175mm
- Inlet：390*400mm
- Function：Press Fruits and Vegetable for Juice
- Production Time：7 Days
- Transport Package：Wooden Case
- Specification：ISO9001, CE, SGS, BV
- Trademark：sunshine
- Origin：Henan, China
- HS Code：8438600000
- Production Capacity：1000 Sets Per Month
Description

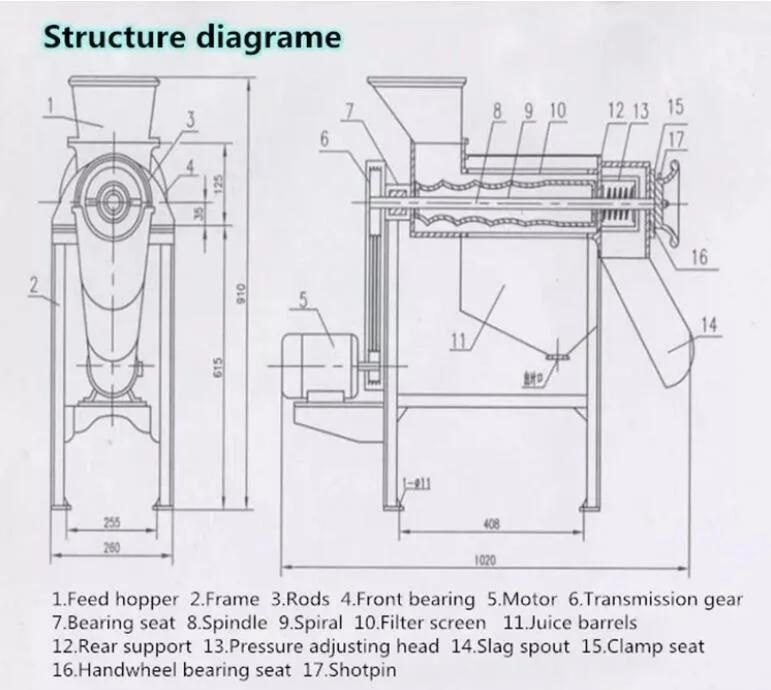

IV. Device structure and principle
1,Structure:

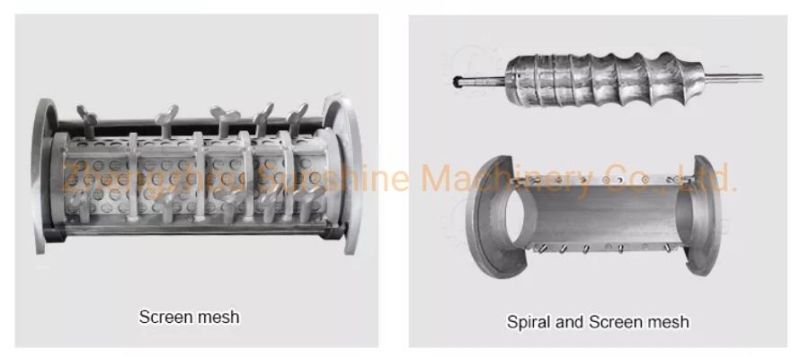

From the front seat, into the hopper, screw, filter, Sheng juice, a rear seat, slag tank and other parts, screw spindle bearing in the rolling bearing, supported on the right hand wheel bearings, motor through a pair of triangular pulley driven coil work.
2, Working principle:The main components of this device is a spiral along the direction of the bottom outlet bagasse and pitch diameter gradually increased gradually reduced, when the material is the propeller, because the spiral cavity volume reduction, the formation of the material of the press.
Screw spindle rotation direction as viewed from the hopper to the slag tap direction is clockwise.

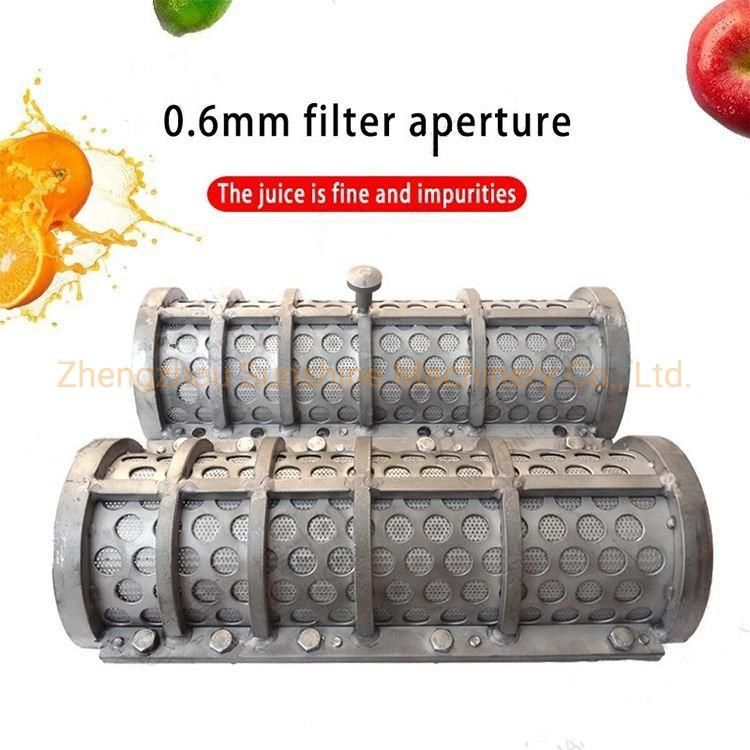

Feedstock into hopper, under pressure screw propulsion, the juice squeezed through the filter into the bottom of the juice is filled, and the waste is formed by an annular gap between the screw and the tapered portion of the discharge regulator, surge move axially adjustable head size voids. Size for clockwise (from the slag troughs device into the hopper end to see when to turn the hand wheel bearing, pressure head to the left, that is narrowing the gap, the gap becomes larger and vice versa.) Change the gap, that row adjustment slag resistance. It can change the slag rate, but if the gap is too small, under strong squeeze, some slag particles together and juice is squeezed out through the filter, although the juice increased, but the quality of the juice of the relative decline in the size of the gap should be considered user specific process requirements.
