Complete Rice Processing Line 20 Ton Per Day Rice Mill Machine

Zheng Zhou Sida Agriculture Equipment Co., Ltd.
  • Type：Rice Mill
  • Application：Rice flour, Rice Flour Processing Machine
  • Voltage：380V
  • Appearance：Vertical
  • Press Materials：Rice
  • Press Series：Second

Base Info

  • Model NO.：SD-RM20
  • Condition：New
  • Customized：Customized
  • Product Name：20 Ton Per Day Rice Mill Machine
  • Capacity：20 Tons Per Day
  • Operator：4-5 Persons
  • Warranty：One Year
  • Price：Negotiable
  • Features：Easy Installation, Easy Operation, Low Price
  • Main Markets：Nigeria, Ghana, Uganda, Ivory Coast, Indonesia...
  • Operation：Automatic Working
  • Raw Material：Paddy
  • Uasge：Grain Processing Machine
  • Markets：Nigeria, Ghana, Tanzania, India, etc..
  • Related Products：Rice Stone Removing, Color Sorter, Packing Machine
  • White Rice Rate：72%
  • Broken Rate：Less Than 5% Broken Rice Rate
  • Finished Rice：High Quality, No Paddy
  • Transport Package：Wooden Cases, 20′gp or 40′hq Containers
  • Specification：depends on the capacity
  • Trademark：SIDA
  • Origin：China
  • HS Code：8437800000
  • Production Capacity：From 25 Tons Per Day to 150 Tons Per Day

Description

NoProductQuantityPower/kw1Combined rice milling machine including:1) Cleaner2) Destoner3) Rice husk4) Rice separator5) Rice mill6) Rice grader7) Double elevator conveyor8) Single elevator conveyor1242Elevator with motorsH=3M10.753Elevator with motorsH=5M10.754Elevator with motorsH=6M21.55Color sorter including
1) piston compressor
2) air tank
3) precision filter17.5+16Mist polisher complete set with blower system1157Packing machine include packing bin for 10-50kg/bag11.58Electronic cabinet, tubes, wires1 group  Total 52kw

General description of 20 Ton Per Day Rice Mill Machine

1) The combined rice processing line can produce 10 ton-24 ton per day, we will give you advise according to your requirements.2) It can clean, de-stone, hull, paddy separate, whiten( polish), grade all in one. The output is 1000-1200 kg rice per hour.3) Features: a. The main advantage of this new machine is that it occupies small space for easy installation with good performance, making rice whiter with less broken rice. b. Compact structure, easy operation, high rice precision; It's a ideal machine for small investment with good finish product. c. The working video and details manual will be available. d. Easy to adding some follow-up equipment e. Better cleaning effectIt is a new type whole set combined rice mill for processing rice in farmlands, towns, grain shop and specialized households, and it can improve milling precision of rice according to the demands of users by adding some follow-up equipment, like polisher, color sorter and rice packing machine.
Complete Rice Processing Line 20 Ton Per Day Rice Mill Machine

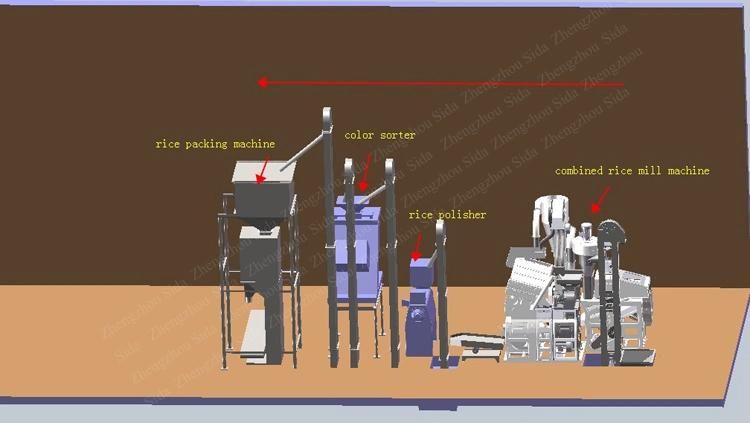

Product processProduct process of 20 Ton Per Day Rice Mill Machine
1) Unprocessed food grains are poured into the feed hopper and elevated by single elevating conveyor to cleaning sieve, big and small foreign matters of unprocessed food grains will be cleaned up; 2) Cleaned grain will be elevated by double elevating conveyor to Husker to shell; rice shell will be conveyed by the crude bran separator to the exterior of machine or collect by Cyclone; mixture of paddy and unpolished rice will be elevated by double elevating conveyor to gravity paddy separator to carry out the separation of grain and bran; separated material including: one is material which including more paddy, these material will return to husker through double elevating conveyor to shell again, the second one is mixture of paddy and brown rice, these material will return to paddy separator by double elevating conveyor, the last one is clean brown rice, these material will into rice mill to whitening.
3) The fine bran out of whitener will be collected by a fine bran cyclone, and the rice out of rice outlet mouth is the finished rice.
4) Besides, there is switch gate on brown rice hopper and double elevating conveyor, through switch, paddy separator sieve will have enough time to have enough material and adjust to the situation of most ideal separate effect, to make sure that clean brown rice in to whitener. In the end, can make all the materials return to husker to shell, and then into whitener without through paddy separator, so can have a fast ending, and no residual in the all equipment.
Detail images
Complete Rice Processing Line 20 Ton Per Day Rice Mill MachineCustomer feedback

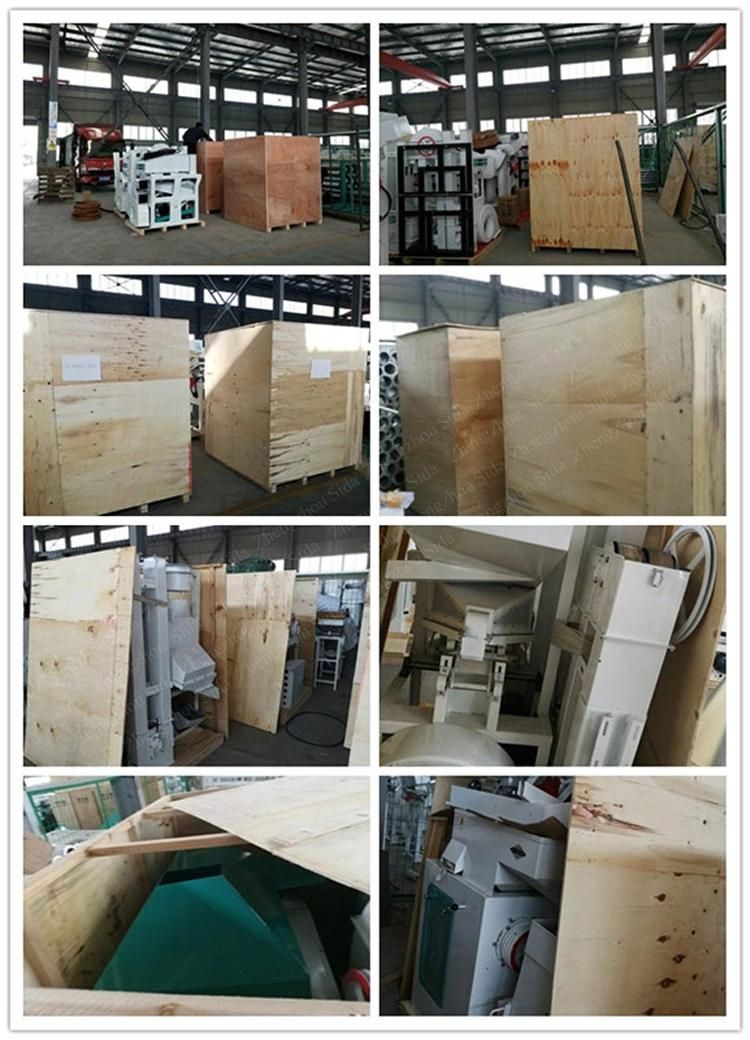

Complete Rice Processing Line 20 Ton Per Day Rice Mill MachinePackaging and shipping

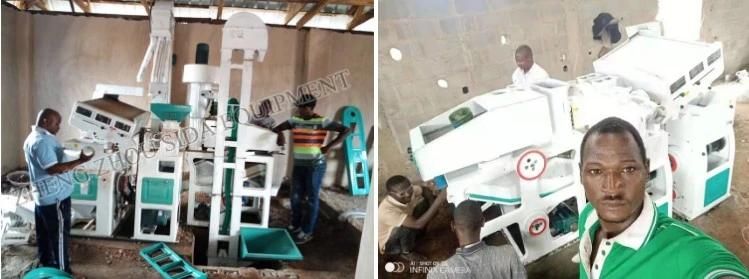

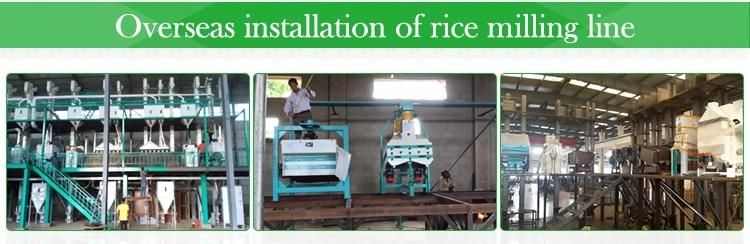

Complete Rice Processing Line 20 Ton Per Day Rice Mill MachineInstallation pictures
Complete Rice Processing Line 20 Ton Per Day Rice Mill MachineComplete Rice Processing Line 20 Ton Per Day Rice Mill MachineAbout us

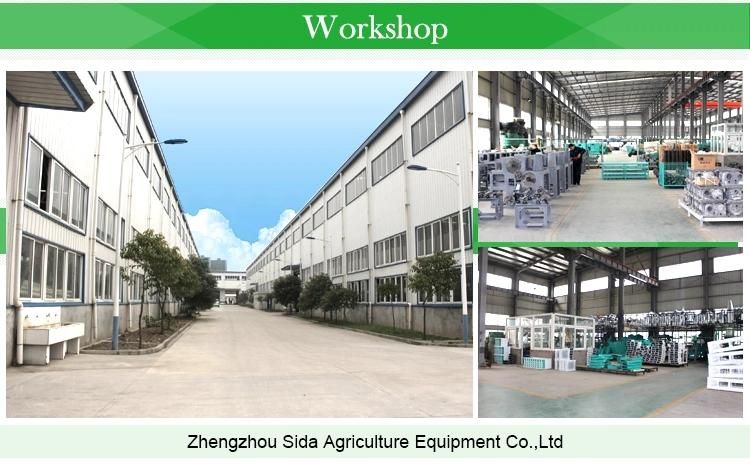

Complete Rice Processing Line 20 Ton Per Day Rice Mill MachineZheng Zhou Sida Agriculture Equipment Co., Ltd. is the main agriculture equipment manufacturer with more than 20 years' experience in China. Our main machines covers: 1. Rice milling machine, 2. Parboiled rice milling machine 3. Cassava starch/flour processing
machine, potato starch processing machine, garri processing machine and so on. 4. Maize flour processing line and so on. We have the professional technology, research, design and sale teams. And our main markets cover Africa (such as Nigeria, Ghana, Cameroon,
Gabon and so on), Europe, America....

If you have any question, welcome to contact us.
