Direct Factory Meat Quick Freezing Machine Seafood Spiral IQF Freezer Price IQF Quick ...

Tianjin Hitrees Machinery Equipment Co., Ltd.
  • Warranty：1 Year
  • Type：Chilling and Freezing, Evaporater Cooling
  • Voltage：380V or Customized
  • Freezing Time：Adjusted
  • Material：Food Grade Stainless Steel
  • MOQ：1 Set

Base Info

  • Dimension：Customized
  • Products Name：Spiral IQF Freezing Machine
  • Application：Food Instant Freezing Equipments
  • Dimensions：Customized
  • Processing Material：Seafood, Vegetables, Fruits
  • Transport Package：Seaworthy Packing
  • Specification：100kg,h~3000kg,h
  • Trademark：Hitrees
  • Origin：Tianjin, China
  • Production Capacity：1000PCS,Year

Description

Overview Product Description

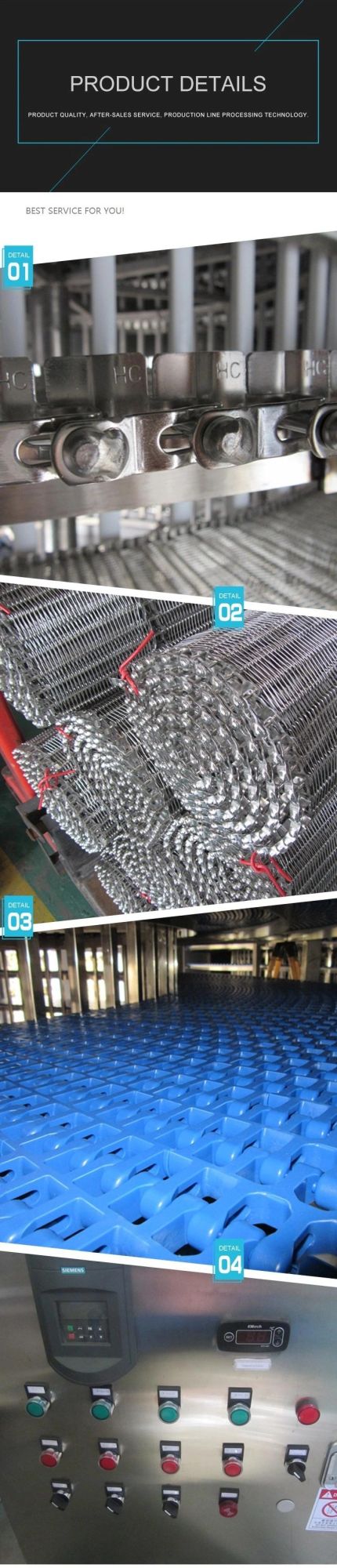

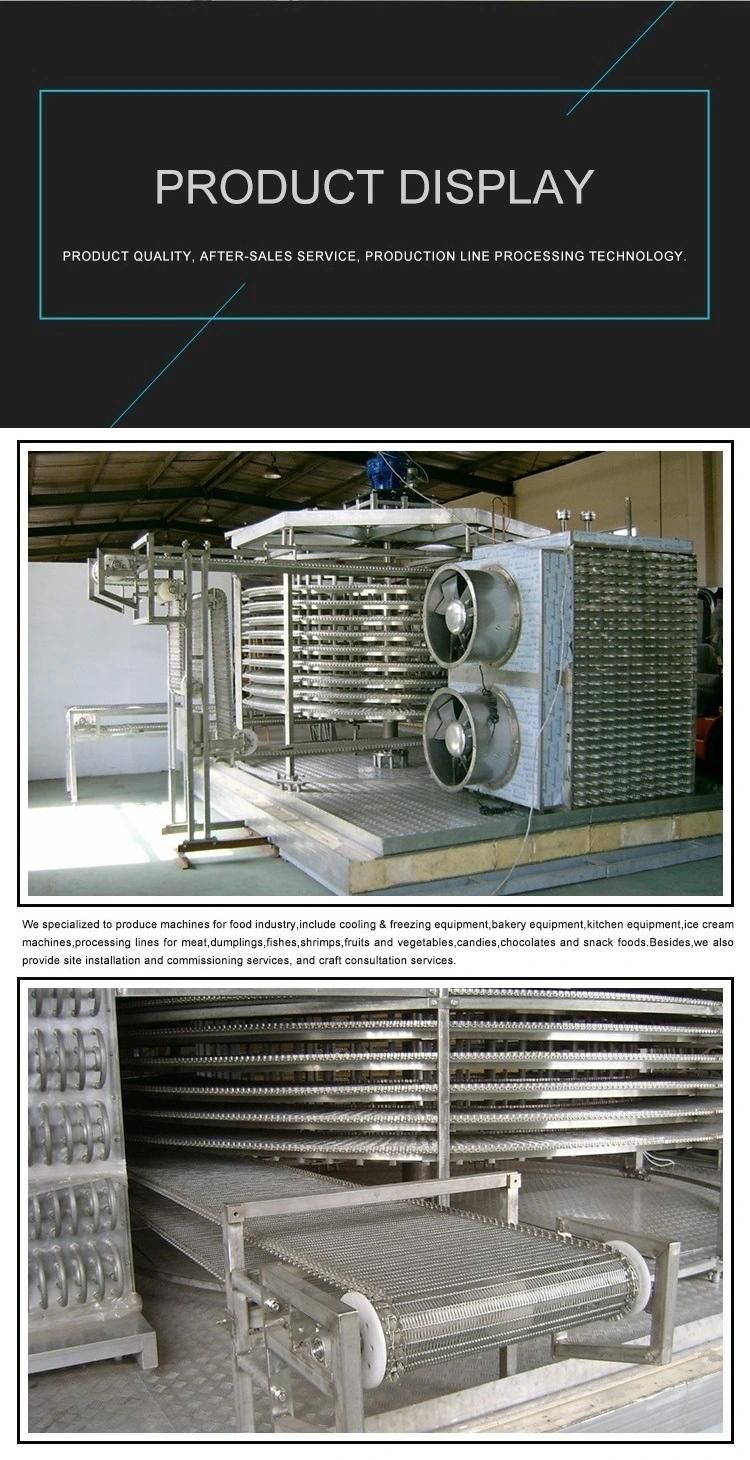

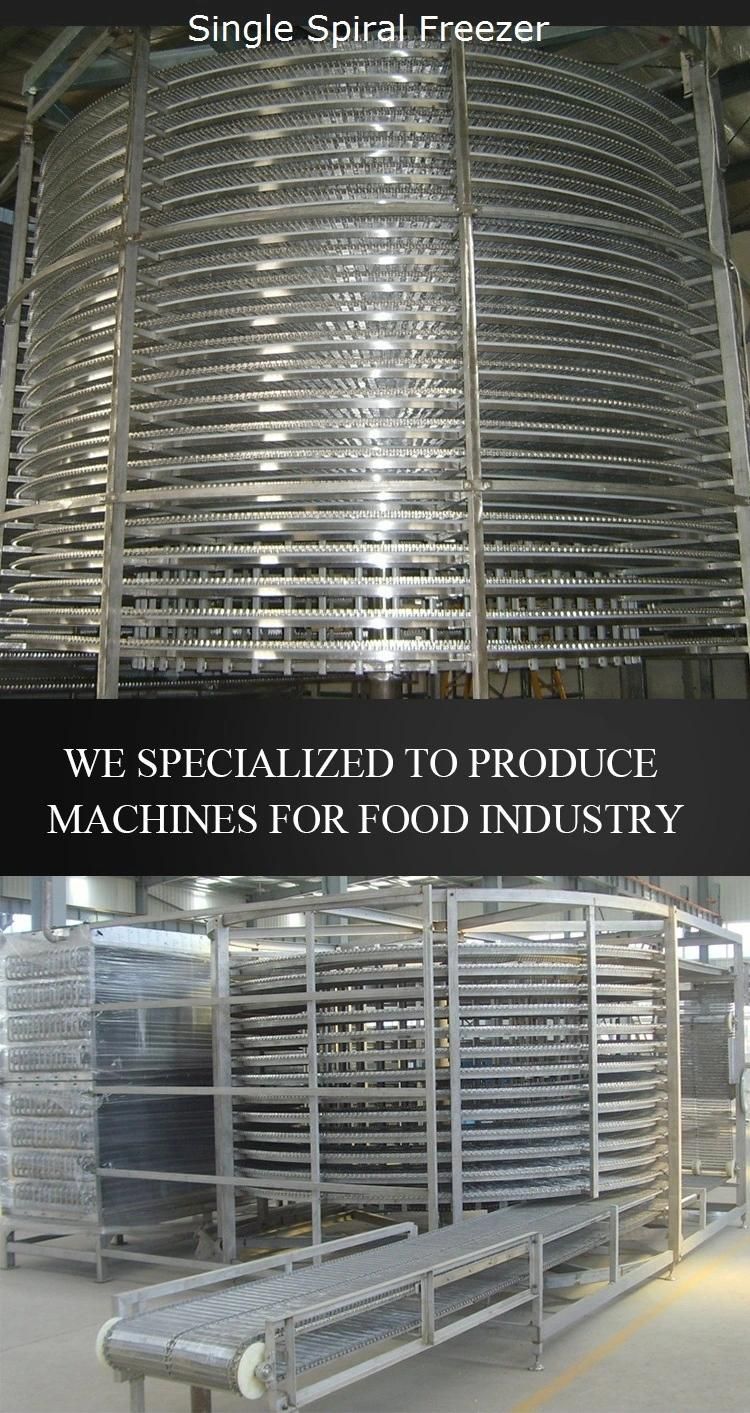

Detailed Photos

Direct Factory Meat Quick Freezing Machine Seafood Spiral IQF Freezer Price IQF Quick Freezer for Fish Fillet Meat/Shrimp/Poultry with CE/SGS Certificate

Direct Factory Meat Quick Freezing Machine Seafood Spiral IQF Freezer Price IQF Quick Freezer for Fish Fillet Meat/Shrimp/Poultry with CE/SGS Certificate Direct Factory Meat Quick Freezing Machine Seafood Spiral IQF Freezer Price IQF Quick Freezer for Fish Fillet Meat/Shrimp/Poultry with CE/SGS Certificate


Product ParametersItemEquipment NameSpiral FreezerEquipment Model:SF10001. Output Capacity:1000kg/h2. Cabinet Dimensions:6700 x 4900 x 3560mm3. Belt Width:600mm4. Qty of Tiers:155. Belt Length:172m6. Drum Diameter:Φ2300mm7. Tier Pitch:100mm passable8. Retention Time15-75 minutes adjustable9. Length of Inlet & Outlet:Inlet 1000mm Outlet 500mm10. Height of Inlet & Outlet:Inlet 800mmOutlet 3250mm11. Defrosting Method and Interval:Water defrostingOnce every 12 hours12. Installed Power for Spiral Freezer:15.75 KW13. Refrigeration Consumption:170 KW (+40 degree C/-40 degree C)14. Evaporating Area:1780 square meters15. Compressor Model:ITALY FRASCOLD NRL6-125-428Y*216. Expansive Valve:DANFOSS/EMERSON17. Refrigeration Capacity:176.6 KW (+40 degree C/-40 degree C)18. Contactor:Schneider19. Installed Power for Compressor System157KW20. Refrigerant:R507A/R404A/R2221. Condensing Type:Evaporative cooled



Direct Factory Meat Quick Freezing Machine Seafood Spiral IQF Freezer Price IQF Quick Freezer for Fish Fillet Meat/Shrimp/Poultry with CE/SGS Certificate

Company ProfileSuccessful Project

  Direct Factory Meat Quick Freezing Machine Seafood Spiral IQF Freezer Price IQF Quick Freezer for Fish Fillet Meat/Shrimp/Poultry with CE/SGS Certificate





Customer Photos

Direct Factory Meat Quick Freezing Machine Seafood Spiral IQF Freezer Price IQF Quick Freezer for Fish Fillet Meat/Shrimp/Poultry with CE/SGS CertificateDirect Factory Meat Quick Freezing Machine Seafood Spiral IQF Freezer Price IQF Quick Freezer for Fish Fillet Meat/Shrimp/Poultry with CE/SGS Certificate

Packaging & ShippingFAQ

Q1: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.

Q2: What's the lead time?
A: According to the order quantity, small order usually need 40-45 days, big order need negotiation.

Q3: What's your warranty terms?
A: We supply 12 months warranty time.

Q4: What's your payment terms?
A: We receive L/C D/A D/P T/T Western Union MoneyGram
