3000L 5000L Ce Uht Gjb Sales Homogenizer Factory
Shanghai Kaiquan Machine Valve Co., Ltd.- After-sales Service：Online Service
- Warranty：One Year
- Process：Mild Processing
- Power Source：Electric
- Certification：CE, ISO9001
- Automatic Grade：Automatic
Base Info
- Model NO.：GJB
- Application：Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage
- Customized：Customized
- Name：3000L 5000L CE Uht Gjb Sales Homogenizer Factory
- Material：Stainless Steel 304 , 316
- Usage：Milk , Juice, Beverage, Butter, Honey, Cream
- Capacity：500L,H-10000L,H
- Pressure：250 Bar To700bar

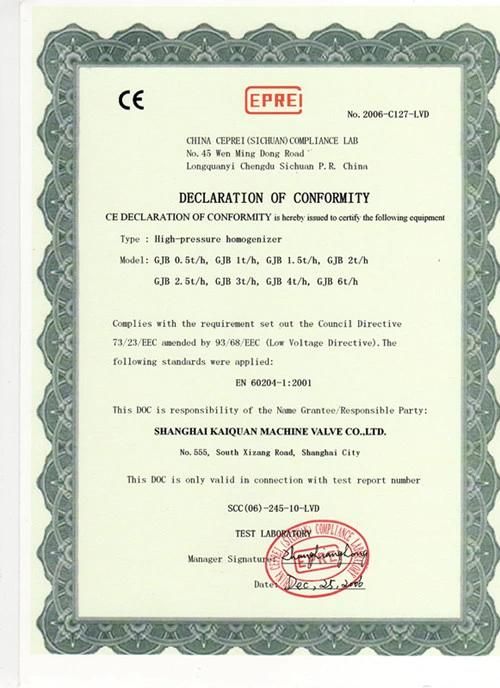

- Certificate：CE Certificate
- Performance：0.2um
- Motor：OEM
- Stage：Two Stage
- Working Life：More Than 10years
- Homogenizer Spare Parts：Provide
- Spare Part：Available
- Delivery：10-15 Days After Get Your Reply .
- Voltage ,Hz,Phase：Make It to Your Order .
- Spare Parts：Available
- Transport Package：Standard Wooden Box
- Specification：CE
- Trademark：KAIQUAN
- Origin：Shanghai, China
- HS Code：8479820090
- Production Capacity：100 Units,Month
Description
Basic Info.
Model NO. GJB Application Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage Customized Customized Name 3000L 5000L CE Uht Gjb Sales Homogenizer Factory Material Stainless Steel 304 / 316 Usage Milk , Juice, Beverage, Butter, Honey, Cream Capacity 500L/H-10000L/H Pressure 250 Bar To700bar Certificate CE Certificate Performance 0.2um Motor OEM Stage Two Stage Working Life More Than 10years Homogenizer Spare Parts Provide Spare Part Available Delivery 10-15 Days After Get Your Reply . Voltage ,Hz,Phase Make It to Your Order . Spare Parts Available Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/MonthProduct Description
3000L 5000L CE UHT GJB Sales Homogenizer Factory
yogurt homogenizer Greece Yoghurt Homogenizer juice homogenizer
CE Certificated Best Price Shanghai High Pressure Homogenizer/Milk Homogenizer

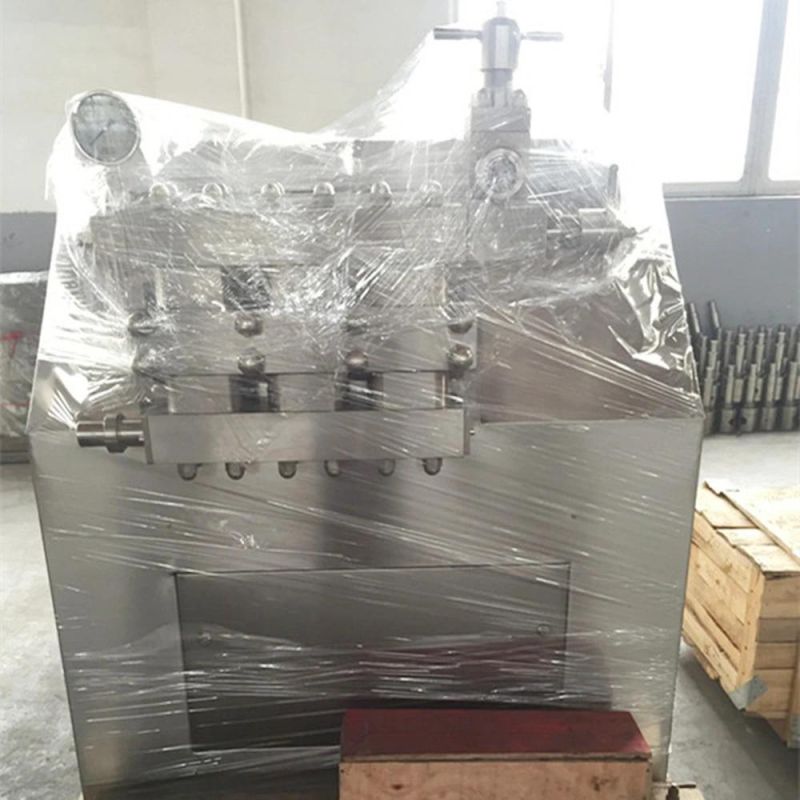

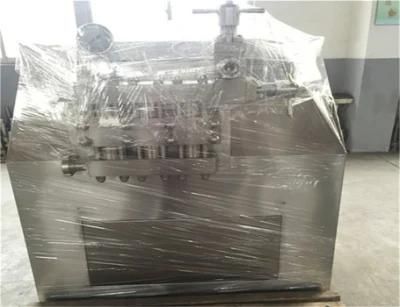

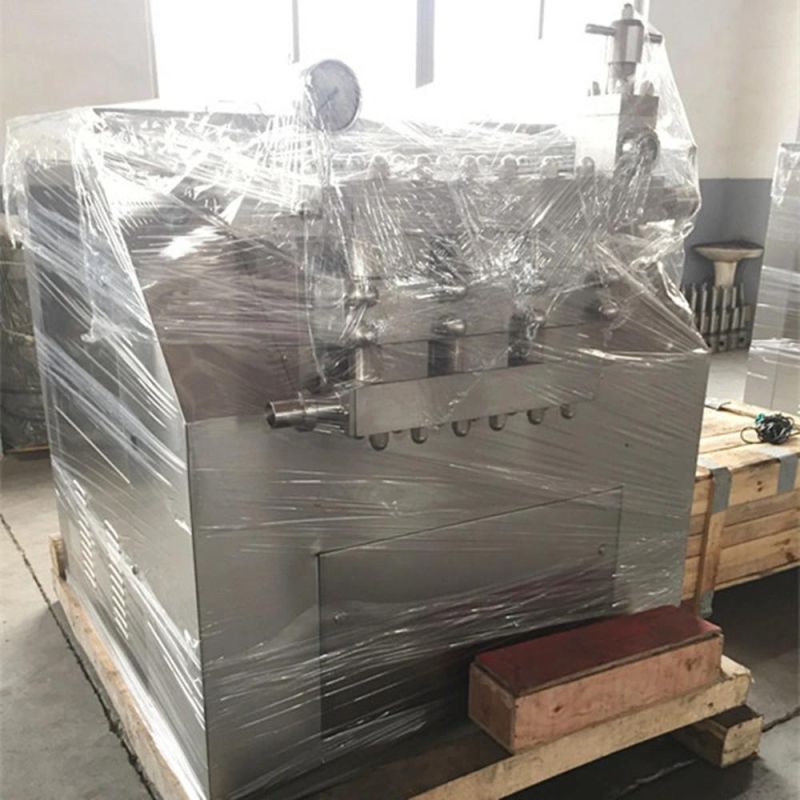

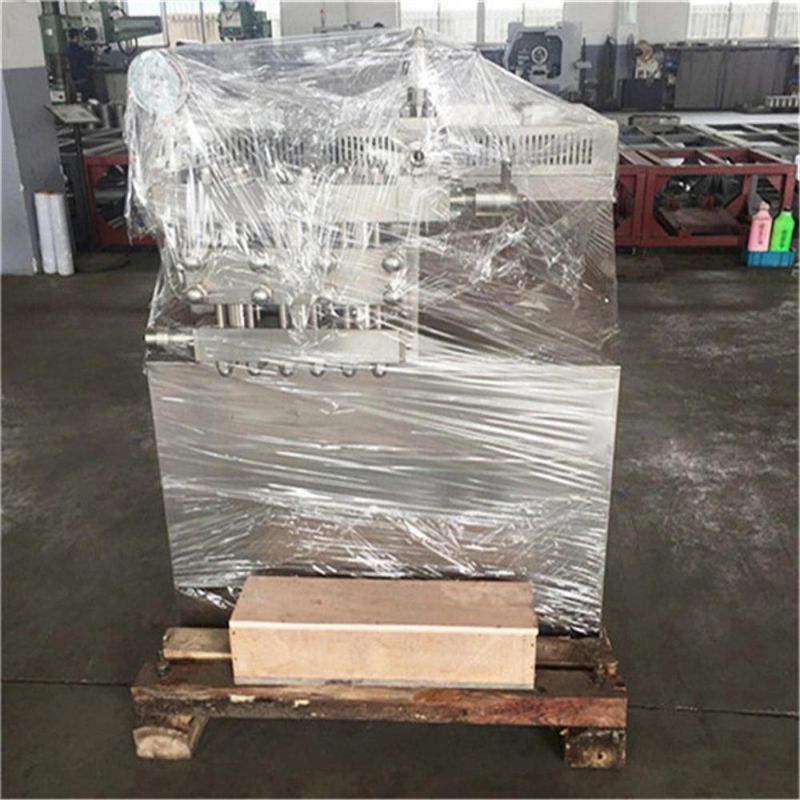

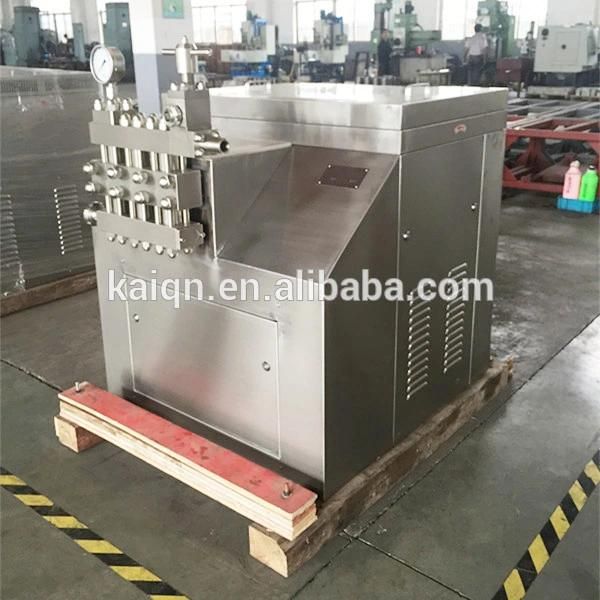

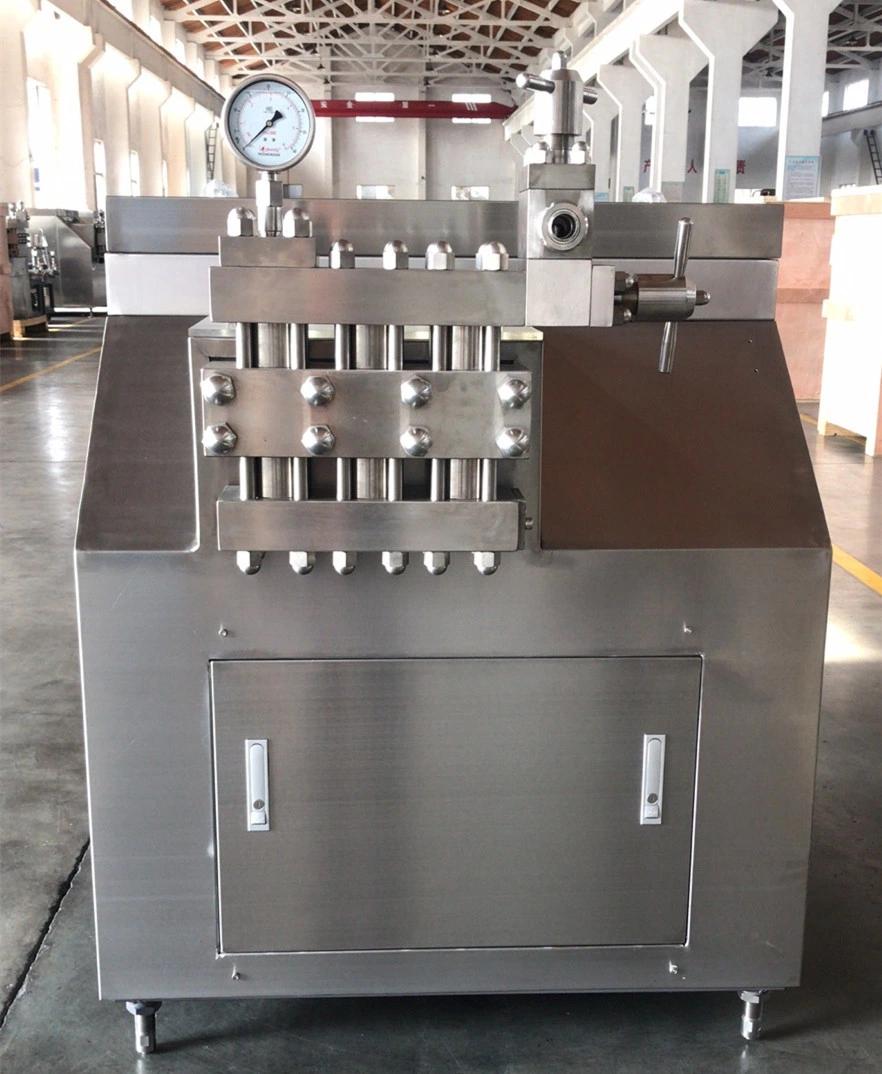

GJB high pressure homogenizer
25 Mpa 250Bar Homogenizer For Milk CE
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer
| Model No. Technical parameter | KQ0.5-25 | KQ1-25 | KQ1.5-25 | KQ2-25 | KQ2.5-25 | GJB3000-25 KQ3-25 | KQ5-25 |
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated flow ( Liters/H ) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
| Medium temperature(C) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
| Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
| Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
| Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 |
| Volt and Electricity Flow | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
| Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1 |
| Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 |
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life

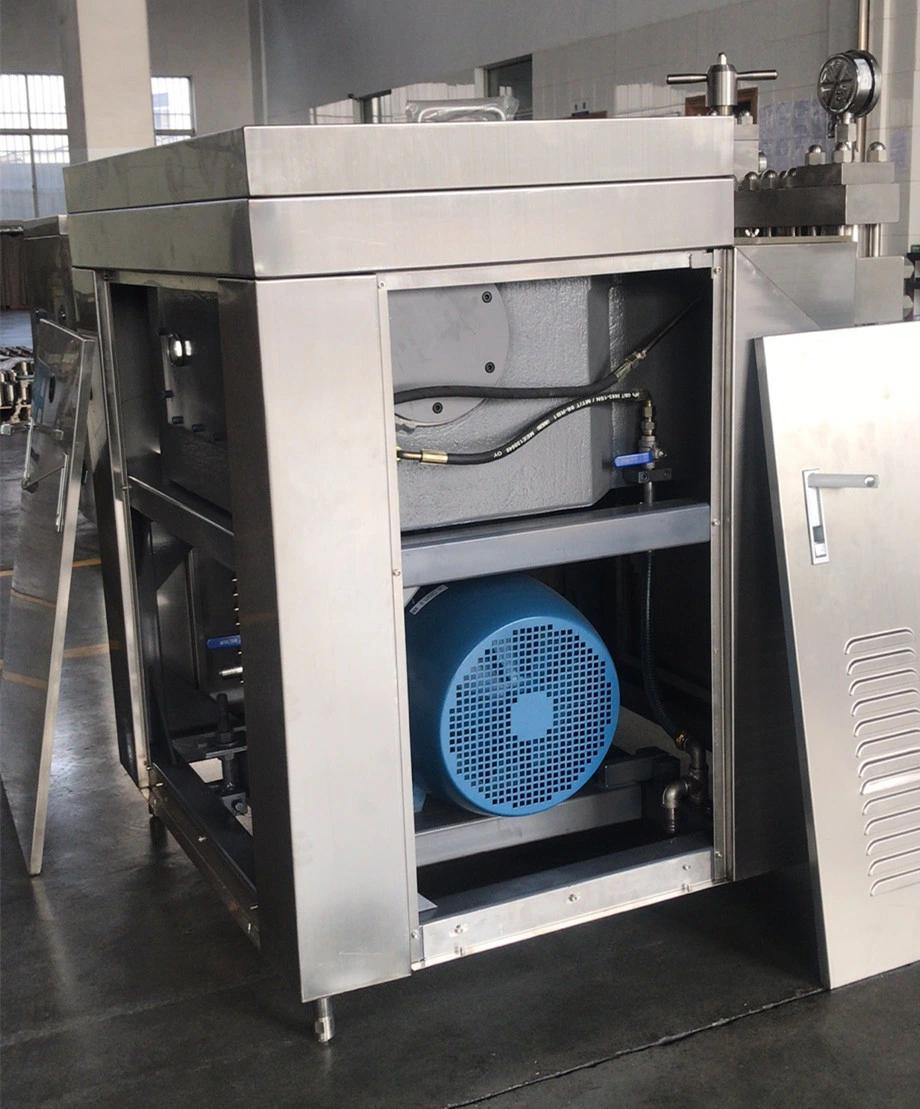

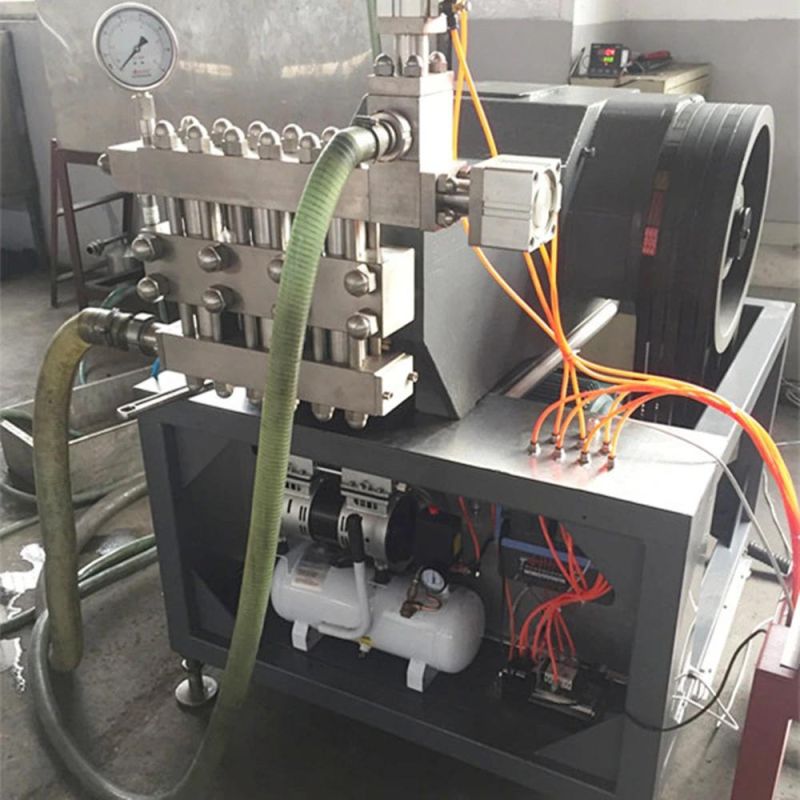

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
3000L 5000L CE UHT GJB Sales Homogenizer Factory
