Full Automatic Crispy Corn Flakes Breakfast Cereals Food Making Machine

Jinan Himax Machinery Co., Ltd.
  • Processing Material：Corn Flour
  • Application：Food Factory
  • Customized：Customized
  • Certification：CE, ISO9001, SGS
  • Power Source：Electric
  • Automatic Grade：Automatic

Base Info

  • Model NO.：HM-85
  • Condition：New
  • Capacity：300-500kg,H
  • Voltage：380V, 50Hz, 3phases (Adjustable)
  • Control System：PLC
  • Delivery Detail：25 Working Days After Receiving Deposit
  • Motor：Siemens, ABB or China Famous Brands
  • Power：185kw
  • Raw Material：Corn Flour
  • Machine Material：Food Grade Stainless Steel
  • Product Name：Corn Flakes,Breakfast Cereal
  • Need Worker：2-3 Workers
  • Warranty：1 Year
  • Sales Manager：Sandra Zhang
  • Weight：4500kgs
  • Transport Package：Inside Plastic Bag, Outside Wooden Case
  • Specification：43000*3500*2300mm
  • Trademark：HIMAX
  • Origin：Shandong China
  • HS Code：8419810000
  • Production Capacity：100sets,Month

Description

ModelInstalled PowerConsumption PowerProduction CapacityDimensionHM-65-3140KW90KW120-150kg/h39000*1200*2200mmHM-70194KW174KW180-240kg/h41000*1500*2200mmHM-85245KW185KW300-500kg/h43000*3500*2300mm
4.Detail Dispaly

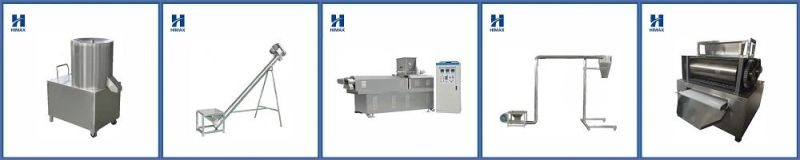

             Mixer                 Screw Conveyor      Twin Screw Extruder       Air Conveyor         Flaking Machine
Full Automatic Crispy Corn Flakes Breakfast Cereals Food Making Machine

      High Temp Dryer            Melting Machine        Sugar Spraying Machine          Electric Dryer                    Cooler
Full Automatic Crispy Corn Flakes Breakfast Cereals Food Making Machine

5.Flow Chart

Mixer---Screw Conveyor---Twin-screw Extruder---Vibrating Feeder---Drum-type Dryer---Air Conveyor ---Flaking Machine---Air Conveyor---Dryer---Hoister---Vibrating Feeder---High-temperature Inflated Oven---Sugar Spraying Line---Dryer---Cooling Machine---Packing Machine

6.Raw Material:

Corn Grits (Powder), wheat flour, rice flour, oat meal, other grain meals.

7.Machine Main Features

  • Main Material: Stainless Steel
  • Screw Quantity: 2
  • Screw Material: 38CrMoAl
  • Rotating Speed: Adjustable
  • Temperature: Adjustable
  • Self-cleaning function
  • Forced gearbox lubrication system
  • Pasteurization function with high temperature and high pressure
  • Flexible collocation of equipment
8.Packing And Delivery
Full Automatic Crispy Corn Flakes Breakfast Cereals Food Making MachinePackaging SpecificationOutside Pachage:Wooden Packing as Exportand Standard.Delivery time20-25days after received 40% of the whole payment.Shipping forwardingWe can be resonsible for the shipping ,of course,we can also accept and cooperate with your agent if you have shipping forwarder in China.
9.Company Information
Full Automatic Crispy Corn Flakes Breakfast Cereals Food Making MachineJinan Himax Machinery Co., Ltd. is a professional supplier of food processing machines for 12Years. We have many kinds of machines and production line, such as food extrusion machine, soya meat production line, industrial microwave oven, packaging machine, pet food production importantly, we also provide formulas, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the food processing machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service ,delivery and installation. Based on the clients specific requirement, we also OEM machines for our clients.
Full Automatic Crispy Corn Flakes Breakfast Cereals Food Making Machine
Full Automatic Crispy Corn Flakes Breakfast Cereals Food Making Machine 10.Our Srevices

     1). Free consultation service before, during, and after sales;

     2). Free project planning and design services;

     3). Free debugging of equipment until everything is functional;

     4). Free management of equipments' long distance shipping;

     5). Free training of equipment maintenance and operating personally;

     6). Free new production techniques and formulas;

     7). Provide 1 year complete warrantee and lifetime maintenance service;
