• Model NO.：KAIQUAN 100L -30000
• Voltage：380V
• Customized：Customized
• Function：Steam Heating Jacketed Mixing Tank
• Agitator Speed：36rpm, 48rpm, 960rpm, Adjustable Mixer
• Stainless Steel Degree：SS304, SS316
• Heating and Mixing Tank：for Heating and Mixing Liquid, Liquid and Powder
• Jacket Tank：Double Jackets Mixing Tank
• Mixing Tank Capacity：100L to 40000litres
• Tank design：Customized
• CIP Cleaning Ball：Included
• Tank Function：Heating, Cooling, Mixing, Pasteurizing Holding
• Tank Type：Double Jacket
• Packing：Wooden Box
• Cleaning：CIP Spray Ball
• Motor Brand：Siemens ,ABB ,China Brand
• Level Meter：Yes
• Temperature：Thermometer
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：200L To30000L

Basic Info.

Model NO. KAIQUAN 100L -30000 Voltage 380V Customized Customized Function Steam Heating Jacketed Mixing Tank Agitator Speed 36rpm, 48rpm, 960rpm, Adjustable Mixer Stainless Steel Degree SS304, SS316 Heating and Mixing Tank for Heating and Mixing Liquid, Liquid and Powder Jacket Tank Double Jackets Mixing Tank Mixing Tank Capacity 100L to 40000litres Tank design Customized CIP Cleaning Ball Included Tank Function Heating, Cooling, Mixing, Pasteurizing Holding Tank Type Double Jacket Packing Wooden Box Cleaning CIP Spray Ball Motor Brand Siemens /ABB /China Brand Level Meter Yes Temperature Thermometer Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 200L To30000L

Product Description

Fruit Juice Tank Beverage Tank Yoghurt Tank  Price



1. Storing, heating or sterilizing dairy product, pharmacy, chemical industry, beverage, etc.
2. Energy saving, Anticorrosive, strong production capacity.

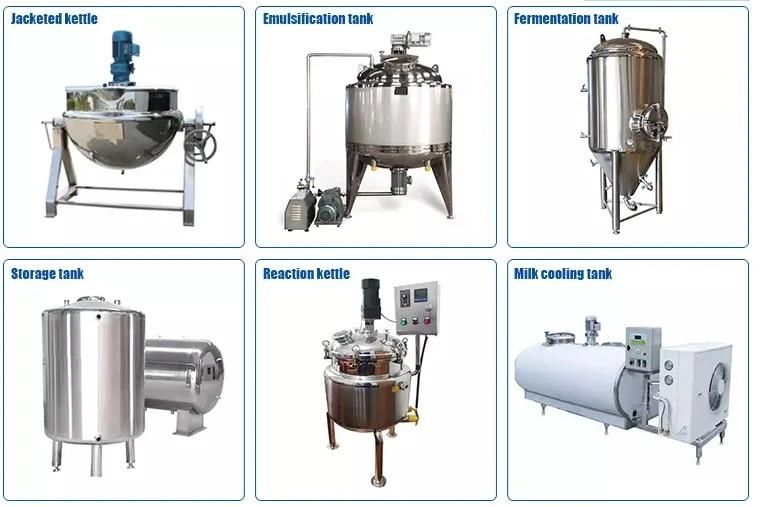

We design all kinds of stainless tanks. They are in reasonable design, advanced technology, automatic control and reach GMP standards. The tank adopts vertical or horizontal and single-layer or double-layer structure and adds heat insulator according to the requirements of customers.
The inner layer is be polished to Ra0.45μ M and the outside surface adopts mirror or frosted plate to keep warm. There are water inlet, reflux inlet, sterilizing inlet, cleaning inlet, manhole cover and 0.45μ M air respiratorresuscitator.

Volume	Height of the whole tank (mm)	Height of the Tank Body (mm)	The Diameter of the Tank Body (mm)	Height of the Discharge Hole (mm)
500L	1725	800	Φ 850	350
1000L	1950	900	Φ 1100	350
2000L	2500	1300	Φ 1300	400
3000L	2800	1500	Φ 1500	400
5000L	3100	1650	Φ 1800	400
6000L	3350	1800	Φ 1900	450
8000L	3600	1950	Φ 2100	450
10000L	3800	2000	Φ 2300	500
20000L	5350	3400	Φ 260

Fruit Juice Tank Beverage Tank Yoghurt Tank  Price
Price List is available !
