New Design 50L-1000L Tilting Type Vegetable Electric Heating Jacketed Kettle

Shanghai Kaiquan Machine Valve Co., Ltd.
  • After-sales Service：Online Service
  • Warranty：One Year
  • Processing Material：Animal Raw Materials, Forest Products, Special Agricultural Products, Garden Products, Agronomic Products, Natural Ingredients
  • Application：Pet Food, Chocolate, Ice Cream, Vegetable, Fruit, Dairy, Beverage
  • Customized：Customized
  • Certification：CE, MET, CSA, UL, SA8000, ISO9001

Base Info

  • Model NO.：KQ
  • Power Source：Electric
  • Automatic Grade：Automatic
  • Name and Description：New Design 50L-1000L Tilting Type Vegetable Electr
  • Stainless Steel Material：AISI304 , 316
  • Type：Full Automatic
  • Usage：for Cooking Soup, Jam, Juice, Meat
  • Capacity：300L~1000L

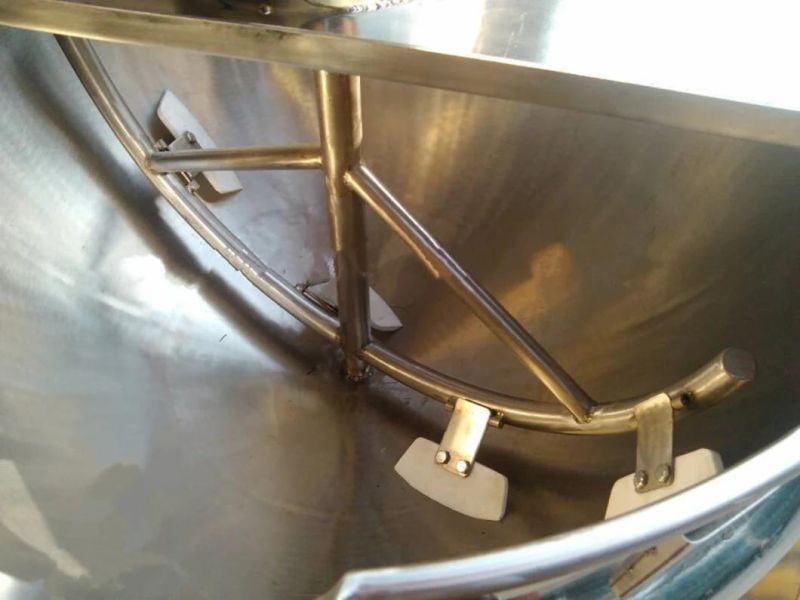

  • Mixer：with Mixer, Agitator, Scrapper Mixer
  • Motor Brand：ABB ,Siemens
  • Lifting Mixer：Automatic
  • Tilting Bowl：Automatic
  • Certificate：ISO,Ce
  • Factory：Shanghai
  • Titling：Yes
  • Packing：Wooden Box
  • Delivery：15 Days After Get Your Advance Payment .
  • Working Life：10 Years or More .
  • Transport Package：Standard Export Wooden Box
  • Specification：ISO
  • Trademark：KQ
  • Origin：Shanghai China
  • HS Code：8479820090
  • Production Capacity：300L to 1000L

Description

.Technical parameters-- stainless steel steam jacketed kettle for jam making  :          Model 100200300400   Caliber(mm) Φ700Φ800Φ900Φ1000   Depth of Pot(mm) 450530630680   Heating area(m2) 0.581.121.421.75   Boiling time(min) 8111418   Interface sizeSteam pipe3/4"1"   Condensate pipe3/4"1"   Working pressure≤0.09Mpa/0.25Mpa/0.5Mpa(can be adapted according to customers' requirement)   Stirring speed36 r/min(can be adapted according to customers' requirement)   Stirring power(Kw) 0.550.751.11.1   Scraping edge stirring power(Kw) 0.751.11.51.5   New Design 50L-1000L Tilting Type Vegetable Electric Heating Jacketed Kettle
