• Model NO.：ZKG-3500+JCK 120
• Quantitative Deviation：+-2g
• Quantitative Range：6-9999g
• PLC：Japan Brand
• Servo Motor：Yasakawa
• Touch Screen：Delta From Taiwan
• Electric Parts：ABB
• Language：as Need
• Twisting Speed：0-600 Time,Min
• Hopper Volume：240L
• Usage：Sausage Production Line,Vacuum Sausage Filler, PRO
• Transport Package：Wooden Case
• Specification：CE, SGS, ISO
• Trademark：YC
• Origin：Hebei
• HS Code：84385000
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. ZKG-3500+JCK 120 Quantitative Deviation +-2g Quantitative Range 6-9999g PLC Japan Brand Servo Motor Yasakawa Touch Screen Delta From Taiwan Electric Parts ABB Language as Need Twisting Speed 0-600 Time/Min Hopper Volume 240L Usage Sausage Production Line/Vacuum Sausage Filler/ PRO Transport Package Wooden Case Specification CE, SGS, ISO Trademark YC Origin Hebei HS Code 84385000 Production Capacity 100 Sets Per Month

Product Description

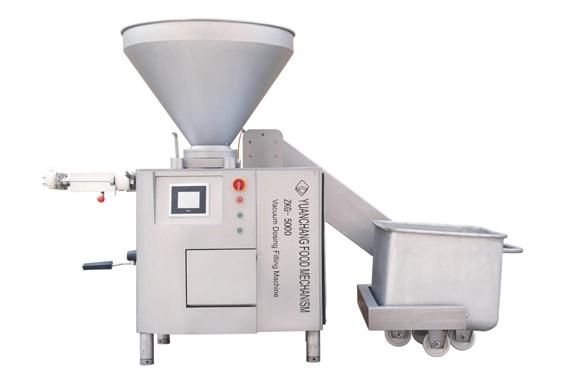

Vacuum Sausage Filler ZKG Series is always your first choice for continuous filling tasks.Most reliable vacuum sausage stuffer with rotary vane pumps appropriate for any-sized plants.Combine the Vacuum StufferZKG + Mech.Greatwall Double Clipper JCSK-A allows them to be perfect partner rapidly adapted to a wide variety of tasks in a sausage production plant.

Equipped with automatic casing knot tying device.

Suits straight-filling artificial, collagen, cellulose or linking natural casings.

Stuffing and Twisting Speed can adjust by require.

Systematically with the clipper of various types, enjoy the benefit of automation production for your business.

Easy to clean using standard cleaning equipment.Removable covers on two sides of the machine make the inside of the machine easily accessible for any maintenance work.

Maintenance work is automatically displayed on screen as it falls due.

Vacuum Stuffer ZKG is built with a combination of Japan YASKAWA servo motor and Italy BONFIGILION (German) decelerator as its drive system, also featuring its man-machine interface from Taiwan, Japan Mitsubishi PLC and Germany Busch vacuum pump.Key parts produced by machine center with high precision.All of pump, impeller and blade have adopted the special heat treatment technique, highly smooth surface, easily to be cleaned up.

Model	Quantitative Range ( g )	Power (KW)	Quantitative Deviation (minced meat) ( g )	Hopper Volume  ( L )	Rated Voltage ( V )	Weight (Kg )	Dimensions ( mm )
ZKG-2500	6-9999	5.05	± 2	125	380	590	1350 × 860 × 1740
ZKG-3500	6-9999	6.09	± 2	240	380	630	2420 × 1180 × 1800
ZKG-4500	6-9999	6.09	± 2	240	380	750	2420 × 1180 × 1850
ZKG-7500	6-9999	7.59	± 2	240	380	830	2420 × 1180 × 1850

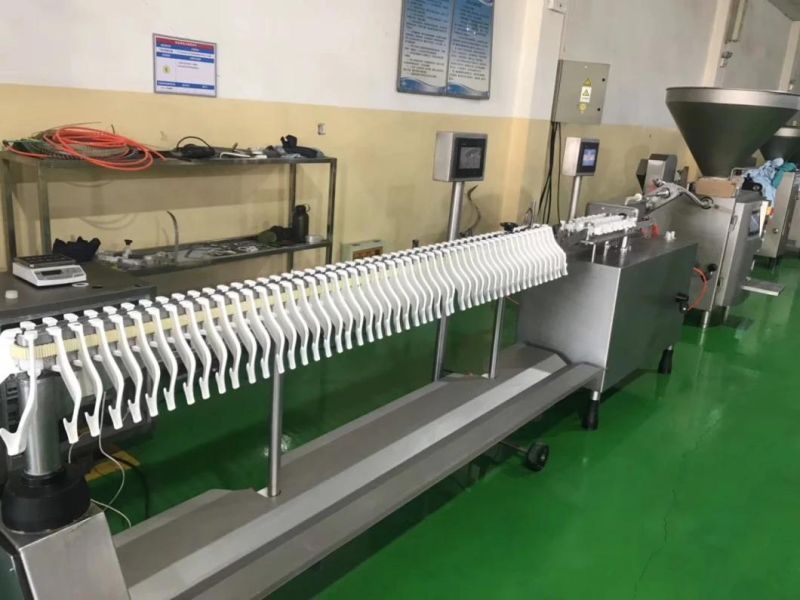

vacuum filler working with sausage clipper
hotdog production line

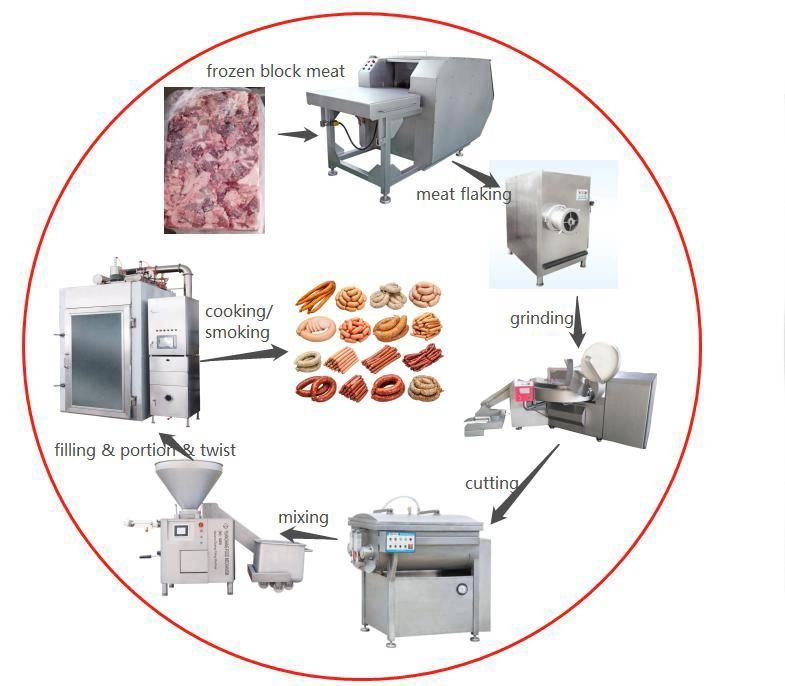

complete sausage production line for various sausage
