• Model NO.：HEM-1000
• Model：Hem-1000L
• Capacity：1000L,Batch
• Material：304 Stainless Steel

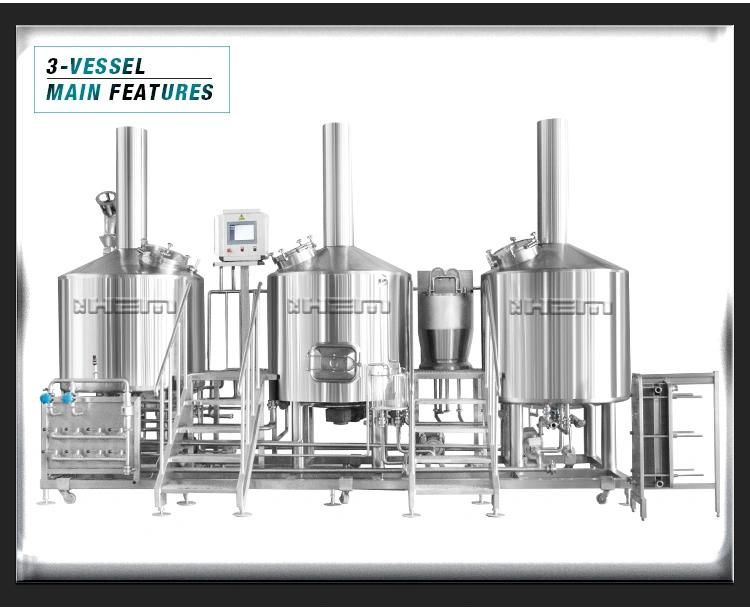

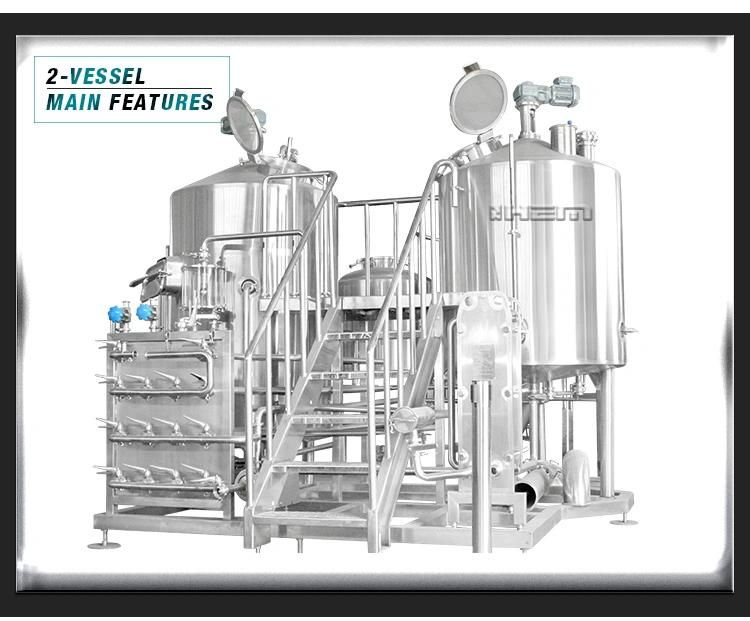

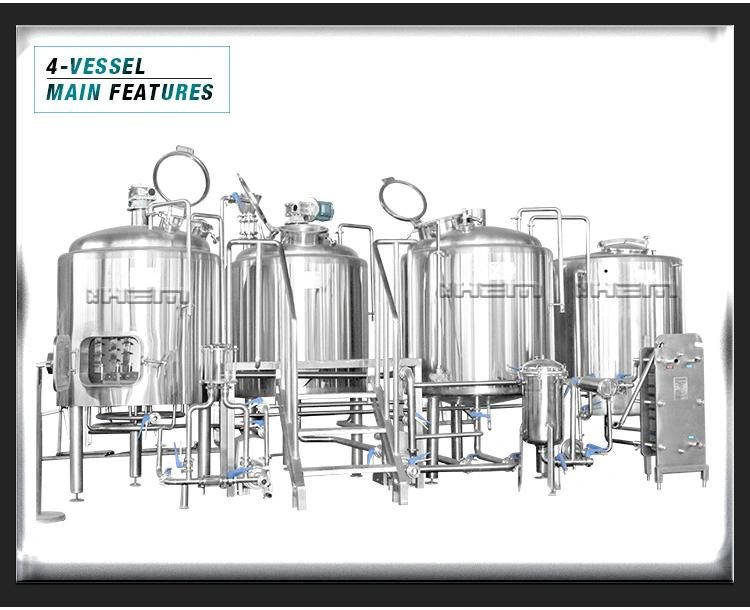

• Combination Method：Mash,Lauter Tun Kettle,Whirlpool Tank
• Application：Restaurants, Bars, Hotels, Brewery
• Cooling Way：Dimple Jacket Plate
• Cleaning Way：CIP in Situ Cleaning, with Rotary Spray Cleaning B
• Insulation：Polyurethane-Thickness: 100mm
• Transport Package：Wooden Case or Steel Frame
• Specification：500L ,1000L, 1500L ,2000L
• Trademark：HEM
• Origin：Shandong
• HS Code：8438400000

Basic Info.

Model NO. HEM-1000 Model Hem-1000L Capacity 1000L/Batch Material 304 Stainless Steel Combination Method Mash/Lauter Tun Kettle/Whirlpool Tank Application Restaurants, Bars, Hotels, Brewery Cooling Way Dimple Jacket Plate Cleaning Way CIP in Situ Cleaning, with Rotary Spray Cleaning B Insulation Polyurethane-Thickness: 100mm Transport Package Wooden Case or Steel Frame Specification 500L /1000L/ 1500L /2000L Trademark HEM Origin Shandong HS Code 8438400000

Product Description

Model	HEM-1000
Gross capaity	1300L
Useful capacity	1000L
Thickness	Inner (SUS304)thickness: 3.0mm; External-Jacket(SUS304) thickness: 2.0mm
Material	Stainless steel 304
Cooling way	Dimple jacket plate
Cleaning way	CIP in situ cleaning, with rotary spray cleaning ball
Insulation	Polyurethane-thickness: 100mm
Accessories	Sample valve, Pressure gauge, Breath valve, Temperature gauge,  Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on.

Medium capacity brewery equipment is widely used in brewery factory, restaurant and so on. It can brew pale
lager, amber lager, dark lager, ale and etc at proper temperature with different raw material. According to the
client's requirement, HEM can produce stainless steel 304 brewhouse, copper and etc.





Beer equipment advantages :

(1). High cost performance.
(2). Good abrasion resistance materialcopper beer equipment.
(3). We all adopt SUS304 to produce our equipment. The inner jacket and seal head of the tanks are all 3.0mm.
The external jacket is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.
(4). Polishing accuracy up to Ra0.4μ m .
(5). Strict tank pressure test.
(6). Energy conservation and pollution emissions.


Item	Production capacity	Volume in US Gallon	Heating area	Tank diameter	Height
HEM-50	50L/day	14US Gallon	0.15m2	550mm	1500mm
HEM-100	100L/day	26US Gallon	0.25m2	650mm	2000mm
HEM-200	200L/day	53US Gallon	0.25m2	910mm	2200mm
HEM-300	300L/day	79US Gallon	0.3m2	910mm	2300mm
HEM-500	500L/day	132US Gallon	0.5m2	1160mm	2400mm
HEM-600	600L/day	158US Gallon	0.6m2	1160mm	2500mm
HEM-700	700L/day	185US Gallon	0.7m2	1260mm	2500mm
HEM-800	800L/day	212 US Gallon	0.8m2	1260mm	2500mm
HEM-1000	1000L/day	264US Gallon	1.0m2	1360mm	2800mm
HEM-1500	1500L/day	396US Gallon	1.5m2	1560mm	2900mm
HEM-2000	2000L/day	528US Gallon	2.0m2	1960mm	3150mm
HEM-2500	2500L/day	660US Gallon	2.5m2	1960mm	3200mm
HEM-3000	3000L/day	792US Gallon	3.0m2	2060mm	3800mm
HEM-5000	5000L/day	1320US Gallon	5.0m2	2260mm	4400mm

FAQ:

Q: Are you a manufacturer?
 A:Yes, We have more than 20 years in brewing and beer filling equipment.

Q: What is your available port of shipment?
A: Qingdao, Tianjin, Ningbo, Shanghai

Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm before production.

Q: How long the warranty will be?
A: 3 years warranty for the whole tank and the main equipment, 1 year warranty for filling machine,1 year for
the accessories and auxiliaries.

Q: How about the installation and training?
A: We can supply the installation and training. There are two options. The first option: We could appoint our
engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation
and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee
period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.

Q: How do you guarantee the filling machine operation?
A: Before the delivery, we will test and debug all machines in good condition and record the video for your checking.
