• Model NO.：LY-65 LY-70
• Equipment Name：Pet Food Manufacturing Plants
• Frequency Converter：Delta Brand
• Machine Material：Stainless Steel
• Product Formula：Seller Provide Formula
• Warranty Period：12 Months
• Applicable Industry：Food Processing Machine
• After Sales Service：Seller Send Engineer for Installation and Training
• Spare Parts：Provide by Seller
• Delivery：Arrange by Seller
• Certificate：SGS,CE
• Automatic：Fully Automatic
• Key Words：Dog Food Extrusion Machine Plant
• Usage：Floating Fish Food Machine
• Voltage：Customer Settings
• Company Type：Real Factory
• Transport Package：Film&Wooden Box Packing
• Specification：2.5*1.2*1.5m
• Trademark：LOYAL
• Origin：Jinan, China
• HS Code：8438800000
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LY-65 LY-70 Equipment Name Pet Food Manufacturing Plants Frequency Converter Delta Brand Machine Material Stainless Steel Product Formula Seller Provide Formula Warranty Period 12 Months Applicable Industry Food Processing Machine After Sales Service Seller Send Engineer for Installation and Training Spare Parts Provide by Seller Delivery Arrange by Seller Certificate SGS,CE Automatic Fully Automatic Key Words Dog Food Extrusion Machine Plant Usage Floating Fish Food Machine Voltage Customer Settings Company Type Real Factory Transport Package Film&Wooden Box Packing Specification 2.5*1.2*1.5m Trademark LOYAL Origin Jinan, China HS Code 8438800000 Production Capacity 5000 Sets/Year

Product Description

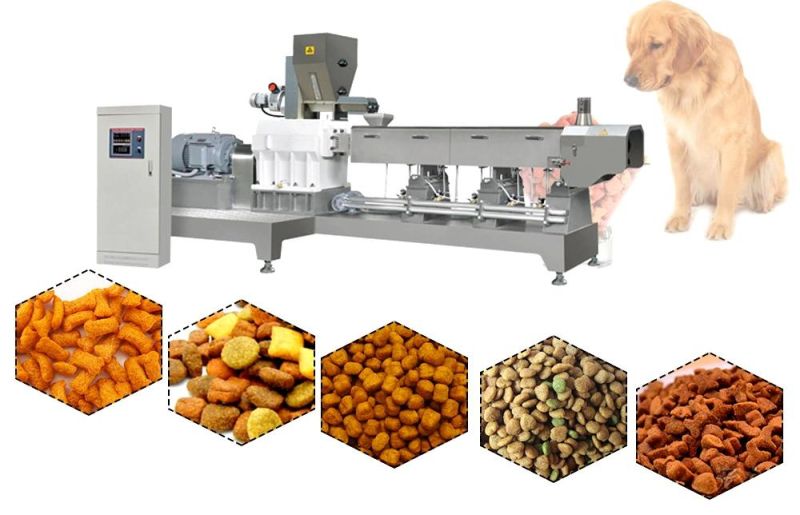

EXTRUDER FOR PET FOOD MANUFACTURING PLANTS BIRD DOG FOOD MACHINE

PRODUCT DESCRIPTION:

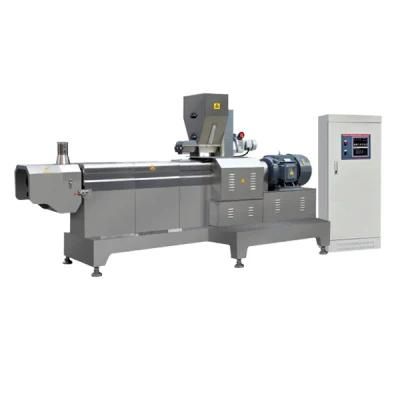

As a manufacturer of pet food manufacturing plants, in order to meet the needs of various pet foods, our company has developed a twin-screw pet food extruder design. Pet food is generally puffed and dried by meat meal, fish meal, bone meal, corn meal, soybean meal, etc.

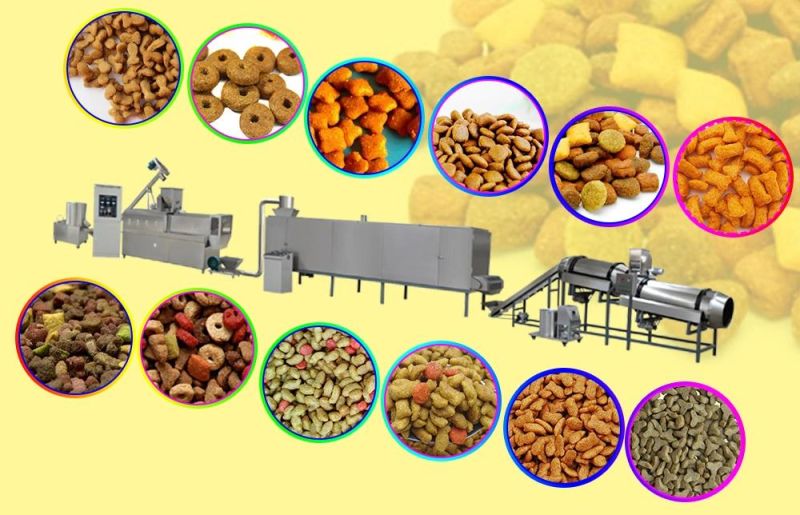

Pet food manufacturing plants can produce pet foods such as cats, dogs, foxes, birds, and floating and sinking fish feeds for aquatic products such as fish and shrimps. Pet food is made under high temperature conditions and is very popular in the pet food market.

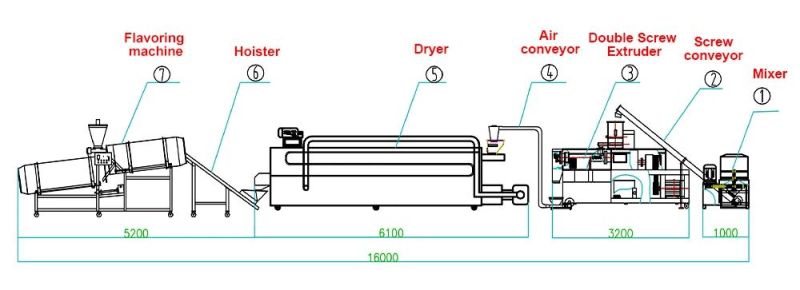

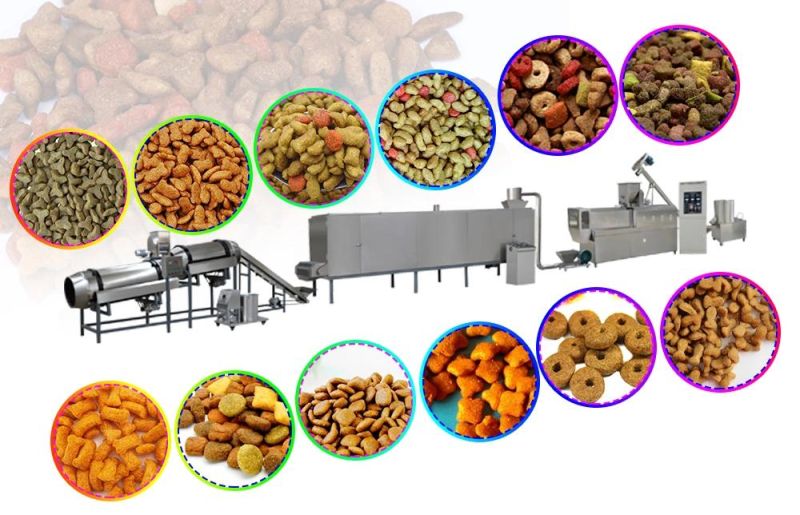

FLOW CHART OF PET FOOD MANUFACTURING PLANTS:

Mixer-Screw Conveyor-Double Screw Extruder-Air Conveyor-Dryer-Hoister-Flavoring Machine

TECHNICAL PARAMETERS OF PET FOOD MANUFACTURING PLANTS FOR SALE:

Model	Installed Power	Power Consumption	Output	Size (L*W*H)
PFE-65-1	47KW	30KW	180kg/h	3500x950x1850mm
PFE-70-1	53KW	37KW	200-250kg/h	3200x760x2000mm
PFE-85-1	99KW	75KW	500kg/h	3800*1100*2350mm
PFE-75-2	98KW	75kw	200-500kg/h	5200*1100*2800mm
PFE-95-2	142kw	110KW	600-1200kg/h	6400*3000*3000mm
PFE-115-3	142kw	110kw	2T-3Tg/h	6400*3000*3000mm

Applied Products:Cat food, Dog food, Bird fodd, Fish feed, Shrimp feed, Sinking feeds, Floating fish feed, Tilapia pellet, Turtle feed, Crab Feed

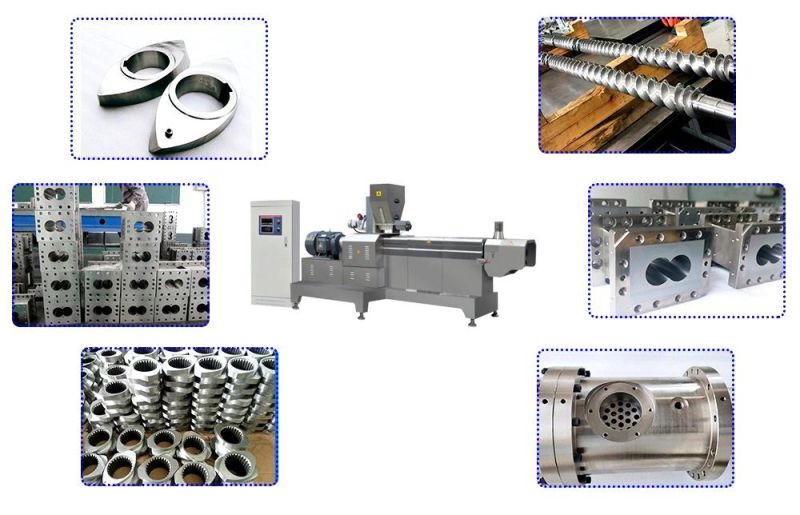

EQUIPMENT MATERIALS OF PET FOOD MANUFACTURING PLANTS:

1. All the aquaculture pet food production line are made by stainless steel.
2. Screws :alloy steel (38CrMoAl)
3. The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
4. The extrusion barrel is constructed of carbon steel, is made by 45 steel, stainless steel coating.
5. The gearbox has automatic lubrication function, with extends gear life.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

APPLICATIONS OF BEST-SELLING PET FOOD MANUFACTURING PLANTS MULTI-FUNCTIONAL DRY PET FOOD MAKING MACHINE:

The automatic pet food processing line can be applied to cats, dogs, foxes, monkeys, pigs, sheep, rabbits, fish, shrimps, poultry, birds, etc. The production equipment can adjust the process parameters of raw materials, temperature, moisture, etc. The size and shape of pet food can be adjusted by changing the mould and cutting speed. It can adjust the pet feed machine according to customers' requirement.

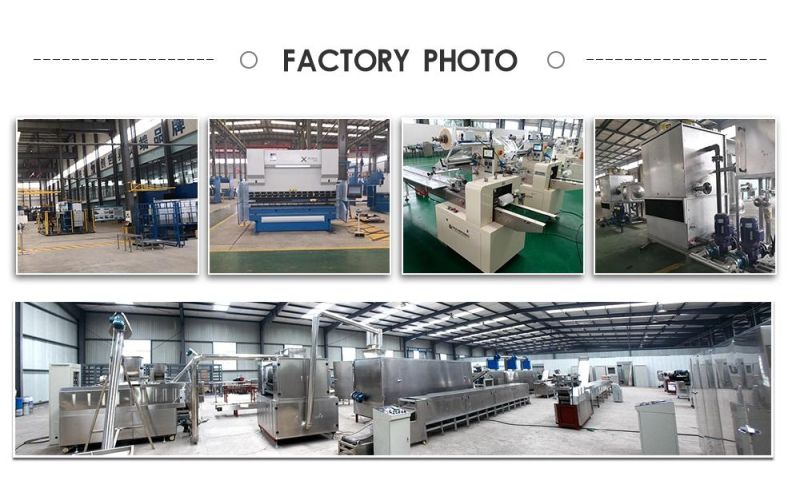

COMPANY INTRODUCTION:
We are a reliable factory located in the beautiful spring city of Jinan, China.
We have a complete management system ISO9001.
We are the largest food processing machinery manufacturer in Jinan, the main products: pet food machinery, snack machinery, fruit and vegetable cleaning and processing machinery, biscuit machinery, instant noodle machinery, pasta machinery, etc. - food processing machinery manufacturers!
More than 20 engineers have more than 8 years of work experience and have traveled to more than 50 countries and regions.
Provide 24-hour telephone mail service to provide you with timely and feasible solutions and better after-sales service.
