• Model NO.：LFD-10A
• Customized：Customized
• Product Name：Experimental Freeze Dryer
• Specificatio：Standard
• Defrosting：Natural Defrosting
• The Minimum Order Quantity：1set
• Warranty Period：1year
• After Sales Service：10years
• Function：Pre-Freezing
• Features：Freeze and Dry
• Bulk Type：Liquid, Paste, Solid
• Interface：Vacuum Pump
• Cold Trap Temperature：-80degure
• Filtration System：Oil Mist
• Transport Package：Plywood Case Package
• Specification：Unit
• Trademark：LABOAO
• Origin：China
• HS Code：8419399010
• Production Capacity：2000set,Month

Basic Info.

Model NO. LFD-10A Customized Customized Product Name Experimental Freeze Dryer Specificatio Standard Defrosting Natural Defrosting The Minimum Order Quantity 1set Warranty Period 1year After Sales Service 10years Function Pre-Freezing Features Freeze and Dry Bulk Type Liquid, Paste, Solid Interface Vacuum Pump Cold Trap Temperature -80degure Filtration System Oil Mist Transport Package Plywood Case Package Specification Unit Trademark LABOAO Origin China HS Code 8419399010 Production Capacity 2000set/Month

Product Description

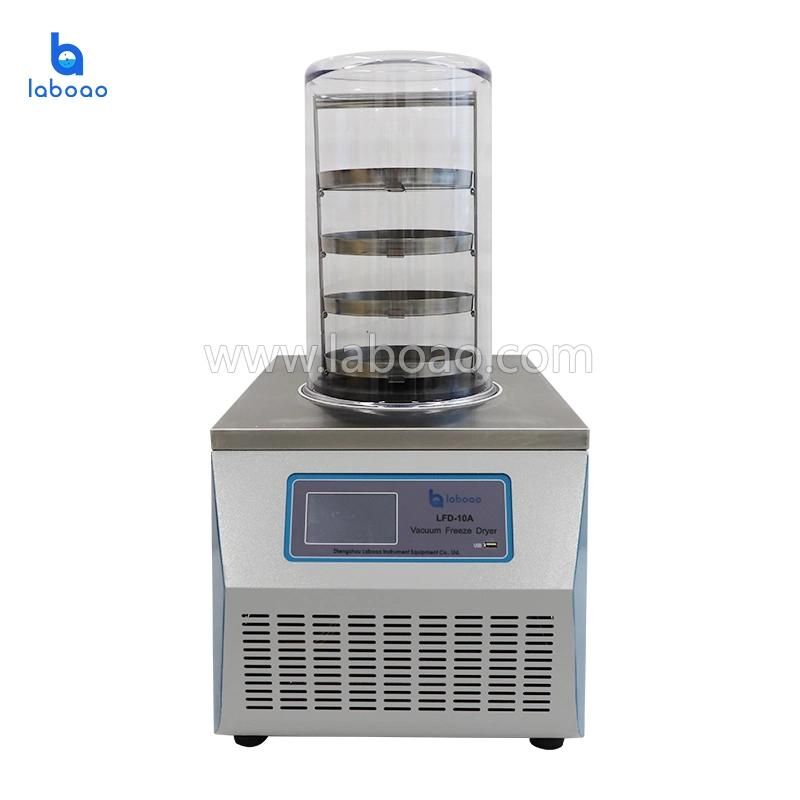

Benchtop Laboratory Vacuum Pharmaceutical Lyophilizer Herbal Freeze Dryer
Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.



 Feature:CFC Free refrigeration
LCD display drying curves, English interface
Big opening of condenser, condenser with pre-freezing function
low noise compressor, good efficiency,long service life
Condenser and operation panel are all stainless steel
Drying Chamber with organic glass is safe and visible
Shelf and tray are stainless steel, tray spacing can be customized
Small volume , easy and convenient operation
Nitrogen valve is optional
Eutectic point test device is optional
Communication interface is optional


 Specification:

Model	LFD-10A
Freeze drying area	0.12
Condenser capacity	3-4 L /24h
Condenser temperature	-55ºC (-80 ºC optional)
Vacuum degree	< 10 Pa
Material tray	Ф200mm , 4 layers
Bulk capacity	1.2L, 10mm thickness
Vial capacity Φ12mm	920 pcs
Vial capacity Φ16mm	480 pcs
Vial capacity Φ22mm	260 pcs
Manifold	with 8 ports
Flask	1000ml,500ml ,250ml ,100ml
Cooling	Air,draughty , ambient temperature≤25ºC
Voltage	220V ,50 Hz;   110V, 50Hz;  110V, 60Hz
Power	700W
Dimension	460×625×(370+465) mm
Host weight	41 kg

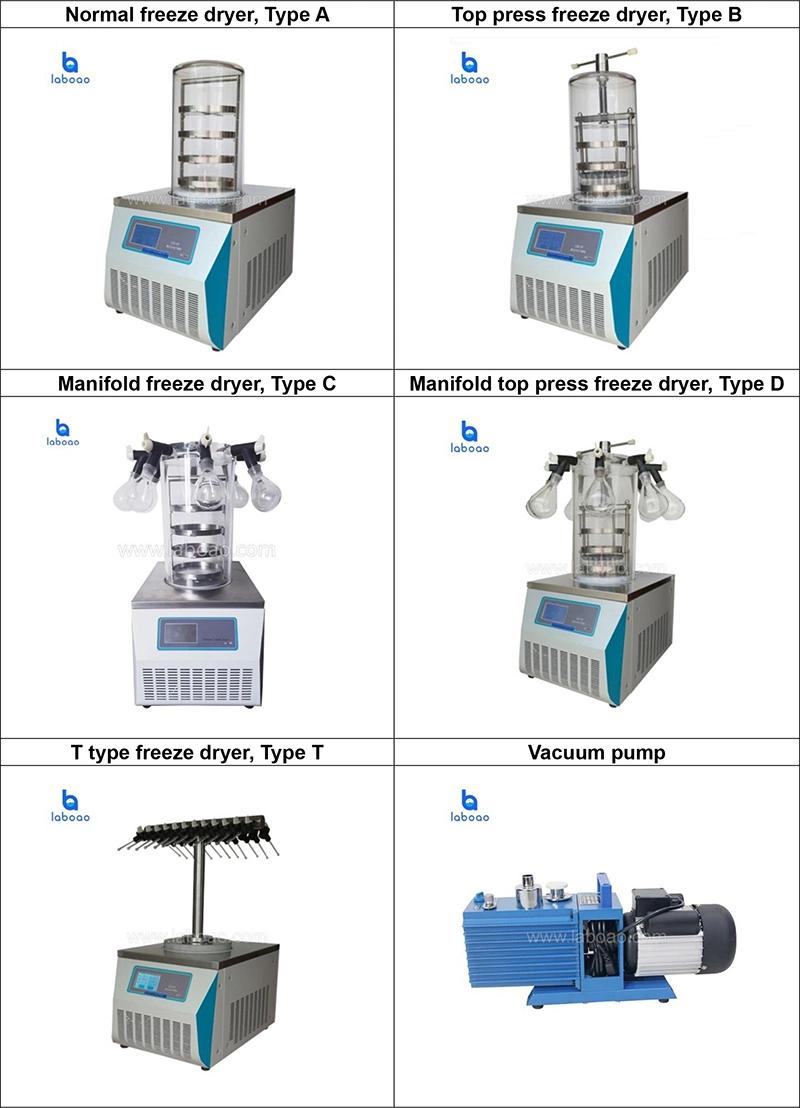

1. How many types do you have?

For laboratory used, normal, top-press, manifolf, manifold top-press and T type are available, total 5 types.
For home used, we have 1-2kg/batch and 4-6kg/batch.

2. How to choose the suitable model?

Firstly, what is your sample shape, bulk or in vials?
If bulk, choose normal type. If in vials, choose top-press type. If sample is various, choose manifold.

Secondly, tell us how many kilogram of your sample, then we will recommend the suitable model.

3. Does it including vacuum pump?

Yes.

4. What is your warranty?

12months.
