20-30 Ton/Day Mini Integrated Rice Mill Plant

HUBEI FOTMA MACHINERY CO., LTD.
  • Type：Rice Mill
  • Application：Wheat, Paddy Processing
  • Voltage：380V
  • Appearance：Horizontal
  • Press Materials：Rice
  • Press Series：First

Base Info

  • Model NO.：20-30 Ton,Day
  • Condition：New
  • Customized：Non-Customized
  • Fuction：White Rice Processing
  • Power：Electricity
  • Broken Rate(%)：1-5
  • Power Required(kw)：40-50
  • Capacity(t/h)：0.85-1.5
  • Dimension(mm)：7500X1900X3720
  • Voltage I：AC380V, 50Hz, 3 Phase
  • Voltage II：AC440V, 60Hz, 3 Phase
  • Warranty：One Year
  • Transport Package：Rice Milling Packed in Wooden Case
  • Specification：ISO9001
  • Trademark：Fotma
  • Origin：Hubei, China
  • HS Code：8437109000
  • Production Capacity：300 Set,Year of 20-30t Rice Mill

Description

Rice WhitenerModelMNMF14BMNMF14CMNMF15BMNMF18CCapacity1.2-1.5t/h1.2-3.0t/h1-1.5t/h2-2.5t/hEmery Roller Size140X250mm140X250mm150*400mm180*610Main Shaft Rotation980RPM980RPM1440RPM1296 RPMPower18.5+3kw18.5kw15-22kw18.5-22kwOverall Dimension1477X540X1554mm1477X540X1554mm870*500*1240mm1321*540*1968mmHuskerModelMLGT15B(6')MLGT20B(8')MLGT25B(10')Rubber roller size(mm)255*152255*200255*254Hulling rate85%-90%85%-90%85%-90%Power(kw)45.55.5Overall dimension(mm)1010*560*17851010*710*17851240*880*2370Paddy CleanerModelTZQY/QSX54/45TZQY/QSX54/56TZQY/QSX75/65TZQY/QSX86/80TZQY/QSX86/100Capacity(t/h)1.2-1.62.5-33.2-4.84.4-66.5-7.5Power(kw)1.11.12.22.22.2Spindle rotation speed(rpm)450450450450450Overall dimension(mm)1250*1100*22501400*1225*24751234*1357*26381340*1300*26401380*1200*2645
6. Photos

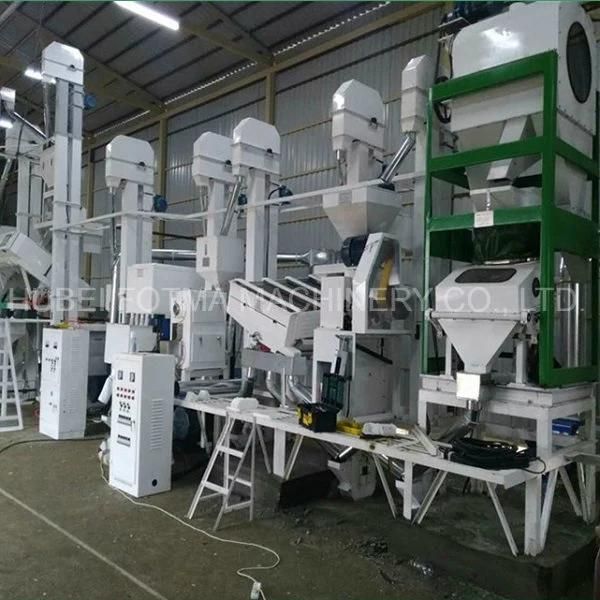

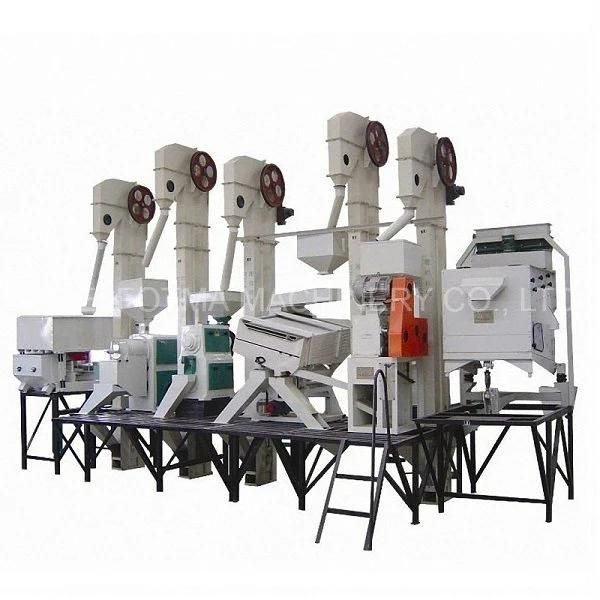

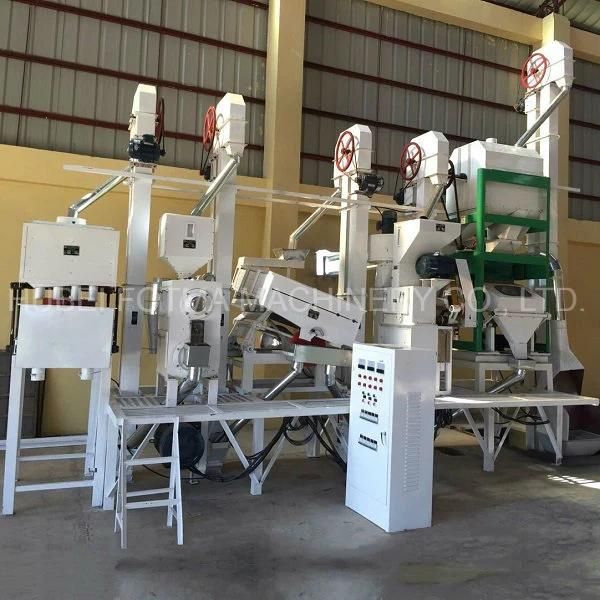

20-30 Ton/Day Mini Integrated Rice Mill Plant
20-30 Ton/Day Mini Integrated Rice Mill Plant
20-30 Ton/Day Mini Integrated Rice Mill Plant
20-30 Ton/Day Mini Integrated Rice Mill Plant
