Small Full Automatic Low Price Plate Sterilizer for Liquid Food
Weishu Machinery Technology (Shanghai) Co., Ltd.- Customized：Customized
- Certification：CE, ISO9001
- Scale：Medium
- Automation：Automatic
- Principle：Rotary
- Structure：Screw Pump
Base Info
- Model NO.：WSBS-1
- Operation：Continuous
- Energy：Heat Sterilization
- Property：Physical Sterilization
- Type：High Voltage Electric Field Sterilization Equipment
- Power：5.0-12kw
- Heating Moad：Staem or Electric Heating
- Main Material：SUS304&316L
- Transport Package：Export Standard Package
- Specification：300 to 10000L,H
- Trademark：WS
- Origin：Shanghai, China(Mainland)
- HS Code：8419899090
- Production Capacity：Shanghai
Description
ShanghaiEquipment description

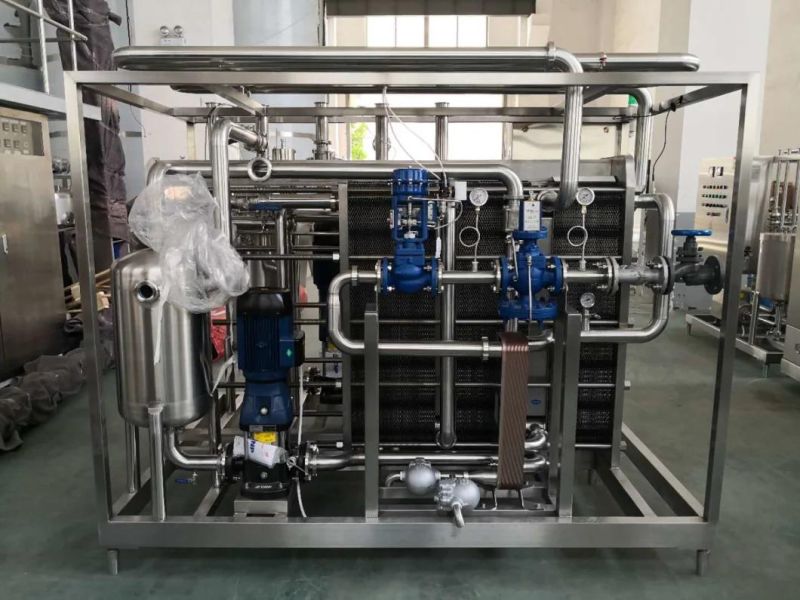

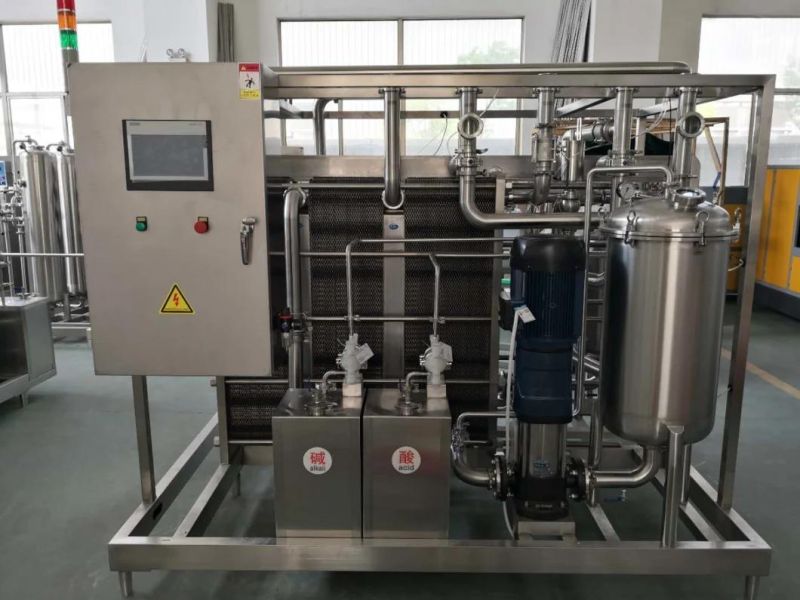

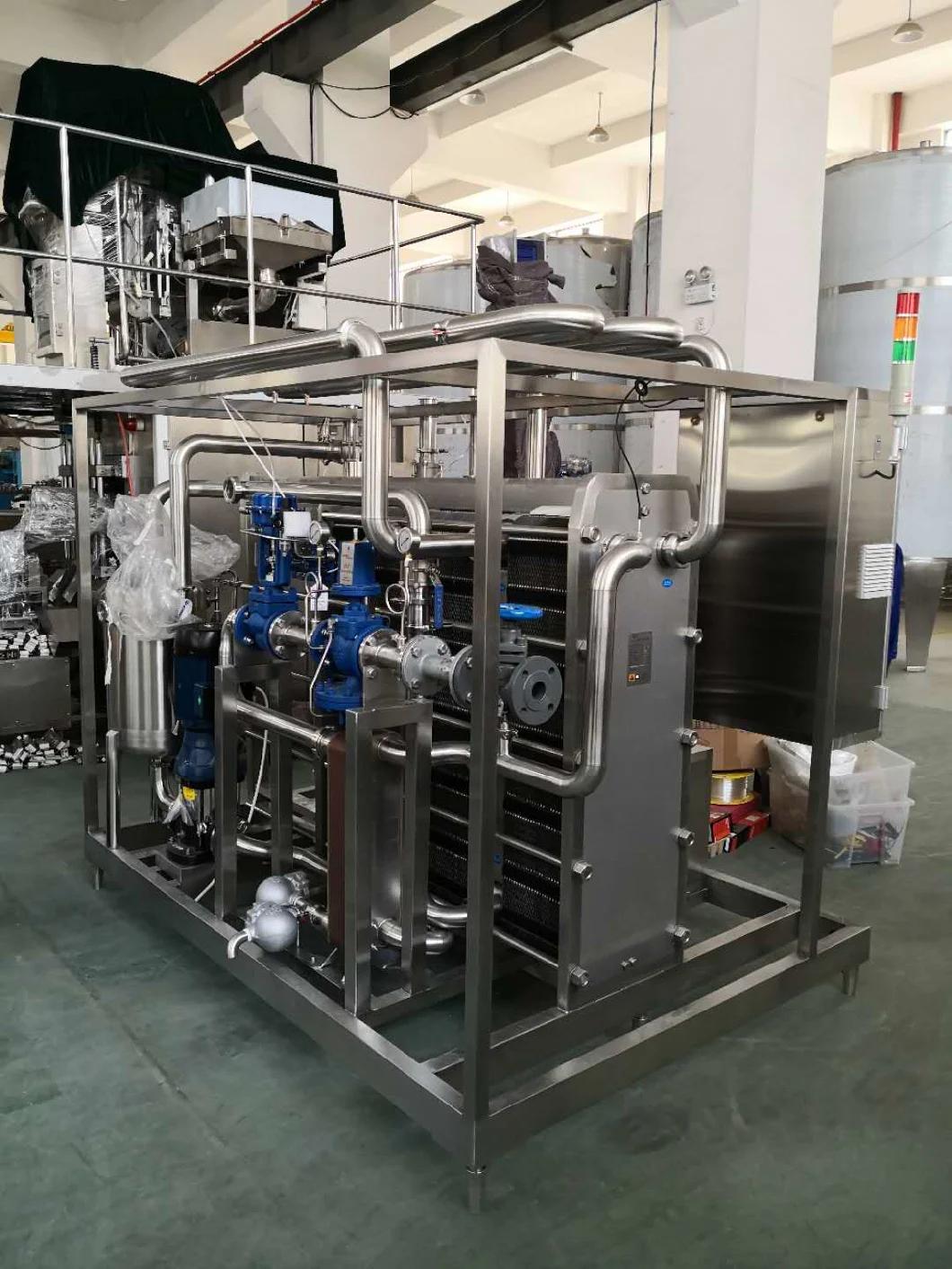

Plate sterilizer is a kind of sterilization equipment specially designed for dairy drinks or similar liquid materials. It is an ideal equipment for extending the shelf life of materials through sterilization and cooling. According to the different process requirements of heating, sterilization, heat preservation and cooling of different materials, different process combination design can be carried out to meet the process requirements. It has the functions of various safety protection measures, high temperature alarm and low temperature reflux. At the same time, according to the requirements of users, the corresponding high-precision automatic control system can be configured. 1, The plate pasteurization equipment is designed for continuous heating, sterilization, heat preservation and cooling of pasteurized milk, yogurt, fancy milk, fresh milk, juice, beer, beverage, fruit wine, ice cream, milk beverage, concentrated juice, wine and other heat sensitive liquids. 1. Food industry: tea drinks, ice cream, fruit juice jam, dairy products, plant protein factories and other food and beverage. 2. Pharmaceutical industry: syrup, nutrient solution, Chinese patent medicine, paste medicine, biological products, cod liver oil, pollen, royal jelly, vaccine, various ointment, various oral liquid, injection, intravenous drip, etc. 3. Beverage industry: alcohol, juice drinks, mixed dairy products, sugar, ice cream, juice, peanut milk, protein milk, soybean milk, dairy products, beverages, etc.
Control type:
Full-automatic control (PLC with touch screen),Semi automatic PID Control.
Main configuration:
A. Plate heat exchanger; B. Material-balance bucket; C. Hot water-balance drum; D. Hot water pump; E. Product pump; F. Steam & water mixer; G. Electricity box; H. Stainless steel pipes and valves etc. Production capacity: 500L-20T/H

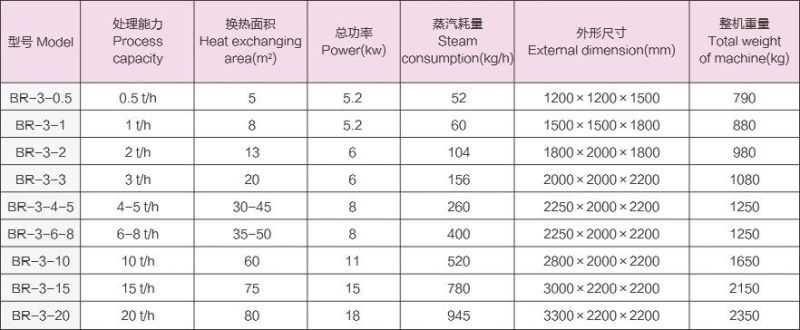

Main technical parameter:
Company Profile

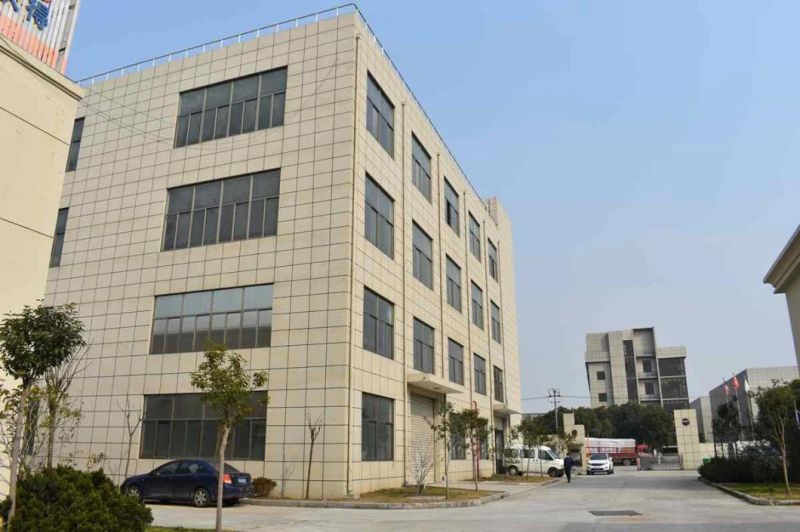

Weishu Machinery Technology (shanghai) Co.,Ltd located in Fengxian district Shanghai China, it take one hour from PUDONG airport to the factory by vehicle, a factory that specialist in design ,R&D, produce, distribute of dairy and beverage production line, have more than 25 year experienced engineers, cooperate with professor of university,Introduce German technology ,we passed ISO9001, applied patents, according to different requirement of customers, assist to complete mechanical engineering design, project budget, process design and package design etc. , Our product widely use in Europe Southeast Asia ,Africa, Middle east Europe America , supply 24 hours service, we looking forward to cooperate with you!
Management Team
Production And Equipment
Customer Visit And Cooperation
FAQ
