• Model NO.：C160
• Voltage：380V
• Customized：Customized
• Transport Package：Sea
• Specification：2CMB
• Trademark：CHENGYE
• Origin：China
• HS Code：843850
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. C160 Voltage 380V Customized Customized Transport Package Sea Specification 2CMB Trademark CHENGYE Origin China HS Code 843850 Production Capacity 1000 Sets/Year

Product Description

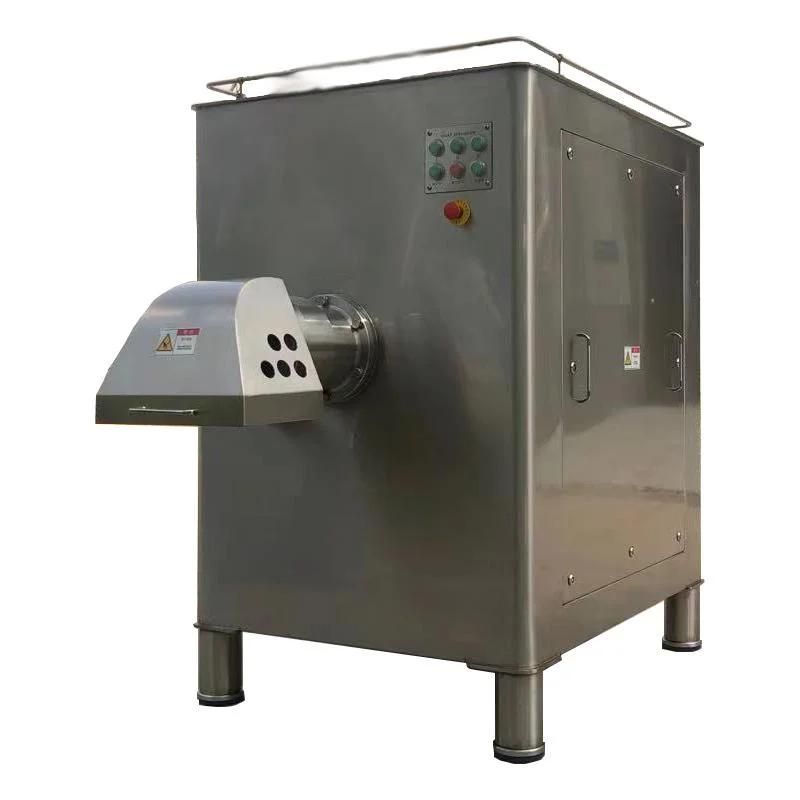

                                                            C160 Frozen Meat Grinder



1.Feature:

Model	C160G-B
Motor Power	18.5Kws
VSD	18.5Kws VSD
V/Hz	380V 50Hz
Weight	560Kgs
Auger Speed	Variable Speed Control
Available Frozen Meat Dimension	Max. 50*50*150 mm
Capacity	1 - 5T/Hour (Up to different hole size of hole plate and temperature of raw meat)
Dimension	1450*1000*1400 mm

2. Material Feature:

• Main Body: Body shell, hopper and rear door is 3mm SUS304

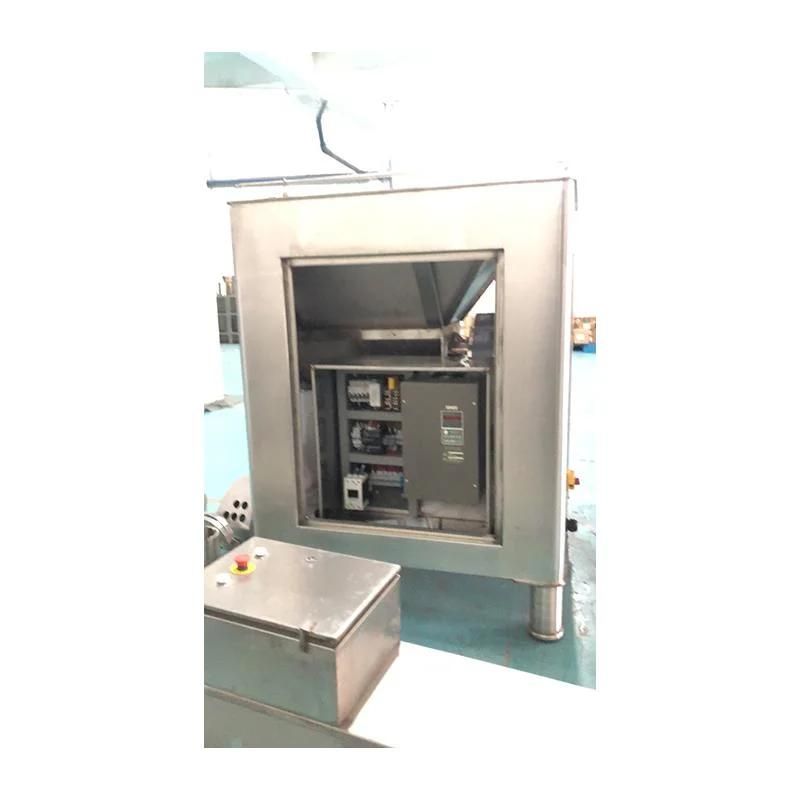

• Electrical Box:2mm SUS304,Outlet safety cover is 3mm SUS304.

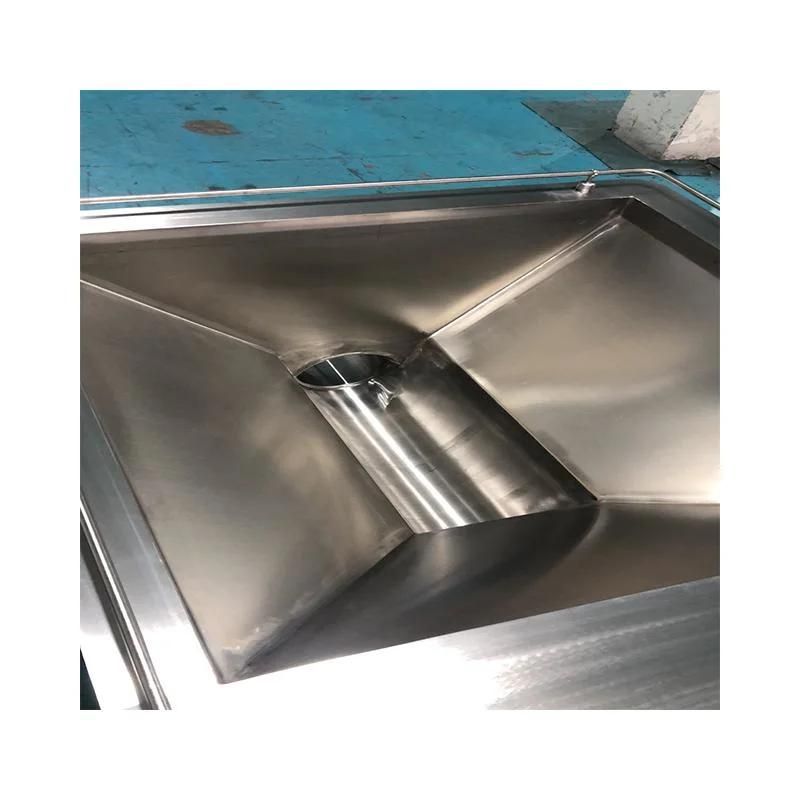

• Bottom U shape hopper is 4mm SUS304, front and rear support is 10mm SUS304(Whole welding).
• Frozen meat auger; frozen meat auger housing; fresh meat auger; fresh meat auger housing; knife housing; clamp; locker cap; spacer ring; guiding shaft housing; flange of rear gear box is SUS304.
• Internal support parts including 60*30*4 cube tube SUS304.
• Knife shaft; hole plate and knife is special heat treatment stainless steel.
• Scored pulley is globe standard B type 4 channel casting iron.
• C160 meat grinder can mincer for -15 degree meat and fresh meat.
• C160 can setting by single cut (need spacer ring) or dual cut. (See Below Photo)

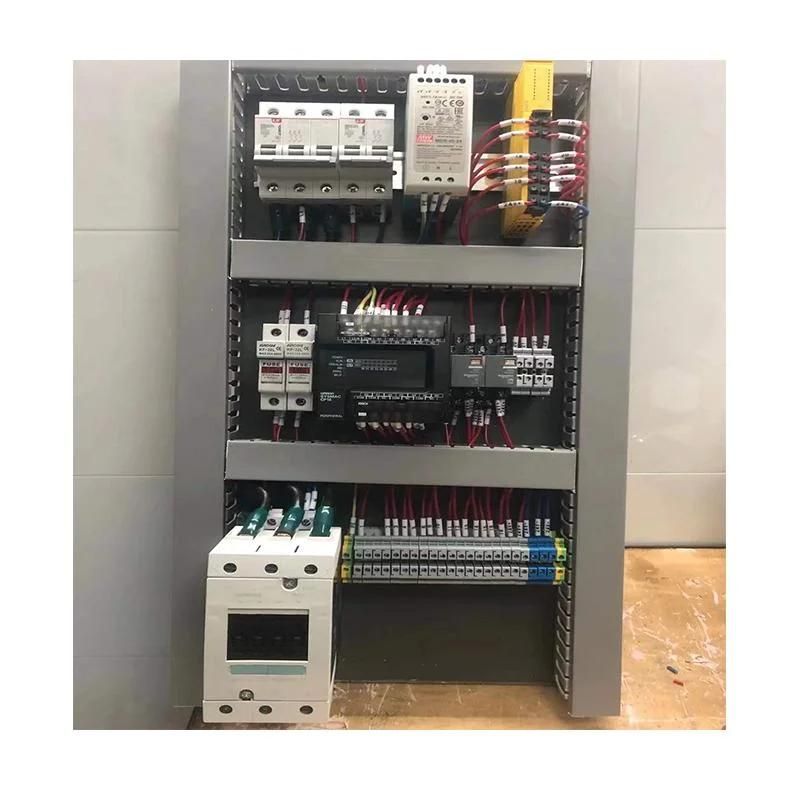

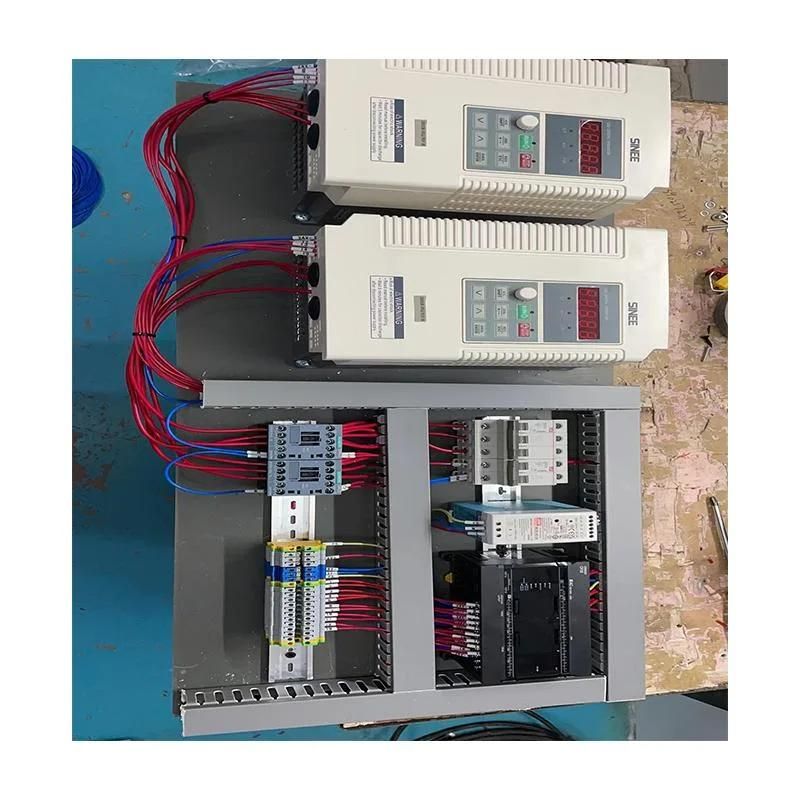

• All contactor is Siemens, all relay is Omron, all button is Germanany brand.
• Safety device: standard outlet safety cover, upper hopper safety fence, rear door safety device.
