Stainless Steel 304 Butter Mixing Tank Price
Shanghai Kaiquan Machine Valve Co., Ltd.- Process：Frozen and Chilled
- Power Source：Electric
- Certification：CE, ISO9001
- Automatic Grade：Automatic
- Application：Milk, Yogurt, Milk Powder, Cheese, Juice ,Beverage
- Customized：Customized
Base Info
- Model NO.：KQ100-10000L
- Material：Stainless Steel 304,316
- Heating and Cooling Tank Application：Milk Pasteurizer, Yogurt Fermentation, Icecream
- Ice Cream Tank Polish：Mirror Polish, Sub-Light
- Product Application：Liquid, Viscous Fluid, Liquid with Suspended Solid
- Tank Capacity Model Number：200L~10000L
- Motor Brand：Siemens ,ABB ,China Brand
- Place of Origin：Shanghai China
- Voltage ,Hz ,Phase：Make It to Your Order .
- Voltage：220V,380V,50Hz
- Tank Construction：Inside Wall, Jacket Wall, Outside Wall
- Delivery：10 Days
- Packing：Wooden Box
- Warranty：One Year
- OEM：Yes
- MOQ：1set
- Transport Package：Standard
- Specification：ISO
- Trademark：KQ
- Origin：China
- HS Code：8479820090
- Production Capacity：1000
Description
Rotating 20,35,50,
100,500
Stepless speed reducer or inverter reducer available600 920*1000 2400 60 38 0.75 700 990*1000 2400 60 38 0.75 800 950*1220 2550 60 38 0.75 900 1010*1220 2700 60 38 0.75 1000 1060*1220 2700 60 51 1.1 2000 1340*1500 2750 60 51 2.2 3000 1410*2000 3500 60 51 4 5000 1910*2000 3850 60 51 5.5 10000 2300*2440 4500 60 51 7.5 15000 2530*3000 5200 60 51 7.5 20000 2640*3660 5800 60 51 7.5

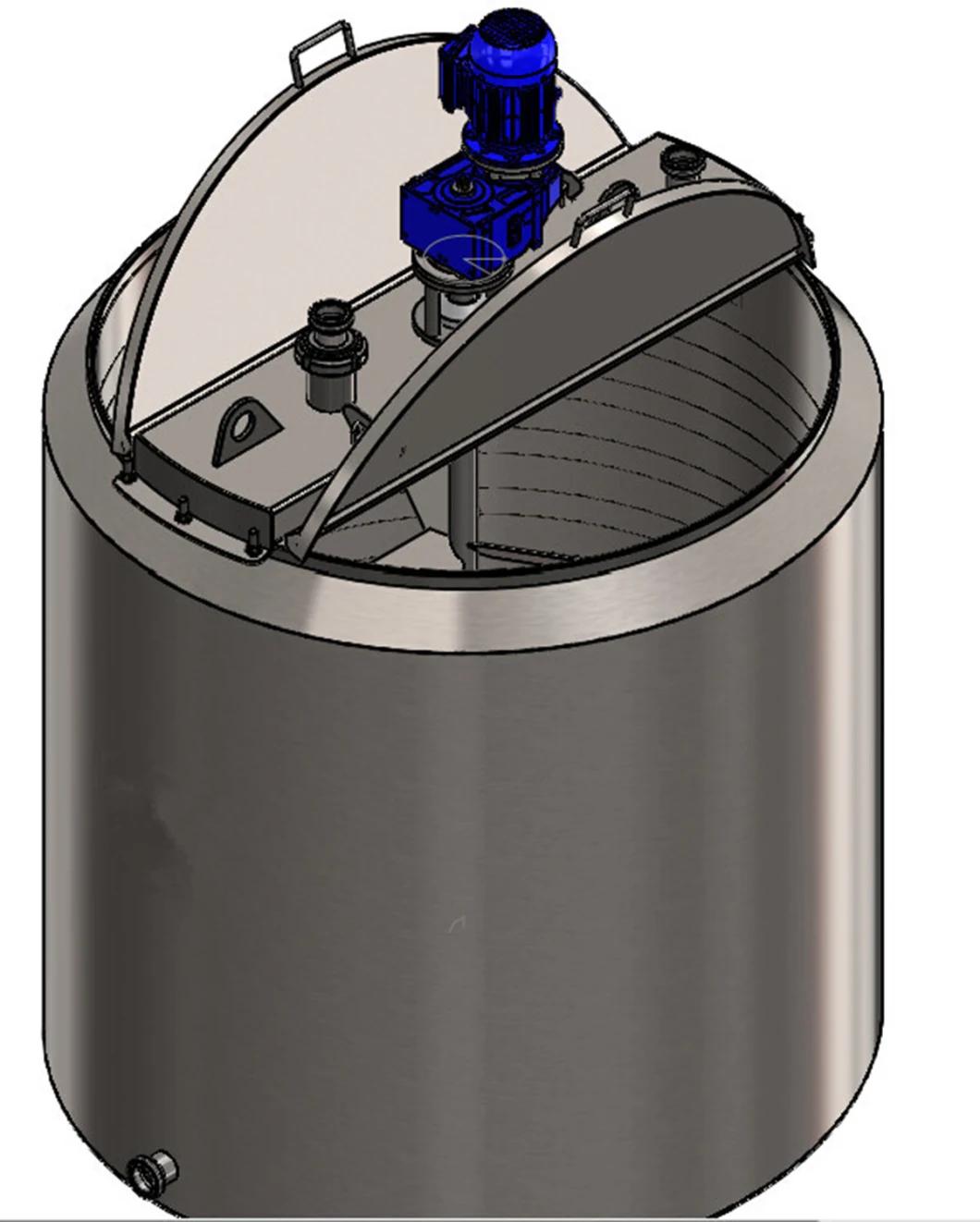

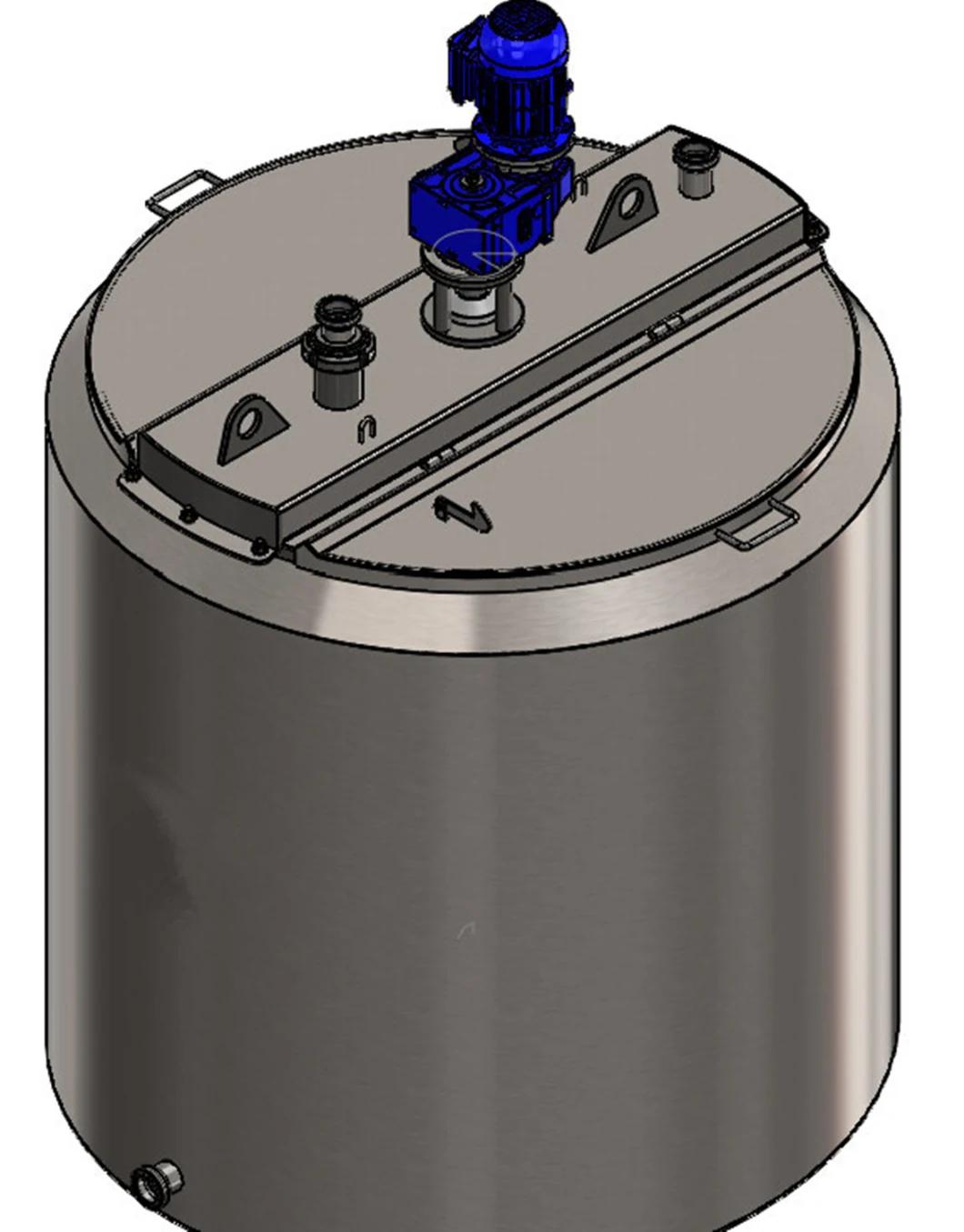

1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.
Configuration of tank
1. Quick-open lid.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly
6. Thermometer (According to customer requirements).
7. Ladder (According to customer requirements).
8. Vertical blender(Paddle type or frame type are available if customers require)
9. Eddy-proof board.
Capability and characteristic
1. Suit for the process about formulating, dissolving, heating, cooling, warm-keeping, cultivating, disinfecting and storage. It is available online CIP cleaning ( only suitable for enclosed structure)
2. Designed in accordance with sanitary requirements, so the structural design is very user-friendly, easy to operate, healthy to store.
3. The inner surface is mirror-polished (roughness Ra≤0.4µm); the welding of all kinds of nozzles, endoscopic, manholes and the pot adopt stretch flanging process arc transition, easy to clean with no dead ends, ensure the reliability and stability in the production process.
4.The main blending adopts stepless speed variation device, which can reduce the formation of bubbles when the temperature is low and the viscosity is high.
5.The gear pump circulating discharging device can accelerate the forming of products and realize rapid discharging.
Structure charateristics
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.
Configuration of tank
1. Quick-open lid.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly
6. Thermometer (According to customer requirements).
7. Ladder (According to customer requirements).
8. Vertical blender(Paddle type or frame type are available if customers require)
9. Eddy-proof board.
Capability and characteristic
1. Suit for the process about formulating, dissolving, heating, cooling, warm-keeping, cultivating, disinfecting and storage. It is available online CIP cleaning ( only suitable for enclosed structure)
2. Designed in accordance with sanitary requirements, so the structural design is very user-friendly, easy to operate, healthy to store.
3. The inner surface is mirror-polished (roughness Ra≤0.4µm); the welding of all kinds of nozzles, endoscopic, manholes and the pot adopt stretch flanging process arc transition, easy to clean with no dead ends, ensure the reliability and stability in the production process.
4.T he main blending adopts stepless speed variation device, which can reduce the formation of bubbles when the temperature is low and the viscosity is high.
5.The gear pump circulating discharging device can accelerate the forming of products and realize rapid discharging.
Application
1.Cosmetic and daily chemical product: Cosmetic cream, lotion, shampoo, detergent, health care product, gel, Laundry detergent, hand sanitizer, armpits lotion etc.
2.Pharmaceutical product: Ointment, Ice packs, injection liquid, penicillin etc
3.Food : Salad, mayonnaise, peanut butter, sesame butter, buttery, Animal fat, iced products, healthy food etc.
4. Beverage: Fruit Juice, Milk Juice etc.
5.Chemical: Paints, Pigments, dyes, phto solvents, Rubber and resin, pesticides ,Shoe polish, general chemicals etc.
Stainless Steel 304 Butter Mixing Tank Price
100,500
Stepless speed reducer or inverter reducer available
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.
Configuration of tank
1. Quick-open lid.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly
6. Thermometer (According to customer requirements).
7. Ladder (According to customer requirements).
8. Vertical blender(Paddle type or frame type are available if customers require)
9. Eddy-proof board.
Capability and characteristic
1. Suit for the process about formulating, dissolving, heating, cooling, warm-keeping, cultivating, disinfecting and storage. It is available online CIP cleaning ( only suitable for enclosed structure)
2. Designed in accordance with sanitary requirements, so the structural design is very user-friendly, easy to operate, healthy to store.
3. The inner surface is mirror-polished (roughness Ra≤0.4µm); the welding of all kinds of nozzles, endoscopic, manholes and the pot adopt stretch flanging process arc transition, easy to clean with no dead ends, ensure the reliability and stability in the production process.
4.The main blending adopts stepless speed variation device, which can reduce the formation of bubbles when the temperature is low and the viscosity is high.
5.The gear pump circulating discharging device can accelerate the forming of products and realize rapid discharging.
Structure charateristics
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.
Configuration of tank
1. Quick-open lid.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly
6. Thermometer (According to customer requirements).
7. Ladder (According to customer requirements).
8. Vertical blender(Paddle type or frame type are available if customers require)
9. Eddy-proof board.
Capability and characteristic
1. Suit for the process about formulating, dissolving, heating, cooling, warm-keeping, cultivating, disinfecting and storage. It is available online CIP cleaning ( only suitable for enclosed structure)
2. Designed in accordance with sanitary requirements, so the structural design is very user-friendly, easy to operate, healthy to store.
3. The inner surface is mirror-polished (roughness Ra≤0.4µm); the welding of all kinds of nozzles, endoscopic, manholes and the pot adopt stretch flanging process arc transition, easy to clean with no dead ends, ensure the reliability and stability in the production process.
4.T he main blending adopts stepless speed variation device, which can reduce the formation of bubbles when the temperature is low and the viscosity is high.
5.The gear pump circulating discharging device can accelerate the forming of products and realize rapid discharging.
Application
1.Cosmetic and daily chemical product: Cosmetic cream, lotion, shampoo, detergent, health care product, gel, Laundry detergent, hand sanitizer, armpits lotion etc.
2.Pharmaceutical product: Ointment, Ice packs, injection liquid, penicillin etc
3.Food : Salad, mayonnaise, peanut butter, sesame butter, buttery, Animal fat, iced products, healthy food etc.
4. Beverage: Fruit Juice, Milk Juice etc.
5.Chemical: Paints, Pigments, dyes, phto solvents, Rubber and resin, pesticides ,Shoe polish, general chemicals etc.
