Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food ...

Guojian Machinery Manufacturing Co., Ltd.
  • Application：Noodle
  • Processing Material：Steel
  • Warranty：One Year
  • After-sales Service：One Year Warranty
  • Certification：CE, ISO9001
  • Power Source：Electric

Base Info

  • Automatic Grade：Automatic
  • HS Code：8438900000

Description

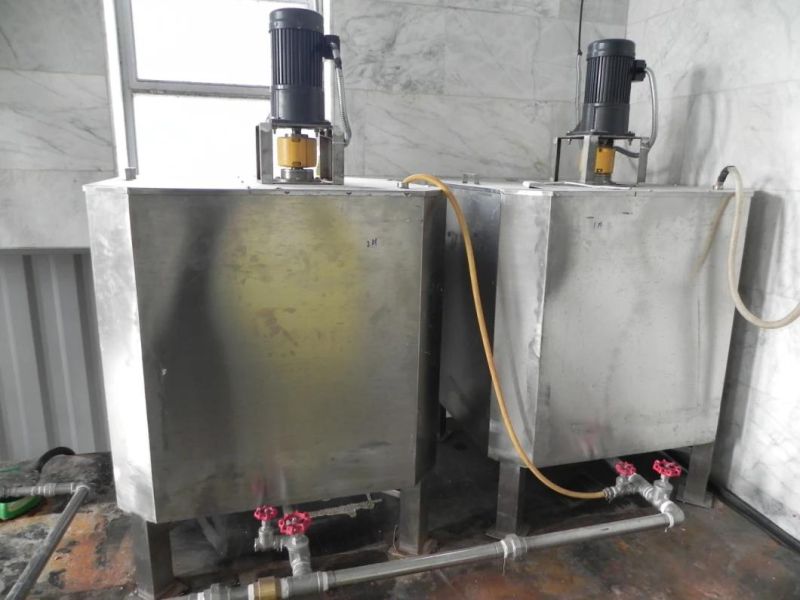

1: ITEM NAME: ALKALI MIXING TANK
CAPACITY:500-1000KG PER TANK
MATERIAL: SUS304/316
FUNCTION: TO MIX WATER WITH SALT AND ADDITIVES
MAIN PARAMETERS: MIXING TIME: 10MINS
                 WATER CONTENT: PURED WATER BETTER

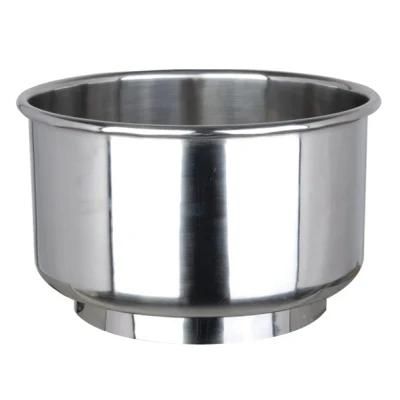

 Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food Machine2: ITEM NAME: DOUGH MIXER
CAPACITY:50-350KG PER BATCH
MATERIAL: SUS304
FUNCTION: TO MAKE FLOUR WITH WATER COMPLETELY
MAIN PARAMETERS: MIXING TIME: 15-20MINS
                 WATER CONTENT: 11-14%
                 WATER ADD: 30-35%

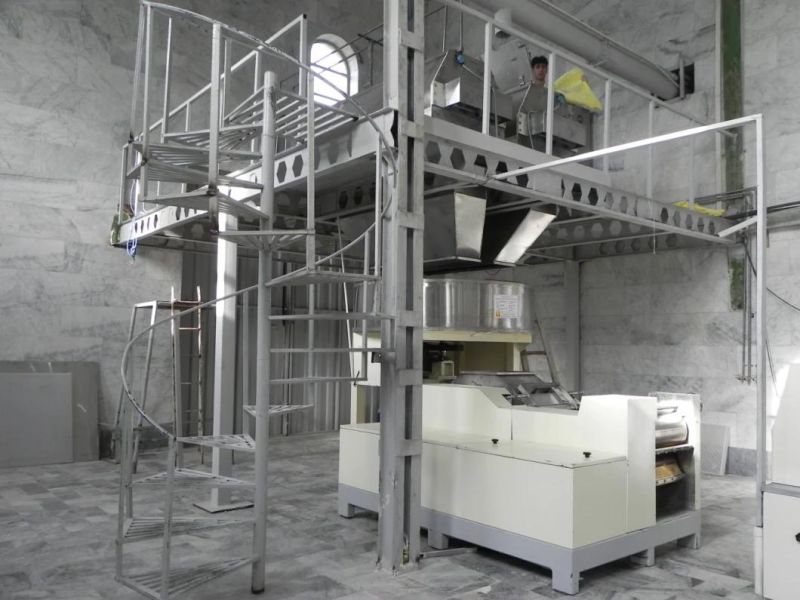

 Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food Machine3:ITEM NAME: MIXER PLATFORM
SIZE: 6X6M OR 8X8M
MATERIAL: CARBON STEEL
FUNCTION: TO PUT THE MIXER AND ALKALI TANK
MAIN PARAMETERS: STRONG ENOUGH FOR 2000KG PER SQM

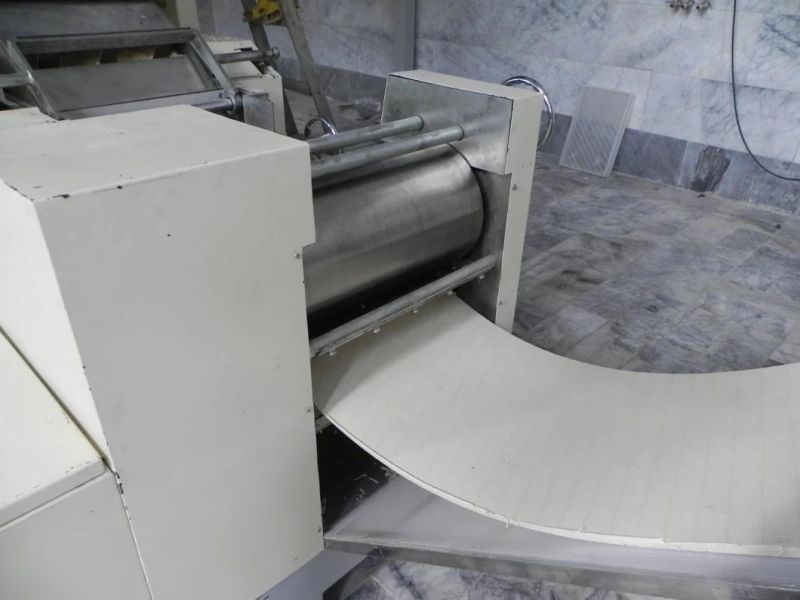

 Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food Machine4:ITEM NAME: CONTINUOUS DOUGH ROLLING MACHINE
ROLLER WIDTH: 200-1500MM
MATERIAL: ALLOY STEEL OR SUS304
FUNCTION: TO ROLL THE DROUGH FROM 14MM TO 1MM THICKNESS
MAIN PARAMETERS: DOUGH SHEET THICKNESS: 14-1MM
                 ROLLING SPEED: 7M-10M PER MIN
                 MOTOR TYPE: SOLO OR COMPOUND TYPE

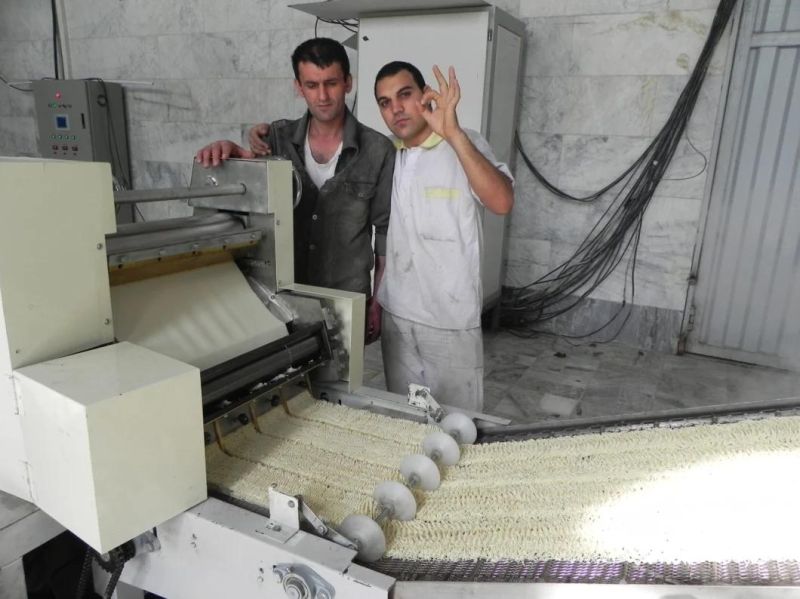

 Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food Machine5:ITEM NAME: NOODLE SLITTER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO SLITTING DOUGH SHEET TO NOODLES
MAIN PARAMETERS: SLITTING SIZE: 0.7-5MM
                 SLITTER TYPE: ROUND AND SQUARE

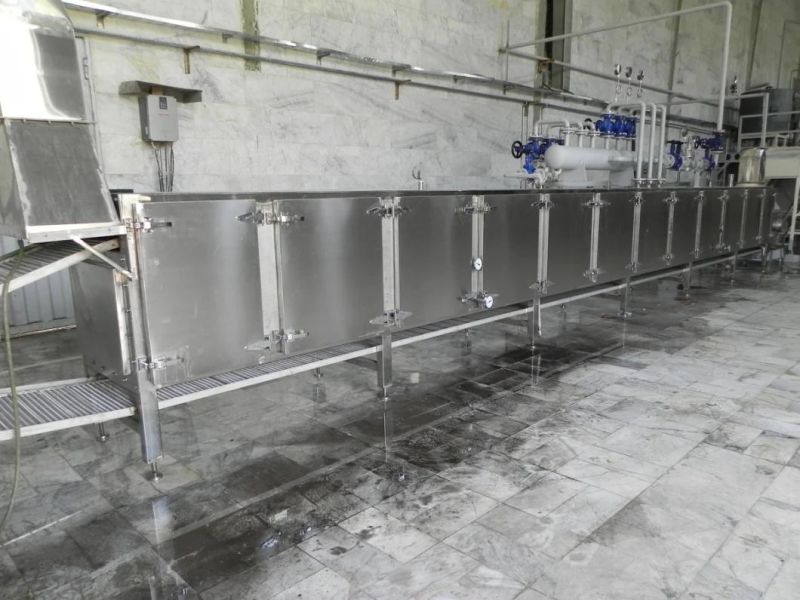

 Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food Machine6:ITEM NAME: NOODLE CONTINUOUS STEAMER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO STEAM NOODLES CONTINUOUSLY
MAIN PARAMETERS: STEAM TEMP:110C
                STEAM TIME: 180S
                STEAMER TYPE: 1 LAYER OR 3 LAYER

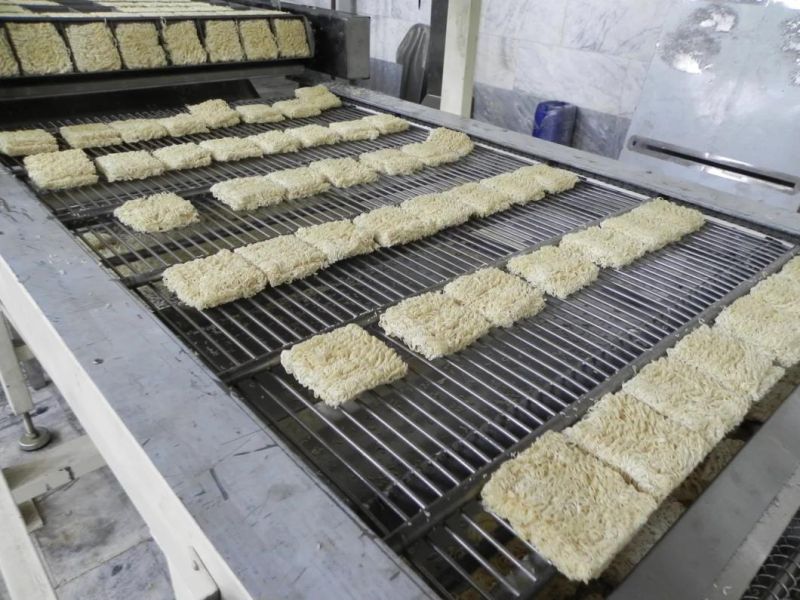

 Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food Machine7:ITEM NAME: NOODLE CUTTER AND FOLDER
WIDTH:200-1500MM
MATERIAL: SUS304, SLICON PALLET
FUNCTION: TO CUT AND FOLD NOODLES BEFORE DRYING
MAIN PARAMETERS: CUT SPEED: 20-70CUTS PER MIN
                 CUT LENGTH ADJUSTABLE

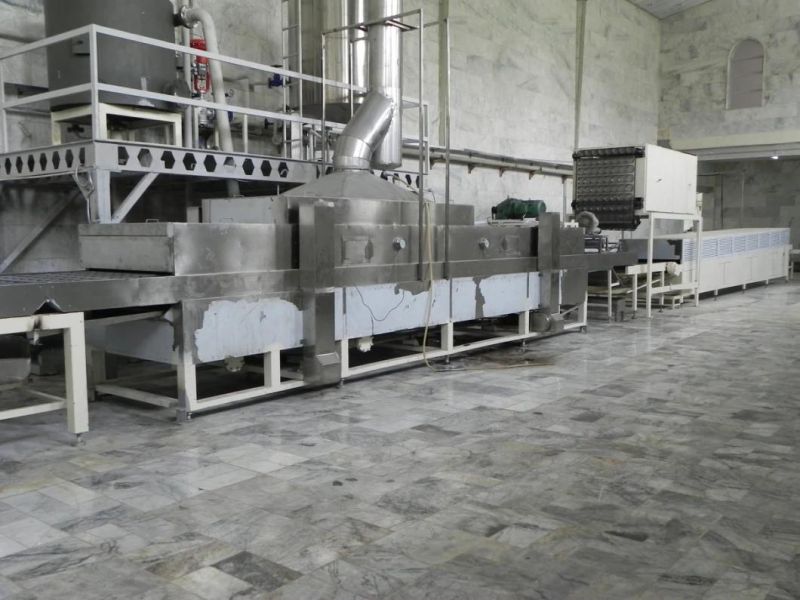

 Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food Machine8:ITEM NAME: NOODLE FRYING MACHINE
WIDTH:200-3500MM
MATERIAL: CARBON STEEL FRAME, NOODLE CONTACT USE SUS304
FUNCTION: TO FRY NOODLES AS REQUESTED TYPE
MAIN PARAMETERS: FRYER TYPE: BUSKET
                 FRYING TIME: 90-100S
                 FRYING TEMP: 155-165C

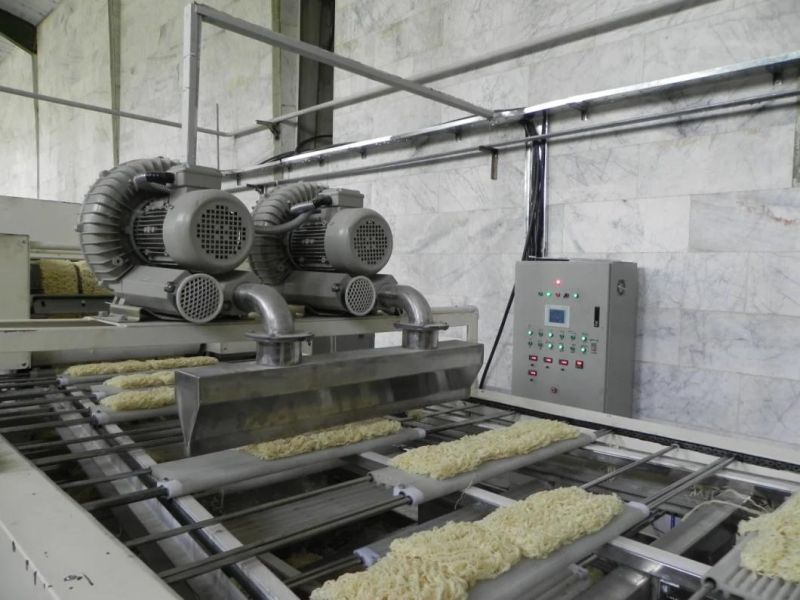

 Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food Machine9:ITEM NAME: OUT FRYER CONVEYOR
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO CONVEY NOODLE TO COOLING MACHINE
MAIN PARAMETERS: BY SUS304 BUSKET
                 ABOUT 2M LONG

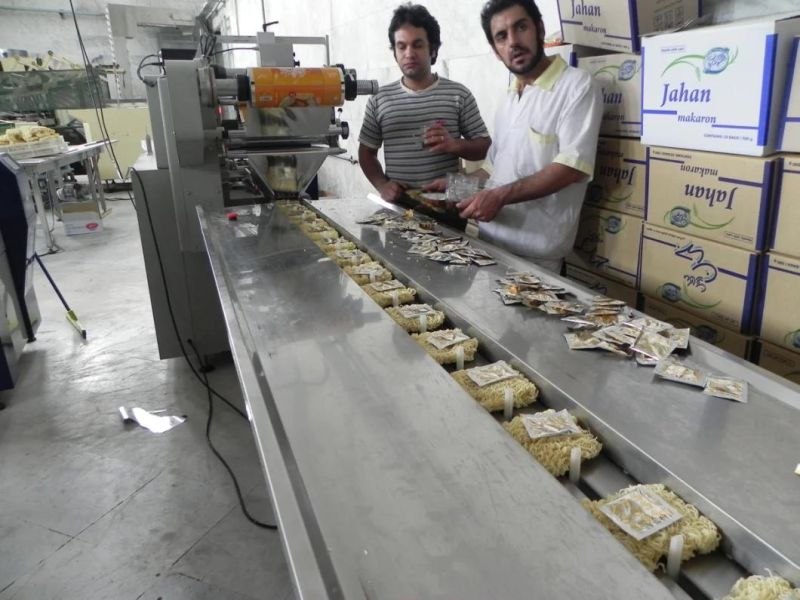

 Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food Machine10:ITEM NAME: NOODLE PACKING MACHINE
CAPACITY: 140-200 PACKS PER MIN
MATERIAL: CARBON STEEL AND SUS304
FUNCTION: TO PACK NOODLES WITH FLAVOR BAG
 Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food MachineSpecifacationModelCapacitySteam Consumption(kg/h)Plant Size(m)Slicing Width(m)Installed Power(kw)OperatorBFP-3Y30000Pec/8h1000-120060*6*4.5216-260424BFP-6Y60000Pec/8h1200-140076*8*4.5300-330564BFP-8Y80000Pec/8h1300-150076*8*4.5420-450686BFP-10Y100000Pec/8h1400-160095*8*5.0420-450806BFP-12Y120000Pec/8h1800-200095*8*5.0510-550836BFP-16Y160000Pec/8h2000-2400110*10*5.5630-6501067BFP-18Y180000Pec/8h2400-2600110*10*5.5720-7301147
Certifaction
Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food Machine

Company
Fried Instant Noodles Making Machine High Quality Good Selling Full Automatic Noodle Food Machine
FAQ:
Q: I am a fresh man in noodles industry and without any experience .
A: The key is you must have passion only, the rest is our job : site vist,design, feasibility Report,cost analyst,deal or make
friend only,installing,training,servicing of noodle machine,free technical formula available.
Q: How about your noodle machine quality?
A: Seeing is beliving , we not only accept inspection by third party ,but also quality guarantee deposit , extended guarantee
period with low charge.
Q:China noodle machine is cheap,but poor quality.
A:Indeed one bad egg can rot the whole barrel , however, we have the complete quality control system: reasonable design, excellent
manufacture, factory inspection,high reputation related supplier.
Q: My recent noodle machine is still working but high wastage.
A: Basicly,you don't have to replace it if not extend bussibess, we do machine upgrade ,free service check.
Q: I need noodle machine spare parts.
A: We make all kinds of noodle machine spare parts: roller,slitter set, brass comb, divider,SUS304(316) mesh net, noodle casing
box and cover,chain,scraper, food grade souping pallet,chain gears etc.
Q:Is it possible to visit you and see your running factory?
A: Of course , you can visit our domestic customer's noodle factory and oversea's both.
Q: I want small capacity noodle machine.
A: Available, low cost but good quality desigh for you
