• Transport Package：Wooden Packing
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Weight：330kgs
• Adopt Material：Single Layer Film
• Usage：Packaging Liquid Drink
• Packing Speed：2000-2200bags,Hr
• Dimension(L*W*H)：1050*850*1850
• Power：1.5kw
• Certification：ISO
• Driven Type：Electric
• Specification：Stainless Steel
• Trademark：Sky Machine
• Origin：Jiangsu
• Production Capacity：20 Sets,Month

Basic Info.

Driven Type Electric Certification ISO Power 1.5kw Dimension(L*W*H) 1050*850*1850 Usage Packaging Liquid Drink Packing Speed 2000-2200bags/Hr Adopt Material Single Layer Film Weight 330kgs After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Wooden Packing Specification Stainless Steel Trademark Sky Machine Origin Jiangsu Production Capacity 20 Sets/Month

Product Description

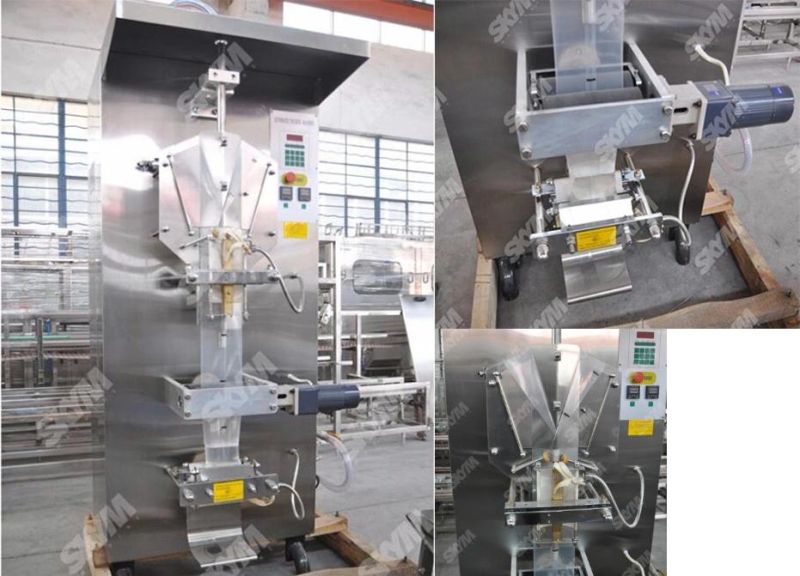

This series of liquid filling machine is widely used in the film packing of milk, soy milk, all kinds of drinks, soy vinegar, yellow wine etc .
All packing procedures including ultraviolet ray sterilization, molding of bags, print of dates, filling with fixed quantity, sealing and cutting and numeration, can finished at the same time, all components are made of stainless steels and are designed to meet national hygienic standard, C model adopt composite film. They are all can be designed middle sealing, side sealing or photo-electric detection.
Machine main structure is Stainless steel. suit for single layer film packing

Advantage of pure water packing machine
1. Film bag automatic molding
2. UV sterilization
3. Automatic longitudinal sealing
4. Automatic marking function
5. Adjustable quantitative filling
6. Automatic transverse heat sealing
7. Automatically cut bags and provide a variety of incision options
8. Low viscosity fluid material circulation system




Performance parameter

Model	SKYM-1000	SKYM-2000
Bag length	50-150mm	50-250mm
Bag width	40-150mm	40-175mm
Packaging film width	100-320mm	100-380mm
Packing capacity	50-500ml	200-1000ml
Packing speed	2000-2200bags/h	1100-1300bags/h
Power	1.6kw	2.5kw
Dimensions	880*760*1800mm	1050*850*2050mm
Total Weight	275kg	380kg

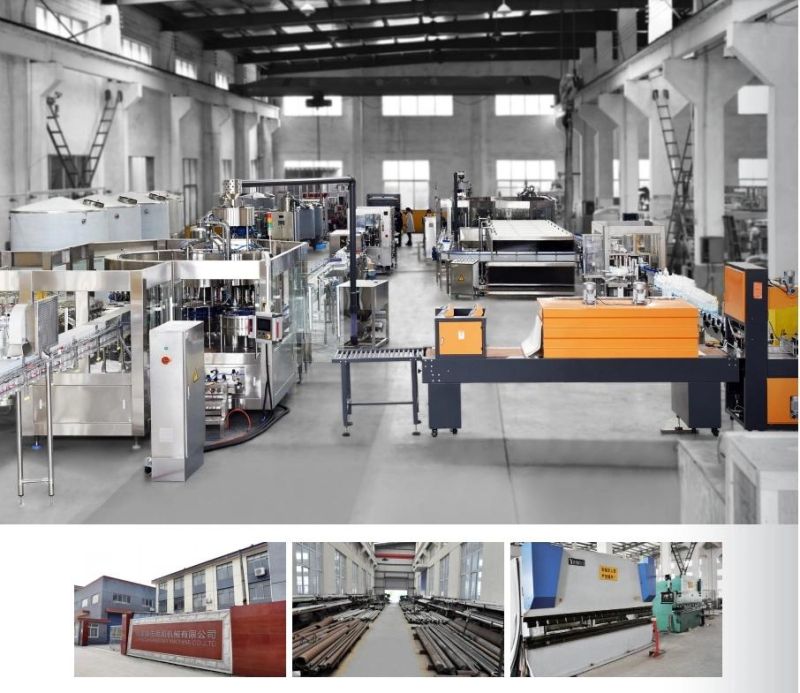

Company Information

FAQ
1. A: Are you factory?How many workers do you have?
    B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.

2. A: What about after sale service?
    B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.

3. A: What about installation?
    B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.

4. A: What do we do if we encounter problem about the machine ?
    B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).

5. A: How can you control the quality and delivery?
B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .
