• Specification：50-5000kg per hour
• Transport Package：by Sea or by Air with Soft Clothes
• Discharge Temperature：Will Designed by Material
• Working Pressure：Can Be Desigend
• Working Temperature：Can Be Adjusted
• Cleaning：CIP Cleaning
• Control System：Full-Automatic
• Material：SUS304
• Solution：Juice or Milk
• Model NO.：GLTS-01-500
• Trademark：Geling(Shanghai)
• Origin：Shanghai (China )
• HS Code：8419200000
• Production Capacity：5 Sets Per Month

Basic Info.

Model NO. GLTS-01-500 Solution Juice or Milk Material SUS304 Control System Full-Automatic Cleaning CIP Cleaning Working Temperature Can Be Adjusted Working Pressure Can Be Desigend Discharge Temperature Will Designed by Material Transport Package by Sea or by Air with Soft Clothes Specification 50-5000kg per hour Trademark Geling(Shanghai) Origin Shanghai (China ) HS Code 8419200000 Production Capacity 5 Sets Per Month

Product Description

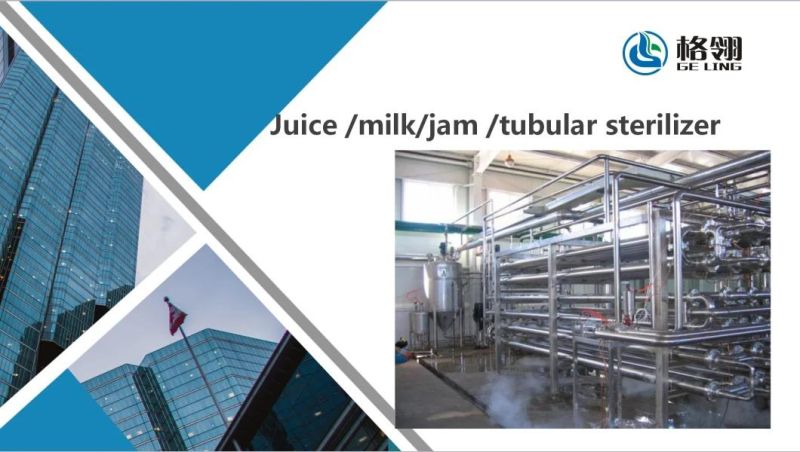

fruit juice sterilizer Tubular type sterilization machine in Shanghai



Tomato paste four layers tube in tube sterilizing machine/fruit jam sterilizer equipment



Four layers tube in tube sterilizing machine /Aseptic tube in tube sterilizer/Tube in tube UHT sterilizer/ Tomato paste production line tube in tube sterilizing machine/Tomato paste production line tube in tube sterilizer/Fruit jame tube in tube sterilizer /Fruit jame tube in tube sterilizing machine/Tube in tube sterilizationequipment.



Application :

Used for tomato paste ,apple jam ,mango puree,chilli jam and other high viscosity and low liquidity fruit & vegetables jam sterilization;the prouduct use tube in tube sterilizer work with aseptic filling machine together can be stored for 1-2 years in room temperature





Structure :

Four layers tube in tube



Product Description :

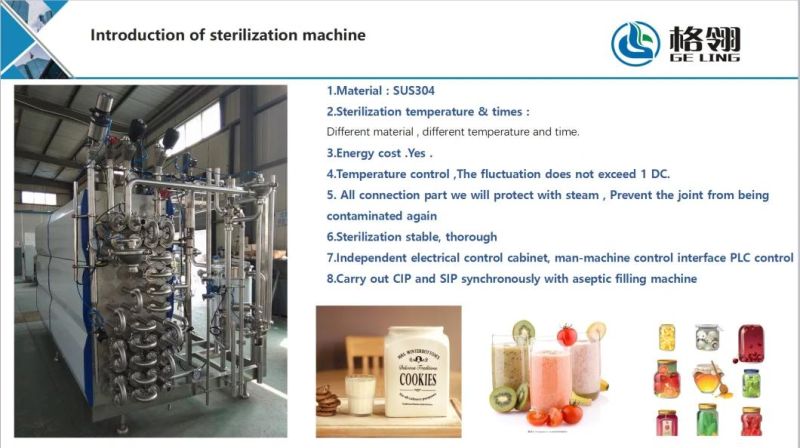

We can supply the Four layers Tube in tube sterilizing machine alone or connect with homogenizer,and also usually connected with aseptic filling machine,realize CIP and SIP .keep the product a sterile environment.

Product Classification:Full Automatic Configuration: It adopts the advanced computer program controlling the PLC technology.

The Main Configuration:

This equipment is composed use hot water as heating medium ,ensure a stability sterilization environment.
