• Transport Package：Plywood Case
• Control Panel：Could Be Button or Touch Screen Type
• Shafe：Could Be Double 2 Shape or Other Type
• Loading：Can Have as Need
• Shaft Shape：Could Be Differ Shape as Need
• Vacuum Level：0-0.085MPa
• Mixing Speed：60-28 R,Min
• Tank Volume：150-1200L
• Power：2.95-12.85kw
• Capacity：120-900kg,Time
• Material：SUS 304 Stainless Steel Material
• Model NO.：ZKJB-150, ZKJB-300, ZKJB-600, ZKJB-1200
• Specification：ISO, CE, SGS
• Trademark：YuanChang
• Origin：Shijiazhuang
• HS Code：84385000
• Production Capacity：300pieces,Month

Basic Info.

Model NO. ZKJB-150, ZKJB-300, ZKJB-600, ZKJB-1200 Material SUS 304 Stainless Steel Material Capacity 120-900kg/Time Power 2.95-12.85kw Tank Volume 150-1200L Mixing Speed 60-28 R/Min Vacuum Level 0-0.085MPa Shaft Shape Could Be Differ Shape as Need Loading Can Have as Need Shafe Could Be Double 2 Shape or Other Type Control Panel Could Be Button or Touch Screen Type Transport Package Plywood Case Specification ISO, CE, SGS Trademark YuanChang Origin Shijiazhuang HS Code 84385000 Production Capacity 300pieces/Month

Product Description

Industrial Vacuum Mixer Meat Mixer-meat mixer machine-mixing machine

YC Mchanism Vacuum Mixer is designed stainless steel built with two shafts for mixing, with its specialty switching between clockwise and counter-clockwise rotation, the mixing speed and effect produced can be greatly improved. The vacuum level is adjustable to your option, making a more evenly-distributed raw material for better product quality. The air trapped in the materials during its front-end production processes can be sucked out, and an oxygen-free disinfection can be made to the materials, producing a superior looking of the meat under processing, and consequently the shelf lie of your products can be extended. Its made by stainless steel greatly facilitates your cleaning operation. The specialty pneumatics built-in can automatically open and close the cover and the discharger cover.

Advantages:
1. Double action mixing arm features paddles that gently lift and mix product.
2. Easily removable mixing arm for better sanitation.
3. Automatic feeding.
4. Improves moisture and protein retention.
5. Reduces bacteria count and contaminants.
6. Produces a quality product with minimal temperature rise.
7. Increased yields through even distribution and gentle blending of meat, fat, spices and other ingredients.



Model	Capacity (Kg/Time)	Tank Volume (L)	Power (KW)	Mixing Speed (r/min)	Vacuum Level (Mpa)	Rated Voltage (V)	Dimensions (mm)
ZKJB-150	120	150	2.95	56	0~ - 0.085	380	1400*1100*1300
ZKJB-300	280	300	5.15	63	0~ - 0.085	380	1400*1250*1400
ZKJB-600 With elevator	420	600	7.85	50	0~ - 0.085	380	2080*1920*1620
ZKJB-1200 With elevator	900	1200	12.85	50	0~ - 0.085	380	2420*2300*1900

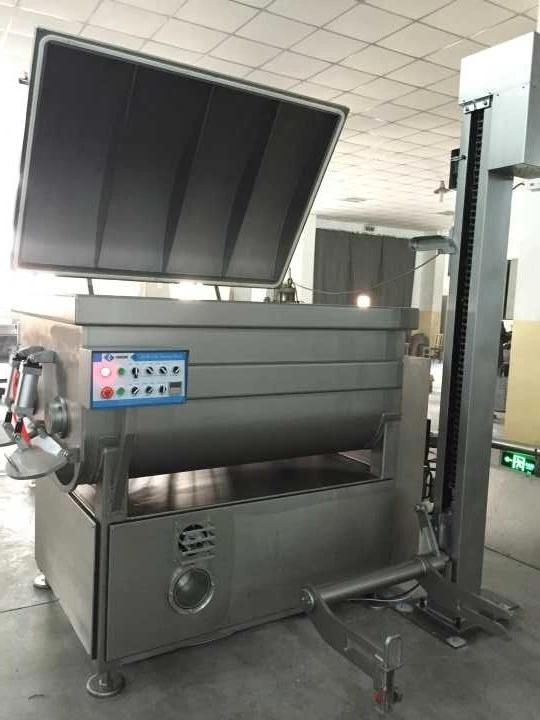

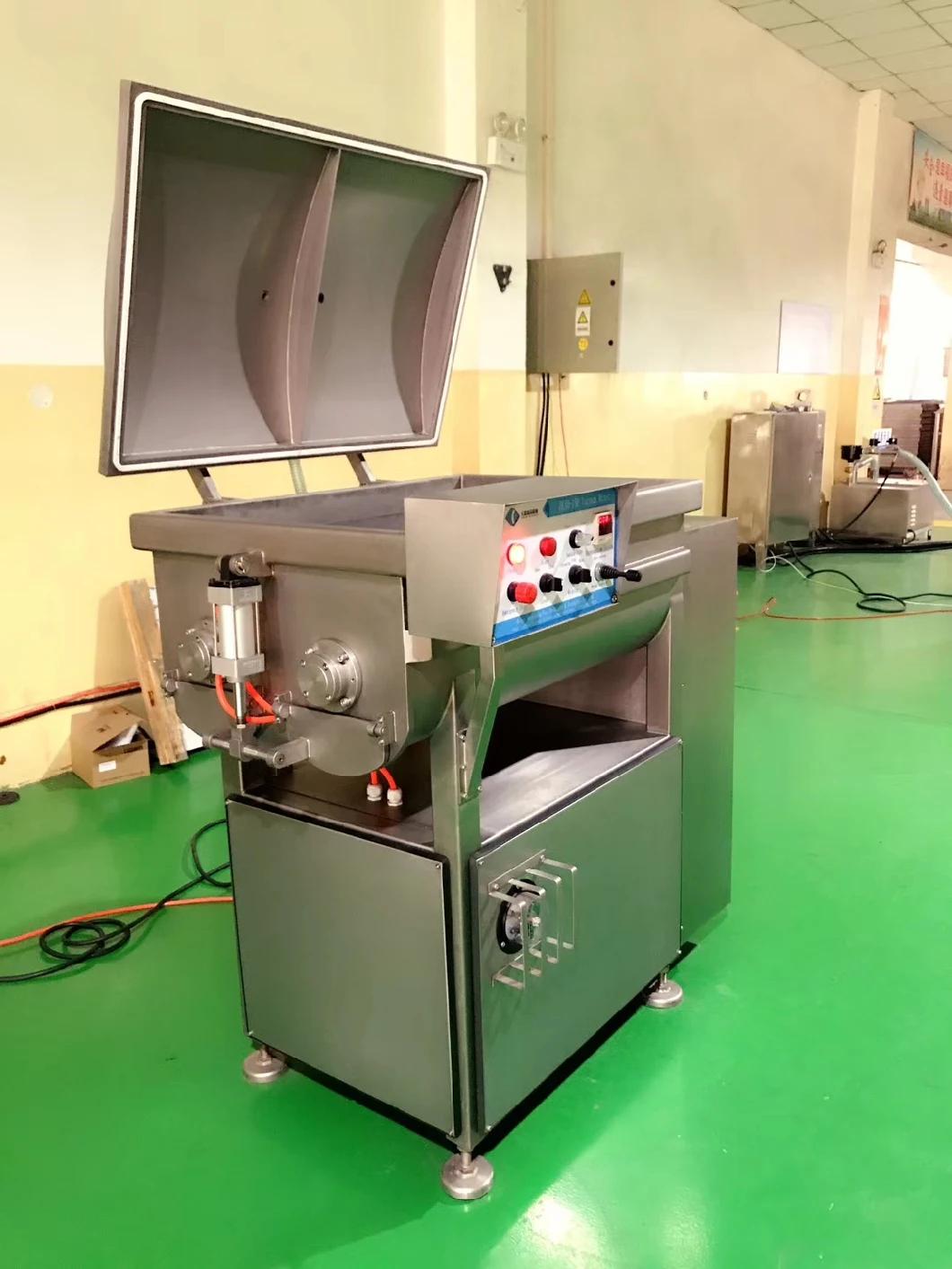

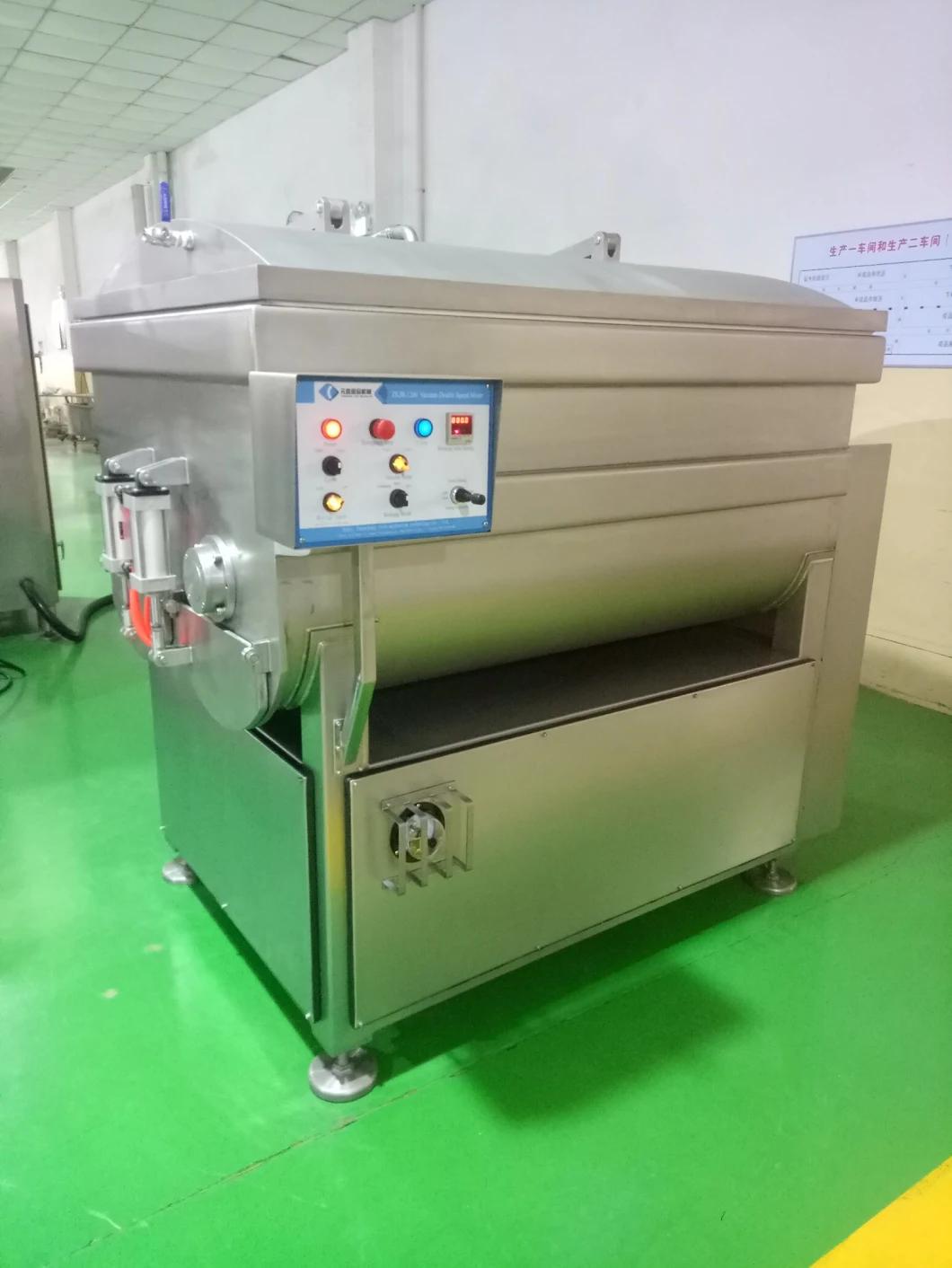

Machinery vacuum mixer of stainless steel

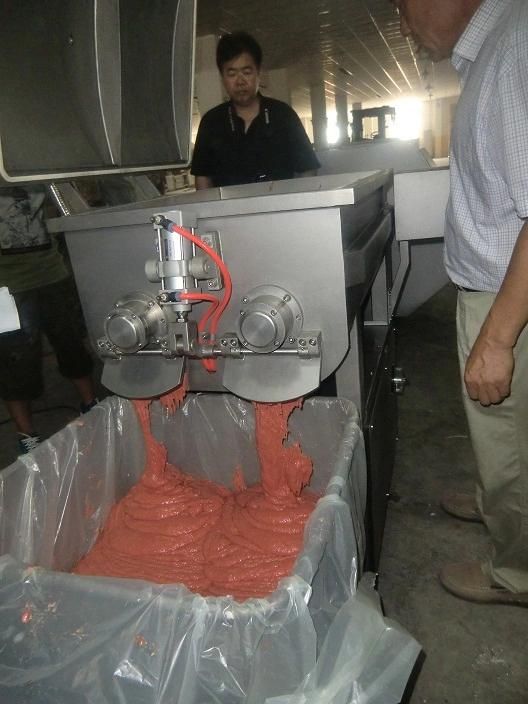

Two shafts for vacuum mixer machine
Machinery vacuum mixer protect quality

Product: Machinery vacuum mixer
Type: Machinery Vacuum Mixer ZKJB-150/300/600/1200

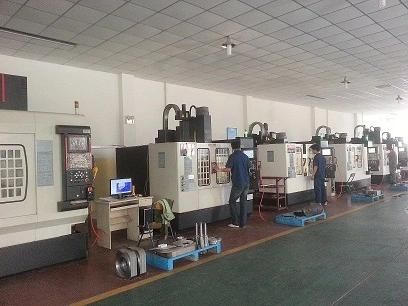

Our Factory
