• Origin：China
• Trademark：Kgentlest
• Specification：1050mm*680mm*1450mm
• Transport Package：Wood Safety Packing
• Model NO.：ZTT-01S
• HS Code：8438500000
• Production Capacity：5000 PCS Per Year

Basic Info.

Model NO. ZTT-01S Transport Package Wood Safety Packing Specification 1050mm*680mm*1450mm Trademark Kgentlest Origin China HS Code 8438500000 Production Capacity 5000 PCS Per Year

Product Description

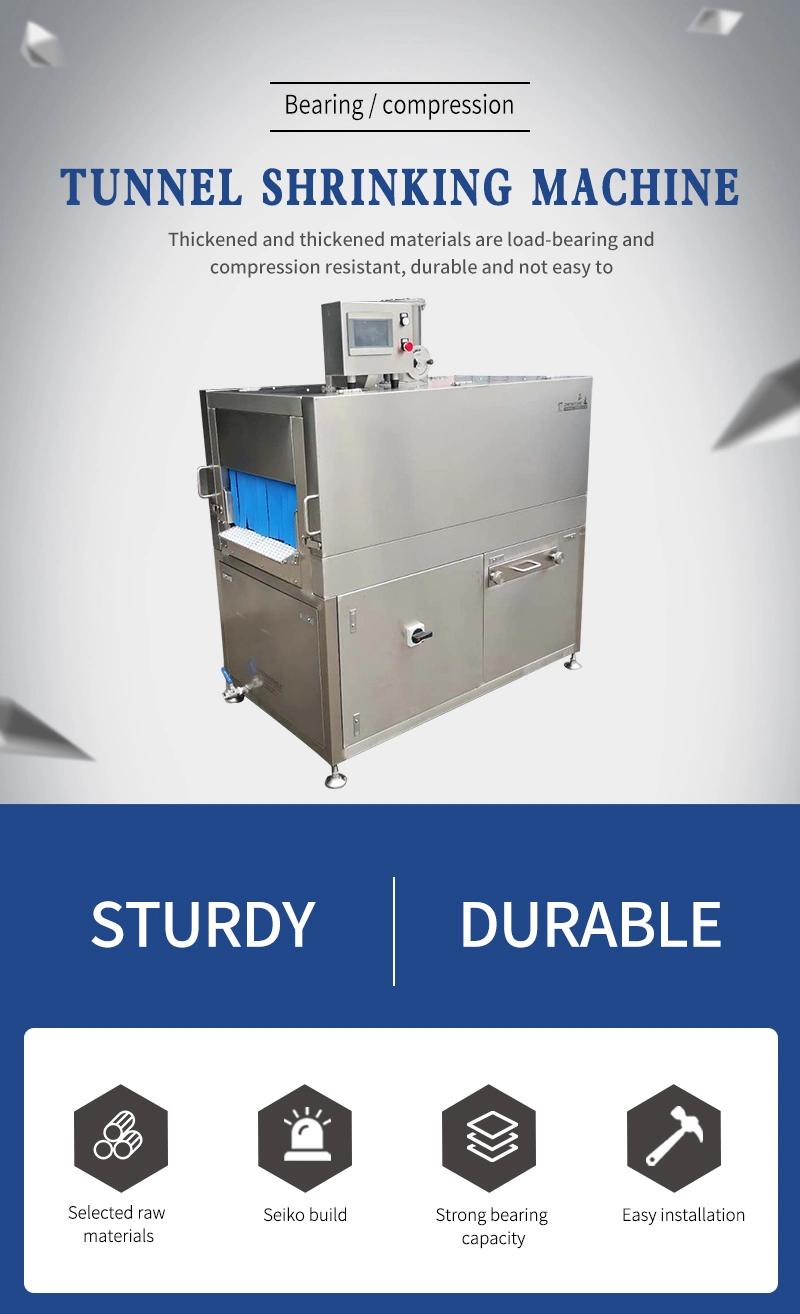

Tunnel shrinkable machine  ZTT-01S

After the use of meat shrink film packaging, after the machine's thermal shrinkage, meat has a more beautiful appearance, but also can kill viruses and extend the shelf life.
Basic parameters:

External dimensions 1500*900*1750mm
The outer diameter of the flue is 200mm
Noise level 71dB
Weight 400 kg
The frame material SUS 304 stainless steel

Water supply:Type city tap water
Interface DN25
2-6 bar
The tank capacity is 100L

Power supply:

AC380V voltage
Level 3 phase
Frequency 50 hz
Installed power 64KW (Electric heating)
Current 180 amperes (electric heating)
Function:
Transmission width: 550mm
The delivery speed is 15m/min
Shrinkage temperature 80-90ºC (depending on product flow, adjustable)
Heating time: about 15 minutes (15-85ºC)
The number of operators is no one to operate, only 1 ran monitoring
Noise level 65dB
