• Jacket Type：Dimple Jacket
• Control：PLC Automatic
• Keywords：Milk Cooling Tank,Milk Cooler,Milk Storage Tank,Da
• Output：Low Temperature Fresh Milk,Juice,Dairy
• Feeding：Milk,Juice ,Dairy
• Function：Cool and Storage for Fresh Milk, Juice
• After-Sales Service Provided：Online Support,Visit Client′s Plant Site
• Core Components：Jacket Storage Tank with The Compressor
• Cooling Method：Compressor Chiller
• OEM：Parameter Customization
• Material：304,316L Stainless Steel
• Applicable Industries：Fresh Milk, Juice, Beverage
• Customized：Customized
• Application：Milk, Yogurt, Milk Powder, Cheese
• Model NO.：ZLG
• Tank Layer：Double Jacket Type
• Transport Package：Export Standard Package
• Specification：20L-10000L
• Trademark：JOSTON
• Origin：Wenzhou
• HS Code：8479820090
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. ZLG Application Milk, Yogurt, Milk Powder, Cheese Customized Customized Applicable Industries Fresh Milk, Juice, Beverage Material 304/316L Stainless Steel OEM Parameter Customization Cooling Method Compressor Chiller Core Components Jacket Storage Tank with The Compressor After-Sales Service Provided Online Support/Visit Client′s Plant Site Function Cool and Storage for Fresh Milk, Juice Feeding Milk/Juice /Dairy Output Low Temperature Fresh Milk/Juice/Dairy Keywords Milk Cooling Tank/Milk Cooler/Milk Storage Tank/Da Control PLC Automatic Jacket Type Dimple Jacket Tank Layer Double Jacket Type Transport Package Export Standard Package Specification 20L-10000L Trademark JOSTON Origin Wenzhou HS Code 8479820090 Production Capacity 30 Sets/Month

Product Description

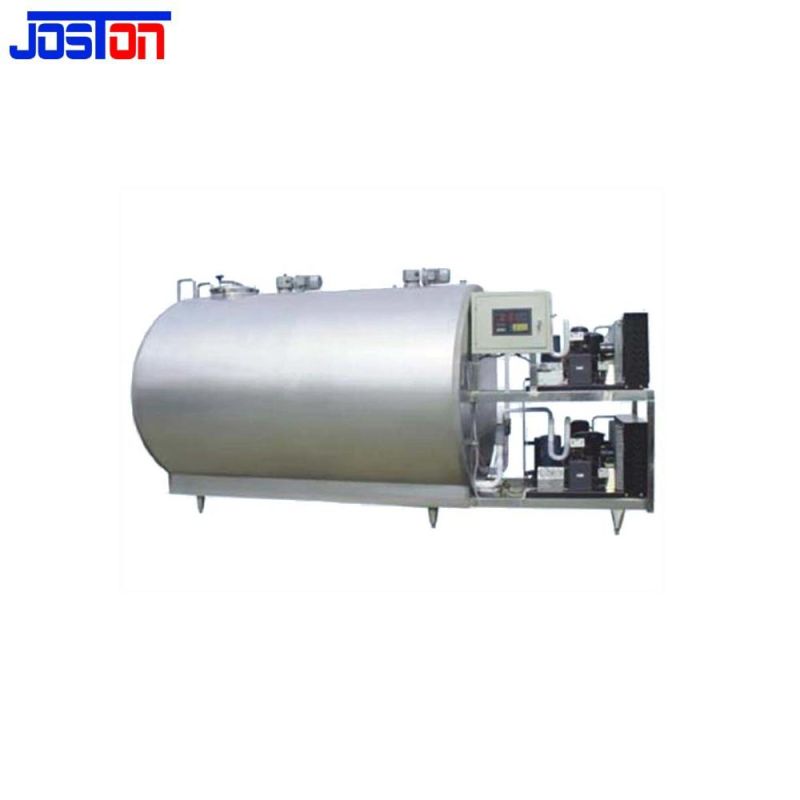

Stainless Steel Dairy Milk Juice Direct Cooling Tank Vessel With Compressor System constructure :

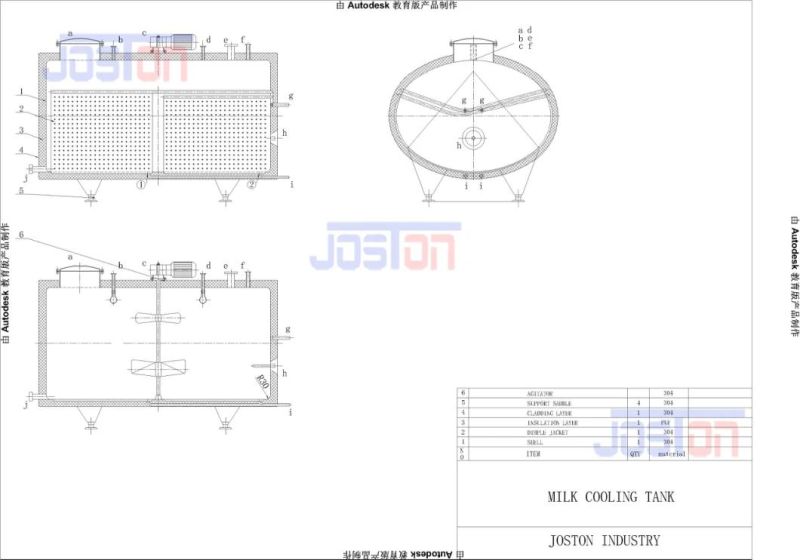

Stainless Steel Dairy Milk Juice Direct Cooling Tank Vessel With Compressor System consists of milk tank, agitator mixer, compressor unit and electrical control.The milk tank body is made of stainless steel, which is round and straight wall with large area cooling. Through the full-automatic control system, one-step observation and operation can quickly reduce the raw milk to the required temperature and maintain the constant temperature. Prevent bacteria from propagating.Polyurethane foaming process is adopted for the thermal insulation layer, with good thermal insulation performance.
Stainless Steel Dairy Milk Juice Direct Cooling Tank Vessel With Compressor System temperature can keep as 4 degree for long time.

Stainless Steel Dairy Milk Juice Direct Cooling Tank Vessel With Compressor System is Mainly used for cool and storage for fresh milk, also can be used to keep other liquid product .

Stainless Steel Dairy Milk Juice Direct Cooling Tank Vessel With Compressor System Features:
* working capacity from 50L to 20000L
* Material: Stainless steel 304( SS316L is Optional)
* Heat preservation material: PUF -thickness is 50mm
* Refrigeration unit brand: MANEUROP compressor
* Refrigerants is R22 ( R404A )
* control system (PLC/HMI is optional)

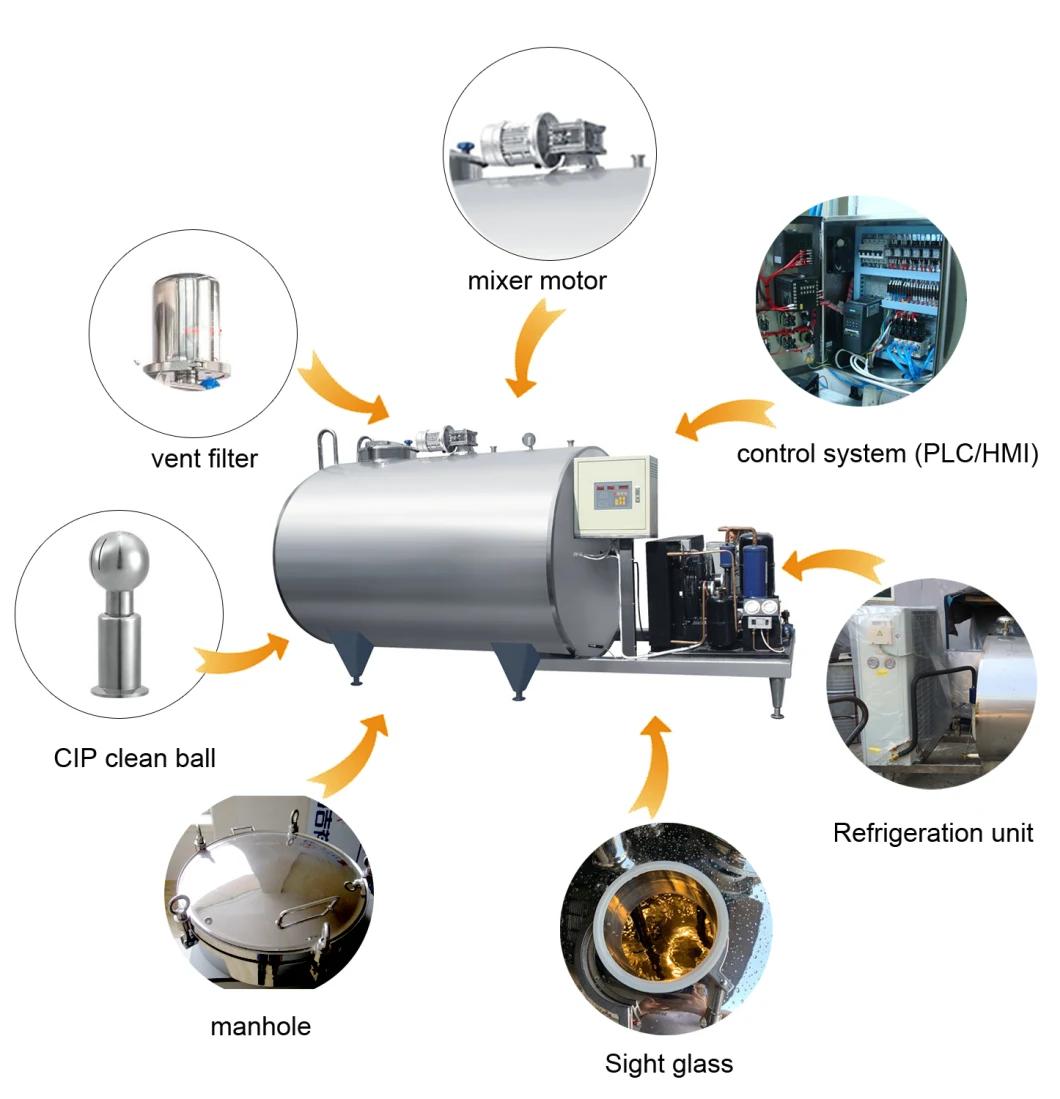

Accessories: CIP clean ball/ manhole/vent filter/Mixer device

Stainless Steel Dairy Milk Juice Direct Cooling Tank Vessel With Compressor System  Technology Data specification:

Capacity	Refrigerating Capacity (W)	Thermal insulation	Rotating speed for agitator	Voltage	Compressor Power (KW)	Compressor brand	Compressor model
500L	8020	18h/≤2ºC	36rpm	2×220V	2.2	Danfoss Maneurope	MT-36
1000L	15500	18h/≤2ºC	36rpm	3×380V	3.75	Danfoss Maneurope	MT-50
2000L	17700	18h/≤2ºC	36rpm	3×380V	5.5	Danfoss Maneurope	MT-80
3000L	17700	18h/≤2ºC	36rpm	3×380V	5.5	Danfoss Maneurope	MT-80
5000L	31000	18h/≤1.5ºC	36rpm	3×380V 50HZ	5.5x2	Danfoss Maneurope	MT-80x2

SERVICE

We have established some overseas agent office to make the after-sales service already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technology document (Quotation PI )
4.Engineering and Manufacturing (Production &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)


FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.

2.How will your company  control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .

3.How long the warranty will be?
We provide 1 year warranty for the machine running ,but we will afford whole -life service for the machine .

4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.

5.Can  we  become  your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.

6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.

7.Do you supply installation equipment in oversea?
Yes, if need, we can  send our  engineer to your plant to help you do installation and commission.

8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every  week to make you to know the production status.When goods are finished,we will take  detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here

9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design  drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.

10.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
