• Model NO.：Tqlz 150
• Condition：New
• Customized：Customized
• Output：10-15t
• Power(Kw)：0.75*2
• Air Volume(M^3/H)：6000
• Net Weighe(Kg)：1100
• Transport Package：Wooden Box Package
• Specification：3100*2250*1700
• Trademark：pinyang
• Origin：Hubei China
• HS Code：8437000000
• Production Capacity：10-15t,H

Basic Info.

Model NO. Tqlz 150 Condition New Customized Customized Output 10-15t Power(Kw) 0.75*2 Air Volume(M^3/H) 6000 Net Weighe(Kg) 1100 Transport Package Wooden Box Package Specification 3100*2250*1700 Trademark pinyang Origin Hubei China HS Code 8437000000 Production Capacity 10-15t/H

Product Description

Specification

TQLZ  series vibratory cleaning sieve is uesd mainly for cleaning off large, small and light odds and ends out of such grain materials paddy rice, wheat, peanuts, soybeans and rape seeds and used for grading semi-finished of finished products as well. It is characteristic of reasonable structure, high cleaning efficiency, smooth running and low energy consumption.

The machine is used primarily for grain cleaning in grain mills and grain storage facilities(silos).It remove coarse and fine impuritier from the grain by sieing.It also grades various products cccording to size.
High through capacity and excellent separstion,sturdy design for lesswear,Minimal maintenance requirements
Flexible application possiblilities via optional outlet aspirators,the leaning rffrct would be better.


Features:

Improved separation;
Increases sieve capacity;
Low maintenance requirement;
Easy sieve removal; Easliy removeable inspection covers;
Simple and precise motor alignment.
Compact constrution, low power consumption, well seal low noise.Stable movement, well cleaning effect, higher production efficiency.Driven by vibrating cover can be adjustable according to the requirement.
Details


Modle	Output(T/H)	Power(KW)	Air Volume(M^3/H)	Net Weight(KG)	Dimension(L*W*H/mm)
TQLZ100	6-12T	0.37*2	4000	700	3100*1500*1700
TQLZ125	8-13T	0.37*2	5000	800	3100*1750*1700
TQLZ150	10-15T	0.75*2	6000	1100	3100*2250*1700

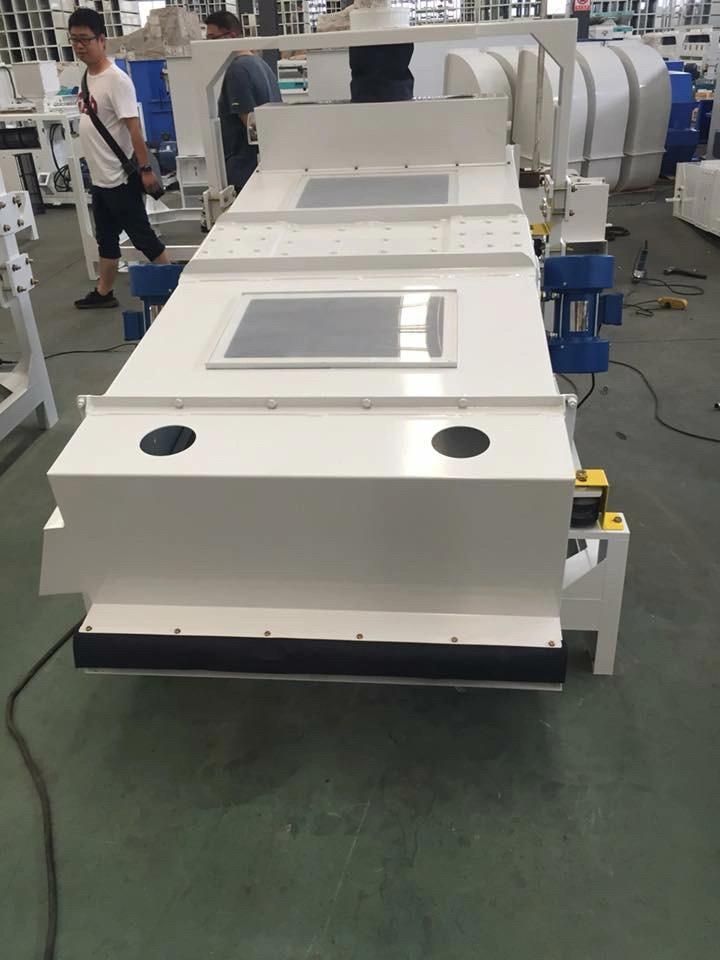

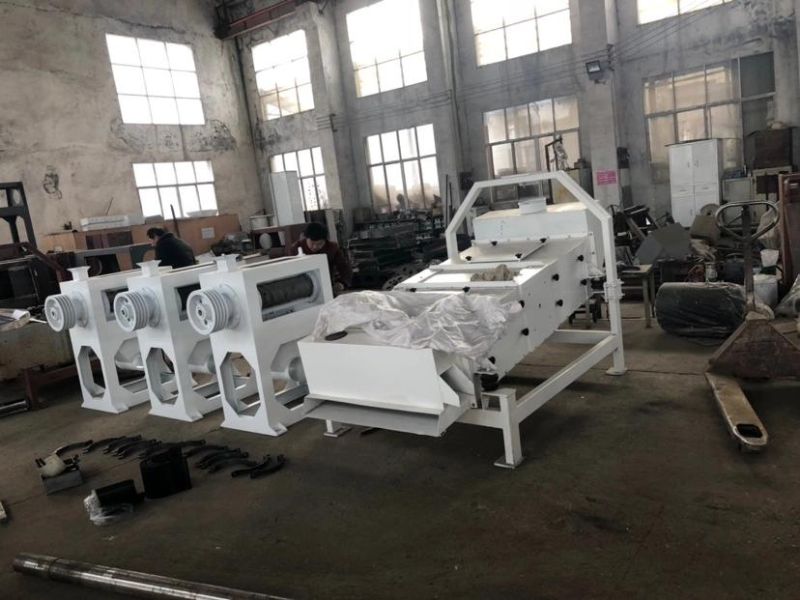

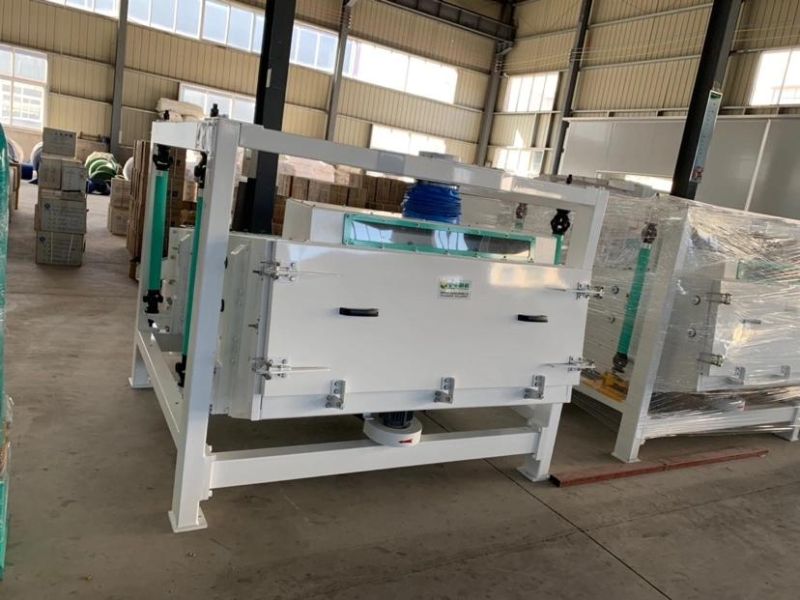

Photos
