1500 Kg Per Batch Drying Capacity Tomato Drying Equipment

Guangzhou Kaineng Electric Equipment Co., Ltd.
  • Dryer Type：Heat Pump Dryer+Drying Chamber
  • Customized：Customized
  • Power：17kw
  • Voltage：380V
  • Type：Dryer
  • Heat Source：25% Electricity+75% Air Source

Base Info

  • Specification：1760x1060x1280mm
  • Transport Package：Plywood Cases
  • Patent Technology：Second Waste Heat Recovery Patent Technology
  • Control System：Touch Screen Operation
  • Dehumidify Amount：50 L,H
  • Drying Temperature：10~75c
  • Drying Capacity：1500 Kg Per Batch
  • Heating Type：Hot Air Circulating
  • Model NO.：JK06RD
  • Trademark：KINKAI
  • Origin：China
  • HS Code：8419310000
  • Production Capacity：3000 Sets Per Year

Description

Power SupplyV/PH/HZ380V/3PH, 50/60HZ380V/3PH, 50/60HZ220V/1PH, 50/60HZRated CurrentA19.2A(380V), 44A(220V)3460Heating CapacityKW214284Cooling CapacityKW15.63664DehumidifyL/H2450100Max. TemperatureºC≤75≤75≤75Working ConditionºC0-430-430-43Electric Shock Protection GradeIIIMax. Exhause PressureMpa333NoisedB(A)≤75≤75≤75Power Consumption/ HKWH9.61730Electric HeaterKW61224Blowing Type/Horizontal Blowing 360ºCDimension Of DryerMM1675x860x12801760x1060x12802120x1360x1590WeightKG295x2385x2540x21500 Kg Per Batch Drying Capacity Tomato Drying Equipment

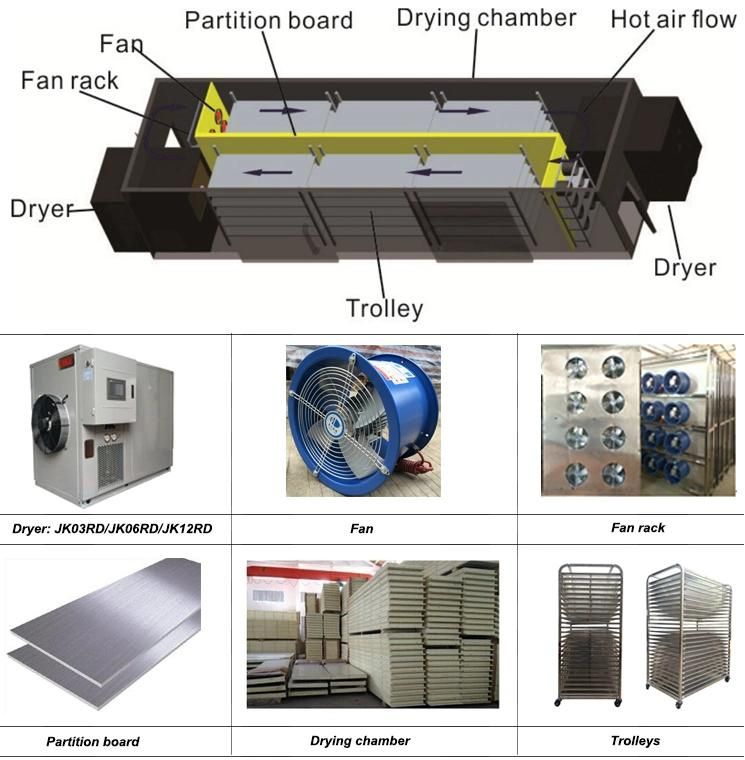

Single JK03RD Dryer + Drying Chamber4000*2000*2200mmSingle JK06RD Dryer + Drying Chamber6000*2800*2200mmSingle JK12RD Dryer + Drying Chamber6000*3000*2200mmDouble JK03RD Dryers + Drying Chamber7000*2000*2200mmDouble JK06RD Dryers + Drying Chamber10000*2800*2200mmDouble JK12RD Dryers + Drying Chamber10000*3000*2200mm
Our company
1500 Kg Per Batch Drying Capacity Tomato Drying Equipment

Package and Delivery
For heat pump dryer parts---with plywood
For drying chamber +trolleys
  If shipped with 20ft container or 40ft container, no packing
  If shipped with LCL( less than container load), packed in plywood
1500 Kg Per Batch Drying Capacity Tomato Drying Equipment

Our Services
A. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.

B. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.


If you are interested in our heat pump dryer, please contact us for more information, such as catalogue, video,etc.
