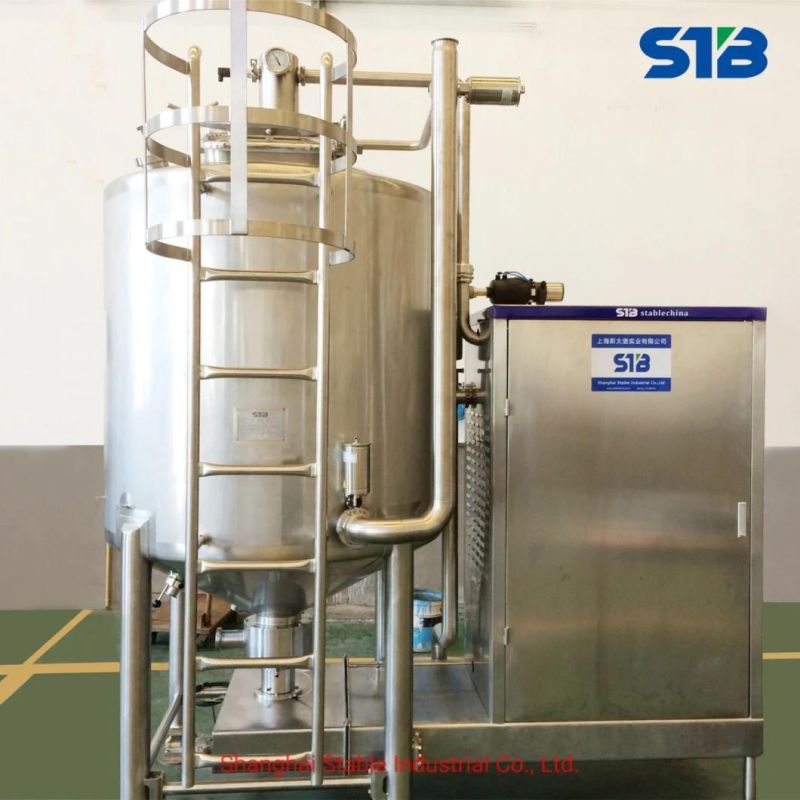

Turbo Vacuum Mixer with Cosmetic Agitator /Stainless Steel Liquid Mixing Tank/Vessel
Shanghai Stable Industrial Co., Ltd.- Certification：CE, ISO9001
- Power Source：Electric
- Process：Thermal Processing
- Warranty：One Year After Commissioning
- After-sales Service：Yes
- Automatic Grade：Automatic
Base Info
- Transport Package：Strong Seaworthy Wooden Cases
- Power：7.5kw-45kw
- Function：High Shear, Mixing
- Name：Vacuum Mixer,Blender
- Capacity：5000L,H-400000L,H
- Customized：Customized
- Application：Milk, Yogurt, Milk Powder, Cheese
- Model NO.：STB-tank
- Specification：can be customized
- Trademark：STB
- Origin：Shanghai
- HS Code：8438200000
- Production Capacity：5sets,Month
Description
PVA ,dyestuff, detergent, ceramics, Ferrite, various chemical goods
- Foods
Cheese products, ice cream, liquid foods, baby foods, dressings, seasonings
- Pharmaceutics
Chinese medicines, digestive medicine, inhalation, Filler and coating for tablets
- Cosmetics
Beauty creams, facial cleansing creams
Direct steam injection
Outlet

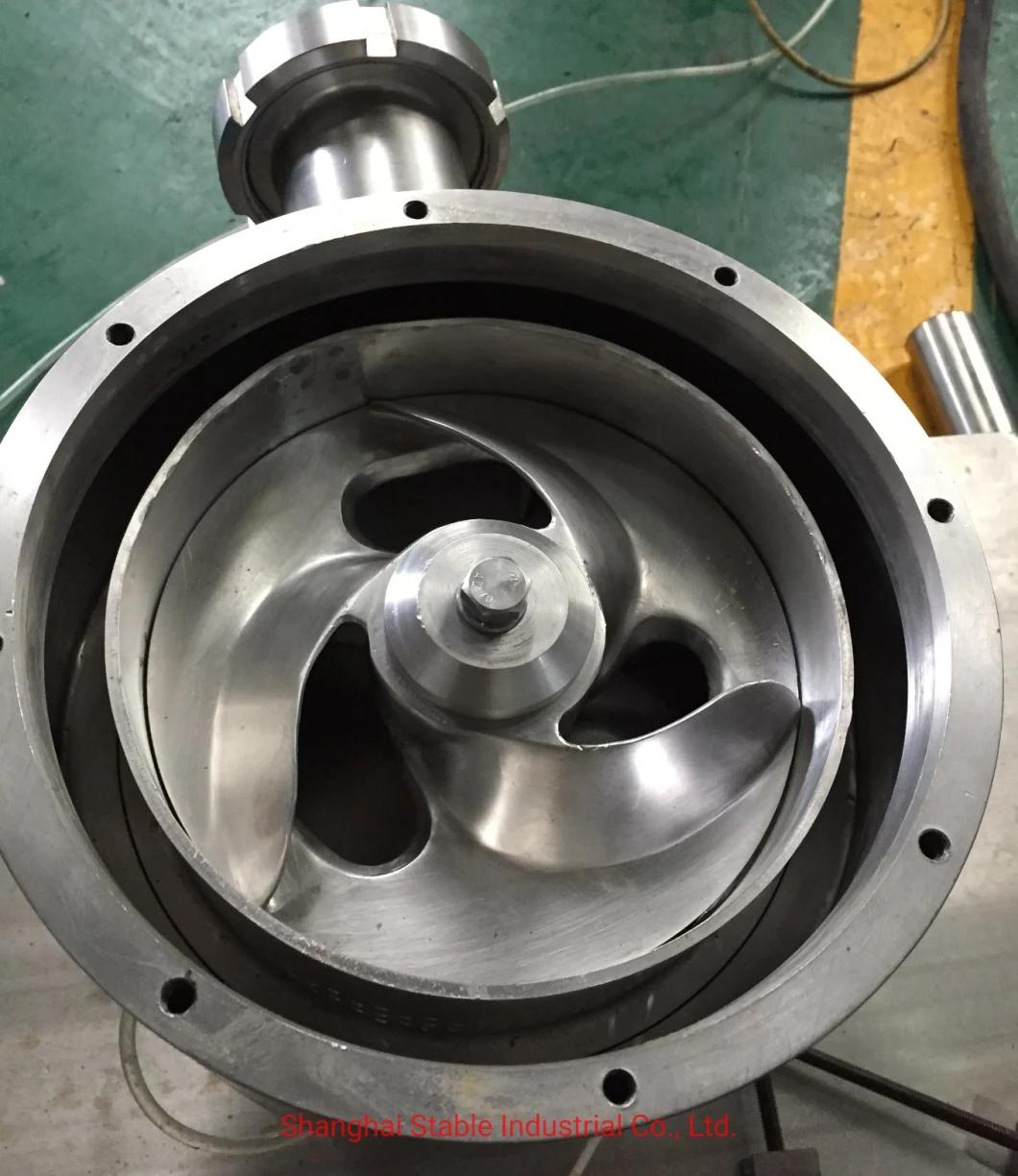

Stators of various design specification
Knife / propeller

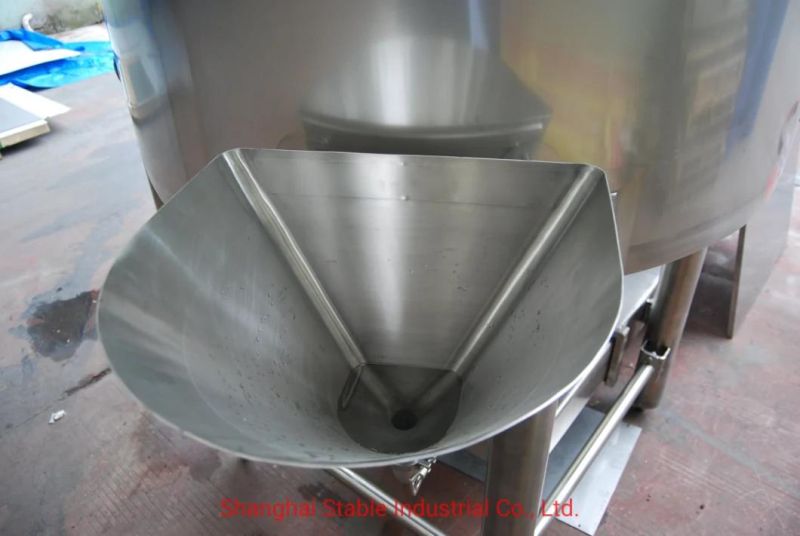

Funnel
Insulation
Agitator / stirrer with scraper

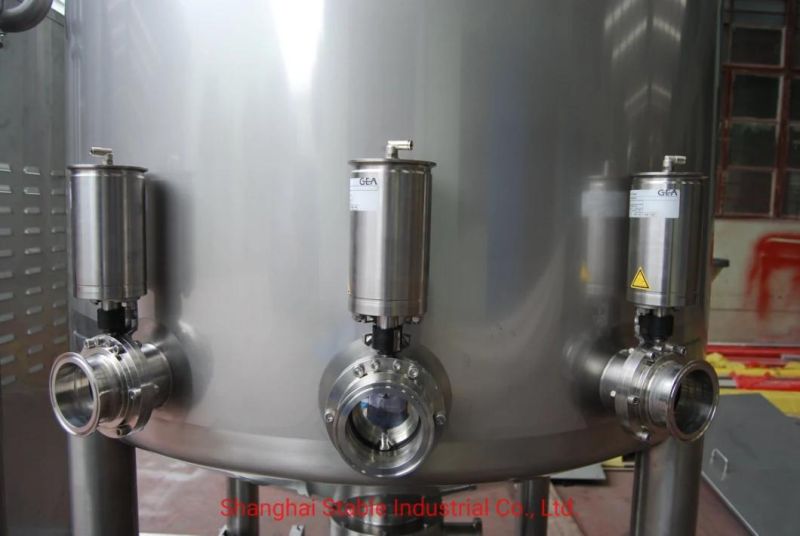

Automatic valve system
Operation monitoring system
PLC control system
Explosion - proof design
Advantage
- No dusting
Since powder materials are fed to Turbo Mixer below liquid level under the vacuum, no dusting during the powder charging process.
- No foaming
Vacuum condition in the Turbo Mixer prevents the foaming during the mixing process. Therefore, this allows to produces de-aerated product.
- Reduced mixing time
Liquid and powder materials are efficiently brought into contact and it resulting in significantly reduced mixing time.
- All-in-one mixing process
Products / ingredients can be dissolved, dispersed, homogenized and cooled / heated.
- Available for high viscous products or materials with high solid content (up to 80%).
- It offers accurate mixing, dispersion and emulsification.
- It can be used with existing processes without any modification.
- Automatic processes are also available.
- Sanitary execution.
- It can be equipped with a scraper and CIP system
The unit is normally supplied according to the requirements of the food industry. The unit is made in AISI 316, Ra ≤0,8 μm on all surfaces in contact with product and other surfaces in AISI 304.Other surfaces and materials are available on request.The tank is normally constructed for 100% vacuum and certified pressure vessels are available up on request. For the food industry the machines can be supplied as a sterile mixer with sterile barriers.
