• Transport Package：Wooden Case , Container
• Order：Customized
• Remark：Paddy, Soybean, Wheat, Sorghum
• Dimension：1340*2030*1380
• Spindle Speed：1200
• Weight：230
• Capacity：800-1000
• Power：12-15HP,7.5kw
• Drive：Motor , Diesel Engine
• Customized：Customized
• Condition：New
• Model NO.：5TD
• Specification：1340*2030*1380
• Trademark：KUDOU
• Origin：China
• HS Code：8433599090
• Production Capacity：100set Per Month

Basic Info.

Model NO. 5TD Condition New Customized Customized Drive Motor / Diesel Engine Power 12-15HP/7.5kw Capacity 800-1000 Weight 230 Spindle Speed 1200 Dimension 1340*2030*1380 Remark Paddy, Soybean, Wheat, Sorghum Order Customized Transport Package Wooden Case / Container Specification 1340*2030*1380 Trademark KUDOU Origin China HS Code 8433599090 Production Capacity 100set Per Month

Product Description

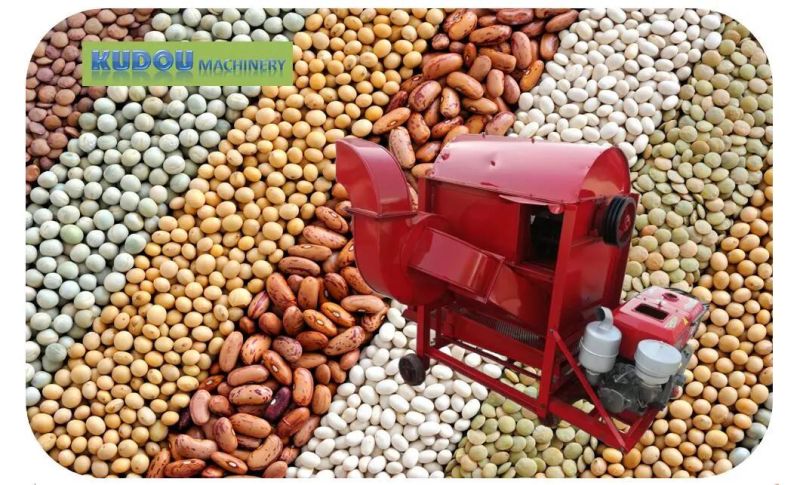

Corn/wheat threshing machine/Sorghum dehuller machine/mung bean/Soybean/paddy/rice thresher

Model	Power (HP)	Capacity (kg)	Weight (kg)	Spindle Speed(rpm)	Dimension(L*W*Hmm)	Remark
5TD-50	6-8	500-800	150	1500-1800	1030*890*1630	Paddy, soybean, wheat, rapeseed
5TD-75	12-15hp/7.5KW	800-1000	230	1200	1340*2030*1380	Paddy, soybean, wheat, sorghum
5TD-100	12-15hp/7.5KW	800-1500	280	1100	2300*1570*1170	Paddy, soybean, wheat, sorghum
5TD-125	22hp/11-13KW	1200-2000	400	1050	2500*1770*1550	Paddy, soybean, wheat, sorghum

The 5TD seriesCorn/wheat threshing machine/Sorghum dehuller machine/mung bean/Soybean/paddy/rice thresher is a new product developed on the basis of the principle of the old generation thresher. It has simple operation, low breaking rate, wide application range and high threshing rate of 99%. It is mainly suitable for wheat, millet, rice, soybean, and sorghum. A multi-purpose machine, and won the national production license and provincial promotion certificate.
The thresher is mainly composed of a feeding table, a frame, a concave screen, a detaching drum, a cover, a guide plate, a fan, a vibrating screen and a transmission device. The breaking rate is low, the removal rate is high, and the loss rate is low, which can be removed once and does not need to be removed. Well received by the majority of users.
Instructions for use:
1. Before starting the machine, check the bolt fastening condition of each part; if there is any resistance to the roller, confirm that everything is normal and drive for 3-5 minutes.
2. The threshing machine triangle belt should not be too tight or too loose; after starting the power machine, first confirm whether the drum steering is consistent with the marking on the machine.
3. After starting the machine, the operator should be more than 2 meters away from the machine. After the machine is running normally, the crop can be fed.
4. The threshing crop should be unbundled, continuously and evenly fed. It should not be too large or too high to prevent the feed inlet from being blocked.
5. Pay attention to the bearing temperature during use, and add lubricant to the bearing at regular intervals.
6. After the drum and fan impeller are damaged, they should be repaired in time. The replacement drum and impeller must be balanced.









Pre-sales Service
1. Technical Consulting Service
Our wide product range enables us to provide most flexible, efficient and reliable equipment configurations or complete solutions for customers according to different requests and budgets.

2. Company and Production Line Visit
Before placing orders, customers are warmly welcome to visit factory and our facility. We can also arrange the visit to our existing customers to learn the operation condition of our machines and complete plant.

In-sales Service
1. Reliable delivery time.
2. Strict quality control by in-production 100% check and test.
3. User manual and spare parts provided for free.
4. Transportation(EXW/FOB/CIF/C&F/CFR/DDU/DDP)

After-sales Service
1. Fast technical guidance for construction, installation and commissioning.
2. Necessary training for daily maintenance on site.
3. 12 months warranty.
4. Lifelong regular technical service.
5. Timely solutions to problems.
