• Trademark：SPACE
• Specification：55L,Hour
• Transport Package：Carton with Pallet
• Function：Frozen Yogurt, Soft Serve Ice Cream
• Material：Stainless Steel
• Power：3.6kw
• Voltage：210-230V,50,60Hz
• Model NO.：6250A
• Origin：Zhejiang, China (Mainland)
• HS Code：8418699020
• Production Capacity：10000 Sets,Month

MODELPOWERVOLTAGEN.G.(KG)W.G.(KG)DIMENSION
(NET)DIMENSION
(PACKING)6250A3.6 KW210-230V/50HZ225 245654mmx554x1520mm800mmx645mmx1665mm

Offer
Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.

Feature:
1. Floor model
2. Air cooling
3. Twin flavour+one mix
4. Air pump freezer---Gear pumps ensure a high overrun ice cream
5. Stainless Steel Panels
6. LED disaply automatic control
7. Automatic control
8. Independent refrigeration and control system for each flavour
9. Dual system

Freezing cylinder
Two, 1.8 Liter

Mix hopper
Two, 12.5 Liter
Separate hopper refrigeration(Pre-cooling)maintains mix below 4.4 ºC.


Microprocessor controls
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.


Mix low light
The mix low light turns"on" to alert operator to add mix, preventing cylinder over freezing.


Standby
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4 ºC during long no-use periods.


Counter
Records number of dispenses per day and total number of dispenses.


Agitator in the hopper
Mixture has better liquidity, the temperature of the Mix to be more uniform.


Output
55 Liter/Hour(At 4 ºC liquid &24 ºC Ambient)


Electrical requirements
One dedicated electrical connection is required.
Make voltage steady when machine is ON.


Main motor
Two, 1.0HP


Refrigeration system
Two compressors: 2*3838 BTU/hr. R404A
Separate hopper refrigeration(pre-cooling): One compressor: 400BTU/hr. R134A
(BTU may vary depending on compressor used. )


Air cooled
Minimum clearance of 152 mm on both sides is to achieve optimum performance.
Refer to the local situation to regulate the parameters, on basic of the data label. Specificaitons of the improvements are subjuct to change without notice.


Options
Local specific plugs of power supply wire
Cup cone dispenser
Power supply:208-230V/60HZ

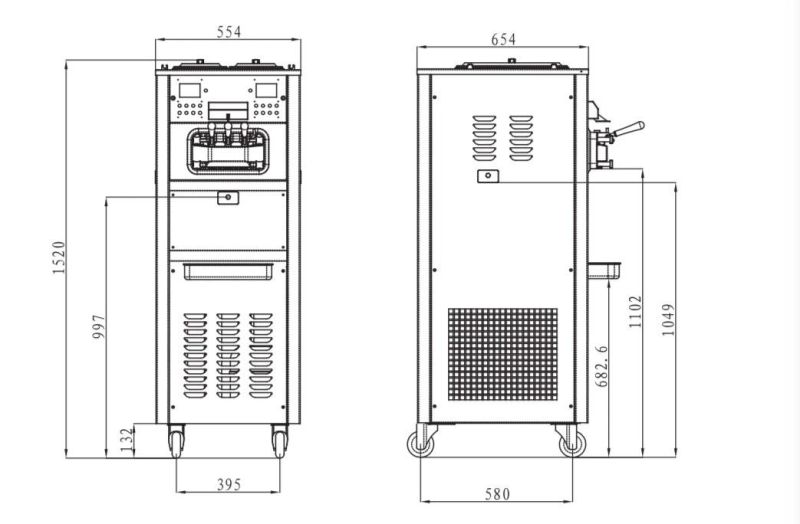

The contour dimensional drawing

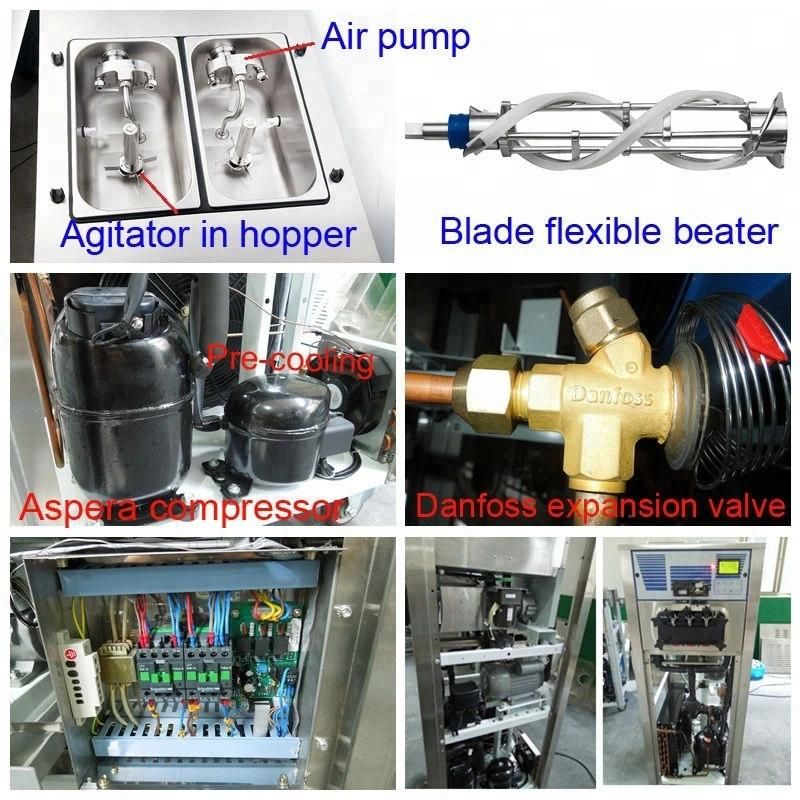

Parts used for the Ice Cream Making Machine With Air Pump (6250A)

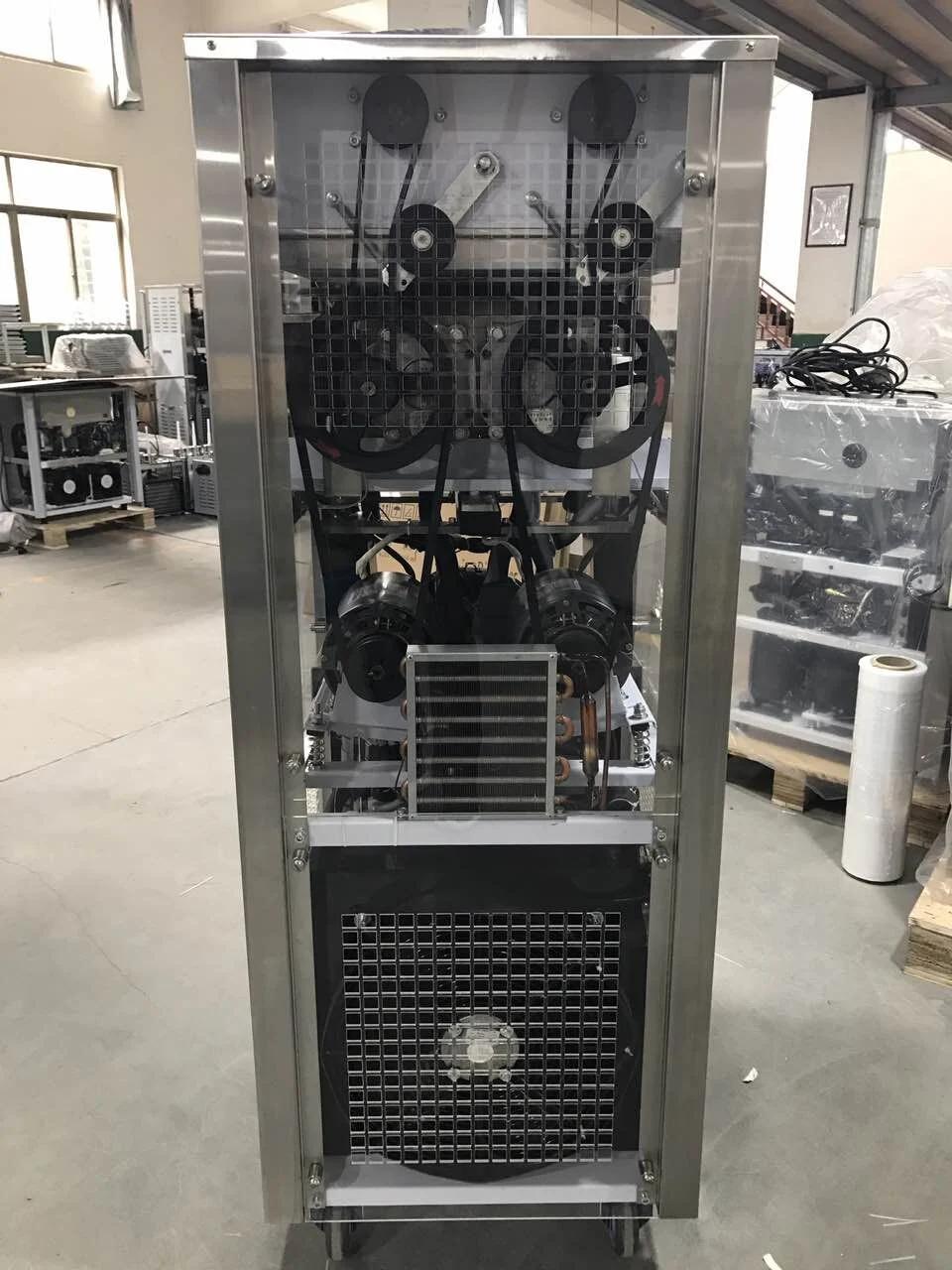

Ice Cream Making Machine in the factory

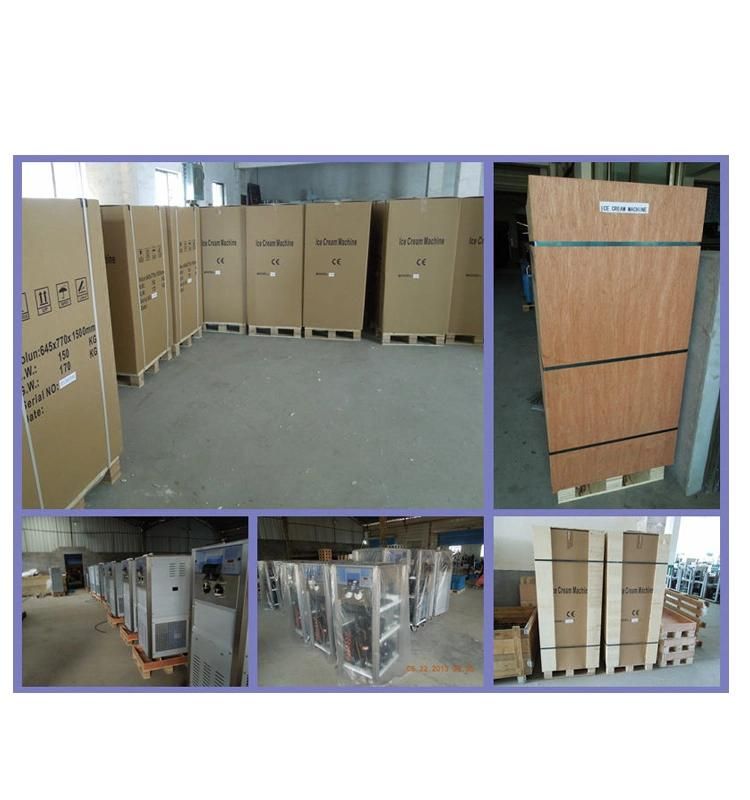

Ice Cream Making Machine With Air Pump packing

1. Guarantee Time: 12 month

2. Professional manufacture of ice cream machine since 1998 . Quality and quantity guaranteed

3. Specialized after-sales team offer technology support . Extra spare parts are attached with order for stock accessories

4. Fast delivery and good quality control team to ensure timely delivery.
