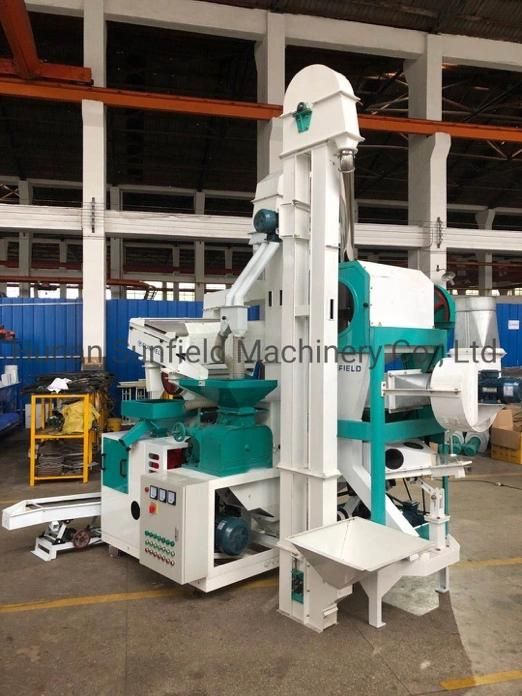

20tpd High-Quality Fully Automatic Rice Milling Equipment Manufacturer Combined Rice Mill ...
Hunan Sunfield Machinery Co., Ltd.- Press Materials：Rice
- Appearance：Vertical
- Voltage：380V
- Application：Rice flour, Paddy,Rice
- Type：Rice Mill
- Press Series：Fourth
Base Info
- Discount：Negotiable
- Useful Life：20years
- Material：Stainless Steel
- Weight：1700kg
- Overall Dimension (L×w×h)：3300×1200×3400
- Broken Rate：2%
- Rice Milling Rate：68-72%
- Total Power：24.95 Kw
- Rated Productivity：800-1000 Kg,H
- Customized：Customized
- Condition：New
- Model NO.：CTNM20
- Production Capacity：100,Per Week
- Trademark：Sunfield
- HS Code：8437800000
- Origin：China
- Specification：2800*1500*2900mm
- Transport Package：by Wooden Case
Description

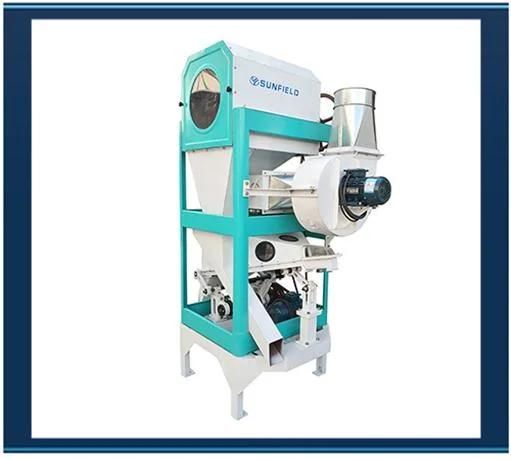

Unique DRUM TYPE Combined Paddy Cleaner and De-stoner♦ Independent structures for paddy cleaning and de-stoning, greatly improved the performance from traditional unibody design;
♦ The double-layer drum type sieve mechanism with high cleaning efficiency;
♦ Strong air-suction structured de-stoner, large air volume, excellent de-stoning efficiency;
♦ Solid shock absorption bearing strengthened the main machine by high stablility, low vibration, low noise and less dust while working. High efficiency, low noise husker

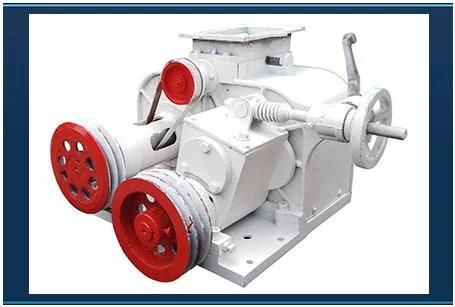

♦Double support mobile gearbox husker integrated reversing gearbox and mobile tightening device, efficiently avoided miscoordination between swinging gears.
♦Over 90% de-hulling rate for one time operation.
♦Durable rubber roller, convenient operation and calibration, high transmission efficiency, low noise and high stability.

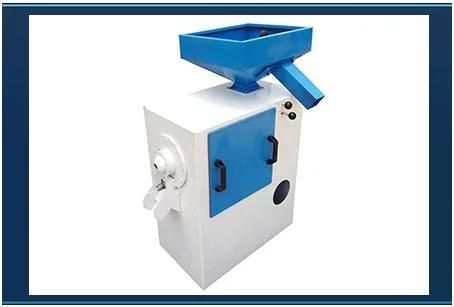

Innovated inhale-air emery rice mill♦Emery rice mill equipped with a large diameter hollow spindle and innovative Emery roller whitening mechanism design.
♦Strong inhale-air fan sucks in large volume air through milling chamber to reduce rice temperature thus bring down the broken rate, at the mean time bring away the brans to clean the rice and increase the gloss of whitened rice.

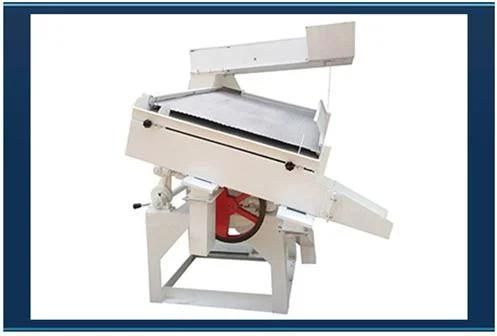

♦Lower operation platform, more convenient operation and daily maintenance. Stable gravity paddy separator
♦Bigger screen with high separation speed and even paddy distribution.
♦The horizontal and vertical angles of the screen are adjustable, suitable for all kinds of paddy, great screening and separating efficiency.
♦Low left paddy for rehusking, reduce the broken rate efficiently.
