• Model NO.：ks3500
• Model：Five-Layer Steam Dryer
• Power(W)：28.4kw
• Heating Temperature：200 Degrees
• Weight：380kg
• Capacity：800kg,H
• Belt Length：4m,8m,12m,16m,20m
• Dimension(L*W*H)：9600*1700*3500mm
• Material：304 Stainless Steel
• Feature：High Efficiency
• Application Fields：Snack Food Factory, Commercial Catering, Flour Mil
• Warranty：1.5 Year
• Heat Source：Electricity, Steam, Gas
• After-Sales Service Provided：Video Technical Support, Engineers Available to Se
• Transport Package：Wooden Case
• Specification：3500*1200*1400
• Trademark：KeySong
• Origin：Shandong China
• HS Code：8438800000
• Production Capacity：30et,Month

Basic Info.

Model NO. ks3500 Model Five-Layer Steam Dryer Power(W) 28.4kw Heating Temperature 200 Degrees Weight 380kg Capacity 800kg/H Belt Length 4m,8m,12m,16m,20m Dimension(L*W*H) 9600*1700*3500mm Material 304 Stainless Steel Feature High Efficiency Application Fields Snack Food Factory, Commercial Catering, Flour Mil Warranty 1.5 Year Heat Source Electricity, Steam, Gas After-Sales Service Provided Video Technical Support, Engineers Available to Se Transport Package Wooden Case Specification 3500*1200*1400 Trademark KeySong Origin Shandong China HS Code 8438800000 Production Capacity 30et/Month

Product Description

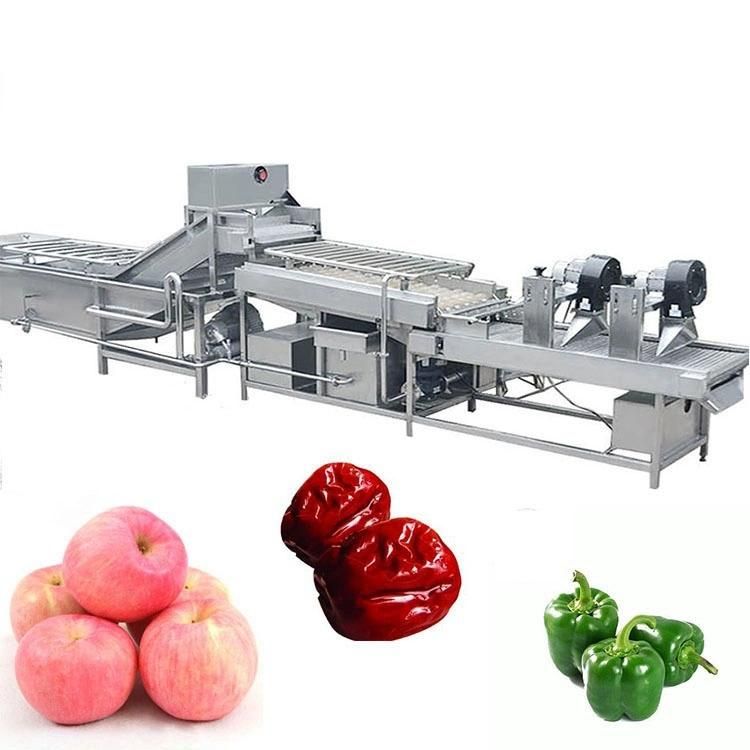

Good quality Wholesale dehydrated vegetable processing dried fruit production line

Description:

This is the small and medium scale fruit & vegetable chips production line, the production process is simple, easy to operate. The production strictly in accordance with international standards of manufacturing process, end products meet the requirements of food GMP health conditions. The final processing technology and end products packaging form can be configured according to customer requirements.

Introduction:






Flow Chart:washing--cutting--blanching--normal temperature cooling-- dewatering-- drying

1.Cleaning Machine:

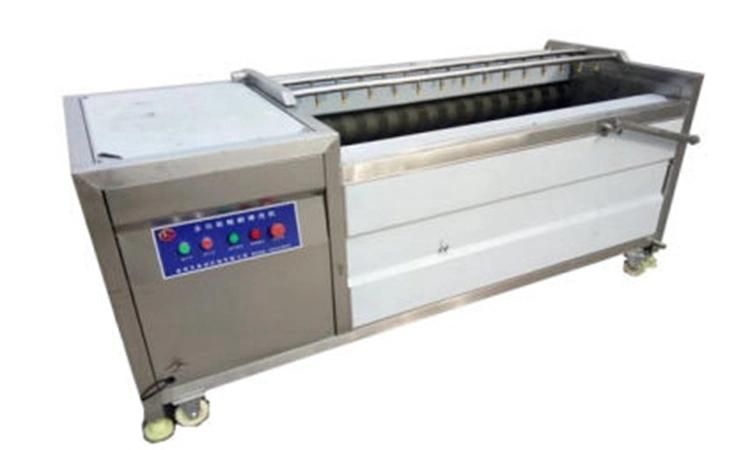

Semi automatic brush roller washing and peeling machine





Components: This Brush washing and peeling machine is mainly consisting of a motor, speed changer, and brush rollers, etc

Technical parameters:

Model	Motor	Overall dimension	Machine weight	capacity
KS 800	1.5kw/380v	1250x780x650mm	260kg	700kg/h
KS1200	2.2kw/380v	2120x840x900mm	300kg	1000kg/h
KS1500	3kw/380v	2400x840x900mm	380kg	1500kg/h
KS1800	4kw/380v	2550x840x900mm	400kg	1800kg/h
KS2000	4kw/380v	2900x910x900mm	460kg	2000kg/h
KS2100	5kw/380v	3050x1200x1160mm	600kg	4000kg/h

Application: circle shape and oval vegetable. Such as ginger, carrot, taro, potato, sweet potato etc.

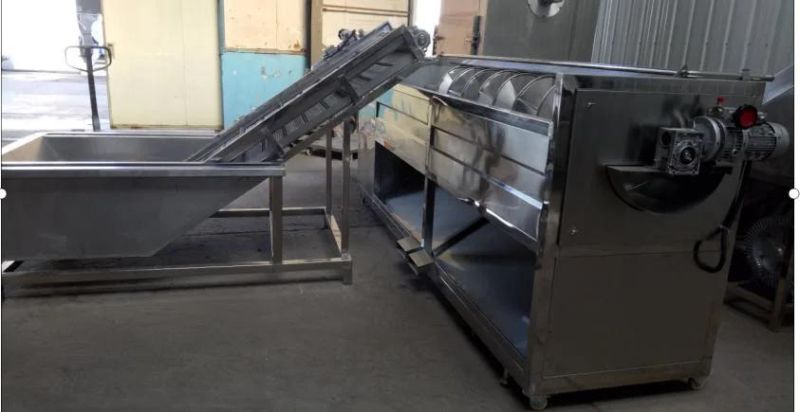

Fully automatic rotary brush roller washing and peeling machine:





Technical Parameter:

Model	Power	Dimension	Weight	Output
KS1200	2.2kw/380v	2120*840*900mm	300kg	1200-1500kg/h
KS1500	3kw/380v	2400*840*900mm	380kg	1500-2000kg/h
KS2000	4kw/380v	2900*840*900mm	460kg	2500-3000kg/h
KS2100	4kw/380v	3050*1200*1450mm	800kg	4000kg/h

Application and components as semi automatic type.

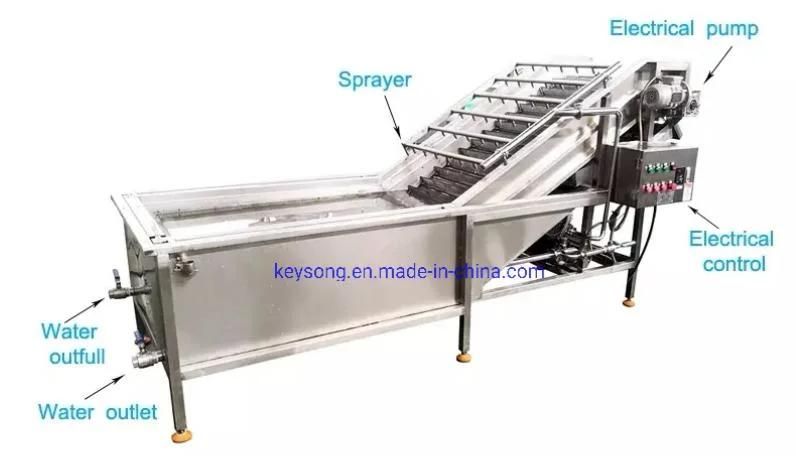

Bubble Washing Machine:

.
Application:Bubble cleaners are commonly used for leafy vegetables and also for root vegetables

Feature:The water in the bubble washer sink is recycled

Technical Parameter:

Model	Power	Capacity (kg/h)	Weight (kg)	Dimension (mm)
KS-2500	0.75kw/380V	400-500	380	2800*1200*1400
KS-3000	0.75kw/380V	700--1000	460	3000*1200*1400
KS-3500	1.1kw/380V	1000-1200	540	3500*1200*1400
KS-4000	2.57kw/380v	1300-1500	640	4000*1200*1400
KS-5000	3.37kw/380v	2300-2500	800	5000*1200*1400

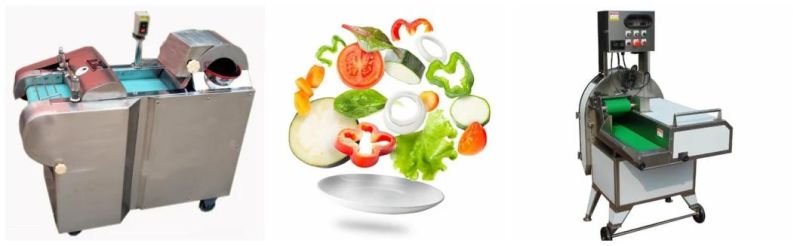

2.vegetable cutter               Multifunctional cutter

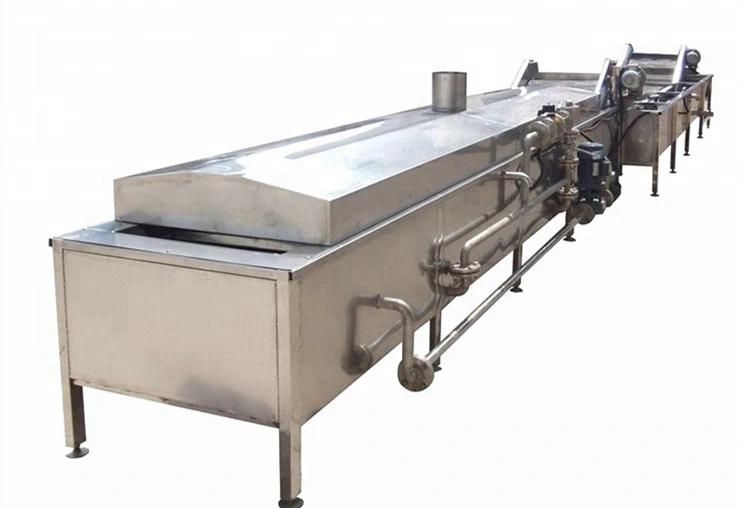

3.Blanching Machine



Function:Blanching machine is the role of sterilization, preheating, solid color

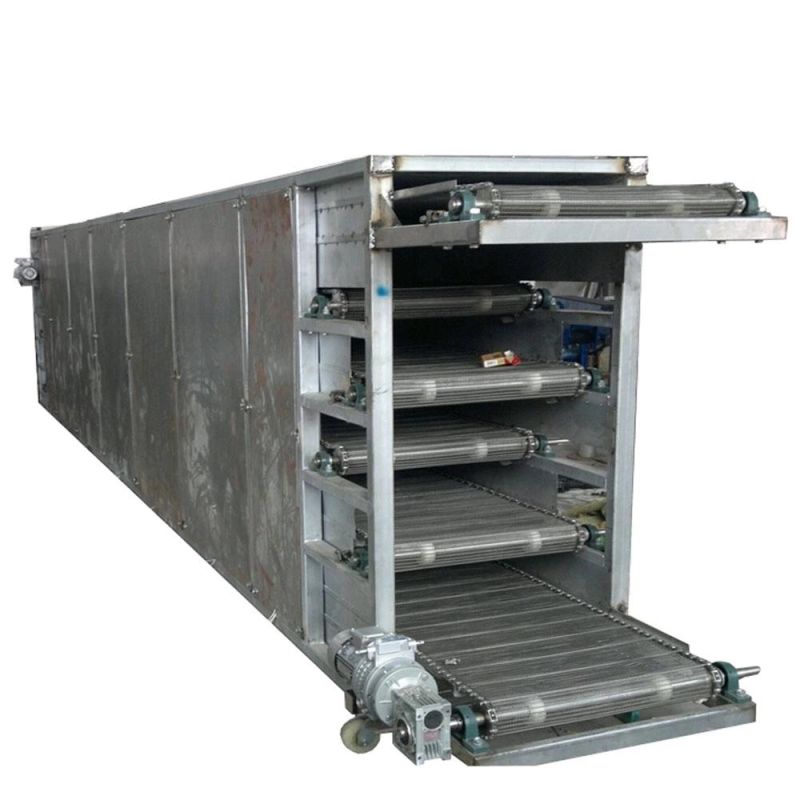

4.Dryer:



Technical Parameter:

Model	Electric(gas/diesel) Consumption	Heating Temperature	Output	Dimension
Three-layer gas/diesel dryer	7-10L/h	200°C	150kg/h	6500*1600*2000mm
Five-layer steam dryer	28.4kw/h	200°C	800kg/h	9600*1700*3500mm
Seven-layer dryer	48kw/h	90°C	100kg/h	9000*2400*3000mm

Packaging and shipping:


   Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom.With this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.



Competitive Advantages:
1. Guaranty: One Year.
2. One set of consumable accessories will be provided with the machine.
3. Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.
4. All spare parts are always available for delivery.
5. Manual is in English.
6. Minimum order: 1 set
7. Prompt Delivery: 15-20 working days after receiving deposit
8. Installation: sending one technician to the customer's factory for installation and training.
9. Packaging: firstly packing with plastic inner side, then strengthening with wooden case outside.

Company Information:
  Keysong was founded in 2013. Specializing in producing food machines for more than 6 years. Since its inception, it is specializing in the manufacture, research, development, sales and after-sales of food extrusion machine, puffed food production line, fruit and vegetable washing and drying processing line.

Our History:
In 2013, Keysong was established, concentrating on manufacturing and selling extrusion snack production line at home and abroad.
In 2014, Keysong broke traditional breakfast cereal production technology, and invented new production process.
 In 2015, Keysong moved to a new workshop, which covers the area of 5000 square meters. In 2015, we have our agency in India, Nigeria, Thailand, Morocco and Algeria.
In 2016, Keysong cooperated with Shandong Liwei Microwave equipment, started researching on food microwave drying technology. In August, 2016, Keysong build a team, concentrating on researching on the technology of vegetables and fruits washing, cutting, drying and freezing. And has received great results till now.



  About us & more details:

MOQ	1 set
Supply Ability	20 sets per Month
Shipping port	Qingdao port, Shandong, China
Packing details	Fumigation-free wooden case outside, stretch film inner
Relevant spare parts	free, delivery with processing line
Guarantee	Within 12 months
Oversea service	Provide installation and commissioning after machine arrived your factory
Payment terms	30% is paid by T/T as the down payment, 70% is paid by T/T or L/C before shipment.
Delivery time	30 days after receipt the deposit
Pre-shipment	When it finished, we will invite you to our company to inspect machines, when no problem, we will arrange the shipment

FAQ:
1. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL/TNT, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2. How long is the delivery time?
For standard machines, it would be20-30 days; For non-standard machines and customized machines according to client's specific requirements, it would be 30-45 days.
3. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4. How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading
