• Model NO.：KS
• Machine Material：Food Grade Stainless Steel
• Motor：Siemens
• Features：Energy and Labour Saving, High Efficiency
• Inverter：Delta
• Control：Manual or PLC
• Delivery：15-30 Days
• Warrranty：1.5 Years
• Capacity：100-1000kg,H
• Transport Package：Wooden Case
• Specification：9000*1300*2500mm
• Trademark：KS
• Origin：Shandong, China
• HS Code：8438800000
• Production Capacity：50 Set,Month

Basic Info.

Model NO. KS Machine Material Food Grade Stainless Steel  Motor Siemens Features Energy and Labour Saving, High Efficiency Inverter Delta Control Manual or PLC Delivery 15-30 Days Warrranty 1.5 Years Capacity 100-1000kg/H Transport Package Wooden Case Specification 9000*1300*2500mm Trademark KS Origin Shandong, China HS Code 8438800000 Production Capacity 50 Set/Month

Product Description

Multi-function Fruits Vegetables Plant Price Drying Machine

1. Introduction
This machine fit for drying and sterilizing powered ,granular, sheet-like or gel-like food, and  additive, flavoring, medicine, raw material of herbal medicine, nutritional health products, agriculture & sideline products, non-fried(or oil-saving)instant noodles, noodles, rice powder noodles, soy products, beef jerky, preserved meat, dried fish ,tea, tobacco and so on; and for drying, peeling and baking  almond, peach kernel, groundnut kernels, chestnut and so on; and for puffing of leisure food ,pachyrhizus chips, potato chips, dried shrimps, fish maw and so on; and for sterilizing and oral liquor, pickles, a variety of small packaging food ;and for drying beans; and for thawing the frozen fish ,poultry; and for drying and desulfurating and deoxidizing the metallurgical chemical products; and for drying printing and dyeing products, ceramics, glass, chemical fiber, cotton yarn, wood, leather, bamboo products, insulation materials, building materials, cork,  alveolate cardboard, corrugated, and so on.



2. Technical information

NO.	NAME	SPECIFICATION
1	Electric Oven (5 meters long with 3 layers)	Driving power: 0.75kw Electricity elements power: 28kw Capacity: 100-300kg/h Size: 5000*1300*1900
2	Electric Oven  (5 meters long with 5 layers)	Driving power: 3.5kw Electricity elements power: 45kw Capacity: 100-300kg/h Size: 5000*1300*1900 Double mesh belt: 1 meter wide. Belt speed adjusted by inverter. Temperature: 40-180 degrees Celsius automatic controlling. Silicate insulation material. Bottom equipped with sliding tray to conveniently clean the dregs. 380v,50hz,3 phase Using SIEMENS brand inverter for conveyor speed control.
3	Electric Oven  (8 meters long with 5 layers)	Power: 3.5kw Heating power: 50kw Capacity: 120-270kg/h Size: 8000*1300*2000 Removing the moisture from the wet food  Using blower for hot air circulation
4	Electric Oven  (11 meters long with 5 layers/9meters long with 7 layers)	Driving power: 5.5kw Capacity: 100-300kg/h Size: 9000*1300*2500  Double mesh belt (made of stainless steel) Using a sole control cabinet controlling temperature
5	Gas-powered Oven (5 meters long with 3 layers)	Driving power: 0.75kw Electricity elements power: 28kw Capacity: 100-300kg/h Size: 5000*1300*1900
6	Gas-powered Oven (5 meters long with 5 layers)	Driving power: 3.5kw Electricity elements power: 45kw Capacity: 100-300kg/h Size: 5000*1300*1900 Double mesh belt: 1 meter wide. Belt speed adjusted by inverter. Temperature: 40-180 automatic controlling. Silicate insulation material. Bottom equipped with sliding tray to conveniently clean the dregs. 380v,50hz,3 phase Using SIEMENS brand inverter for conveyor speed control.
7	Gas-powered Oven (8 meters long with 5 layers)	Power: 3.5kw Heating power: 50kw Capacity: 120-270kg/h Size: 8000*1300*2000 Removing the moisture from the wet food  Using blower for hot air circulation
8	Gas-powered Oven (11 meters long with 5 layers/9meters long with 7 layers)	Driving power: 5.5kw Capacity: 100-300kg/h Size: 9000*1300*2500  Double mesh belt (made of stainless steel) Using a sole control cabinet controlling temperature
9	Oil-powered Oven (5 meters long with 3 layers)	Driving power: 0.75kw Electricity elements power: 28kw Capacity: 100-300kg/h Size: 5000*1300*1900
10	Oil-powered Oven (5 meters long with 5 layers)	Driving power: 3.5kw Electricity elements power: 45kw Capacity: 100-300kg/h Size: 5000*1300*1900 Double mesh belt: 1 meter wide. Belt speed adjusted by inverter. Temperature: 40-180 degrees Celsius automatic controlling. Silicate insulation material. Bottom equipped with sliding tray to conveniently clean the dregs. 380v,50hz,3 phase Using SIEMENS brand inverter for conveyor speed control.
11	Oil-powered Oven (8 meters long with 5 layers)	Power: 3.5kw Heating power: 50kw Capacity: 120-270kg/h Size: 8000*1300*2000 Removing the moisture from the wet food  Using blower for hot air circulation
12	Oil-powered Oven (11 meters long with 5 layers/9meters long with 7 layers)	Driving power: 5.5kw Capacity: 100-300kg/h Size: 9000*1300*2500  Double mesh belt (made of stainless steel) Using a sole control cabinet controlling temperature

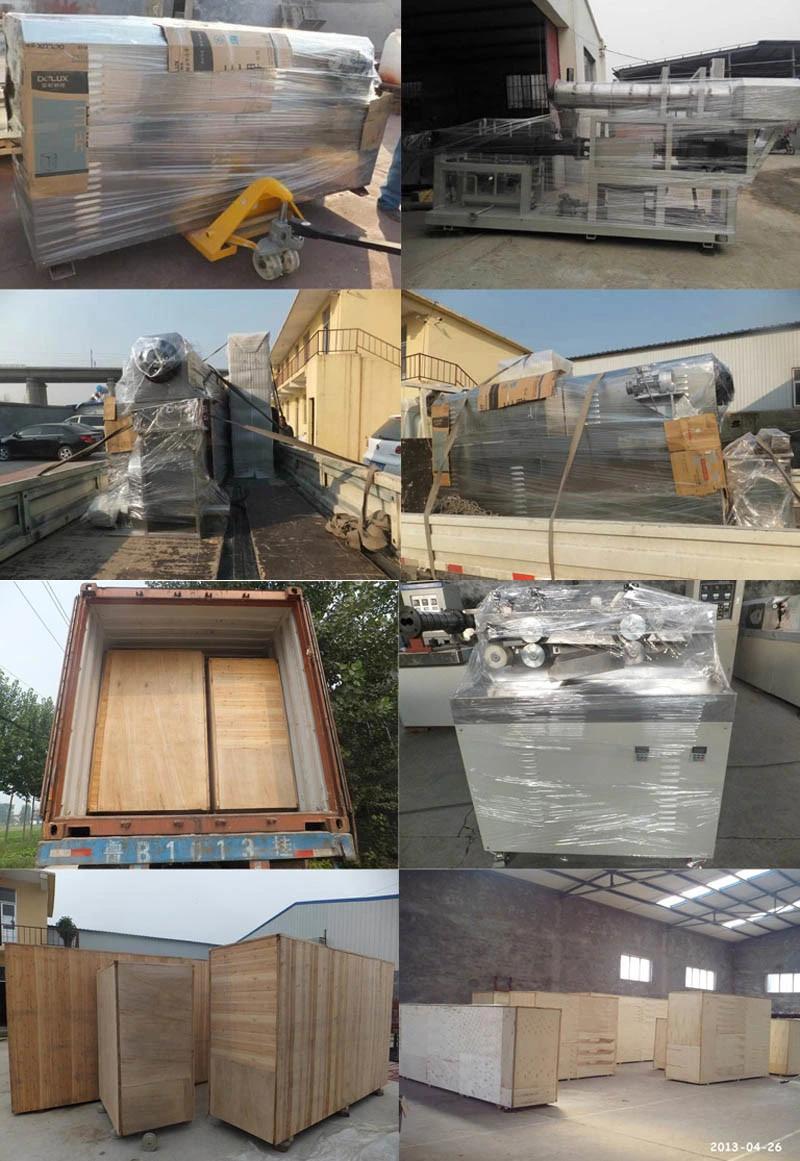

3. Package and shipping
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottomWith this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.



Competitive Advantages
1. Guaranty: One year and a half.
2. One set of consumable accessories will be provided with the machine.
3. Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.
4. All spare parts are always available for delivery.
5. Manual is in English.
6. Minimum order: 1 set
7. Prompt Delivery: 15-20 working days after receiving deposit
8. Installation: sending one technician to the customer's factory for installation and training.
9. Packaging: firstly packing with plastic inner side, then strengthening with wooden case outside.

Service
Our engineer would go to buyer's place to install the machine, when the equipment arrived at buyer's place.
1). At least 1 year from the date of completion of the commissioning.
2). Free consultation service before, during, and after sales;
3). Free project planning and design services;
4). Free debugging of equipment until everything is functional;
5). Free management of equipments long distance shipping;
6). Free training of equipment maintenance and operating personally;
7). Free new production techniques and formulas;
8). Provide 1 year complete warranty and life-time maintenance service;

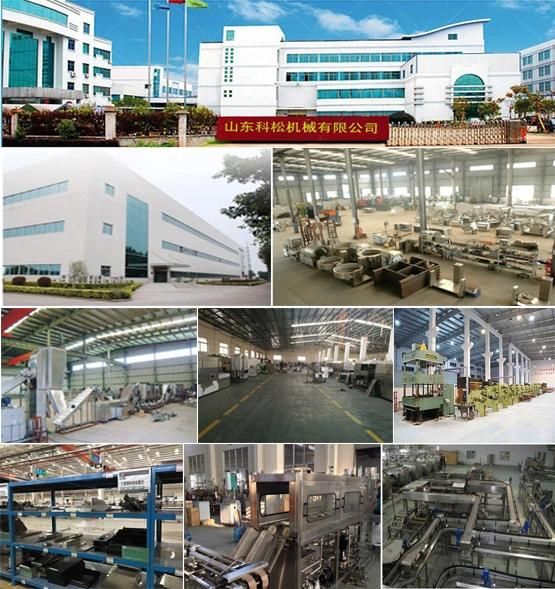

Our Factory



Our Customers



FAQ

1. Are you a factory or trading company?
We are the manufacturer with more than10 years' experience. As only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily.
2. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client's specific requirements, it would be 15-30 days.
3. How should I pay for my order? what is the procession of this purchase?
30% advance payment by T/T, the rest 70% before the shipment.
We will arrange the production after receiving your advanced payment. When the machine is ready, we will send you pictures.
After we got the rest payment, we will ship the machine to you.
4. How about your service after sales? Can your engineer speak fluent English?
We offer the service from you received the machine, including installation of the machine,
how to use machine? how to let machine work? usually we will teach you how to do by email or by Skype. Our engineer has many years of experience for CNC machine service. he can speak very good English, so he can solve the problem in short time.
5. How about the documents after shipment?
After shipment,well send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
