Popular Fried Corn Curls Kurkure Snacks Production Line
Shandong Nolen Machinery Co., Ltd.- Warranty：One Year
- Certification：CE, ISO9001
- Power Source：Electric
- Process：Mild Processing
- Automatic Grade：Automatic
- Application：Kurkure
Base Info
- Model NO.：Frying Cheetos
- Customized：Customized
- Type：Twin-Screw Extruder
- Color：Silver
- Condition：New
- Material：Stainless Steel
- Function：Kurkure,Cheetos,Nik Naks,Cheese Curls, Corn Curls
- Raw Material：Corn Flour,Rice Flour,Wheat Flour,Grain Flour
- Motor Brand：ABB,Siemens Optional
- Power(W)：22kw -110kw
- Weight：1500kg
- Voltage：220V,50Hz 380V,50Hz
- Installed Power：47kw
- Power Consumption：35kw
- Screw Diamater：65mm,70mm,85mm,95mm
- After-Sales Service Provided：Field Installation, Commissioning and Training
- Transport Package：Wooden Case
- Specification：22500*3700*3000mm
- Origin：Shandong, China
- HS Code：8438800000
- Production Capacity：100~150kg,H
Description
Basic Info.
Model NO. Frying Cheetos Customized Customized Type Twin-Screw Extruder Color Silver Condition New Material Stainless Steel Function Kurkure/Cheetos/Nik Naks/Cheese Curls/ Corn Curls Raw Material Corn Flour/Rice Flour/Wheat Flour/Grain Flour Motor Brand ABB/Siemens Optional Power(W) 22kw -110kw Weight 1500kg Voltage 220V/50Hz 380V/50Hz Installed Power 47kw Power Consumption 35kw Screw Diamater 65mm,70mm,85mm,95mm After-Sales Service Provided Field Installation, Commissioning and Training Transport Package Wooden Case Specification 22500*3700*3000mm Origin Shandong, China HS Code 8438800000 Production Capacity 100~150kg/HProduct Description

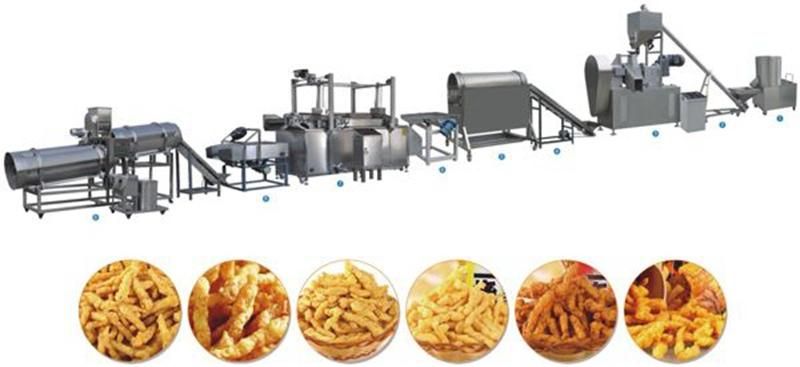

Popular Fried Corn Curls Kurkure Snacks Production Line
1. Description:

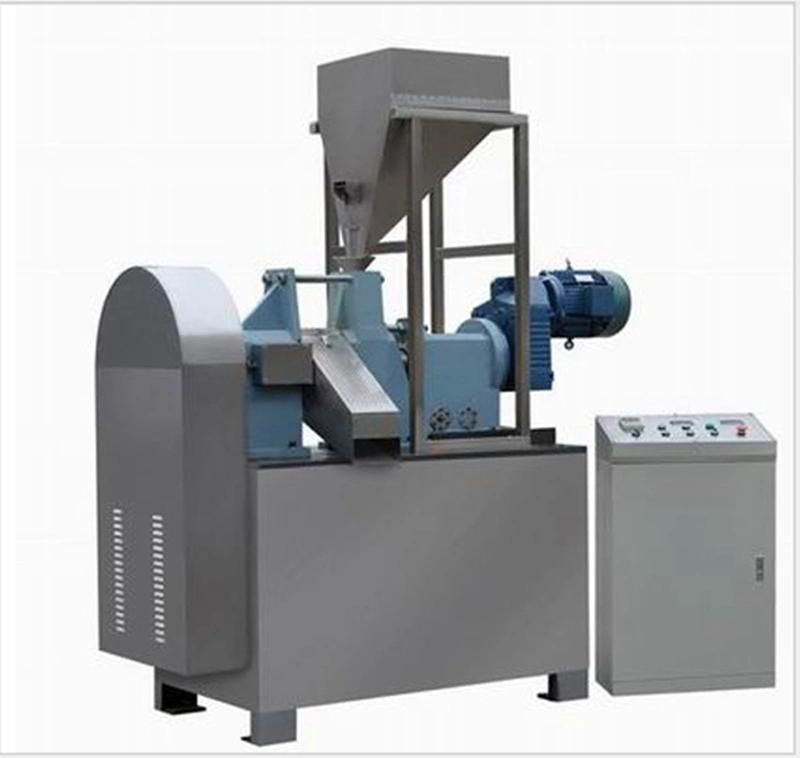

Fried Kurkure Snacks food makes Machines are special extruded snacks, very crunchy and great in taste. Fried Cheetos Kurkure Snacks food makes Machines are made by a special Fried Cheetos Kurkure Snacks food makes Machines process. The corn grits are moisturized in the flour mixer with water and fed to the rotary head extruder. In the extruder, due to the two rotary plates, the corn grits are squeezed and twisted to curls shapes. The cutting knives can cut into required lengths. The Fried Cheetos Kurkure Snacks food are fried in cooking oil or toasted in oven and then cooled before flavoring. Seasoning is sprayed on the surface to achieve different favorable tastes. Due to the delicious flavors and nutrition,Fried Cheetos Kurkure Snacks food makes Machines is quite popular with consumers.Kurkure/Cheetos/Nik nak are extruded snacks, very crunchy and great in taste. Kurkure are made by extrusion process. The Kurkure corn meal is moisturized in the flour mixer with water and fed to the Rotary die Extruder. In the extruder, due to excess heat and pressure from the screws the meal gets heated and the moisture content gets reduced. The meal passes through the die and gets cut by the cutting knifes into required lengths. The Kurkure are fried in cooking oil and then cooled before flavoring. Seasoning is sprayed on the Kurkure to improve their taste.
2.Raw materials:
adopts wheat flour as raw materials
3.Voltage: in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
4.Machine materials:
All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
1) Stable performance: adopting imported frequency or electromagnetic controlling system, high automation and smooth operation
2) Permanent working life: with special material and technology, the screw and nut
involved can work continuously for 1 year under conditions of high wear and pressure
5.Technical parameter:
| Model | Installed Power | Power Consumption | Capacity | Dimension |
| Frying Cheetos | 47kw | 35kw | 100~150kg/h | 22500×3700×3000mm |
| Baking Cheetos | 42kw | 32kw | 100~150kg/h | 23850×3510×3000mm |

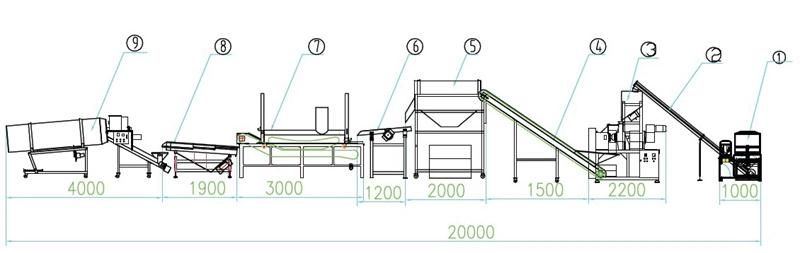

6.Flow chart
Flour Mixer--Screw Conveyor--Rotary Head Extruder--Air Conveyor--Cooling Separator--Vibrating Conveyor--Continuous Fryer--Single Drum Seasoning Machine
7. Package and Shipping:
Each machine will be packed by standard exprot wooden case,which is suitable for international transportation.
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottomWith this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.
8.Company Information:

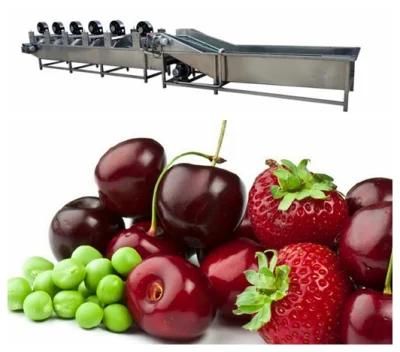

Nolen Machinery company is a professional manufacturer of food processing machine. Our products had been exported to more than 40 countries; all the products had been gained very good reputation from the dealer and the users.We specialized in researching and producing fruit and vegetable processing line which is including fruit and vegetable washing machine, peeling machine,slicing machine,chopping machine,sorting machine, mixing machine etc.
We will continue to follow the policy of "quality first, reputation first, customer first".And hope to cooperate with much more customers all over the world.
Customer
9. Our Service
Pre service
1.Related machines' technicl parameter wil be supplied.
2.According to custoomer's factory size, factory layout can be provided in advance.
3.According to customer's material cost, general formulation can be supplied well.imen book.
4.Special machine can be designed according to customer's need.
5.Professional advise about market, machines, machine, process, packing can be supplied.
6.Suggesting for shipping agent or helping the book ship as customer required.
