• Model NO.：ks70
• Type：Twin-Screw Extruder
• Material：304stainless Steel
• Motor Brand：ABB,Siemens Optional
• Power(W)：22kw -110kw
• Voltage：220V,50Hz 380V,50Hz
• Main Motor Power：30kw
• Installed Power：46.5kw
• Weight：1500kg
• Raw Material：Corn Flour,Rice Flour,Wheat Flour,Grain Flour
• Function：Puff Snacks,Breakfast Cereals Extrusion
• Shapes：Granule Flake Animal, etc
• Warranty：1.5 Years
• Date of Delivery：30-45days
• Worker Needed：2-4 Workers
• After-Sales Service Provided：Field Installation, Commissioning and Training
• Transport Package：Wooden Case
• Specification：2.8*1.0*1.9m
• Trademark：KeySong
• Origin：Shandong, China
• HS Code：8438800000
• Production Capacity：200-260kg,H

Basic Info.

Model NO. ks70 Type Twin-Screw Extruder Material 304stainless Steel Motor Brand ABB/Siemens Optional Power(W) 22kw -110kw Voltage 220V/50Hz 380V/50Hz Main Motor Power 30kw Installed Power 46.5kw Weight 1500kg Raw Material Corn Flour/Rice Flour/Wheat Flour/Grain Flour Function Puff Snacks,Breakfast Cereals Extrusion Shapes Granule Flake Animal, etc Warranty 1.5 Years Date of Delivery 30-45days Worker Needed 2-4 Workers After-Sales Service Provided Field Installation, Commissioning and Training Transport Package Wooden Case Specification 2.8*1.0*1.9m Trademark KeySong Origin Shandong, China HS Code 8438800000 Production Capacity 200-260kg/H

Product Description

Manufacturer breakfast cereal production line price making corn flakes machinery






1. Descriptiom:
   Corn flakes machine can produce breakfast cereal which is one kind of nutritional convenient food which is produced by this process line, using grist as basic material, with different shapes, such as, granule, flake, animal, etc. One outstanding characteristic of the breakfast cereal is that it contains abundant compound carbohydrates and dietary fiber, strengthens lots of microelements, such as vitamin and mineral, and also can be added with cocoa and sugar, like honey and maltose. It can be drunk directly after mixed into coffee, milk, yoghourt or functional drink. Children can eat breakfast cereal as sweet crispy snack.

Raw Materials	Corn Powder and Other Cereals
Products	All kinds of snacks with different shapes and types
Capacity	120-150 KG/H, 200 KG/H, 300-400 KG/H
Flow Chart	Mixing -Extruding -Baking -Coating -Drying -Cooling
Voltage	Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries
Machines Materials	All the machines are made by food grade stainless steel

a. Raw Materials:
This Production line adopts corn flour as the main raw material and some other raw material such as:rice, wheat, oat, barley etc as ingredients.




b. Products:
This production line can be used to produce corn flakes, breakfast cereals, snacks, cereals by adjusting the moulds from extrude


c. Capacity:   150kg/h, 240kg/h, 300kg/h.

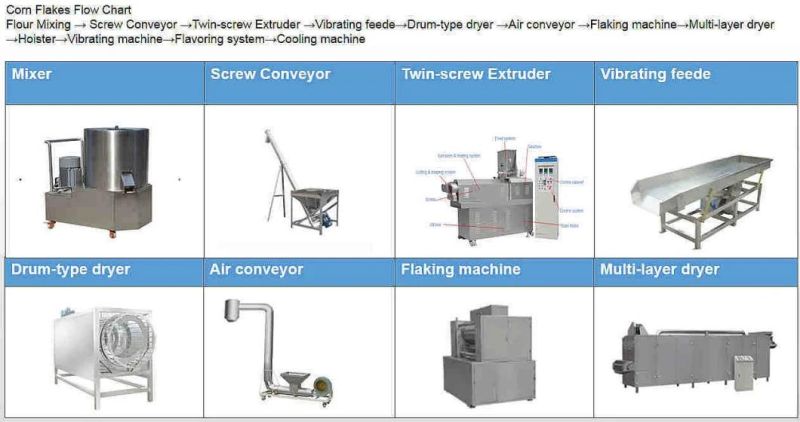

d. Flow chart:

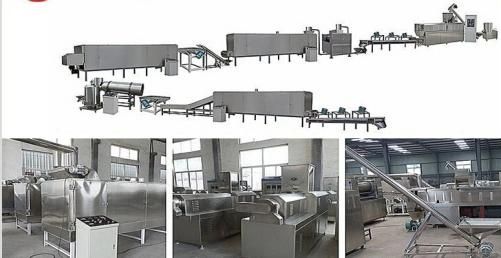

Mixing system---Extrusion system---Flaking system---Drying system---Sugar Spraying system ---Drying system---- Packing system







e. Voltage:
In China: Three phases: 380V/50Hz, Single phase: 220V/50Hz. We can make it according to customers' Local voltage according to different countries.
f. Machines Materials
All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

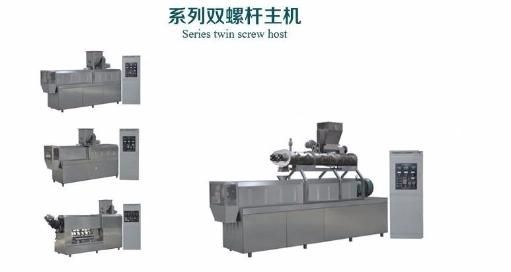

g. Extruder Technical Parameters

Model	Installed power	Real power	Output	Dimension
KS-65S	70kw	40kw	100-150kg/h	22000x1200x2200mm
KS-70S	90kw	50kw	200-240kg/h	25000x1500x2200mm
KS-85S	120kw	100kw	400-500kg/h	30000x3500x4300mm
KS-90S	135kw	100kw	800-1000kg/h	30000x3500x4300mm

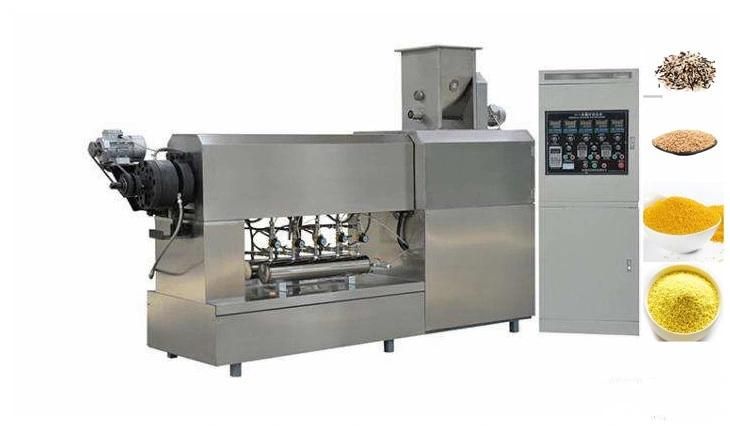

2.Features Of Extruder:
a. The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
b. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
c. The gearbox has automatic lubrication function, with extends gear life.
d. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
e. SIEMENS(CHINA) brands electronic parts used in the controller box, make sure the extrusion process perfect.
f. Main Motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.




3.Packaging and shipping:

Each machine will be packed by standard exprot wooden case,which is suitable for international transportation.
  Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.

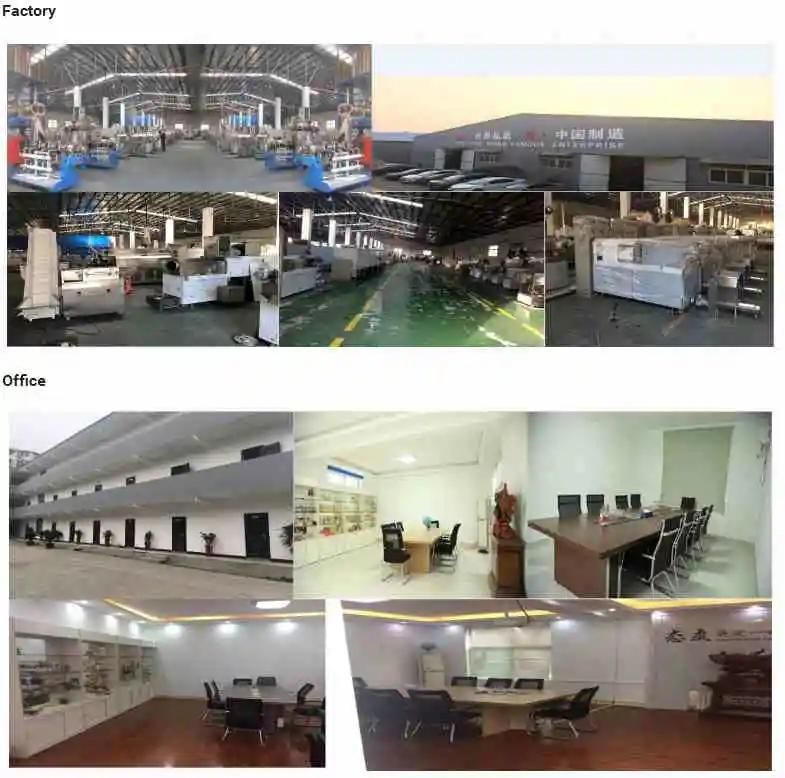

4.Company Information:
Jinan Keysong Machinery company is a professional manufacturer of food processing machine. Our products had been exported to more than 40 countries; all the products had been gained very good reputation from the dealer and the users.We specialized in researching and producing fruit and vegetable processing line which is including fruit and vegetable washing machine, peeling machine,slicing machine,chopping machine,sorting machine, mixing machine etc.We will continue to follow the policy of "quality first, reputation first, customer first".And hope to cooperate with much more customers all over the world.


Customer


5.Our Service:
Before sale service
1. Related machines' technical parameter will be supplied.
2.According to customer's factory size, factory layout can be provided in advance.
3.According to customer's material cost, general formulation can be supplied well imen book.
4.Special machine can be designed according to customer's need.
5.Professional advise about market, machines, machine, process, packing can be supplied.
6.Suggesting for shipping agent or helping the book ship as customer required.

After sale service
1. Allocation chart as the buyer's requests will be supplied.

2. Operation manual will be supplied after shipping.

3. One year warranty, lifetime maintains with cost price.
4. Free easy broken spare parts will be sent with machines.
5. Engineer oversea service to install machine and train workers.

RFQ:
1.What's your payment terms?
Our payment terms is 30% T/T as down payment, 70% by irrevocable L/C at sight or T/T before delivering
2. What's your Guarantee?
We provide 1 year complete Guarantee and life-time maintenance service
3. How about the installation?
We will dispatch our engineers to your factory to guide you installation and commissioning work and training your operator.
4. I want to do many shapes. Is it ok?
Answer: The shapes depends on the dies, we can design the dies according to your special request. And we will supply a basic formula. You can adjust and find the best formula to meet your target market's taste.
