• Model NO.：KS-65,70,85,90
• Pellet Size：0.5-13mm
• Processing Technics：Crushing Before Mixing
• Griding Type：Feed Hammer Mill
• Condition：New
• Weight：380kg
• Working Principle：Feed Extruder
• Transport Package：Wooden Case
• Specification：20000*4000*3500mm
• Trademark：KS
• Origin：Shandong China
• HS Code：8438800000
• Production Capacity：100-200kg,H, 200-500kg,H, 600-800kg,H

Basic Info.

Model NO. KS-65/70/85/90 Pellet Size 0.5-13mm Processing Technics Crushing Before Mixing Griding Type Feed Hammer Mill Condition New Weight 380kg Working Principle Feed Extruder Transport Package Wooden Case Specification 20000*4000*3500mm Trademark KS Origin Shandong China HS Code 8438800000 Production Capacity 100-200kg/H, 200-500kg/H, 600-800kg/H

Product Description

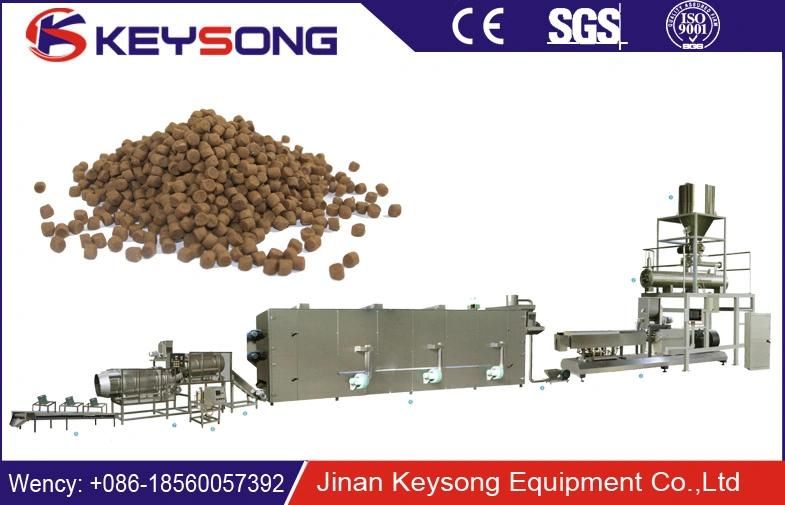

Big Type Easy Operation for Farm Use Animal Chicken Fish Feed Pellet food Making Machine
1.Double Screw Extrusion Fish Feed production line
a.According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps .etc
b.The finished pellets can keep floating for 12 hours without pollution to water.
c.The floating time can be controlled by the puffing degree adjustment
d.Floating fish feed machine can make pellet from diameter 1mm-12mm just by changing the mould.
e.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
f.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
g.The cutting device can be adjusted to make pellets of different length.
h.The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.
Fish food processing line is suitable to make dry and wet type fish food pellet (catfish, aquarium, Tilapia,Freshwater fish and tropical fish etc.)
1). All fish food equipments are made of stainless steel.
2). The fish food whole line fully continuous and automatic.
3). Datongprovide basic fish food formula according to your require.
4). The final fish food shapes and sizes can be various by changing the mould.
5). Supply different size mould free of charge.
6). Packing machine could be supplied to work with the line (depending on your require).

2. Raw Materials for fish food pellet:
 adopts corn flour,rice power ,fish meals materials.Most fish food pellet inculding animal protein and plant protein, Plant protein adopts corn flour,rice flour,wheat flour,soybean flour,peanut cake powder…..Animal protein adopts fish meal, shrimp meal,crab meal, sleeve-fish meal and so on….you can add other ingredient according to the local fish live require.
3.Parameter of the fish food making machine:

Model	KS65	KS70	KS85	KS95
Install Power	65KW	110KW	190KW	250KW
Consumption Power	42KW	77KW	133KW	175KW
Output	120-150KG/H	220-260KG/H	500-600KG/H	900-1000KG/H
Dimension	19000×1300×2200mm	22000×1300×2200mm	30000×1300×2500mm	38000×1300×3000mm

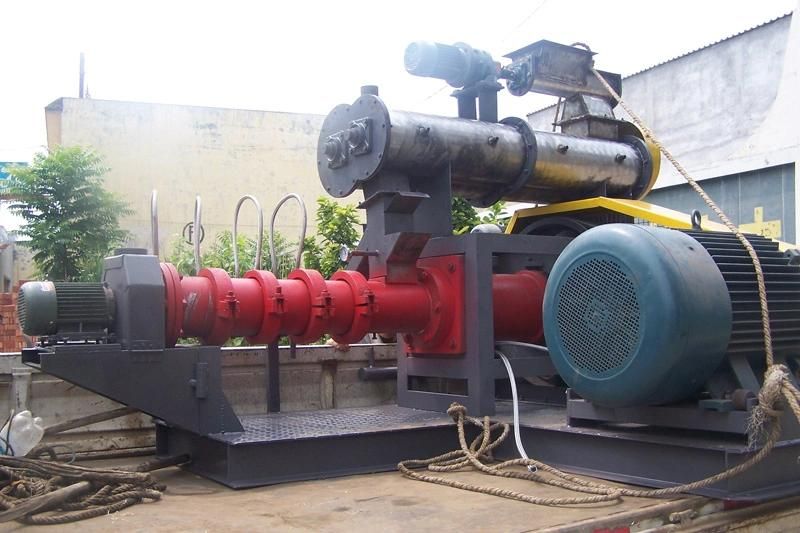

4.Double Screw ExtruderModel: KS65, 70, 85, 90, 95Capacity: from 100kg/h to 3000kg/h

1. Extruder is mainly composed of feeding, pre-conditioning, extrusion and cutting systems.
2. Main engine adopts inverter to adjust speed of screw according to changing of formula.
3. adopt building block system (BBS) to be adjustable for different technology.
4. Double-shaft pre-conditioner makes excellent result of mixing and conditioning, increasing capacity of extruder 10-15%.
5. Diameter of feed 1mm to 12mm can satisfy feed production for dog, cat, tortoise, bird, sea fish, shrimp and pet fish etc.
6.Self-cleaning, when stopping, it can be cleaned without disassembling.

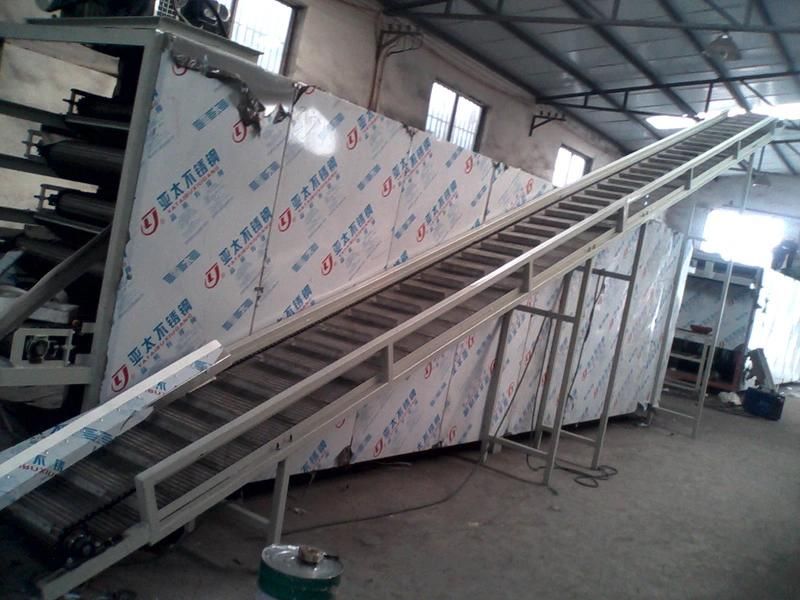

5.Dryer  (electrical, steam, gas, diesel type)Model: KX3-5, 5-5, 5-8, 5-10, 7-8, 7-10Capacity: from 100kg/h to 3000kg/h

Belt width: 1300mm & above
Drying length: 10m~140m
Applied temperature(ºC): 30~240
Drying time: 5~30 mins
Number of fans: 3~ 16 pcs
Structure: Multiple stainless steel belt
Feeding speed: 0.05-0.5 m/s
Steam consumption (t/h): 0.4~4.0
Application scope: Food industry,Feedstuff,Agricultural Products, Application Grain,Pet Food,Fish Feed,Puffed Snacks,Soybean Chunk,Pasta,Artificial rice,Vegetarian Meat,Etc

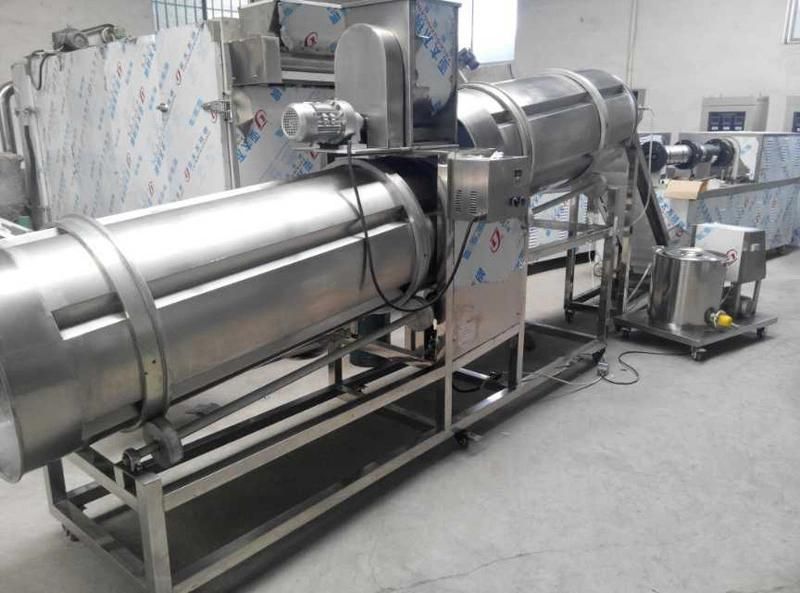

6.Flavoring systemincluding hoister, flavors feed and rolling drum

1. Fish-oil or other nutritious additives are sprayed on the surface of the pellets to improve palatability and conversion rate of feed.
2. Adopting drum pattern and oil atomization spraying system together with continuous and automatic operation.
3. Widely used for spraying fat, vitamin, substrate and medication onto the surface of extrusion feed.

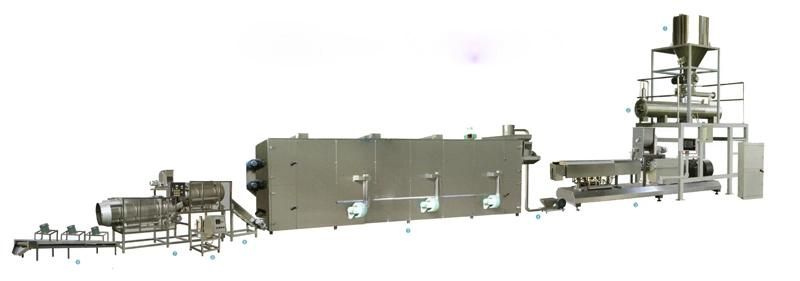

7.Formation of fish food production line:
1. Mixer: there are many kinds of model numbers to choose base on the production capacity.
2. Conveyor: to convey mixed raw materials to the extruder machine
3.Extruder machine: to choose DSE model extruders base on the production capacity requirement from    100kg per hour to 3ton per hour. The raw material include corn powder, cereal powder, soybean               powder, shrimp powder, fish meal and     so on. Shape of the pellet depends on the moulds.
4. Hoister: to convey the fish food to the dryer, the height of the hoister depends on the dryer.
5. Multilayer dryer: electrical, gas, diesel, steam type, controlled by control box, temperature range 0-            240ºC.Inside is stainless steel double layer mesh net. Drying time is adjustable according to speed.        We have dryers of 3 layer 5 meter, 5 layer 5 meter, 5 layer 7 meter, 5 layer 8 meter, 7 layer 8 meter, 5      layer 10 meter, and 7 layer 10 meter long.
6. Flavoring line: to spray oil and phagostimulant, the equipment are: single roller, double roller, round         roller, eight-angle      roller. Varies depends on the different production line setting, to spray oil to the       surface of the product and make it evenly.
7. Cooling conveyor: To cool the product temperature in order to pack it directly.
8. Sifter: To remove the wasted material and shapeless pellet, and ensure quality, meanwhile to ensure        the reuse of material
9. Packaging machine: Manual and automatic packing machine. weight per bag according to your               requirement

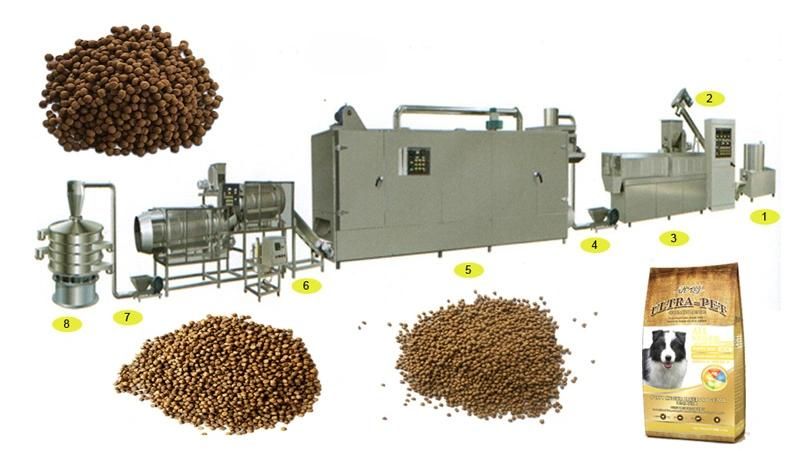

1. Flour Mixing    2. Screw  Conveyor        3.  Extruder        4.Air Conveyor
5. oven/Dryer   6.Double Drum Flavoring machine   7.Air Conveyor   8.Vibrating sieve

8. Pre-sale services:
1).Provide the free consultation of the equipment
2).Provide the standard device and the flow chart
3).According to the clients' special requirement, offering the reasonable plan and free Design helping to select the equipment.
4).Welcome to visit our factory or the domestic clients' factory.

9. Services during the sales
1).Provide factory layout according to your factory size in advance.
2).Provide the basic formula
3).Inspect the machine before leaving the factory.
4).Oversea installation and commissioning the equipment.
5).Technician will work with your workers together and teach your workers how to install machines, how to operate          machines, how to maintain machines during daily working.
6).Our engineers will teach your workers how to clean the extruder, how to change the screw, how to change barrel          etc, and provide technology support with you forever.
10.After sale services:
1).Provide the spare parts will at preferential price for an extended long time.
2).Provide technical exchanging.
3).Operator needed:3-5
4).Guarantee time:One year
5).We provide turnkey project
A.Provide factory layout according to your factory size in advance.
B.Provide the recipe when your esteemed company cooperate with us.
C.Before place the order, we invite you to visit us and make demonstration for you in workshop
D.Before delivery the machines, we invite you to inspect all the machines.
E.Installation and commissioning in your factory for 15days
6).Payment terms:30% t/t as down payment, 70% by irrevocable l/c at sight or t/t before  delivering.
7).Delivery time:30-40 days after receipt the deposit, we have extruder, dryer and flaking machine in workshop.

11.Packaging and shipping:1).packaging: daub coal oil on the surface to protect the machine from moisture, Thencover with plastic film.Finaly pack them with wooden case.
2)Customer's requirement is available.
3).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
