• Model NO.：KS Series
• Capacity/Output：120-240kg,H
• Warranty：1.5 Years
• After Sales Service：24 Hours
• Raw Material：Corn Grits
• Delivery：15-30 Days
• Motor：Siemens
• Inverter：Delta
• Control：Manual or PLC
• Food Extruder：Kurkure Cheetos Extruder
• Services：Turnkey Service
• Transport Package：Wooden Case
• Specification：29000*2000*2200mm
• Trademark：KS
• Origin：Shandong, China
• HS Code：8438800000
• Production Capacity：30 Set,Month

Basic Info.

Model NO. KS Series Capacity/Output 120-240kg/H Warranty 1.5 Years After Sales Service 24 Hours Raw Material Corn Grits Delivery 15-30 Days Motor Siemens Inverter Delta Control Manual or PLC Food Extruder Kurkure Cheetos Extruder Services Turnkey Service Transport Package Wooden Case Specification 29000*2000*2200mm Trademark KS Origin Shandong, China HS Code 8438800000 Production Capacity 30 Set/Month

Product Description

 Puff Food Snack Cheetos Kurkure Making Machine Factory
Features
Food Extruder; Twin Screw Extruder
1. Food Grade Stainless Steel
2. LG, FUJI Electric Parts
4. Food Processing Line machine
5. Puffed Snacks food machine
6. Kurkure/Cheetos/Nik Naks production equipment
7. 1.5 Years Warranty
8. Raw materials: corn grits





1. Detail Description
Kurkure are extruded snacks, very crunchy and great in taste. Kurkure are made by extrusion process. The Kurkure corn meal is moisturized in the flour mixer with water and fed to the Rotary die Extruder. In the extruder, due to excess heat and pressure from the screws the meal gets heated and the moisture content gets reduced. The meal passes through the die and gets cut by the cutting knifes into required lengths. The Kurkure are fried in cooking oil and then cooled before flavoring. Seasoning is sprayed on the Kurkure to improve their taste.

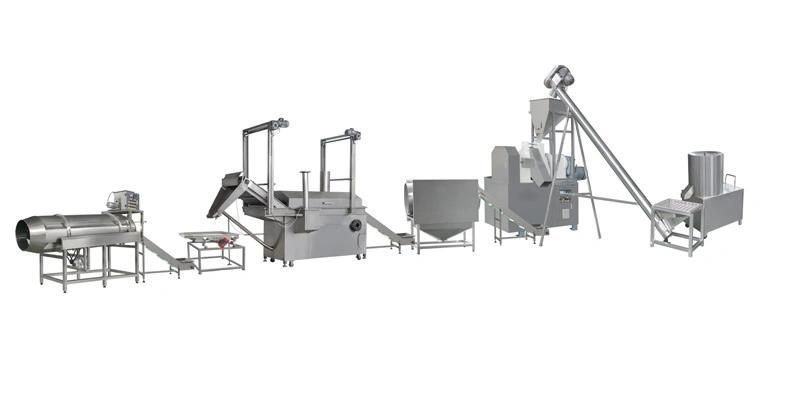

2. Processing Line

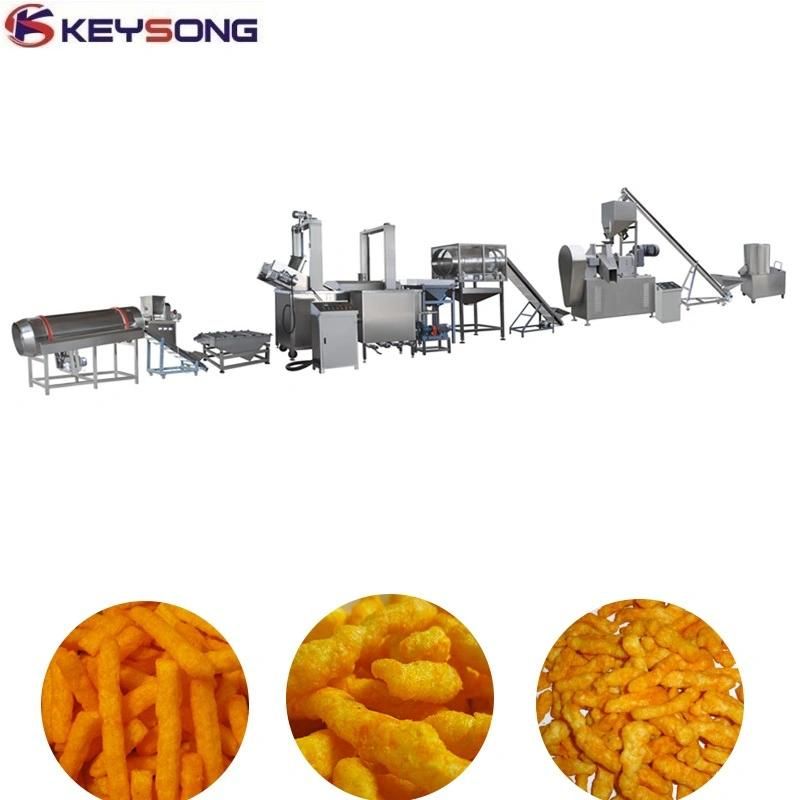

Flour Mixer → Screw Conveyer → Rotary Head Extruder → Hoister → Separate Drum → Vibrate Feeder → Continuous Fryer → Vibrate de-oil Machine → Flavoring/Seasoning Machine



This processing line from feeding, extruding, shaping ,cutting , oil spraying to finished products are done once time automatically. Visible auto-temperature controlling system, make the temperature-controlling to be more direct-viewing, parameter to be more precise.

3. Specifications
The screws are made by ally steel and special craft, the screw life is longer, uses building block system structure, may combine willfully.
The forced lubrication system can guarantee equipment transmission longer life.
1. Raw materials: Corn Grits
2. Products: Kurkure/Cheetos/Niknak with different taste
3. Capacity: 120-140 KG/H, 180-240 KG/H
4. Flow Chart: Mixing-Extrusion-Separating-Frying/Baking- Flavoring
5. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
6. Machines Materials: All the machines are made by food grade stainless steel.

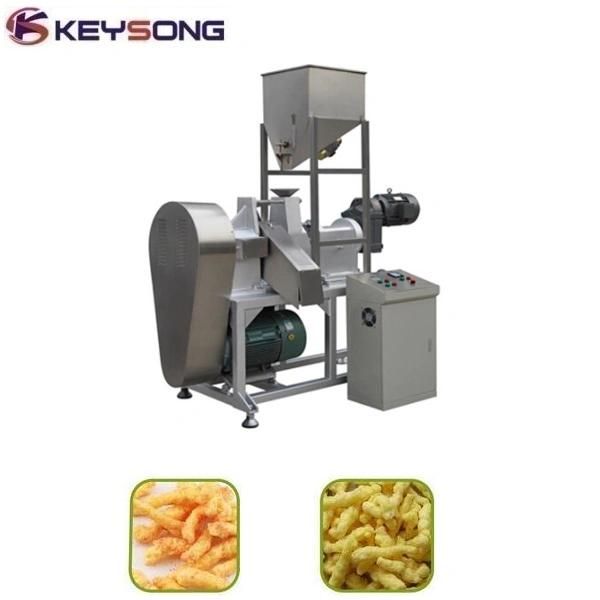

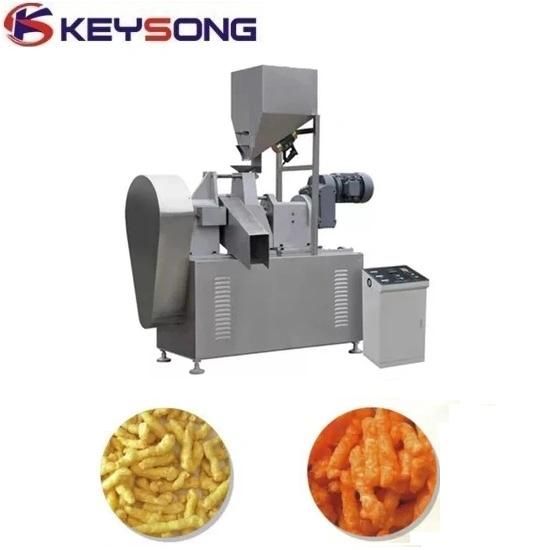

This is the core part of the whole baked kurkure making machine. Its main function is to extrude, rub and turn the mixer of raw material and water into the basic shapes.



This part can fry the kurkure and make the products crispy. The machine can control the temperature, easy to operate and clean.

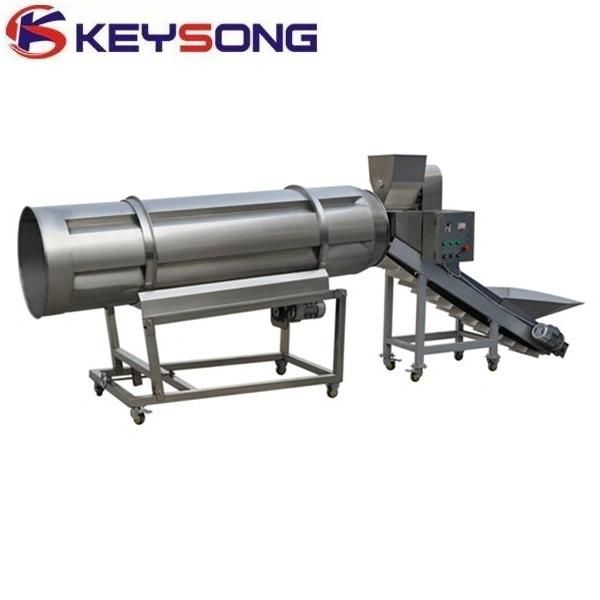

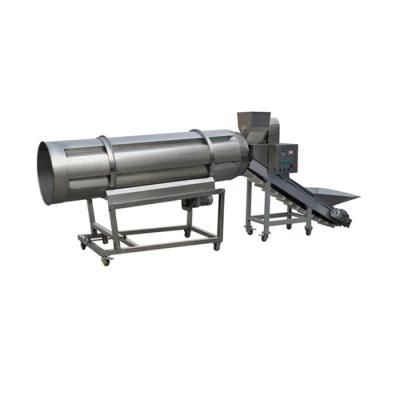

The roller is full set stainless steel. With the rolling of the drum, the flavor and oil can be mixed with Kurkure evenly.

4. Technical parameters

Model	KS-100	KS-120
Installed Power	70KW	100KW
Power Consumption	50KW	70KW
Max. Output	80-100kg/h	100-150kg/h
Dimension	29000*2000*2200mm	27000*2000*2200mm


5. Products Pictures



6. Packing & Shipping

Each machine is carefully packed. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom. With this kind machine, all our laser machine can protect well during long trip by sea or by train.

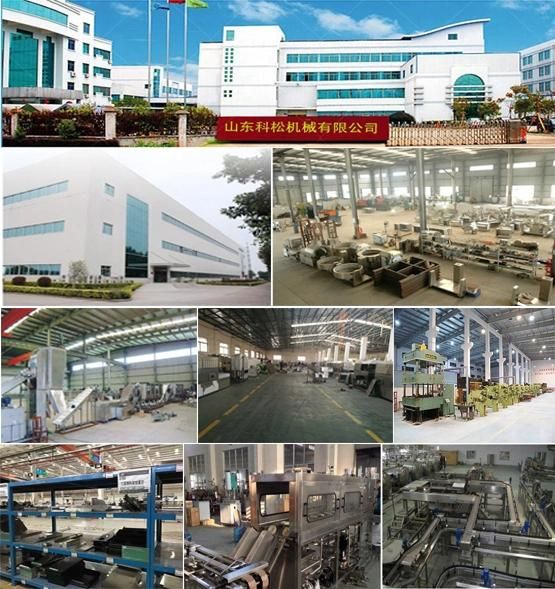

7. Our factory



8. Our customers




9. FAQ

1. Q: Are you a trading company or a manufacturer?
 A: We are the manufacturer, which has almost 10 years of experience in this industry.
2. Q: How can I get to your company?
A: That's great you can visit our factory, welcome! You can take a flight to Jinan International Airport, which is 30 minutes' drive from our factory. And we will pick you up.
3. Q: How long is your guarantee?
A: One year and a half. After this period we will definitely support you when needed.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
