• Model NO.：AMF400
• Width of The Belt：600mm
• Filling Pressure：3~15MPa Adjustable
• Strokes：15~60 Strokes Per Minute
• The Thickness of Product：6-40mm
• Air/Water Pressure：6bar,2bar
• The Maximum Diameter：150mm
• Transport Package：Wooden Case
• Specification：3170X1176X2430mm
• Trademark：KS
• Origin：Shandong China
• HS Code：84385000
• Production Capacity：50sets,Month

Basic Info.

Model NO. AMF400 Width of The Belt 600mm Filling Pressure 3~15MPa Adjustable Strokes 15~60 Strokes Per Minute The Thickness of Product 6-40mm Air/Water Pressure 6bar/2bar The Maximum Diameter 150mm Transport Package Wooden Case Specification 3170X1176X2430mm Trademark KS Origin Shandong China HS Code 84385000 Production Capacity 50sets/Month

Product Description

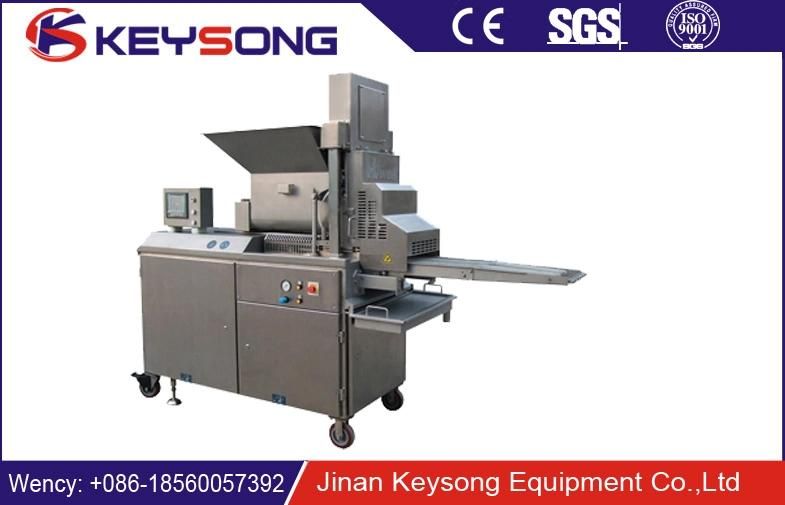

Automatic Multi Meat Forming Machine
1. It can be suitable for metal forming plates
2. The protective grade for the electric apparatus parts reach to IP67
3. The speed increases to 70 stokes /min
4. Weight error margin ≤1.5%
5. New user interface
6. To avoid the operation mistake ,with high safe guarantee.


can automatically perform various procedures such as meat filling, forming and outputting, and combine a fully automatic prepared food line when connecting with the batter, preduster, fryer, cooker, instant freezer and packing machine. It adopts the method of four-screw feeding system, greatly reduces the cutting of the material, and has better features of high production capacity and stable quality.
Easy and convenient replacement of food and the accurate portion control realize the cost control of the production.
Widely handles in the forming procedure of meat, poultry, fish, shrimp and the potato, tuber crops. And it can be applied in the fields of all kind of minced/sliced products for premier meat texture taste.

Electric apparatus parts: Using original Germany SIEMENS PLC processor with touch screen operation,     Chinese/English operating system and automatic failure alarm system.
Safe device: Magnetic protection switch (safe cover).
Hydraulic parts: Adopting the VICKERS, STAUFF, PARKER, INTERGRADTE HYDRAULIC original parts to guarantee the stable running of the whole machine.
Pneumatically system: Adopting the completely Germany FESTO original system.
Stainless steel made and portion non-metal material, safe and reliable, in conformity with the standard of HACCP, and got the CE authorization.


[ Automatic Multi Forming Machine Technical parameter]


Width of the belt	600mm
Air/water pressure	6Bar/2Bar
Power	15.12Kw
Production capacity	About 500-1000kg/hour
Strokes	15~60 strokes per minute
The thickness of product	6-40mm
Weight Error	<=1%
The maximum diameter	150mm
Filling pressure	3~15Mpa adjustable
Overall dimension	3170x1176x2430mm

Packing and shipoing:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottomWith this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.

Our services:
After-SalesService
1.One year qualityguaranty.The machine with main parts(excluding the
consumables)shall be changed free of charge when problems happened during the warranty period.
2.Lifetime maintenance free of change.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5. 18 hours on line service each day,free technical support by email or calling.If you meet the problems,we can help to solve it with pictures,video,etc
6.Detailed manual and video to guide the users how to use the machine and maintenance,also supply the specification settings for the speed and power to engrave or cut various materials.
Professional Service
From producing in our factory to shipping the goods directly to your port or company,we supply all-in-one service for our customer.With the rich experience of dealing with shipping issue and custom clearance, we can make the most economical delivery plan for you and ensure the quick leading time. No matter quantity is our MOQ or very big, we take each customer as the only one
FAQ:
1. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL/TNT, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2. How long is the delivery time?
For standard machines, it would be20-30 days; For non-standard machines and customized machines according to client's specific requirements, it would be 30-45 days.
3. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4. How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel BeltSave space as much as possible for container loading
