• Model NO.：KS70-I
• Capacity：100-500kg,H
• Motor：Siemens
• Food Extruder：Twin Screw Extruder
• Screw Material：38CrMoAl Alloy Steel
• Raw Material：Corn, Rice, Wheat, Oat, Barley Powder
• Machine Material：Stainless Steel
• Features：Labor Saving, Convenient Operation & Installation
• Delivery Time：15-30 Days
• Warranty：1.5 Years
• Control System：Manual or PLC
• Function：Core Filled Puffed Snacks Processing Line Machine
• Transport Package：Wooden Case
• Specification：41000*2000*2500mm
• Trademark：KS
• Origin：Jinan, Shandong, China
• HS Code：8438800000
• Production Capacity：50 Set,Month

Basic Info.

Model NO. KS70-I Capacity 100-500kg/H Motor Siemens Food Extruder Twin Screw Extruder Screw Material 38CrMoAl Alloy Steel Raw Material Corn, Rice, Wheat, Oat, Barley Powder Machine Material Stainless Steel Features Labor Saving, Convenient Operation & Installation Delivery Time 15-30 Days Warranty 1.5 Years Control System Manual or PLC Function Core Filled Puffed Snacks Processing Line Machine Transport Package Wooden Case Specification 41000*2000*2500mm Trademark KS Origin Jinan, Shandong, China HS Code 8438800000 Production Capacity 50 Set/Month

Product Description

Puff Snack Core-Filling Food Production Line Machine


1. Introduction of puffed snacks/core-filling snack production Line

Core filled/puffed snacks processing line is a new model puffing filling snacks machine, which adopts abroad advance technology and does new research to achieve it. The full line performance is stable and mature. It can be used to make core filled snacks and other puffed food. It is fully automatic from mixing, extruding, shaping, core filling, cutting and painting. This line has the following advantages: various choice, flexible positioning, widely adoption of materials, diversiform final products, easy operation and so on. Core filling snack food production line used advanced extruding technology, through changing moudels and products techniques to produce many kinds of popular snack food in the market. It has a agility scheme, strong adaptability. "Low Cost, High Profit" is the suitable generalization of snack food production line.

2. Raw Materials

Corn, rice, wheat, oat, barley etc as ingredients.


3. Products

Variety shapes are available for the core-filled food, including pillows, tubes, bars, long and short ovals, heart shape by adjusting the roller in the shaper. Also can produce snacks cereals ect by adjusting the mould from extruder.




4. Capacity

100-500kg/h


5. Flow Chart



6. Voltage in China

Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it as per customers' local voltage according to different countries.


7. Machines Materials

 All the machines are made by stainless steel



8. Technical Parameters

Model	KS65-I	KS70-I	KS85-I
Installed Power	130KW	160KW	190KW
Power Consumption	90KW	120KW	140KW
Max. Output	100kg-150/h	200-250kg/h	300-500kg/h
Dimension	39000*2000*2500mm	41000*2000*2500mm	43000*35000*43000mm

9. Sample Pictures

Stick shape/ pillow/finger shape/ tuber shape



10. Detailed information of machine

1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Speed-adjusted converter is used for feeding system, extrusion system and cutting system.
3. Gearbox with automatic lubrication function, extending gear life.
4. Increased radiator on driving part for forced cooling effect, to ensure extruder operates safely.
5. Barrel with water-cooled circulation, raw materials are corn/rice powder, or wheat flour/starch with high viscosity.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

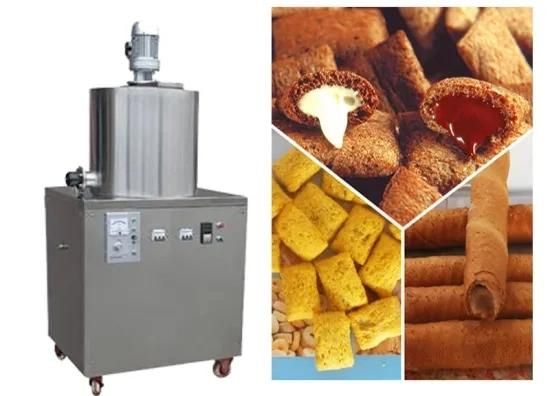

Core-filler machine is used for co-extruding with extruder. There is an electrical heating pipe to melt stuffing.There is an interlayer in the mixing tank, the water is put into the interlayer.






11. Packaging and shipping

Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottomWith this kind machine, all our laser machine can protect well during long trip by sea or by  train.

We can transport machine by boat or by training, according to your requirement.

12. Service

1. Provide you the professional advice about the market, equipment, process, material, packing, etc.

2. Assist you to choose equipment, design process flow, and perfect workshop layout. If needed, we can supply service in your factory.

3. Make compensate plan to the material change according to your product, and perform the production at site.
4. Specially design and manufacture machine, practice test, and provide relevant training as customer required.
5. Provide reasonable packing and transportation plan, send technician to install and debug machine and train your workers.

6. One year guaranty time, preferentially supply spare parts.

7. Design and process similar type of spare parts of import equipment.

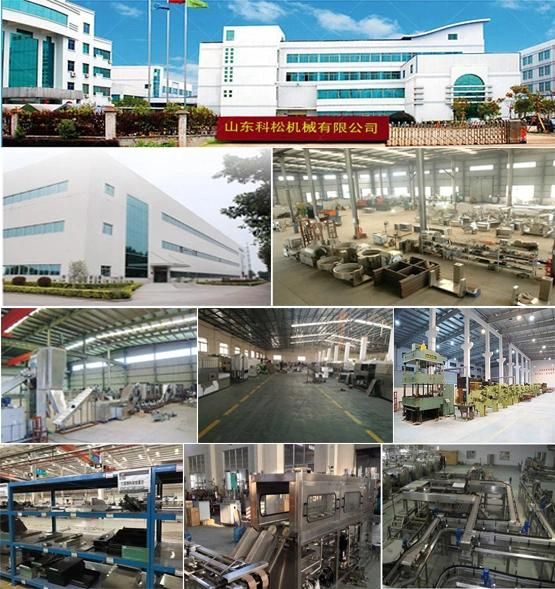

13. Our Factory



14. Our customers



15. FAQ

Q: How you provide service?
A: We have professional team work for after sale service. Support 24x7 customer service by email,video talking,mobile. If the electronic component is broken within the warranty time we will send the new part within 48 hours by express like TNT, DHL, FEDEX, etc to the buyer. And the shipping cost should be on YQLASER for the new part and the old part should be sent back on the cost of buyer.
Q: Are you factory or trading company?
A: We (Jinan Yidiao CNC Equipment Co.,Ltd)are factory with more than 10 years experience of laser machine production.
Q: Do I need any necessary things to make the machine work after I have it?
A: No,do not need any other parts to make the machine work. Youcan just connect the laser source, air exhaust fans, water pump/chiller, air compressor and turn on the machine.
Q: How to get suitable machine (size and power) for our products?
A: kindly let us know, what are your target materials to be processed?
How is dimension of material (length x width x thickness)
Q: Does your machine run from a laptop or PC?
A:Both are ok. Operation system Windows98/2000/XP/win7, win8, Apple mac.
