• Type：Twin-Screw Extruder
• Material：304stainless Steel
• Motor Brand：ABB,Siemens Optional
• Power(W)：22kw -110kw
• Voltage：220V,50Hz 380V,50Hz
• Main Motor Power：22kw
• Installed Power：35kw
• Weight：1500kg
• Raw Material：Meat, Cereals, Vegetables, Bone , Fish Meal,etc.
• Function：Dog, Dog,Cat,Fish,Fox or Other Pet Food Production
• Shapes：Stick,Ball,Chunks and So on
• Warranty：1.5 Years
• Date of Delivery：30-45days
• Worker Needed：2-4 Workers
• After-Sales Service Provided：Field Installation, Commissioning and Training
• Transport Package：Wooden Case
• Specification：20000*3000*2600mm
• Trademark：KS
• Origin：Shandong, China
• HS Code：8438800000
• Production Capacity：100-2000kg,H

Model Number:KS/70/85/90/95/98Application:FishVoltage:208/220/240/380/400/415/
440/480VPower(W):As per final configuration or user requirementWeight:As per final configuration or user requirementDimension(L*W*H):As per final configuration or user requirementCertification:ISO, CE, SGS, BV, TUVWarranty:1 yearAfter-sales Service Provided:Engineers available to service machinery over
seasFish feed raw materials:Corn meal, wheat flour, rice flour de-oil soya flour, etc.Capacity:100-2500kg/hrHeating power source:Electricity, oil-fired burner,
gas-fired burner, steam Screws quantity: 1 couple (twin-screw) Screws material: 38CrMoAlFish feed diameter:From 1.5mm to 25mmFish feed up and downs properties:Floating, half-floating, sinkingInverter brands:Delta, LS, ABB, Siemens, customizable



Introduction

In order to meet modern fish farms development, most of modern fish feed is made by twin-screw (or single
screw) extrusion production line, which is called expanded fish feed. Floating fish feed is the biggest type of
expanded fish feed. Adopting cereals, vegetable proteins, vitamins, minerals, fish meal and fish oil as raw
materials, and adopting dry-type or wet-type extrusion as manufacturing technique, floating fish feed is made for
both carnivorous and graminivorous fishes.

Floating fish feed technology

Based on modern fish feeding requirement and modern technology, the most advanced fish feed
manufacturing technique is extrusion technology. Extrusion is a process used to create objects
of a fixed cross-sectional profile. Raw materials are pushed or pulled through a die of the desired
cross-section. Through the high temperature and high pressure (temperature and pressure is
created by the friction between raw materials, screws and barrels), the raw materials touches
normal pressure and temperature (NPT) when they are out of die, their structures are changed
physically.

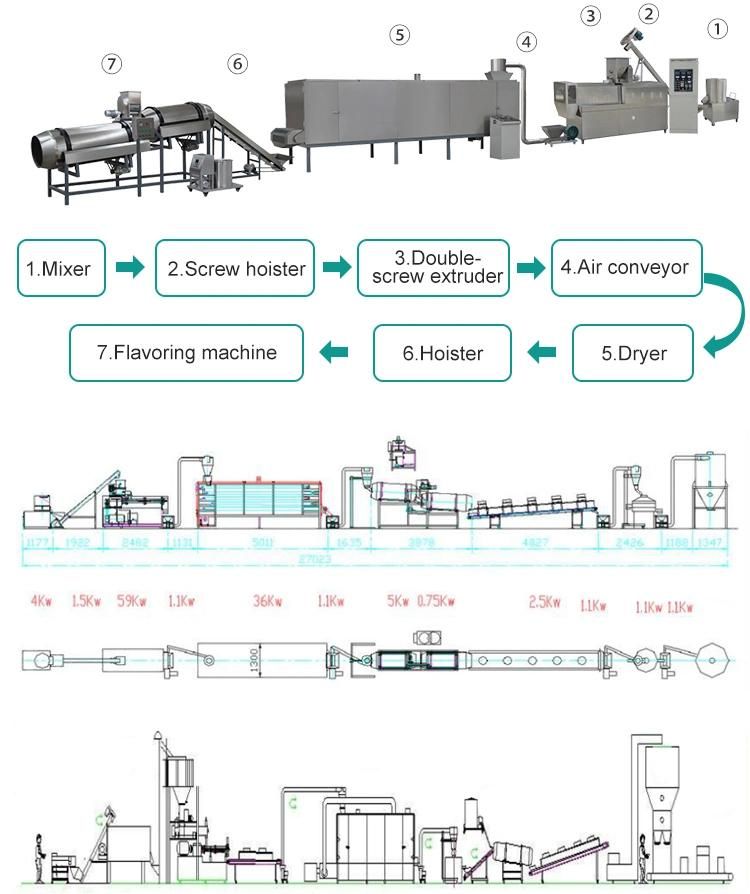

Floating fish feed processing line

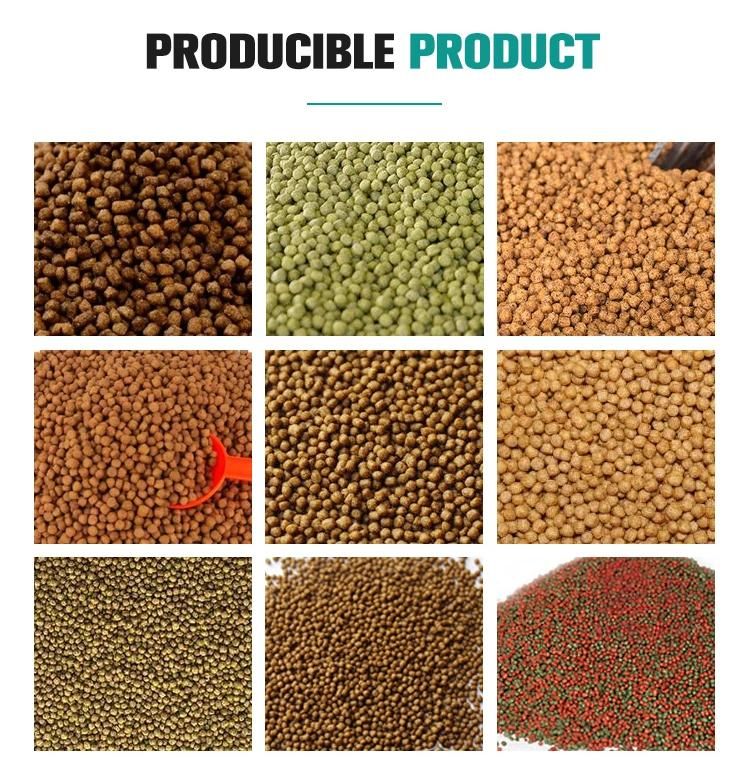

1. Floating fish feed samples introduction

2. Raw materials: corn meal, wheat flour, rice flour, corn starch, de-oil soya flour, fish meat (or waste), fish meal,
animal oil, ash content, wheat bran, allicin, gunk, vitamins, minerals, food color etc.

3. Humidity: the moisture is no more than 15%.

4. Ups and downs properties: floating, half-floating, sinking.

5. Shapes: spherical (pellets), granular, columnar, acetabuliform, pisciform, or customrized.

6. Sizes: (1) diameter: from 1.5mm to 25mm (2) length: user-defined.



Output can be 150kg/h, 240kg/h, 500kg/h, 1ton---3ton/h

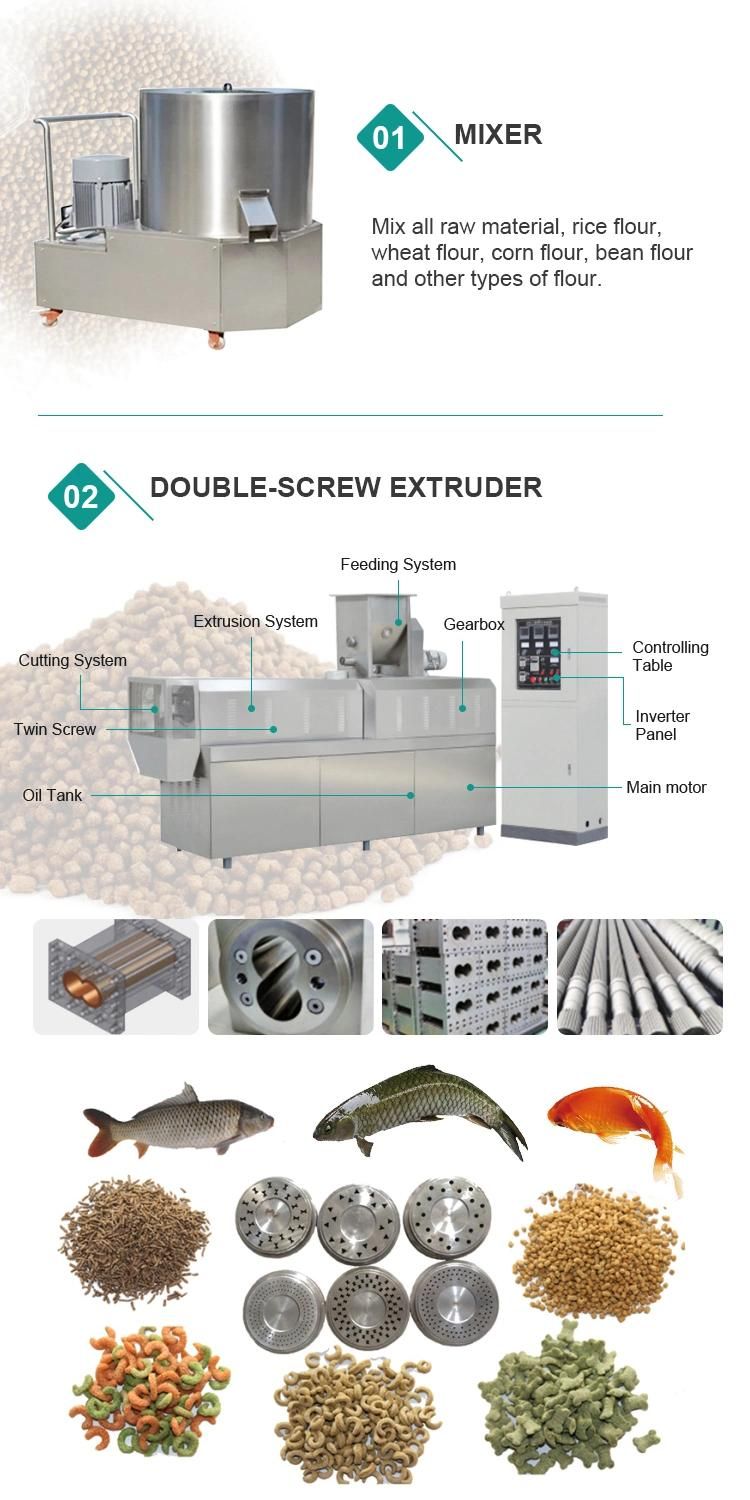

Floating fish feed pellet machine extruder


  1.  Our floating fish feed making machine's extruders are twin-screw extruders, there are one couple of screws
inside the barrel. The screws are combined screws, which is economical and practical for users (if screws are
abrasive, the user don't need to change whole screws, only change the end part of the screws). The raw material
of screws is 38CrMoAl (standard: GB/T 3077-1999), which is processed for nitriding treatment. This material's
hardness and strength performance is excellent, which can bear high temperature and high pressure.

 2. Our twin-screw extruder has forced lubrication and cooling system. This system can protect gears, axles and
bearings, which can increase of service life. We can add cooling system (outside barrels) according to users'
request.

3. Our twin-screw extruder has self-clean function. When maintenance, the users don't need to extract the
screws. The screws can be cleaned by adding waste material.

4. Except screws, barrels, dies or blades, the other parts touching food is stainless steel or food grade plastic. It
is sanitary and safety. (Screws, barrels, dies and blades have to bear high temperature and high pressure, they
can't be stainless steel, or they will be broken.)

 5. Our extruders, dryers and cutting machines (if any) are equipped with inverters. Our standard inverters' brand
is Delta (Taiwan), we can supply the other inverters as per users' requirement, such as LS (Korea), ABB
(Switzerland), Siemens (Germany).

6. Our floating fish feed making machine automation degree is high. For small capacity lines, they need 2 workers
to operate; for big capacity line, they need 3-4 workers to operate. It can save owner's labor cost. Our expanded
fish feed processing lines' field area is small. The machineries can be placed in line, in L shape, even in U
shape. It can save users' workshop investment.





Packing & shipping for  bread crumb making machine

Packing:Inside plastic bag, outside wooden case(Based on the customers' need adopt the
wooden case or wooden pellets, etc.).
Transportation:Shipping, train, express or upon clients' demands


Company Information:
ManufactureKeep the quality firstMake more products benefit to customers  need .Online/sale serviceSuper and solid qualityFast and punctyal deliveryStandard export package or as customers needAfter  sale serviceAssistance to build factory or your projectRepairing and maintenance if anything occur in the warrantyInstallation and and clerks trainingSpare and wearing parts for free or big discountAny feedback of machines can be told us ,and we will try our best to
support for youOther cooperate serviceTechnology knowledge shareFactory building advisingBusiness expansion advising





RFQ:
1.What's your payment terms?
Our payment terms is 30% T/T as down payment, 70% by irrevocable L/C at sight or T/T
before delivering
2. What's your Guarantee?
We provide 1 year complete Guarantee and life-time maintenance service
3. How about the installation?
We will dispatch our engineers to your factory to guide you installation and
commissioning work and training your operator.
4. I want to do many shapes. Is it ok?
Answer: The shapes depends on the dies, we can design the dies according to your
special request. And we will supply a basic formula. You can adjust and find the best
formula to meet your target market's taste.
