• Model NO.：KS90
• Machine Material：Stainless Steel
• Capacity：100-1000kg,H
• Name：Pet Cat Dog Food Animal Fish Feed Making Machine
• Motor：Siemens
• Inverter：Delta
• Control System：Manual or PLC
• Price：Factory Price
• Delivery Time：15-30 Days
• Warranty：1.5 Years
• Services：Field Installation, Commissioning and Training.
• Transport Package：Wooden Case
• Specification：30000*3500*4300mm
• Trademark：KS
• Origin：Shandong, China
• HS Code：8438800000
• Production Capacity：50 Set,Month

Basic Info.

Model NO. KS90 Machine Material Stainless Steel Capacity 100-1000kg/H Name Pet Cat Dog Food Animal Fish Feed Making Machine Motor Siemens Inverter Delta Control System Manual or PLC Price Factory Price Delivery Time 15-30 Days Warranty 1.5 Years Services Field Installation, Commissioning and Training. Transport Package Wooden Case Specification 30000*3500*4300mm Trademark KS Origin Shandong, China HS Code 8438800000 Production Capacity 50 Set/Month

Product Description

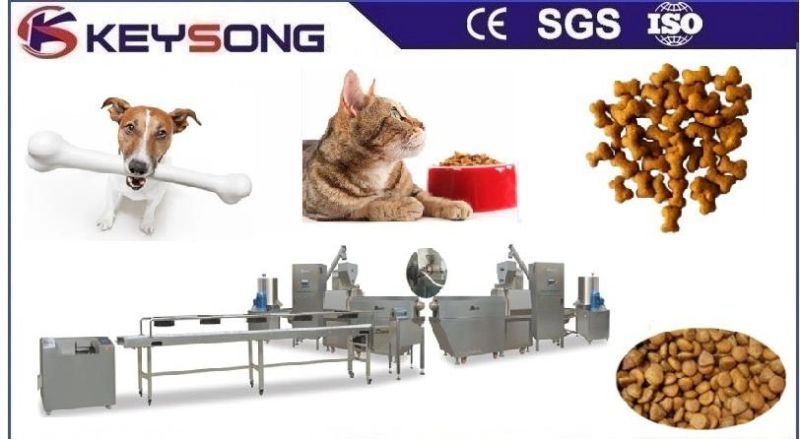

Automatic Dog Pet Food Pellet Feed Production Line Machine

1. Description:This line can be adjusted to produce various shapes of pet food for cat, dog, fish, shrimp, bird and so on. It has many production capacities to choose according to your specific requirements. High automatic, easy operation, stable performance, easy maintenance and wide range of materials are the main features of this line. This line adopts bone powder, fish meal, corn powder and so on as raw materials. The final feed is nutritional, multi-shape, attractive, highly digestible which can be loved by your pet and fish.

2. Raw materials: corn flour, fish meal, bone meal, meat meal, soyabean powder, etc

3. Capacity: 100kg-1000kg/h

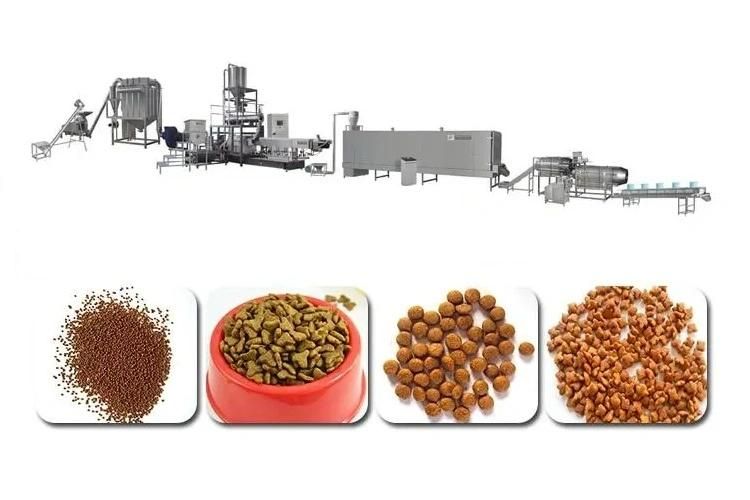

4. Flow chart:
 Mixer →  Screw conveyor → Extruder → Air conveyor → Dryer →  Flavoring line → Cooling machine




5. Technical parameters:

Model	Installed power	Real power	Capacity	Dimension
KS-65	70kw	40kw	100-150kg/h	22000x1200x2200mm
KS-70	90kw	50kw	200-240kg/h	25000x1500x2200mm
KS-85	120kw	100kw	400-500kg/h	30000x3500x4300mm
KS-90	135kw	100kw	800-1000kg/h	30000x3500x4300mm

6. Pet food shapes:
Star shape, Bone shape, heart shape and different shapes and sizes

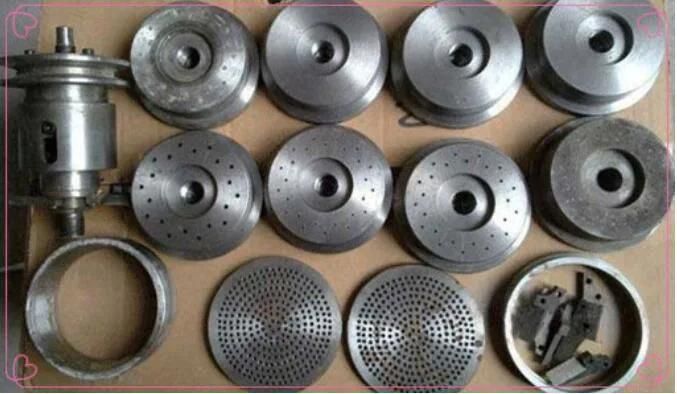

7. Die of pet food:



different shapes are made by adjusting the dies from extruder 1.0mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm...10.0mm depend on fish food dies size.

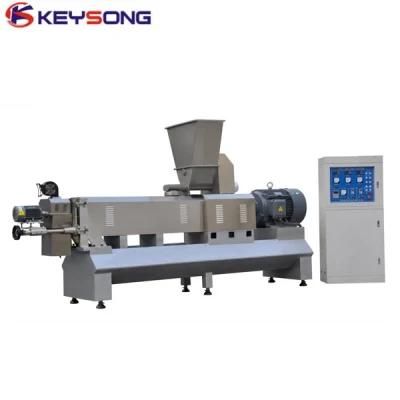

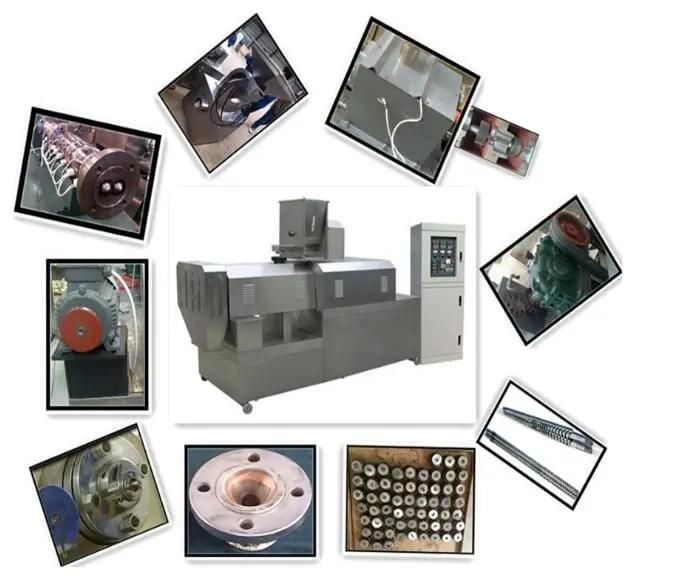

8. Twin/ Double screw extruder:

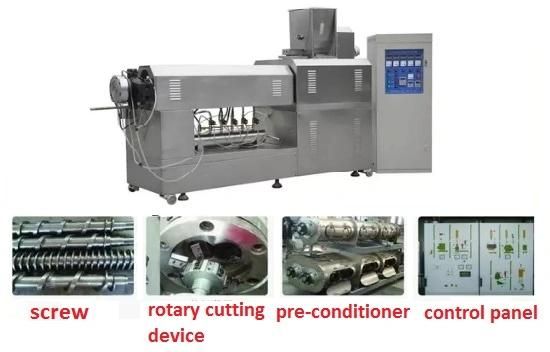

The extruder could adopt grain powder as raw material and produce pet food by high temperature and pressure. The Twin-screw extruder consists of feeding system, extruding system, cutting system, heating system, transmission system and controlling system.
1. The screws are made of the alloy steel and special craft, durable usage, high pressure, the screw life is longer.
2.  building block structure, and combining willingly according to the different demand.
3. Adopting forced lubrication system, so that it can guarantee the equipment transmission life longer.
4. Auto-temperature control system could make the temperature controlling more direct viewing and the parameter more precise.

9. Features:
a. different models ks65, KS70, KS 85, KS 90, KS 120 to meet different output capacity requirements.
b. Flexible configurations to meet different budget and workshop layout requirement.
c. Different shapes and appearances of final products can be made by changing different modules in extruder.
d. Independent temperature control system is able to realize zone temperature control, electronic induction, accurate & visual digital display.
e. Feeding system without material returning. It is unnecessary to clean barrel and screw in case of restarting or material replacement.
f. Screw adopts high-performance nitride alloy steel with strong wear-resistance and longer service life.

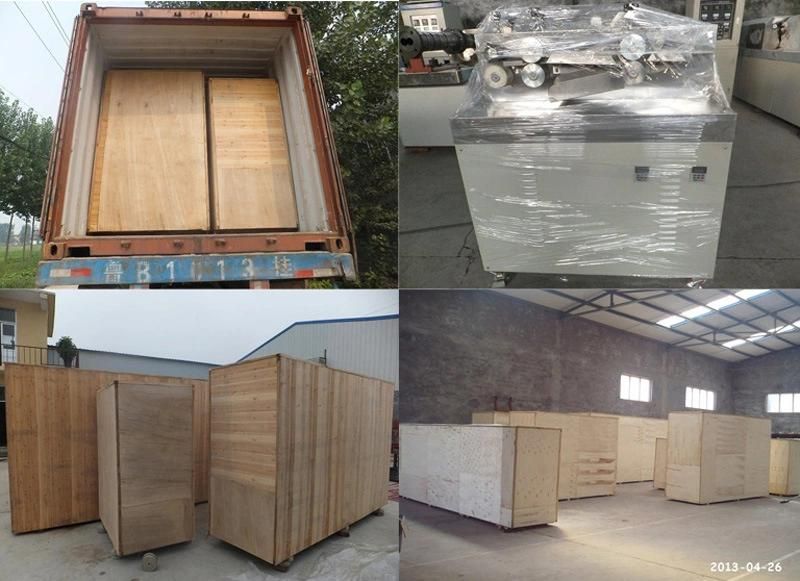

10. Packing and Shipping
Packed by standard wooden case outside and wrapped by plastic film inside then shipped by container.



11. Competitive Advantages
1. Guaranty: at least One Year.
2. One set of consumable accessories will be provided with the machine.
3. Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.
4. All spare parts are always available for delivery.
5. Manual is in English.
6. Minimum order: 1 set
7. Prompt Delivery: 15-20 working days after receiving deposit
8. Installation: sending one technician to the customer's factory for installation and training.
9. Packaging: firstly packing with plastic inner side, then strengthening with wooden case outside.

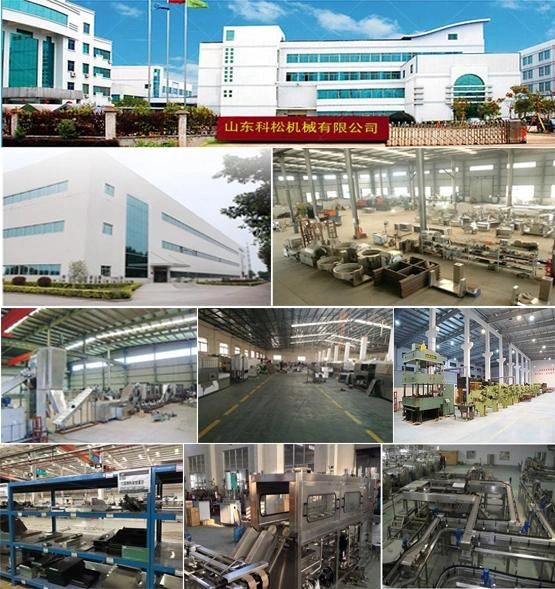

12. Company



13. Customers





14. FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are the manufacturer, with almost 10 years of experience in this industry.
2. Q: How can I get to your company?
A:Welcome to visit Keysong!  You can get a flight to Jinan Airport. Our factories are just about 30 minutes drive away from Jinan Airport. And we will pick you up at the airport.
3. Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives the customer's side.) After this period we will definitely support you when needed.
You will be welcome to contact us with any problem may happened.
4. Q: Will you send engineers to install the plant?
A:Yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.

15. Service
Our engineer would go to buyer's place to install the machine, when the equipment arrived at buyer's place.
1). At least 1 year from the date of completion of the commissioning.
2). Free consultation service before, during, and after sales;
3). Free project planning and design services;
4). Free debugging of equipment until everything is functional;
5). Free management of equipments long distance shipping;
6). Free training of equipment maintenance and operating personally;
7). Free new production techniques and formulas;
8). Provide 1 year complete warranty and life-time maintenance service;
