Automatic Puffing Breakfast Cereal Corn Flakes Making Extrusion Machine Price
Shandong Nolen Machinery Co., Ltd.- Certification：CE, ISO9001
- Power Source：Electric
- Automatic Grade：Automatic
- Application：Popcorn
- Customized：Customized
- Transport Package：Wooden Case
Base Info
- Model NO.：KS-65
- Specification：2600*900*1900mm
- Trademark：KS
- Origin：Shandong, China
- HS Code：8438800000
- Production Capacity：30 Sets,Month
Description
Product Description
Corn flakes/breakfast cereals are a kind of breakfast with high nutritional value. They usually use corn powder and other cereals as main raw material, through mixing, extruding, flaking, drying, baking, coating and cooling, to get crispy flakes. It always service as breakfast cereal mixed with milk of coffee. But it can also be a kind of leisure snacks. This process line can also make other shapes of cereals such as rings, balls, chocos, curls etc.
Application
The processing line can also be used for producing fried bugles, rice crust, pellets, chips, fried snacks and so on.
Specifications
Raw material corn flour, rice flour, corn grits, millet and so on
Product shapes Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder.
Capacity 120-150kg/h, 200-250kg/h, 350-500kg/h

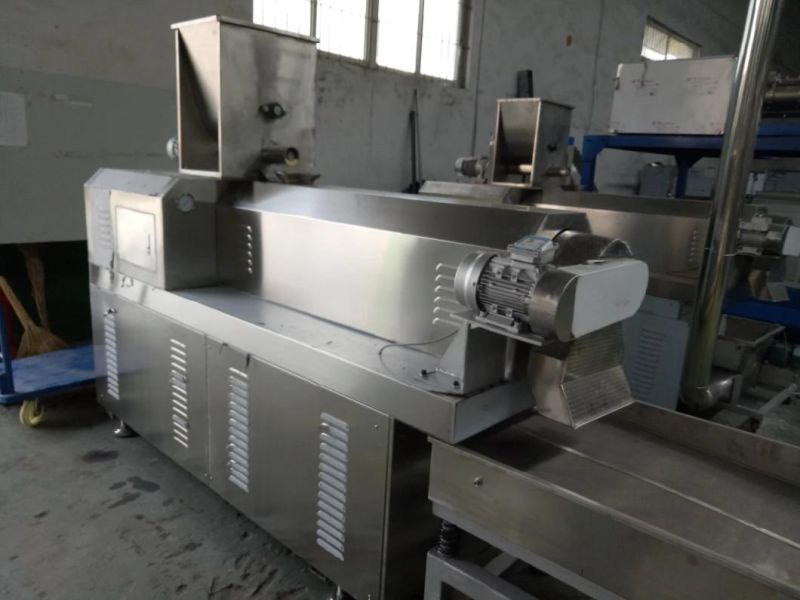

Extruder: The extruder is made of the feeding system, extruding system, cutting system, heating system, transmission system and controlling system.

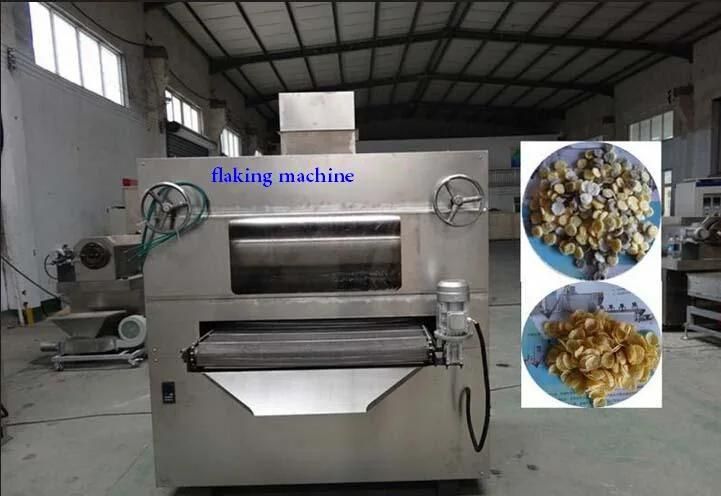

Flaking machine:This machine is to make the balls made by extruder to flakes.

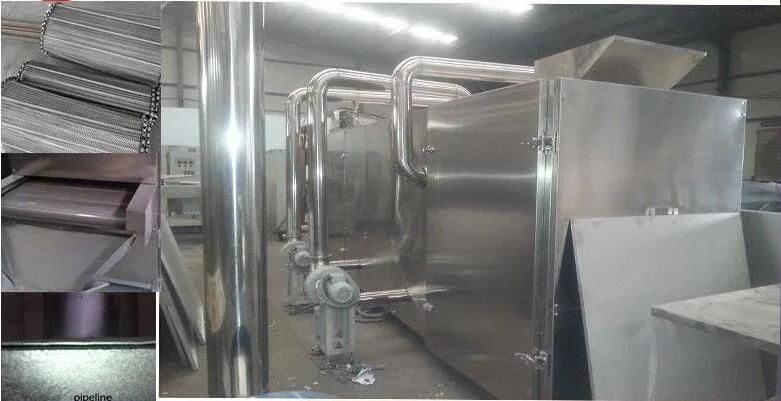

Dryer: The heating way is electricity / gas/ diessel/ steam heating. It is used to bake and dry food.
Specifications
Raw material corn flour, rice flour, corn grits, millet and so on
Product shapes Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder.
Capacity 120-150kg/h, 200-250kg/h, 350-500kg/h
Equipments material
Equipments are made of stainless steel and the screw is made of alloy steel and special craft, which guarantee the using time longer.
Voltage
Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
Feeding Hopper uses Two grades mixing design which allows high feed speed and also avoid any block in raw materials.
Radiating Windows design ensure the thermal heat caused by machine discharge easily to extend the machine using life.
Cooper Pipes used for cooling cylinder, they are quite durable than plastic rubber pipes.
Food Grade stainless steel made Cutter cover meet strict food process safety requirements.
Production Process Flow

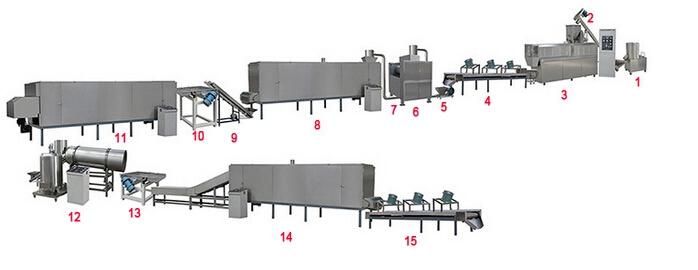

mixer---extruder---vibrate cooler---air conveyer---rollers drying ---flaking---air conveyor--roasting---high temperature inflate---second vibrate cooler---sugar sprayer--- multi-layer oven---cooling
Main Features
1. The breakfast cereal machine has the advantage of rational design, high automatic degree and accuracy control.
2. The main body material is stainless steel, which is easy to be cleaned.
3. The screws material is 38CrMnAl, which is wear-resisting.
4. The temperature and rotating speed can be controlled and adjusted.
Technical Parameters
Packaging:packaged in wooden case in container.
Shipping time:within 30 days after receiving the deposit.
Pre-shippment inspection:
Supplier should trial run the corn flakes extruder at supplier's factory before shipment;
All raw materials for that trial run to be arranged by supplier at their cost.
FAQ
1.What's your payment terms?
Our payment terms is 40% T/T as down payment, 60% by irrevocable L/C at sight or T/T before delivering.
2. What's your Guarantee?
We provide 1 year complete Guarantee and life-time maintenance service
3. How about the installation?
We will dispatch our engineers to your factory to guide you installation and commissioning work and training your operator.
4. I want to do many shapes and many tastes. Is it ok?
Answer: The shapes depends on the dies, we can design the dies according to your special request.
