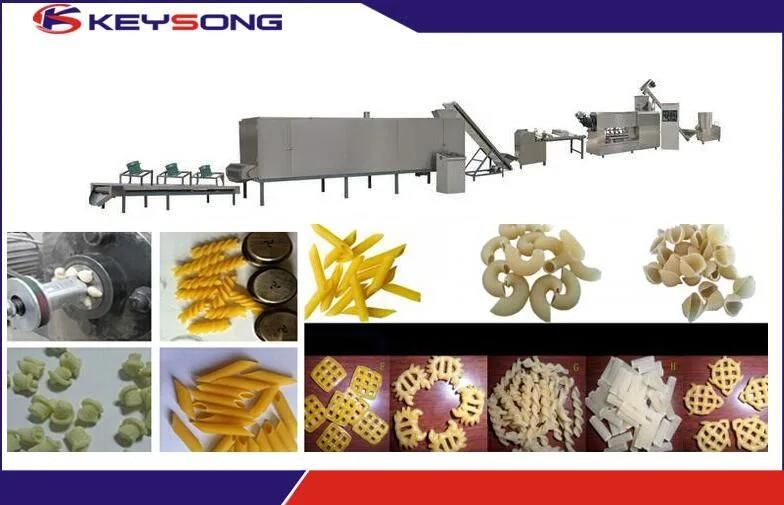

Pasta Macaroni Machine Extruder
Shandong Nolen Machinery Co., Ltd.- Certification：CE, ISO9001
- Power Source：Electric
- Process：Thermal Processing
- Automatic Grade：Automatic
- Application：Ice Cream, Candy, Chocolate, Popcorn, Chips, Biscuit, Donut, Pig
- Customized：Customized
Base Info
- Model NO.：KS-100,120,150
- Usage：to Produce Nutritional Powder Food
- Raw Material：Rice Flour, Corn Flour, Soybean Flour etc.
- Materials：Stainless Steel Good Grade
- Motor：Siemens, ABB or Chinese Brand
- Product Name：Macaronis Pasta Noodles
- Warranty：One Year
- Energy：Electric , Diesel , Gas
- Main Extruder：Single Screw Extruder
- Electric Elements：Siemens, ABB or Chinese Brand
- Transport Package：Wooden Case
- Specification：21000*2500*3000mm
- Trademark：KS
- Origin：Shandong China
- HS Code：8438800000
- Production Capacity：50sets,Month
Description
NO
Machine
Motor Power
Capacity
Dimension
Quantity
Function
1
Mixer
4KW
50kgs /once time
0.8*0.7*1.5m
1set
To mix the raw materals with the water
2
Screw conveyer
1.1KW
100-150kg/h
3.0*0.8*2m
1set
To send the materials to the extruder
3
DLG100
Single screw extruder
30KW
80-100kg/h
4.0*1.2*3.0 m
1set
To extrude the food.the main machine of the line
4
Cutting machine
1.1KW
80-150kg/h
2.4*0.6*1.3
1set
To cut the macaroni to round tube or square tube
5
Vibrate cooler
0.75KW
80-150kg/h
1.0*0.8*1.3
set
To cool and convey the macaroni
6
5layers 8meter oven
80-120kg/h
8.0×1.4×2.5m
1set
To dry the macaroni
7
Cooling machine
1.2kw
150-300kg/h
5 m lenth
1set
To cool the macaroni
Machines materials: All the machines are made by stainless steel, Automatic Dog Treats Making Machine is
with reasonable design and with high automation; the screws are made by alloy steel, with building block
system structure and self-cleaning function
1) Stable performance: adopting imported frequency or electromagnetic controlling system, high automation and smooth operation
2) Permanent working life: with special material and technology, the screw and nut
involved can work continuously for 1 year under conditions of high wear and pressure
Our Services:
1) Free samples engraving and cutting.
2) Two years warranty.
3) Free technical training.
4) Installation and commission support.
5) 24 hours on-line service.
6) Telephone service.
7) Prompt delivery.
8) English version user manual and operation video.
Packaging and shipping:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottomWith this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.
