• Model NO.：KS150
• Warranty：One Year
• Speed Controlling：Inverter
• Material：Stainless Steel
• Motor：Siemens,ABB or Chinese Brand
• Type：Single Screw Extruder
• Energy：Electric,Diesel,Gas
• Delivery Time：15-30days
• After Sale：24hours
• Transport Package：Wooden Case
• Specification：25000*1500*2200mm
• Trademark：KS
• Origin：Shandong, China
• HS Code：8438800000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. KS150 Warranty One Year Speed Controlling Inverter Material Stainless Steel Motor Siemens,ABB or Chinese Brand Type Single Screw Extruder Energy Electric/Diesel/Gas Delivery Time 15-30days After Sale 24hours Transport Package Wooden Case Specification 25000*1500*2200mm Trademark KS Origin Shandong, China HS Code 8438800000 Production Capacity 30 Sets/Month

Product Description

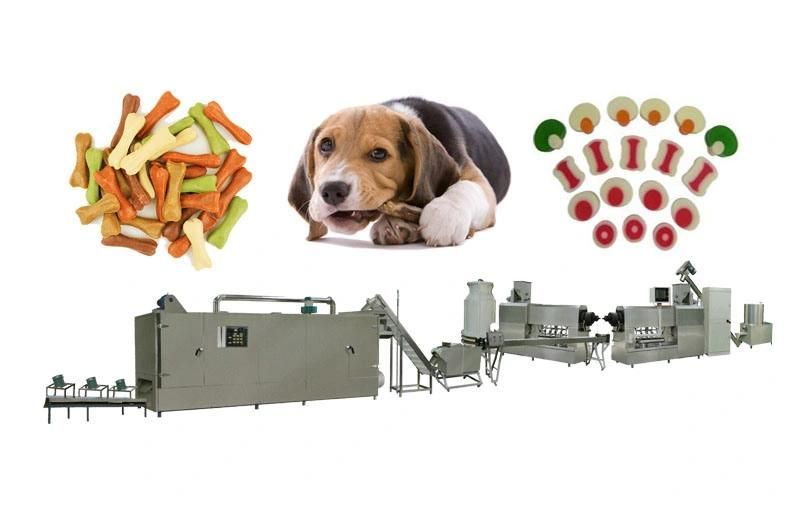

Hot Sale Pet Chew Food Making Machine

Description:
Dog chew stick takes starch as raw materials with scientific configuration and was extruded from co-extruder, it can be made into many kind of shapes such as stick, bone, bi-color, bi-flavor, etc. This kind of food not only provide protein, fat, vitamin, nutrition for dogs, but also satisfy the dog nature hobby.
   Pet dog food making machine produces chips/stick/twist shapes,double/various-colors food with filling. Pet chewing food has the effect on molar/clean mouth/clean tooth. It also can reform enteric function, lighten the bad smelly. The whole processing line designs logically,installs agility,fits adustabllity.
Introduction:

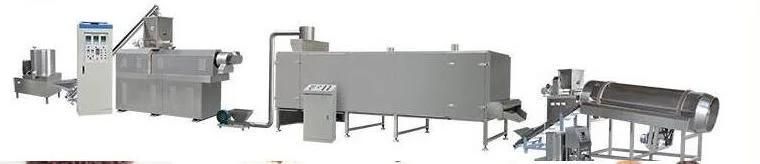

Flow Chart:Flour Mixer→Screw Conveyor→Single Screw Extruder→Cooling Conveyor→Cutting Machine→High Hoister→Dryer→Cooling Conveyor→Packing.
Technical Parameter:

Model	KS100	KS150
Installed Power	75kw	160kw
Power  Consumption	35-53kw	80-112kw
Throughput	100-150kg/h	150-250kg/h
Dimension	22000*4000*2200mm	25000*1500*2200mm

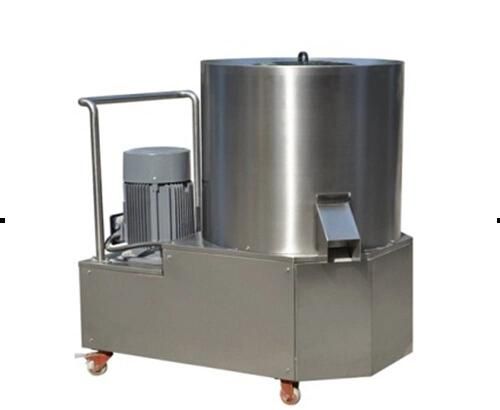

1.Flour mixer:




Mix all raw material, rice flour, wheat flour, corn flour, bean flour and other types of flour.
Capacity: 3kw 100-150kg
        4kw 150-300kg/h
        7.5kw  300-500kg/h

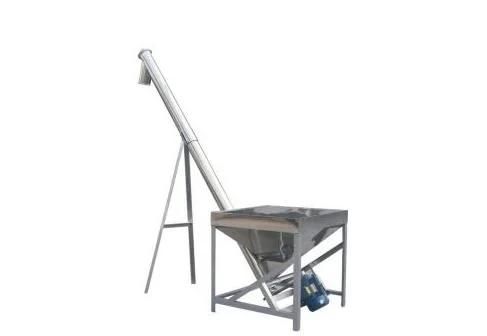

2,  screw conveyor

•


Transport the raw material from mixer into the extruder.

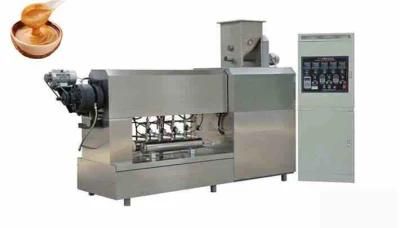

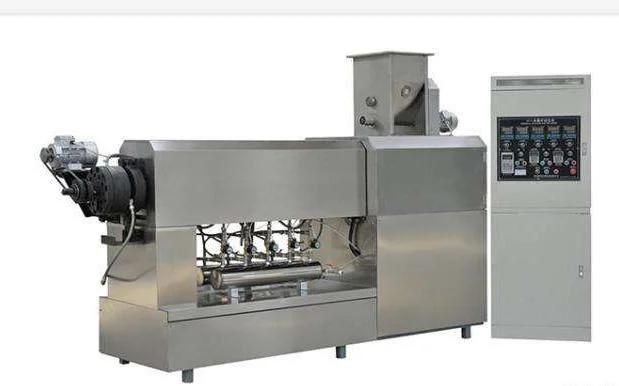

3, Single screw extruder


Consists of feeding system, extruding system, cutting system, heating system, cooling system, and controlling system.
Technical Parameter:

Model	KS-100	KS-76
Installed Power	55KW	28KW
Power Consumption	20-30KW	15-22KW
Max. Output	100-250kg/h	100-150kg/h
Dimension	3200*1000*1900mm	1800*900*2200mm

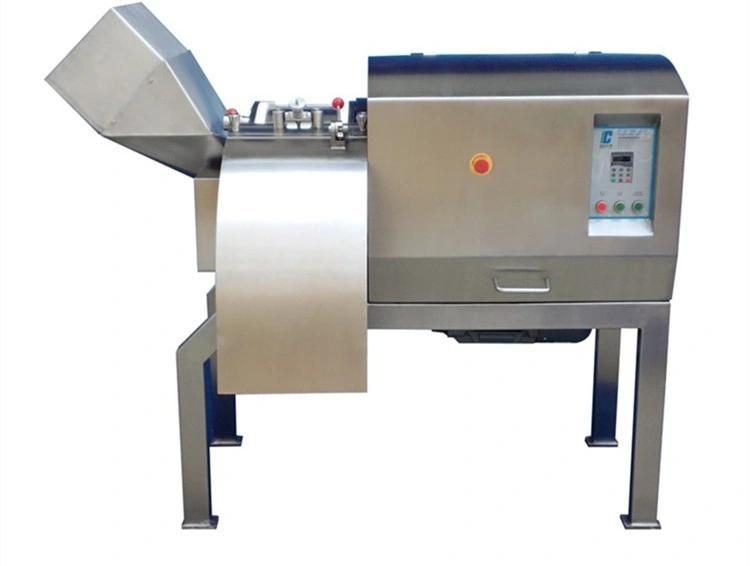

4.Cutting Machine:

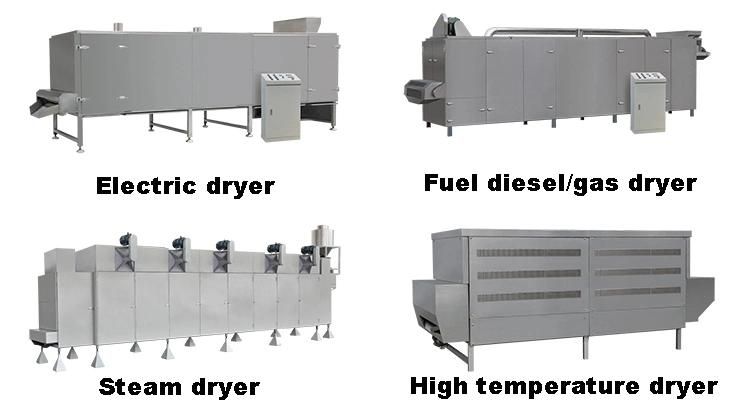

 5.Dryer:
Technical Parameter:

Model	Electric(gas/diesel) Consumption	Heating Temperature	Output	Dimension
Three-layer electric dryer	27kw/h	200°C	150kg/h	5400*1300*2000mm
Five-layer electric dryer	45kw/h	200°C	300kg/h	5800*1300*2400mm
Three-layer gas/diesel dryer	7-10L/h	200°C	150kg/h	6500*1600*2000mm
Five-layer steam dryer	28.4kw/h	200°C	800kg/h	9600*1700*3500mm
Seven-layer dryer	48kw/h	90°C	100kg/h	9000*2400*3000mm

Food Samples:





Competitive Advantages:
1. Guaranty: One Year.
2. One set of consumable accessories will be provided with the machine.
3. Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.
4. All spare parts are always available for delivery.
5. Manual is in English.
6. Minimum order: 1 set
7. Prompt Delivery: 15-20 working days after receiving deposit
8. Installation: sending one technician to the customer's factory for installation and training.
9. Packaging: firstly packing with plastic inner side, then strengthening with wooden case outside.


Company Information:
Keysong was founded in 2013. Specializing in producing food machines for more than 6 years. Since its inception, it is specializing in the manufacture, research, development, sales and after-sales of food extrusion machine, puffed food production line, fruit and vegetable washing and drying processing line.
Our History:
In 2013, Keysong was established, concentrating on manufacturing and selling extrusion snack production line at home and abroad.
In 2014, Keysong broke traditional breakfast cereal production technology, and invented new production process.
 In 2015, Keysong moved to a new workshop, which covers the area of 5000 square meters. In 2015, we have our agency in India, Nigeria, Thailand, Morocco and Algeria.
In 2016, Keysong cooperated with Shandong Liwei Microwave equipment, started researching on food microwave drying technology. In August, 2016, Keysong build a team, concentrating on researching on the technology of vegetables and fruits washing, cutting, drying and freezing. And has received great results till now.
Customers:

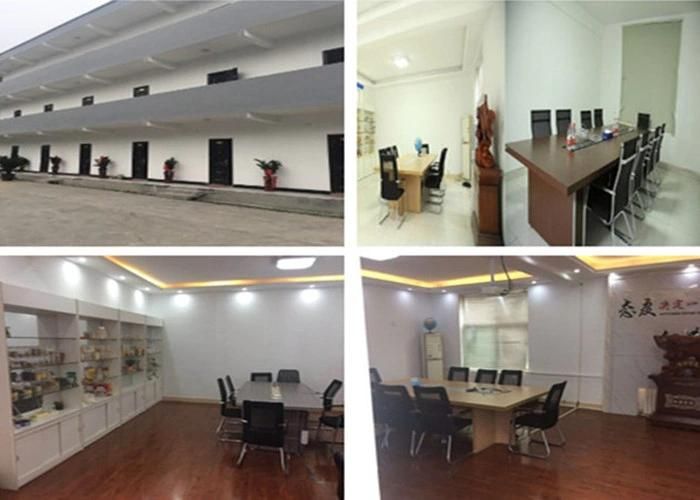

Factory office:



Our certificates:



 About us & more details:

MOQ	1 set
Supply Ability	20 sets per Month
Shipping port	Qingdao port, Shandong, China
Packing details	Fumigation-free wooden case outside, stretch film inner
Relevant spare parts	free, delivery with processing line
Guarantee	Within 12 months
Oversea service	Provide installation and commissioning after machine arrived your factory
Payment terms	30% is paid by T/T as the down payment, 70% is paid by T/T or L/C before shipment.
Delivery time	30 days after receipt the deposit
Pre-shipment	When it finished, we will invite you to our company to inspect machines, when no problem, we will arrange the shipment

FAQ:
1. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL/TNT, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2. How long is the delivery time?
For standard machines, it would be20-30 days; For non-standard machines and customized machines according to client's specific requirements, it would be 30-45 days.
3. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4. How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading
