• Model NO.：KS 100
• Customized：Customized
• Condition：New
• Materials：304 Stainless Steel
• Applicationd：Chips
• Weight：2000kg
• Name：Potato Chips Machine
• Working：Automatic
• Inverter：Delta Inverter
• Size：18000*2000*4000mm
• Electric Parts：Chint
• Transport Package：Wooden Case
• Specification：40000*5000*3000mm
• Trademark：KS
• Origin：Shandong China
• HS Code：8438800000
• Production Capacity：50sets,Month

Basic Info.

Model NO. KS 100 Customized Customized Condition New Materials 304 Stainless Steel Applicationd Chips Weight 2000kg Name Potato Chips Machine Working Automatic Inverter Delta Inverter Size 18000*2000*4000mm Electric Parts Chint Transport Package Wooden Case Specification 40000*5000*3000mm Trademark KS Origin Shandong China HS Code 8438800000 Production Capacity 50sets/Month

Product Description

 Automatic Banana Slice /Potato Chips /Frozen French Fries Machine Production Line

Brief introduction- potato chips production line

(1)  potato chips production line is one of popular world-wide leisure foods.

(2) It's not only rich in resource ,but also high nutritional value,deeply welcomed by consumers.

(3) It is one kind of old and young suitable leisure food, It includes important value protein for human body.

(4) Also includes the massive inorganic slat, like phosphorus, iron and so on as well as regenerative and so on 16 nutrition ingredients.

(5) Our company develops potato chips production line , has the simplicity of operator, automaticity is high, waste material rate low and so characteristics.

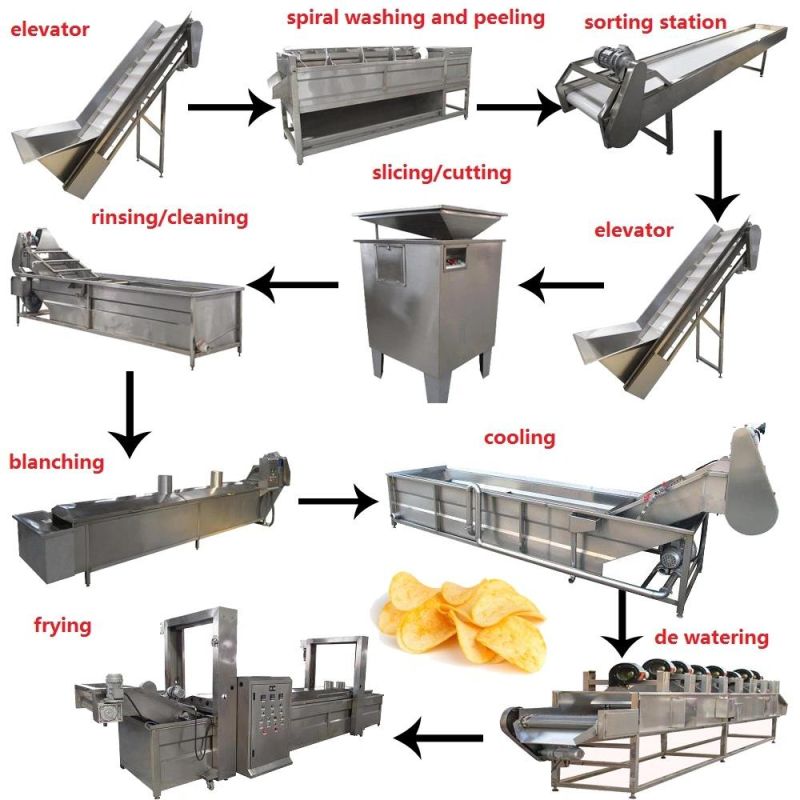

Flow chart

Fresh potato → Washing & Peeling → Cutter → Washing → Blanching → Drying → Frying → Flavoring→ Weighing → Packing





Equipment list and function


1.	elevator	An elevator is used for transmitting large quantity of potatoes into the feeder.

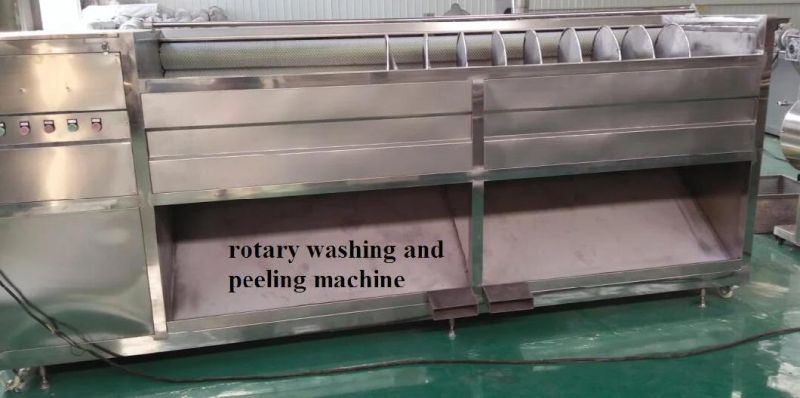

2	Washing and peeling machine	peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely.
3.	Sorting/inspection station	pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.
4.	Hoister with water sprayer	preclean potato, soften the potato skin, then hoist potatoes into washing and peeling machine.
5.	Chips slicer/cutter	cut potato into sticks, French fries quality depends on fries length and shape, so cutting machine is very important.
6.	Cleaning/Rinsing machine	washing potato starch and protect potato from oxidation, keep its original color.
7.	Blanching machine	deactivate the activity of the oxidize, take off the starch, separate out the reducing sugar, also after blanching, it will get inner soft taste of French fries.
8.	vibrator	remove water. Also have many holes at the end of machine to leak out small part and waste part potato.

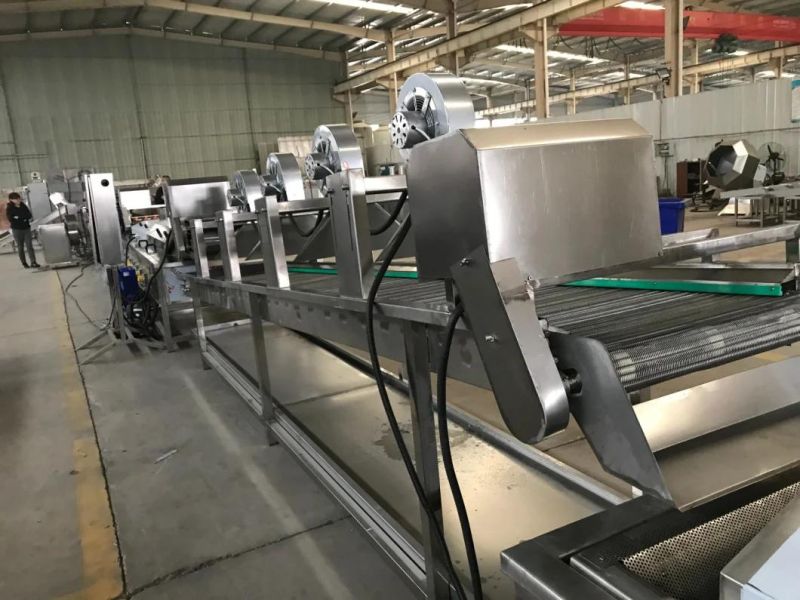

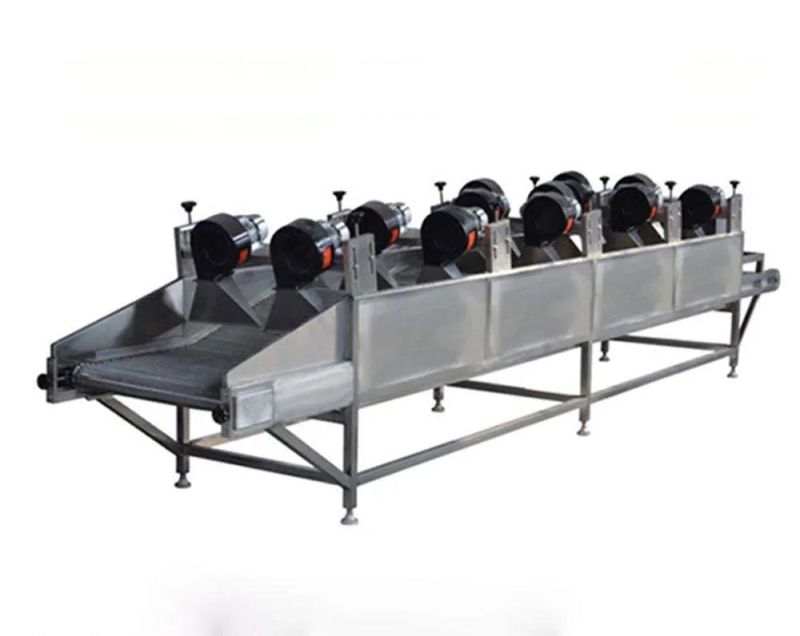

9.	air drying machine	Remove surface water of the chips, sticks, or French fries.

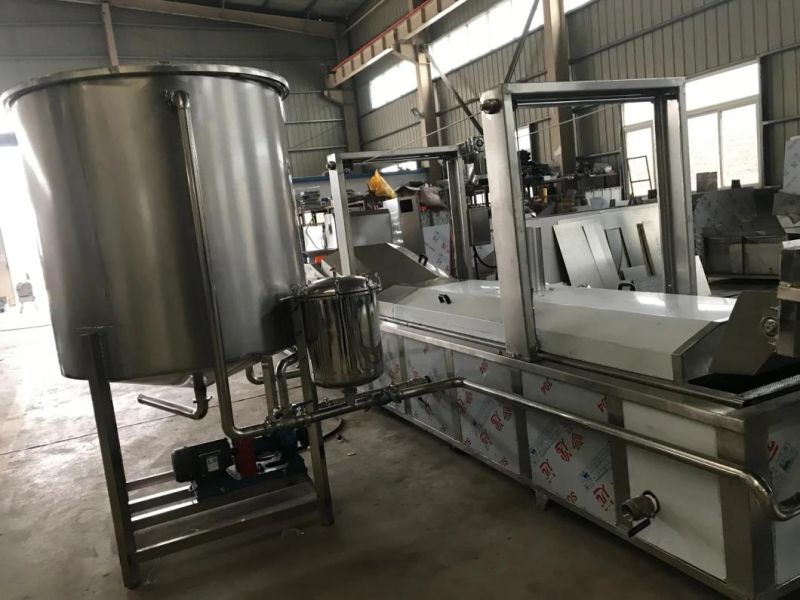

10.	Continuous frying machine	Frying the chips, sticks, or French fries.
11	vibrator	Remove surface oil of the fried chips, sticks or french fries and leak out small fried part.
12	De oiling machine	Remove oil of fried chips, sticks or french fries.

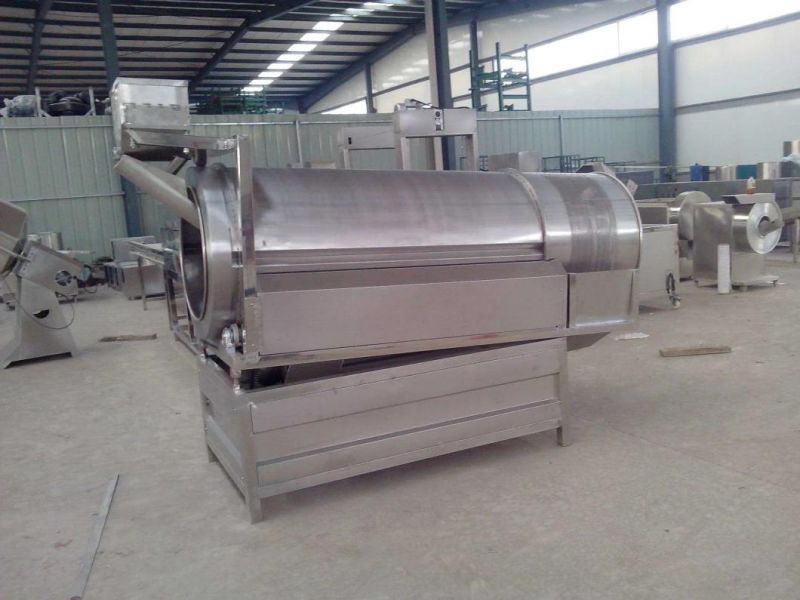

13	Flavoring system	Flavor the fried chips, sticks, or French fries with different flavors.
14	Automatic packing machine	Packing the chips, sticks, or French fries.

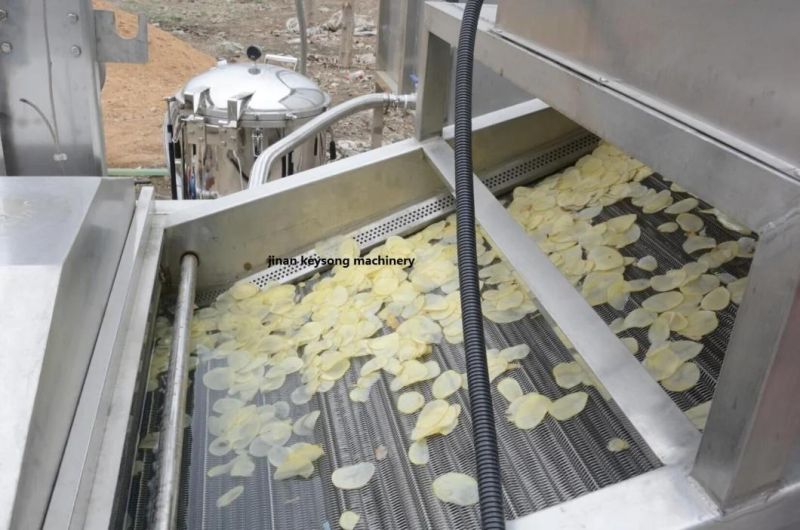

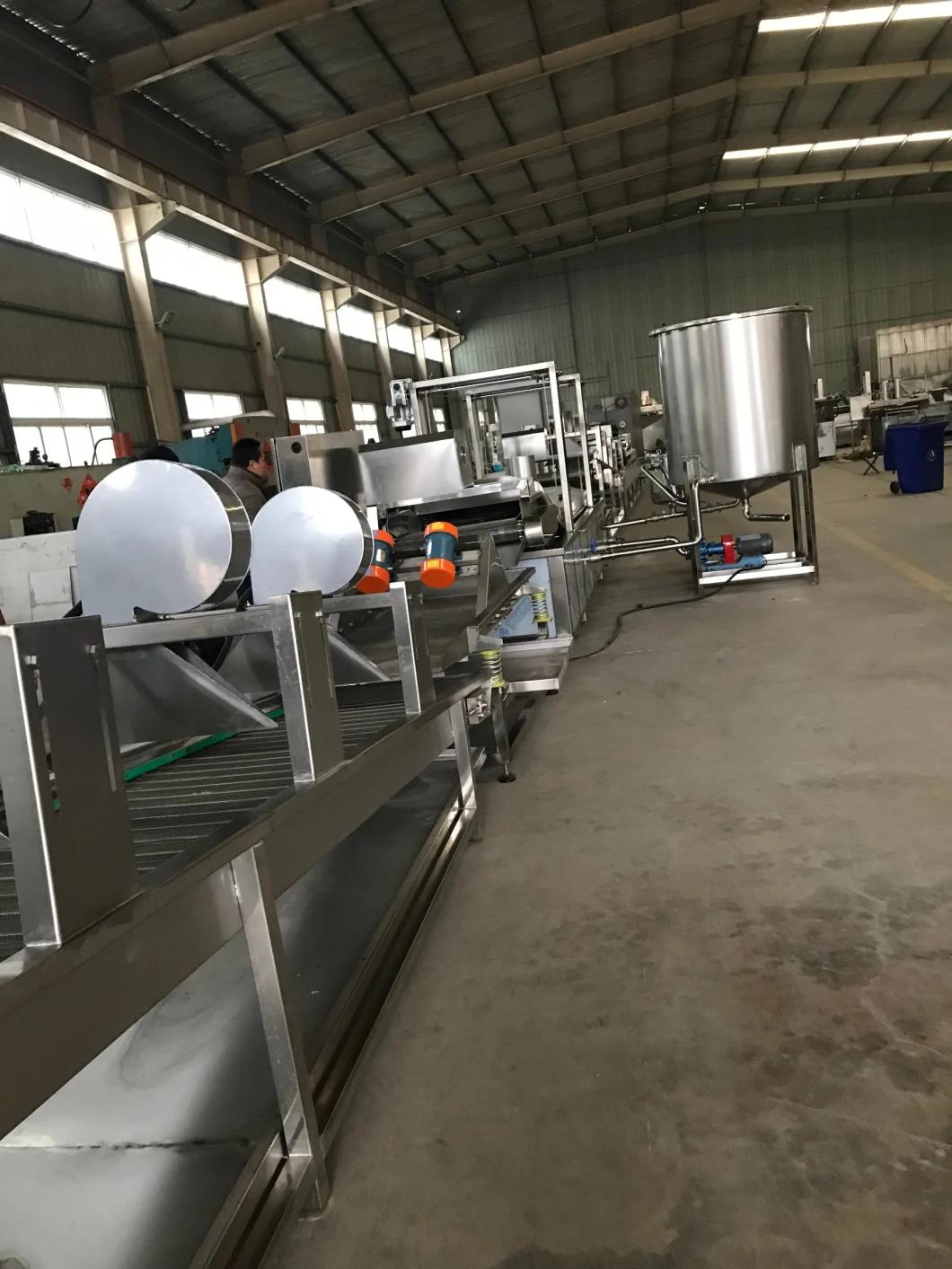

Detailed pictures








Finished products

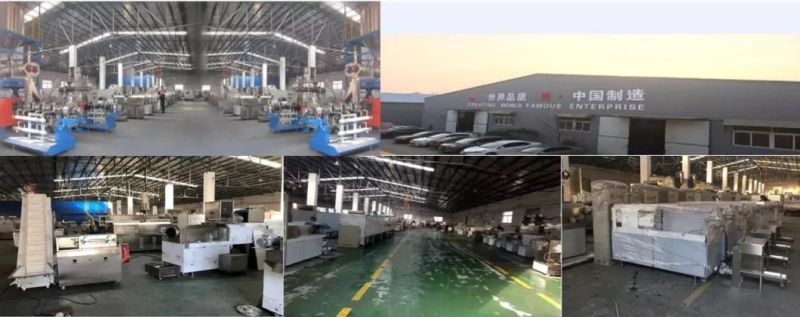

Our company

About Nolen Machinery

Jinan Nolen Machinery Co., Ltd was founded in 2013, it is located at Jiyang Economic Development Zone. Since its inception, it is specializing in the manufacture, research, development, sales and after-sales of food extrusion machine, puffed food production line, fruit and vegetable washing and drying processing line.

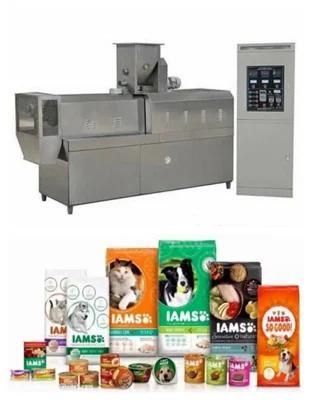

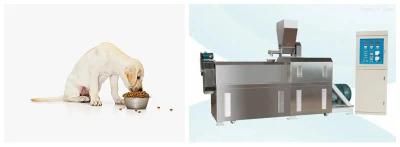

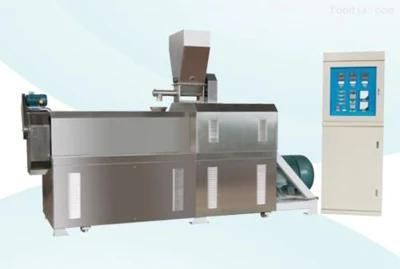

Puffed food equipment: food extruder, twin screw extruder, single screw extruder, breakfast cereals/corn flakes production line, fried and baked snacks production line, pet food production line, fish feed production line, textures soya protein production line, modified starch production line, bread crumb production line, laboratory twin screw extruder, nutritional rice production line, etc.

Vegetable washing and drying machinery: brush washing peeler, fully automatic roller cleaning and peeling machine, vegetable and fruit slicer, blanching and pasteurization equipment, vegetable and fruit drying machine, tunnel type dryer.

Our customers



Our service

1. OEM & ODM

2. One year guarantee and life-time maintenance service.

3. Consultation service before, during, and after sales.

4. Provide factory layout according to your factory size in advance;
5. Provide the basic formula;
6. Debugging of machines until all are functional.

7. Training the customers how to operate and maintain the machines correctly.

8. Offer new product techniques and recipes timely.

Packing and delivery

 •  Inside package is plastic film, outside is wooden or plywood case(based on the customers'

     need).

 •  Only plastic film nude packing with wooden pallet.

 •  We can supply fumigation package and certificate.

 •  Shipping, train, express or upon clients' demands.
