• Model NO.：KS
• Transport Package：Wooden Case
• Trademark：KS
• Origin：Shandong, China
• HS Code：8438800000
• Production Capacity：50 Set,Month

Basic Info.

Model NO. KS Transport Package Wooden Case Trademark KS Origin Shandong, China HS Code 8438800000 Production Capacity 50 Set/Month

Product Description

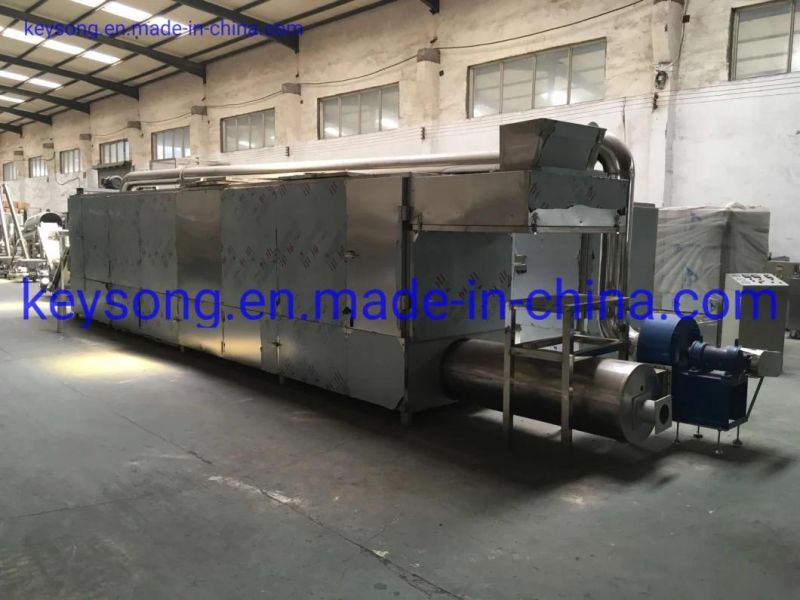

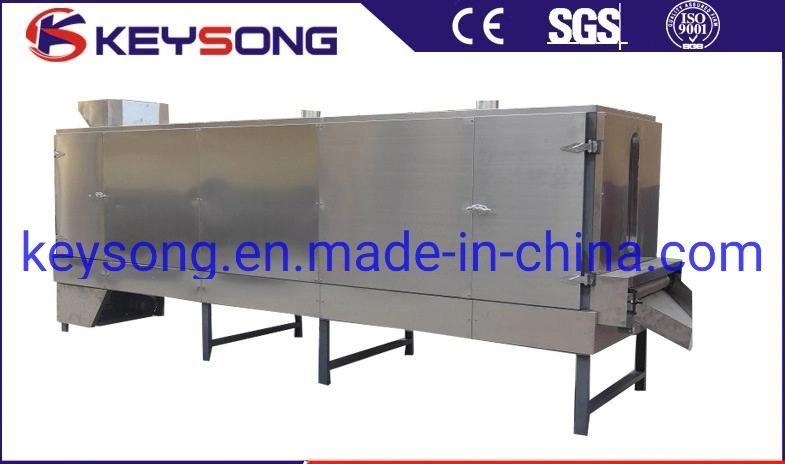

Cost Saving Conveyor Mesh Belt Dryer for Fruit/Vegetable and Food


Specifications- Fruit Vegetable Food Dryer
1. Food Grade Stainless Steel
2. sterilizing /keeping fresh
3. energy saving and efficient
4. CE, ISO9001

1. Introduction
        This machine fit for drying and sterilizing powered ,granular, sheet-like or gel-like food ,and  additive, flavoring, medicine, raw material of herbal medicine, nutritional health products, agriculture & sideline products, non-fried(or oil-saving)instant noodles, noodles, rice powder noodles, soy products, beef  jerky, preserved meat, dried fish ,tea, tobacco and so on; and for drying, peeling and baking  almond, peach kernel, groundnut kernels, chestnut and so on; and for puffing of leisure food ,pachyrhizus chips, potato chips, dried shrimps, fish maw and so on; and for sterilizing and oral liquor, pickles, a variety of small packaging food ;and for drying beans; and for thawing the frozen fish ,poultry; and for drying and desulfurating and deoxidizing the metallurgical chemical products; and for drying printing and dyeing products, ceramics, glass, chemical fiber, cotton yarn, wood, leather, bamboo products, insulation materials,  building materials, cork,  alveolate cardboard, corrugated ,and so on.



2. Technical information:

NO.	NAME	SPECIFICATION
1	Electric Oven (5 meters long with 3 layers)	Driving power: 0.75kw Electricity elements power: 28kw Capacity: 100-300kg/h Size: 5000*1300*1900
2	Electric Oven  (5 meters long with 5 layers)	Driving power: 3.5kw Electricity elements power: 45kw Capacity: 100-300kg/h Size: 5000*1300*1900 Double mesh belt: 1 meter wide. Belt speed adjusted by inverter. Temperature: 40-180 degrees Celsius automatic controlling. Silicate insulation material. Bottom equipped with sliding tray to conveniently clean the dregs. 380v,50hz,3 phase Using SIEMENS brand inverter for conveyor speed control.
3	Electric Oven  (8 meters long with 5 layers)	Power: 3.5kw Heating power: 50kw Capacity: 120-270kg/h Size: 8000*1300*2000 SS belt  Removing the moisture from the wet food  Using blower for hot air circulation
4	Electric Oven  (11 meters long with 5 layers/9meters long with 7 layers)	Driving power: 5.5kw Capacity: 100-300kg/h Size: 9000*1300*2500  Double mesh belt (made of stainless steel) Using a sole control cabinet controlling temperature
5	Gas-powered Oven (5 meters long with 3 layers)	Driving power: 0.75kw Electricity elements power: 28kw Capacity: 100-300kg/h Size: 5000*1300*1900
6	Gas-powered Oven (5 meters long with 5 layers)	Driving power: 3.5kw Electricity elements power: 45kw Capacity: 100-300kg/h Size: 5000*1300*1900 Double mesh belt: 1 meter wide. Belt speed adjusted by inverter. Temperature: 40-180 automatic controlling. Silicate insulation material. Bottom equipped with sliding tray to conveniently clean the dregs. 380v,50hz,3 phase Using SIEMENS brand inverter for conveyor speed control.
7	Gas-powered Oven (8 meters long with 5 layers)	Power: 3.5kw Heating power: 50kw Capacity: 120-270kg/h Size: 8000*1300*2000 SS belt  Removing the moisture from the wet food  Using blower for hot air circulation
8	Gas-powered Oven (11 meters long with 5 layers/9meters long with 7 layers)	Driving power: 5.5kw Capacity: 100-300kg/h Size: 9000*1300*2500  Double mesh belt (made of stainless steel) Using a sole control cabinet controlling temperature
9	Oil-powered Oven (5 meters long with 3 layers)	Driving power: 0.75kw Electricity elements power: 28kw Capacity: 100-300kg/h Size: 5000*1300*1900
10	Oil-powered Oven (5 meters long with 5 layers)	Driving power: 3.5kw Electricity elements power: 45kw Capacity: 100-300kg/h Size: 5000*1300*1900 Double mesh belt: 1 meter wide. Belt speed adjusted by inverter. Temperature: 40-180 degrees Celsius automatic controlling. Silicate insulation material. Bottom equipped with sliding tray to conveniently clean the dregs. 380v,50hz,3 phase Using SIEMENS brand inverter for conveyor speed control.
11	Oil-powered Oven (8 meters long with 5 layers)	Power: 3.5kw Heating power: 50kw Capacity: 120-270kg/h Size: 8000*1300*2000 SS belt  Removing the moisture from the wet food  Using blower for hot air circulation
12	Oil-powered Oven (11 meters long with 5 layers/9meters long with 7 layers)	Driving power: 5.5kw Capacity: 100-300kg/h Size: 9000*1300*2500  Double mesh belt (made of stainless steel) Using a sole control cabinet controlling temperature

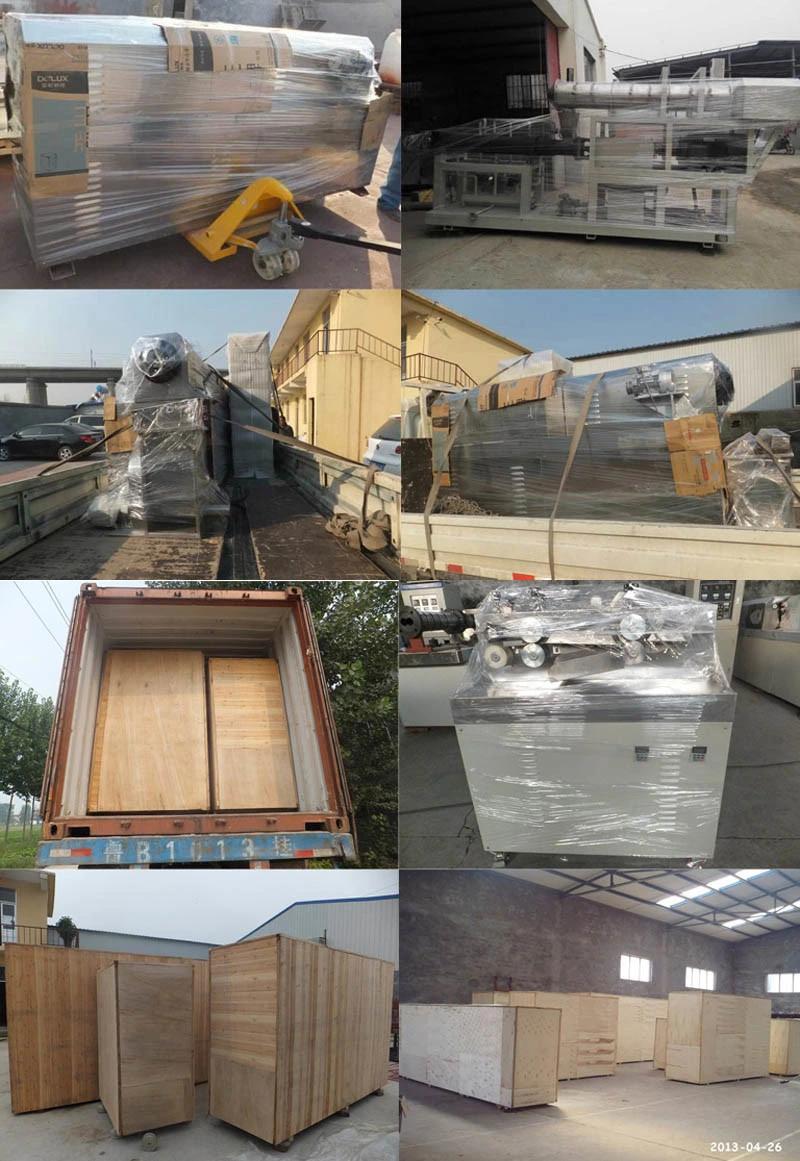

3.Package and shipping
          Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottomWith this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.



Competitive Advantages
1. Guaranty: at least One Year.
2. One set of consumable accessories will be provided with the machine.
3. Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.
4. All spare parts are always available for delivery.
5. Manual is in English.
6. Minimum order: 1 set
7. Prompt Delivery: 15-20 working days after receiving deposit
8. Installation: sending one technician to the customer's factory for installation and training.
9. Packaging: firstly packing with plastic inner side, then strengthening with wooden case outside.

Service
Our engineer would go to buyer's place to install the machine, when the equipment arrived at buyer's place.
1). At least 1 year from the date of completion of the commissioning.
2). Free consultation service before, during, and after sales;
3). Free project planning and design services;
4). Free debugging of equipment until everything is functional;
5). Free management of equipments long distance shipping;
6). Free training of equipment maintenance and operating personally;
7). Free new production techniques and formulas;
8). Provide 1 year complete warranty and life-time maintenance service;

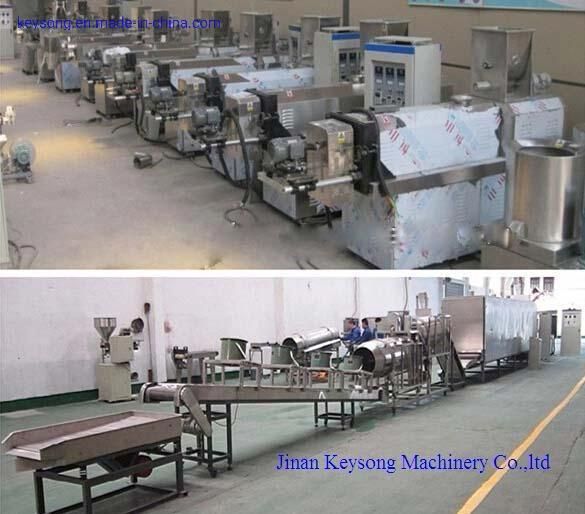

Company





Customer



FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are the manufacturer, with almost 10 years of experience in this industry.
 2. Q: How can I get to your company?
A: That's great you can visit our factory, welcome! You can get a flight to Jinan Airport. Our factories are just about 30 minutes drive away from Jinan Airport.We are so glad to arrange our car pick you up!
3. Q: How long is your guarantee?
 A: One year(Calculated from the equipment arrives the customer's side.)  After this period we will definitely support you when needed.
 You will be welcome to contact us with any problem may happened.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer.Or you can get local contractors to do the commissioning and we send one supervising engineer.
